SERIAL ............................

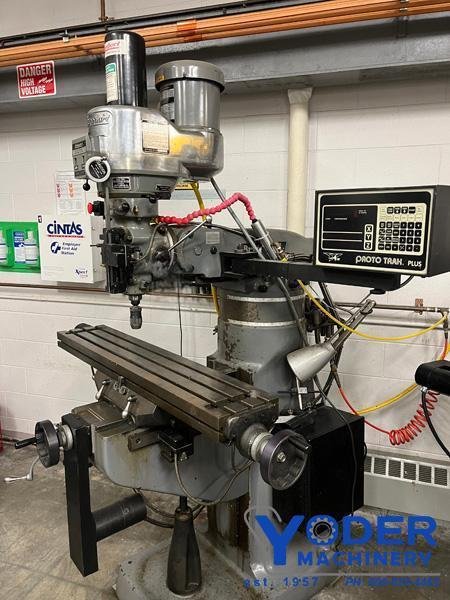

MODEL ............................. PROTO TRAK PLUS

AREA OF TABLE ..................... 48" X 9"

SPINDLE SPEEDS, VARIABLE .......... 60 TO 4200 RPM

POWER LONGITUDINAL FEED ........... 3/4 TO 35 IPM

POWER QUILL FEED .................. .0015 TO .006 IPR

LONGITUDINAL TABLE TRAVEL ......... 36"

CROSS TRAVEL ...................... 12"

VERTICAL TRAVEL OF KNEE ........... 16"

QUILL TRAVEL ...................... 5"

HORIZONTAL TRAVEL OF RAM .......... 12"

DEPTH OF THROAT ................... 6-3/4" MINIMUM, 18-3/4" MAXIMUM

TAPER IN SPINDLE .................. R-8

HEAD TILTS, FORWARD/BACKWARD ...... 45 DEGREE

HEAD TILTS, LEFT/RIGHT ............ 90 DEGREE

DIGITAL READOUTS .................. 3 AXIS

PROTO TRAK ........................ PLUS CONTROL

POWER DRAW BAR .................... YES

1 SHOT LUBE ....................... YES

MOTOR ............................. 2 HORSEPOWER SPINDLE MOTOR
