2017 YAMA SEIKI GTW-1500Y CNC Lathe - 8 Axis, Live Tooling, 5000 RPM

Name: 2017 YAMA SEIKI GTW-1500Y CNC Lathe - 8 Axis, Live Tooling, 5000 RPM
Brand: YAMA SEIKI
SKU: 56207
Availability: InStock

Brand

YAMA SEIKI

Minnesota

CNC Control	yes
Type Of CNC Control	Fanuc 32i-B
Number Of Axes	8 Axes
Number Of Spindles	2
Chuck Size	6 inch
Spindle Nose	A2-5
Max. Turning Diameter	2 inches
Spindle Bore	2.4 inches
Spindle Speed Range	6000 RPM
Gang Tooling System - Stations	8
Live Tools At Gang Tooling System	ER20
Gang Tooling Speed Range	6000 RPM
X1 & X2 Axes Travels	7.1" / 12.2"
Z1 & Z2 Axes Travel	10.5" / 21.6"
X1 & X2 Axes Rapids	708 / 945 IPM
Z1 & Z2 Axes Rapids	1,180 IPM
Y1 & Y2 Axis Travel	+/- 1.4" /9.8"
Y1 & Y2 Axes Rapids	788 / 945 IPM
Live Tooling Turret - Station Number	12
Live Tooling Drive Motor	3.3 HP
Sub Spindle Speed (RPM)	4,000 rpm
Sub Spindle Chuck Size	5"
Sub Spindle Bar Capacity	1.69"
Spindle HP	25 HP

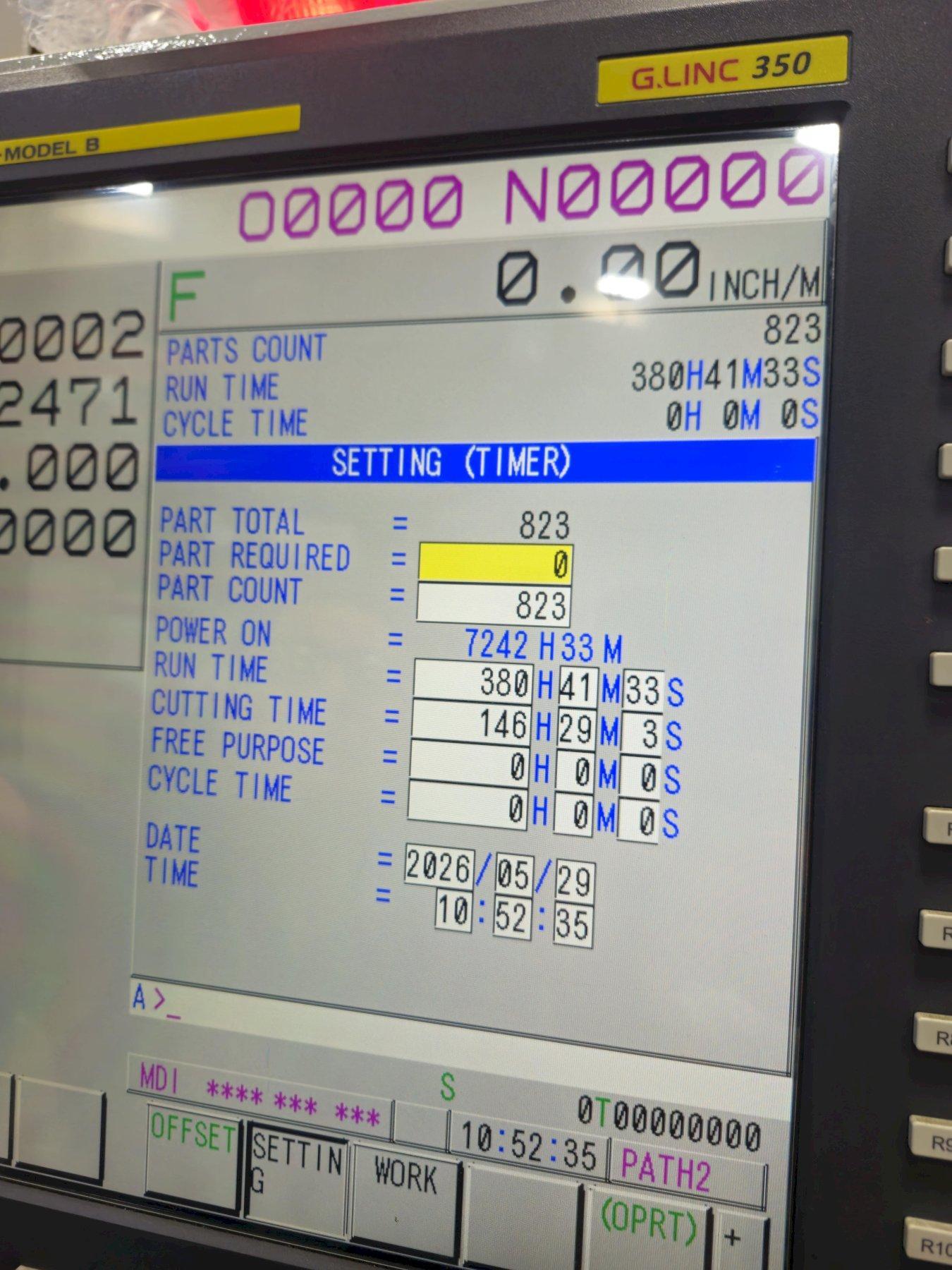

Hours: Power ON	7242
Cutting Time Hours	146
Dimensions	L x W x H - 100.2" x 81.3" x 79.4"
Machine Weight	8800 lbs.
Fanuc 32i-B (G Linc 350) Tool Presetter Parts Conveyor Coolant System High Pressure Coolant Chip Conveyor Tooling - static block and live LNS Quickload Servo S2 Bar Feeder Prepped for Barfeed Manuals
