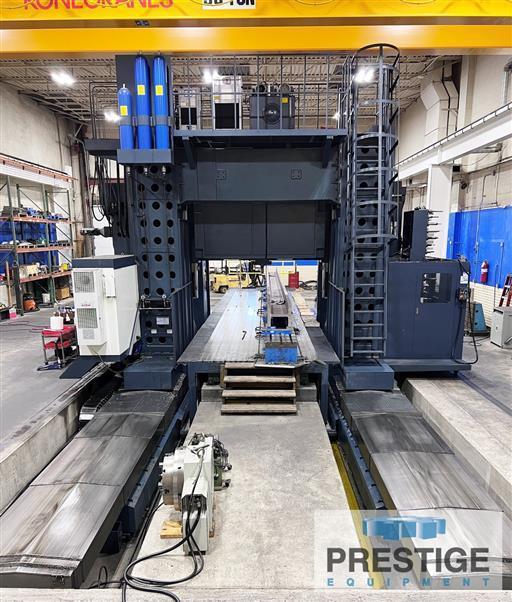

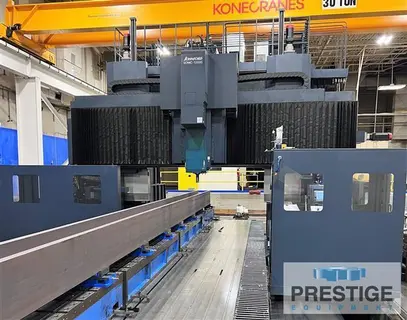

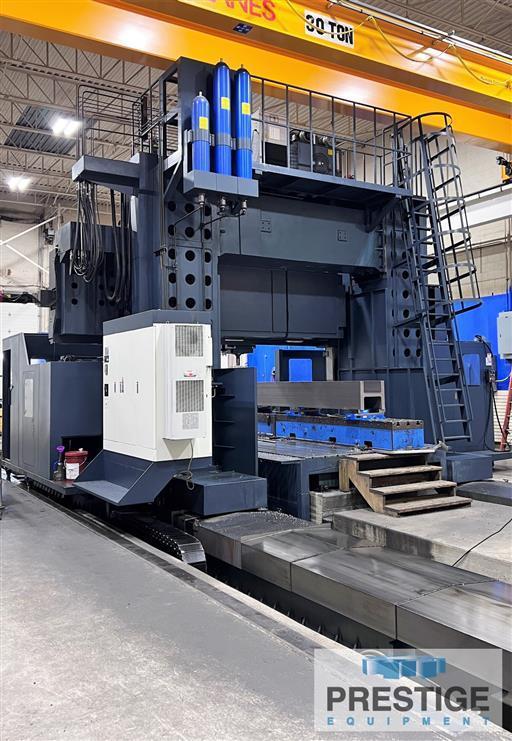

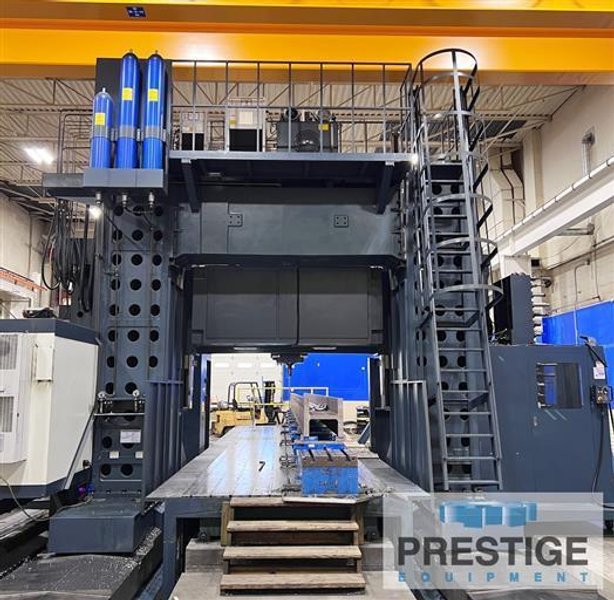

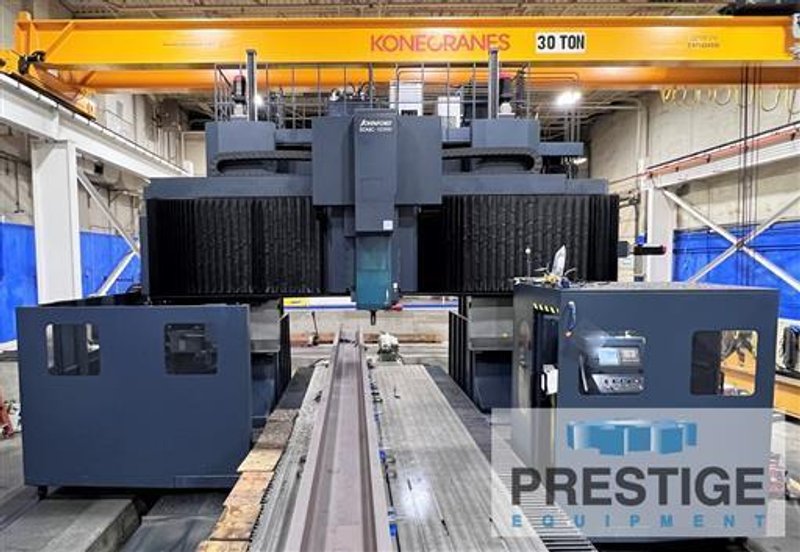

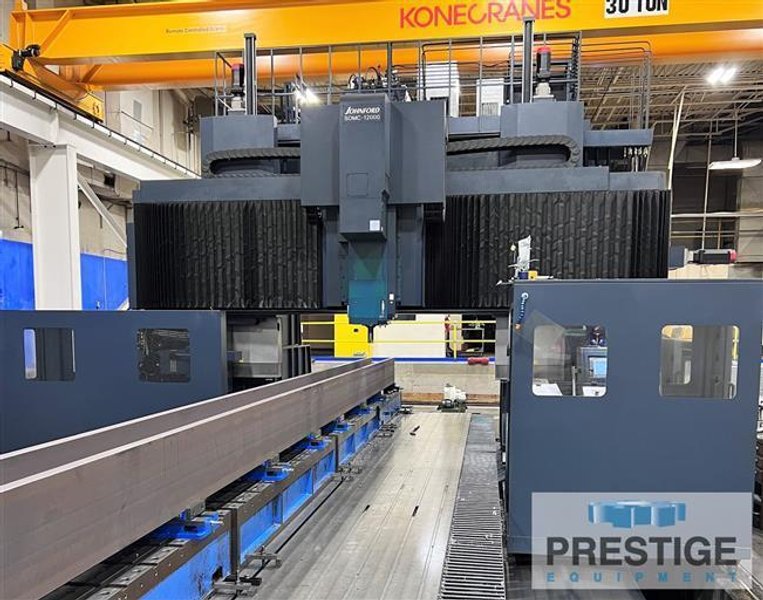

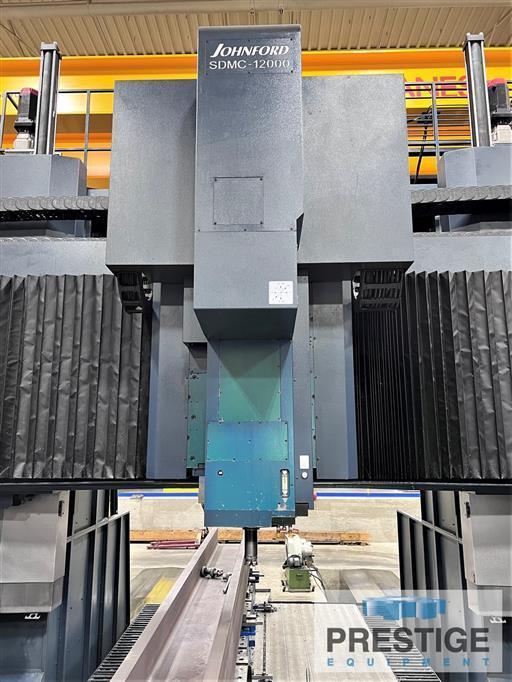

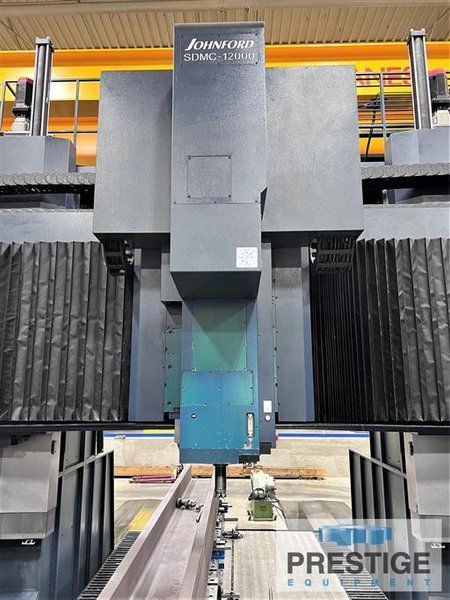

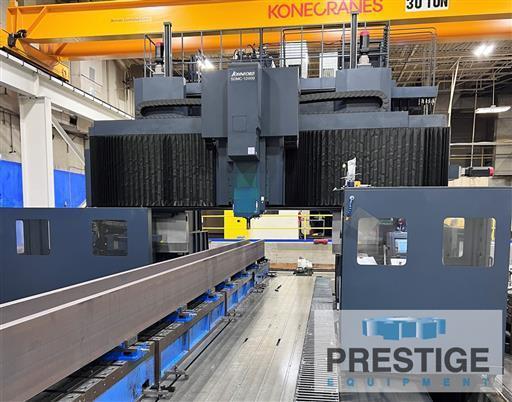

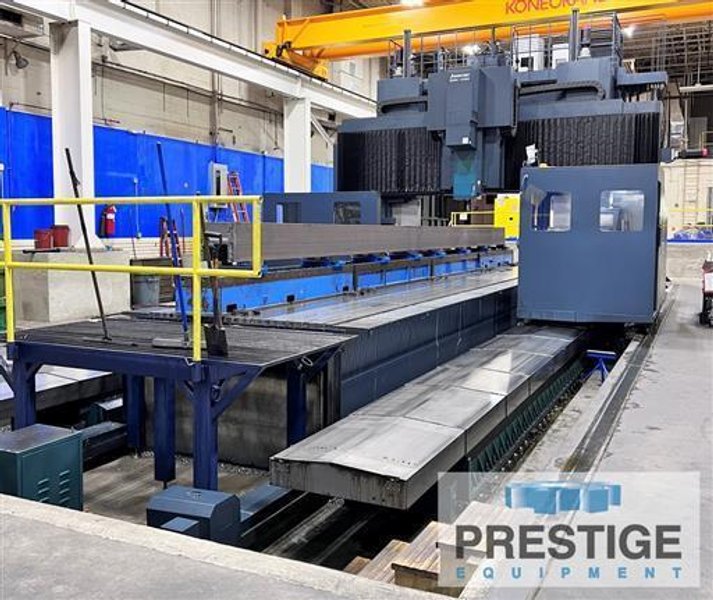

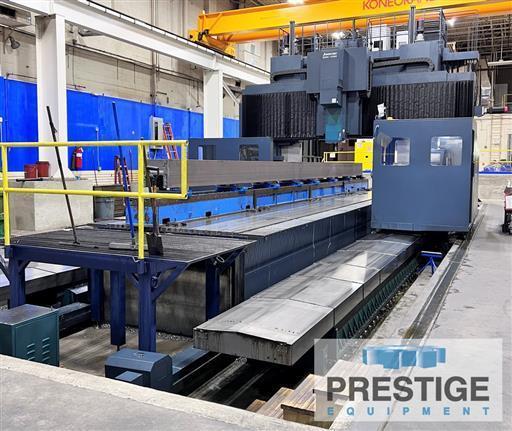

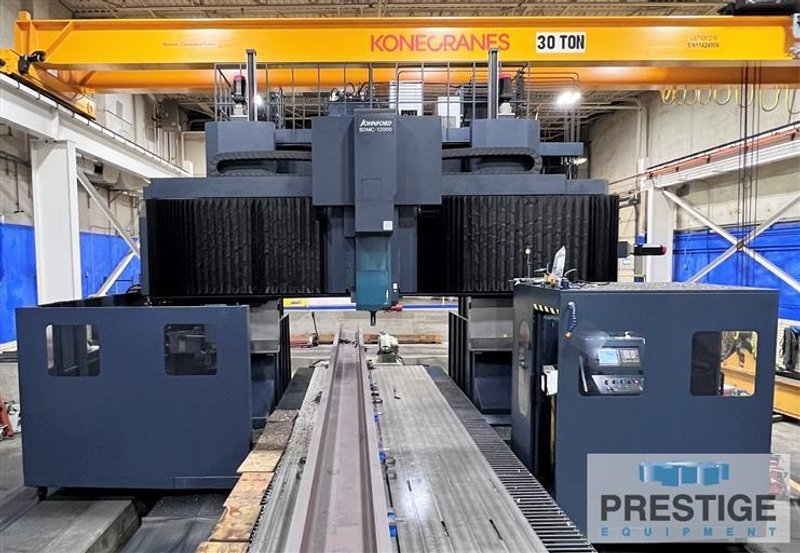

Machining Centers Vertical Bridge Type CNC

Brand
JOHNFORD
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
SDMC 12000 x 2800
Stock #
32073
Year
2017
Condition
Not specified

Location

Not specified
REQUEST FINANCING
CAPACITY:
X-Axis, Longitudinal Gantry Travel 472"
Y-Axis, Head Travel 141.6"
Z-Axis, Ram Vertical Travel 55.1"
Distance Between Columns 120"
Max/Min Height Under Ram 0-97"
Spindle Speeds, 2-Ranges 6,000 RPM
Spindle Motor 35 HP
Spindle Taper #50
Machine Weight 275,000 lbs.



Equipped With:

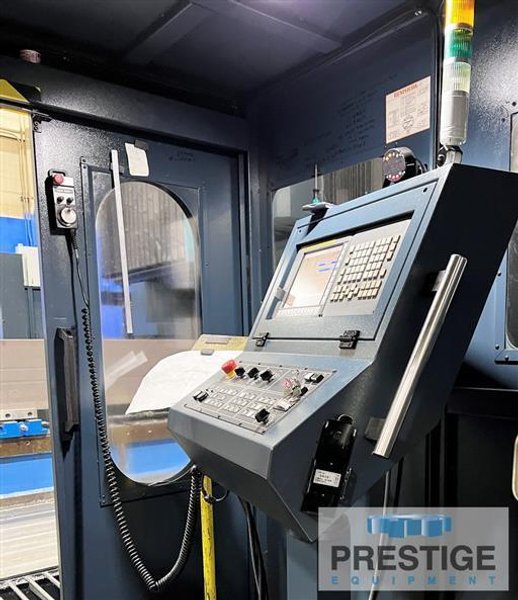

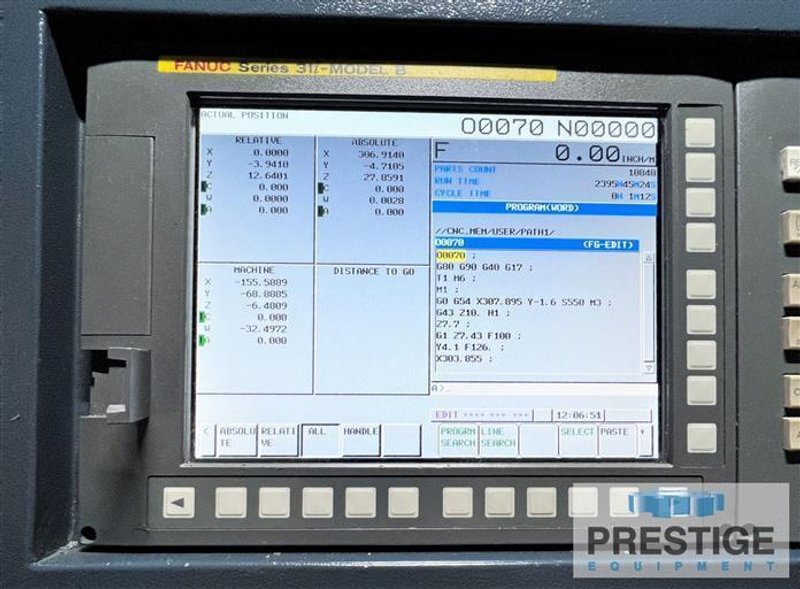

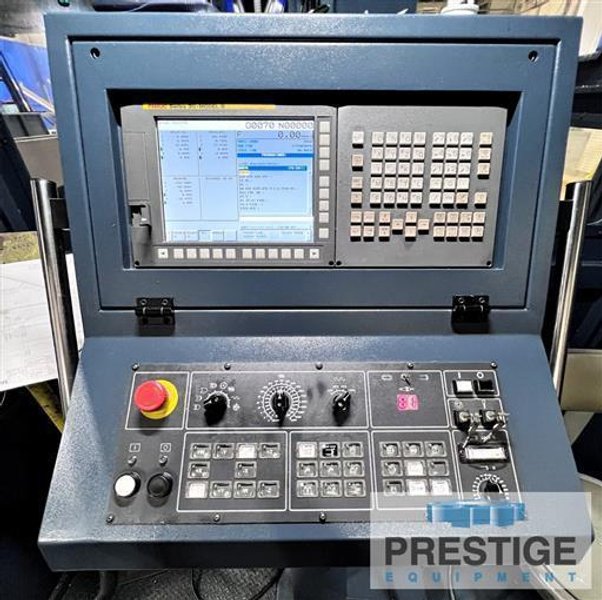

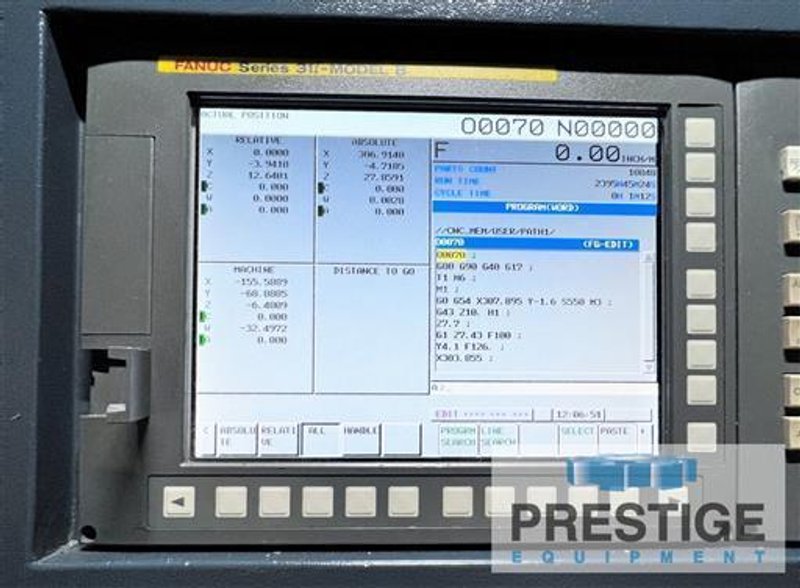

Fanuc 31i 4-Axis CNC Control
Renishaw RTS Radio Tool Setter
Renishaw RMP-600 Radio Part Probe 3-D surfaces
High Speed Machining Function 600 Block Look Ahead

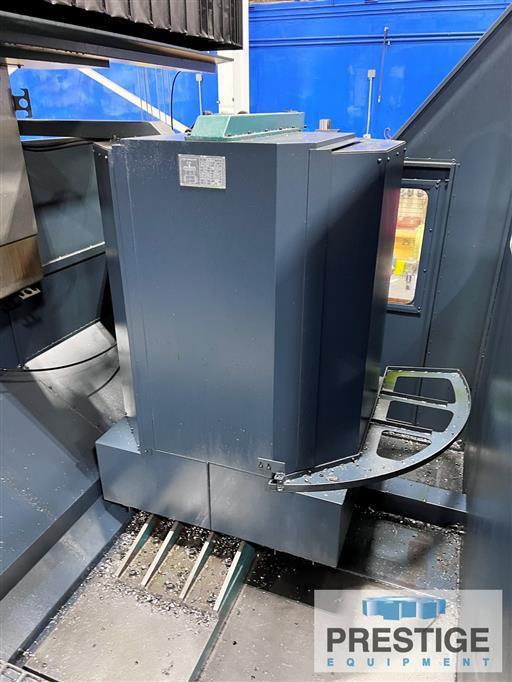

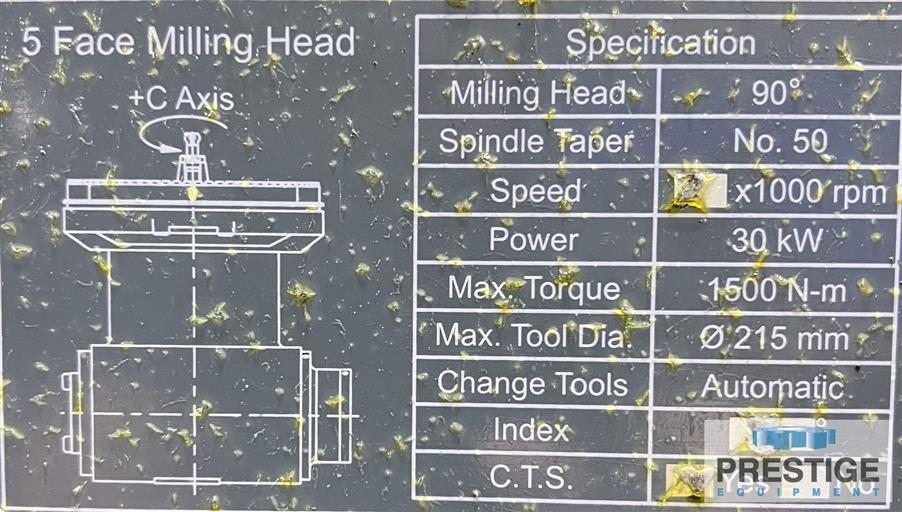

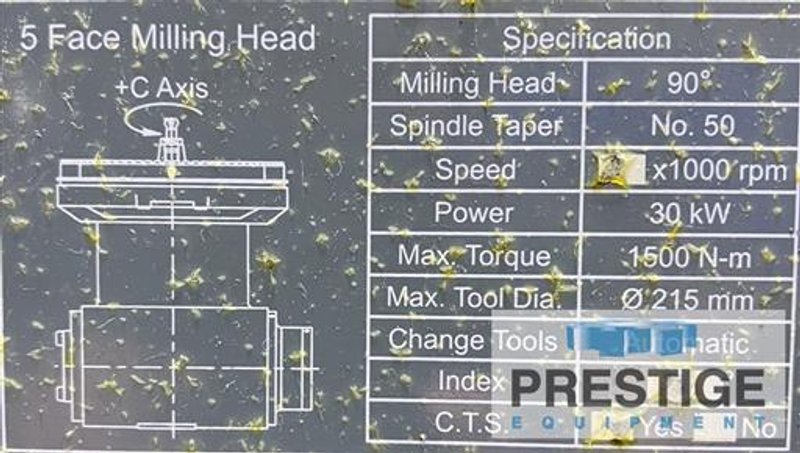

Auto Indexing Right Angle Head
Elevating Rail

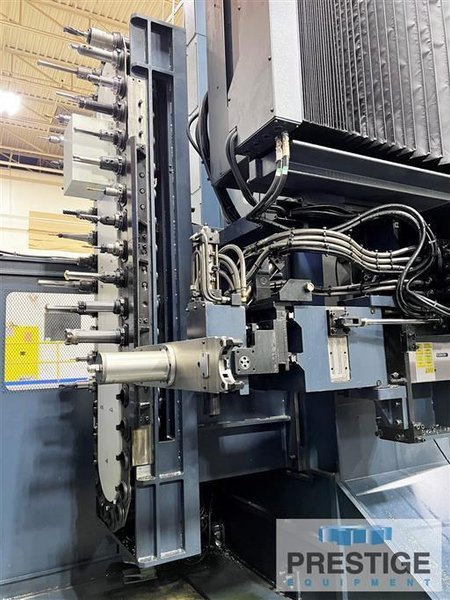

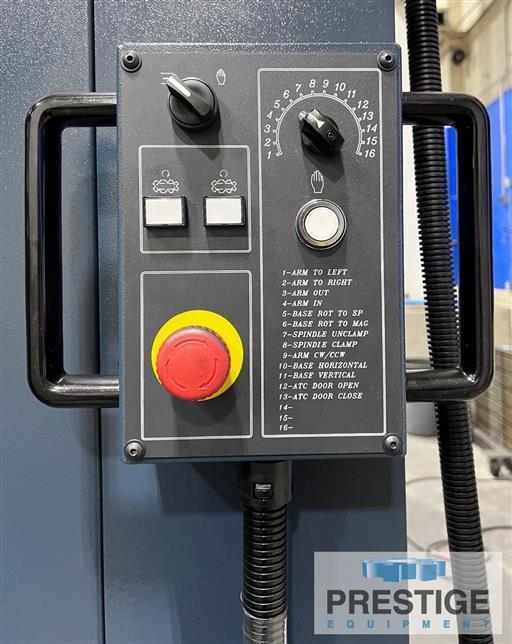

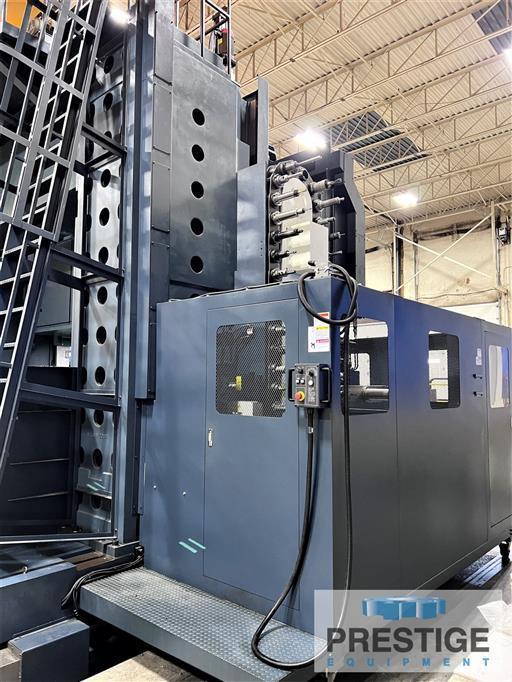

40-Station Automatic Tool Changers

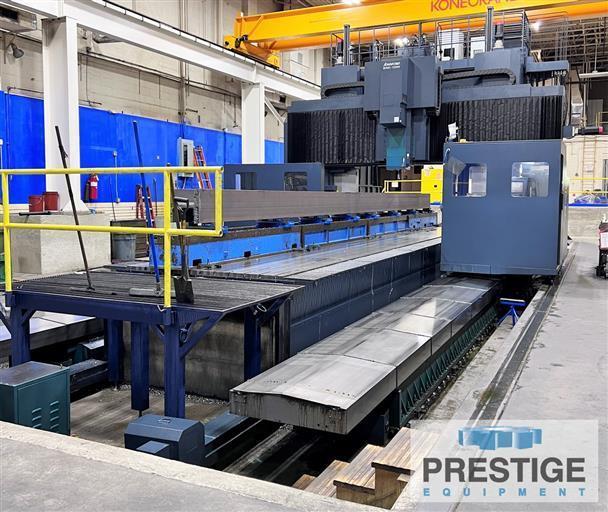

472" x 86.6" T-Slotted Table
High Pressure Coolant thru Spindle 300 PSI
Flood Coolant System with Programmable Air Blast & Air Blast for Spindle
2 Speed Geared Head
Heidenhain Scales on X, Y & Z Axis
Headstock Chiller
