CAPACITIES:
Table Travel, X-Axis 196.85"
Milling Head Travel, Y-Axis............ 127.95" 127.95"
Ram Travel, Z-Axis 39.37"
Head Tilt, A-Axis (Continuous) +100/-90 Degrees
Head Rotation, C-Axis (Continuous) +/- 200 Degrees
Distance Between Columns 98.42"
Table Size 196.85" x 78.74"
Distance, Spindle to Table Surface 9.84"-41.33"
Table Weight Capacity 55,115 Lbs.
Spindle Diameter 3.93"
Spindle Taper BT-50
Spindle Speeds (2-Ranges) 40-4000 RPM
Spindle Drive Motor 29.5 HP
Feed Rate, X/Y/Z Axes .0787-196.85 IPM
Rapid Traverse Rate, X-Axis 283.46 IPM
Rapid Traverse Rate, Y/Z-Axes 472.4 IPM
Approximate Machine Weight 90,000 Lbs.



Equipped With:
Siemens 840D CNC Control
Continuous 2-Axis CNC Milling Head
60 Station Automatic Tool Changer
Manual Jog Pendant


NOTE:

Machine Will Be Fully Mechanically Refurbished at Time of Order Including: -All Mechanical Components
-Inspection of All Electrical Components
-Purchase includes 6-Month Warranty on Mechanical Parts

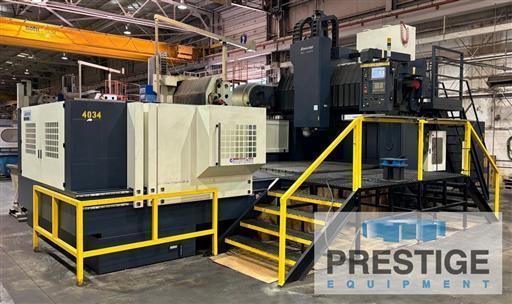

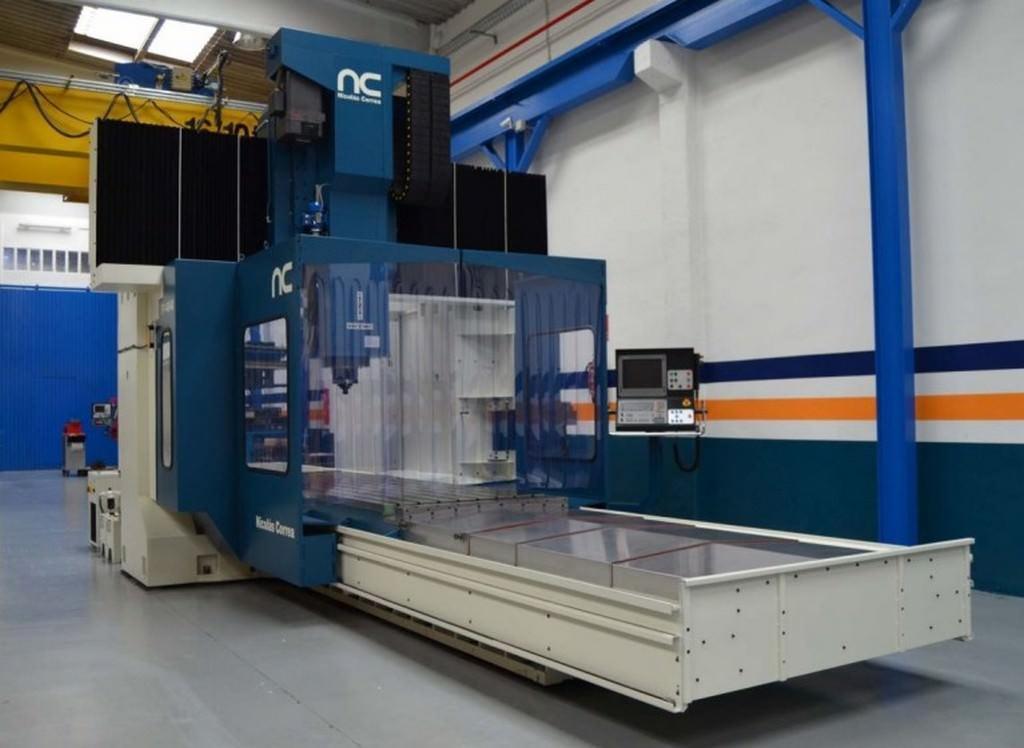

-Photo is a Representative Catalogue Photo, For Advertising Purposes Only
HEIDENHAIN TNC 530 Control can be added for an additional cost.
