SPECIFICATIONS:

Table Size 200.78" x 82.76"
Max Table Load 40,000 Lbs.
Effective Width Between Colums 120.08"
X-Axis Travel 188.97"
Y-Axis Travel 145.66"
Z-Axis Travel 31.5"
W-Axis Travel 39"
Max Distance Spindle To Table Top 0-72.83"
Spindle Speed, Max. 8000 RPM
Number of Speed Ranges 2
Spindle Taper BT-50
Automatic Tool Changer 72 ATC
Automatic Head Changer 2 AAC
Working Feeds 393.7 IPM
Rapid Feeds 590.55 IPM
Main Motor 40 HP
Machine Dimensions 313.8" x 480.3"
Machine Height 269.7"
Machine Weight 127,900 Lbs.

Equipped With:

OSP-P300M CNC Control

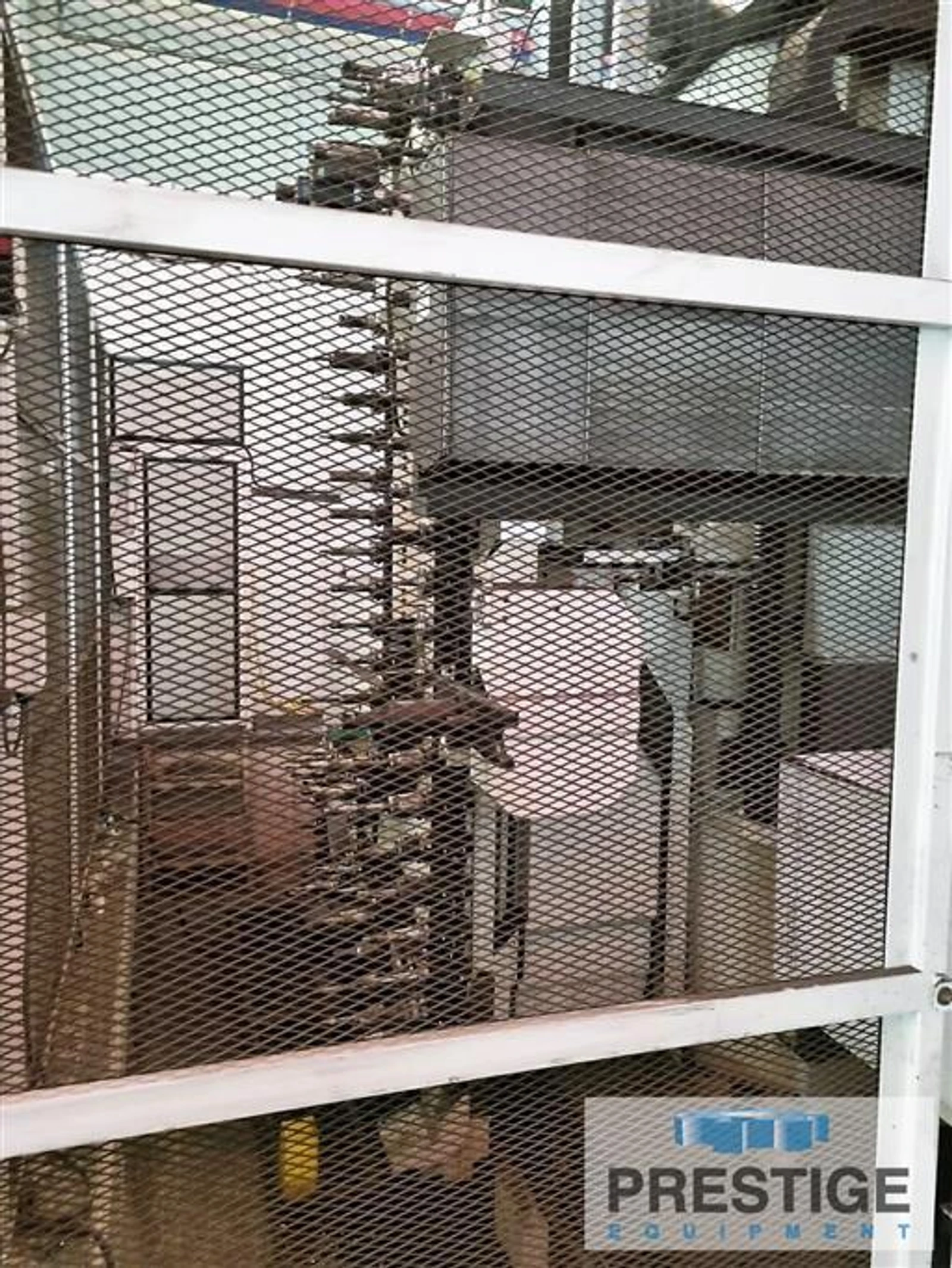

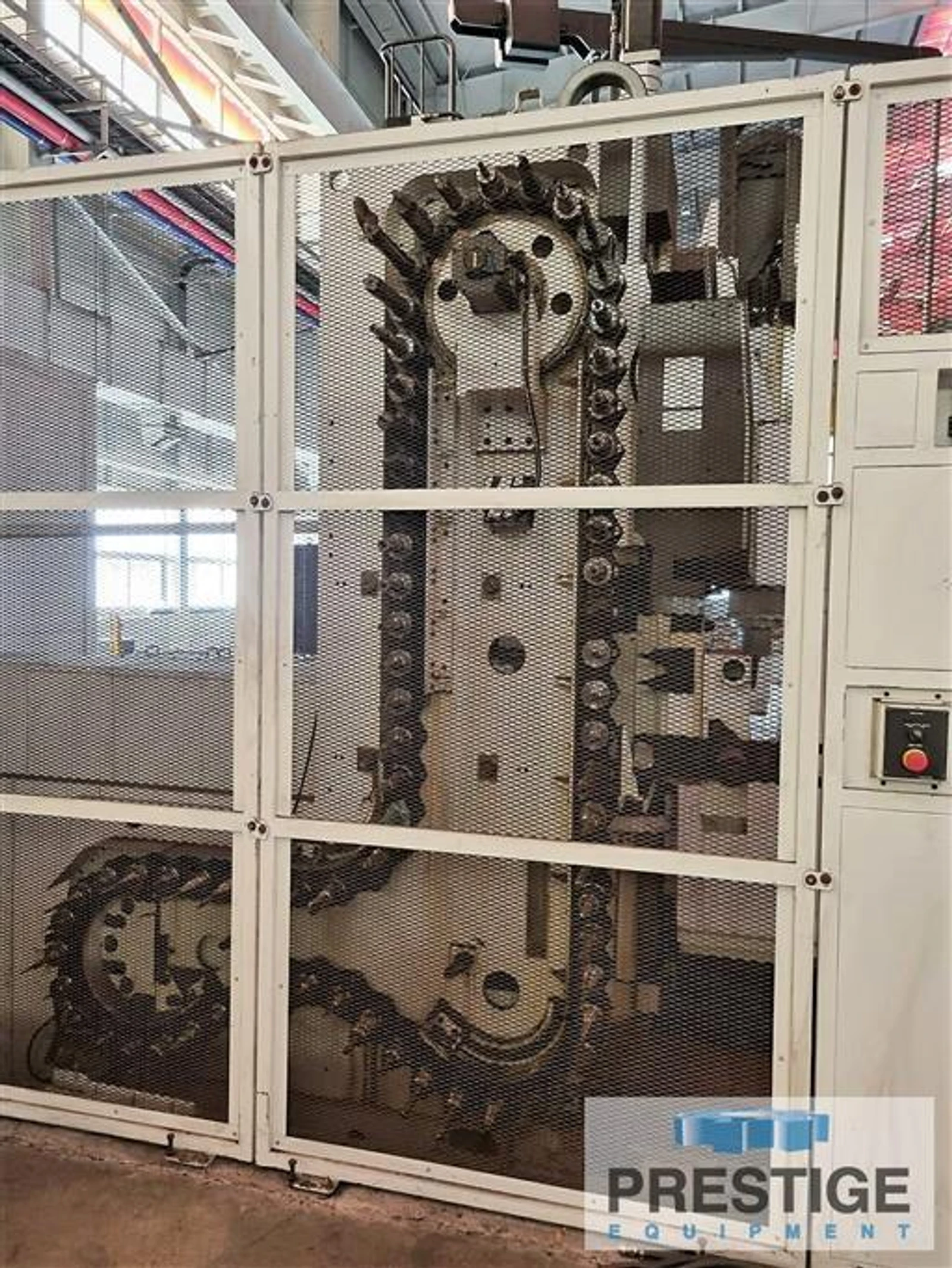

72-Position Automatic Tool Changer

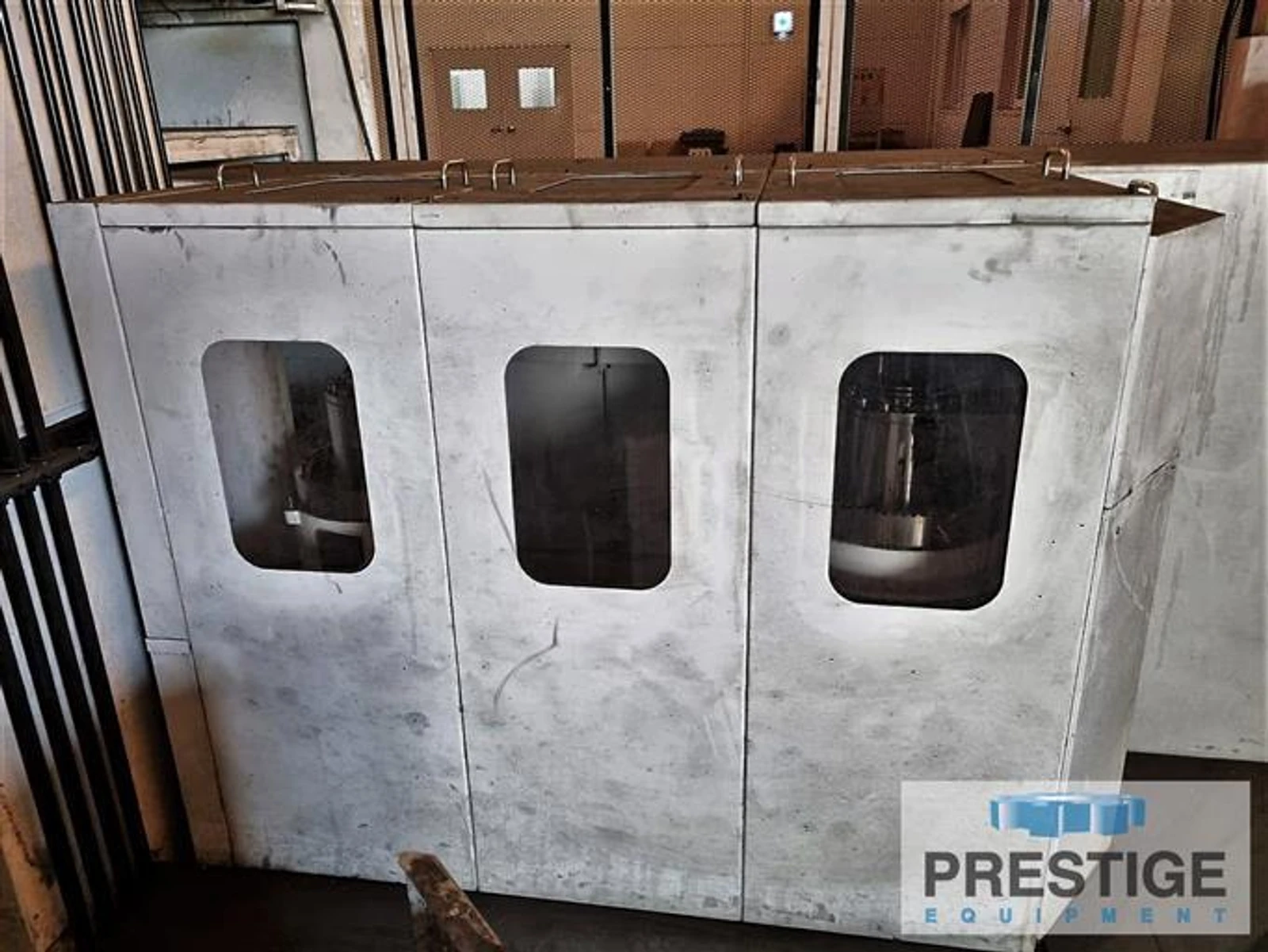

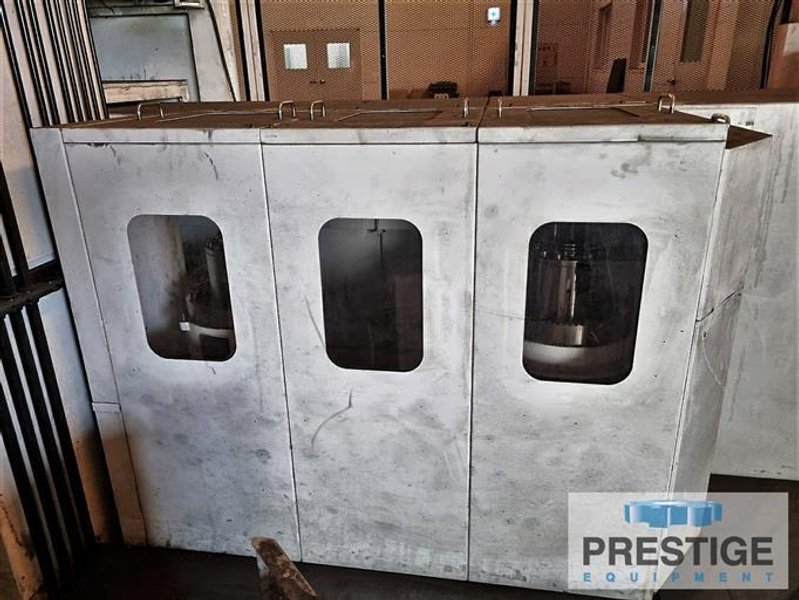

2-Station Automatic Attachment Changer
Scale Feedback System - X,Y,Z
Super-NURBS X,Y,Z,B,C High Speed, High Precision
TAS-S&TAS-T Thermo-Friendly Concept
Tool Breakage Detection
Auto Tool Length Offset For Touch Sensor
Oil Mist

Location:


Under Power In Plant
