SPECIFICATIONS:
Effective Width Between Columns 120.08"
X-Axis Travel 188.97"
Y-Axis Travel 145.66"
Z-Axis Travel 31.5"
W-Axis Vertical Cross Rail Travel 51.18"
Spindle Motor 35 HP
Spindle Speeds 8000 RPM
Number of Speed Ranges 2
Working Feeds 393.7 IPM
Rapid Feeds 590.55 IPM

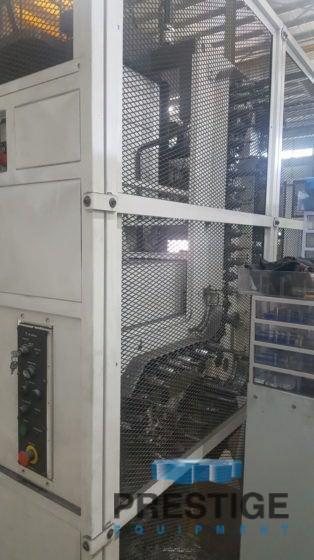

Automatic Tool Changer 72 ATC
Automatic Attachment Changer 4-Stations
Spindle Taper BT 50
Table Size 200.78" x 98.42"
Max. Table Load 26,400 Lbs.
Distance, Spindle To Table Top 0-72.83"
Machine Dimensions 313.8" x 480.3"
Machine Height 269.7
Machine Weight 127,900 Lbs.
AUTOMATIC ATTACHMENT CHANGER (AAC):
4-Station AAC
90-Degree, 3000 PRM, 5-Degree Angle Head
1-Degree B/C-Axis Universal Head
(2) 9.84" 6000 RPM Extension Heads



Equipped With:
OSP 300M CNC Control
72-Position Automatic Tool Changer
4-Station Automatic Attachment Changer
Tool Breakage Detection
Auto Tool Length Offset for Touch Sensor
X,Y,Z-Axis Scale Feedback System
Super-NURBS X,Y,Z,B,C (High Speed, High Precision
-AS-S&TAS-T (Thermo-Friendly Concept)
Oil Mist
