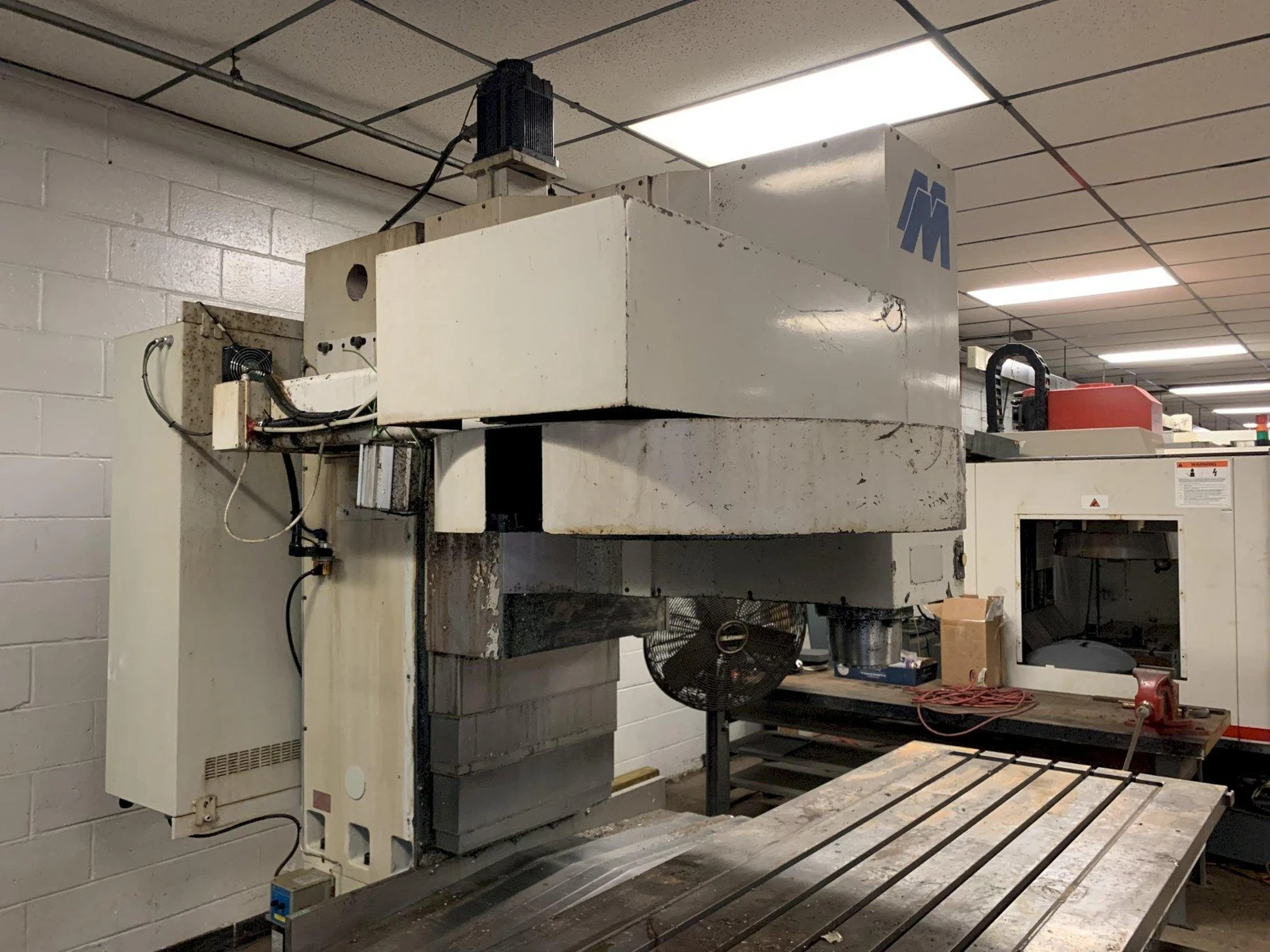

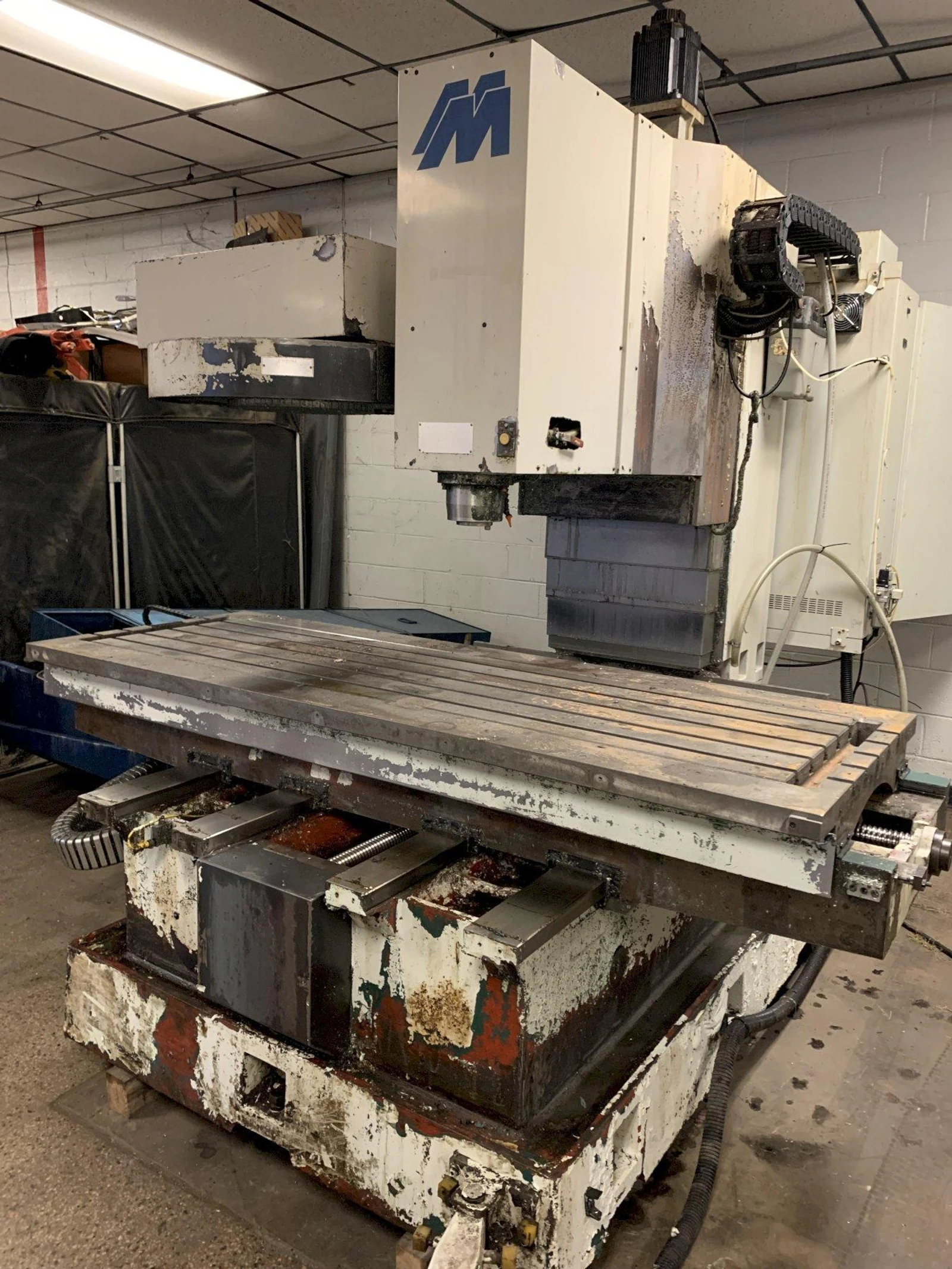

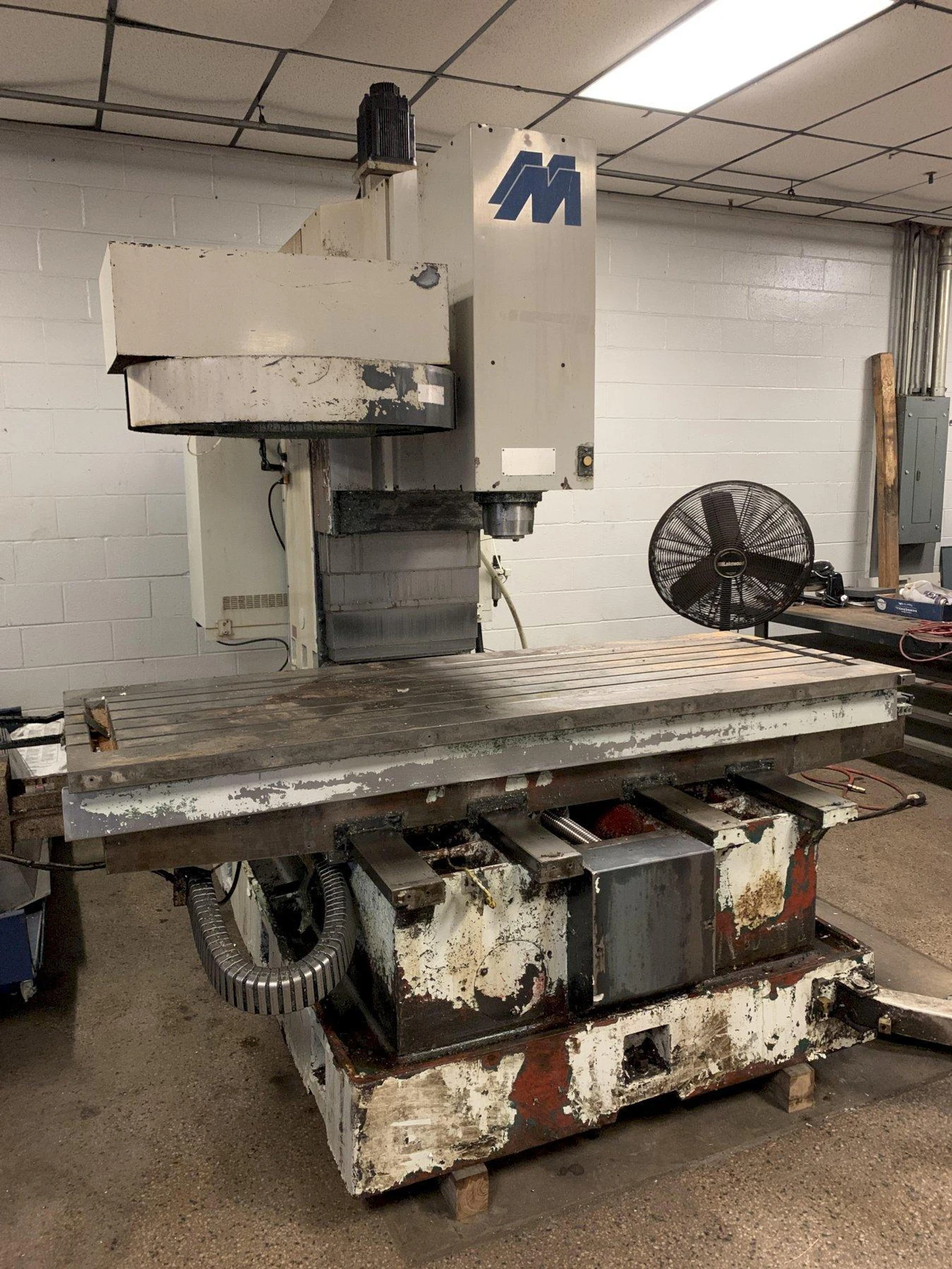

Milltronics RH33 Vertical Machining Center
Brand
Category
Type
Model
RH33
Stock #
34735
Year
2004
Condition
Not specified
Location
Ohio
|
Preliminary Specifications:
Table Size - 86" x 32" Travels (XYZ) - 78" x 33" x 28" Table Weight Capacity - 3500 Lbs. Distance Spindle Nose to Table – 4” to 32” Spindle Taper - CT40 Spindle Speeds - 50 to 8,000 RPM Spindle Motor (1 min / 30 min) - 24/15 HP Rapid Traverse (XY) - 800 IPM Rapid Traverse (Z) - 600 IPM Max Feedrate - 300 IPM ATC Capacity - 24 Pocket Electrics - 3/60/220 V Floor Space Requirement - 222" x 130" Height - 112" Weight, Approx - 15,000 Lbs. Equipped with: Centurion 7 CNC Control Conversational and G/M Code Programming Color LCD with 3D Graphics 24 Pocket Automatic Tool Changer Fixed Head Design Box Ways Steel Way Covers Auto Lube * Specifications subject to verification by the buyer. * Seller can load by appointment. * Machine is offered as is with any and all faults. Can be inspected under power. |
