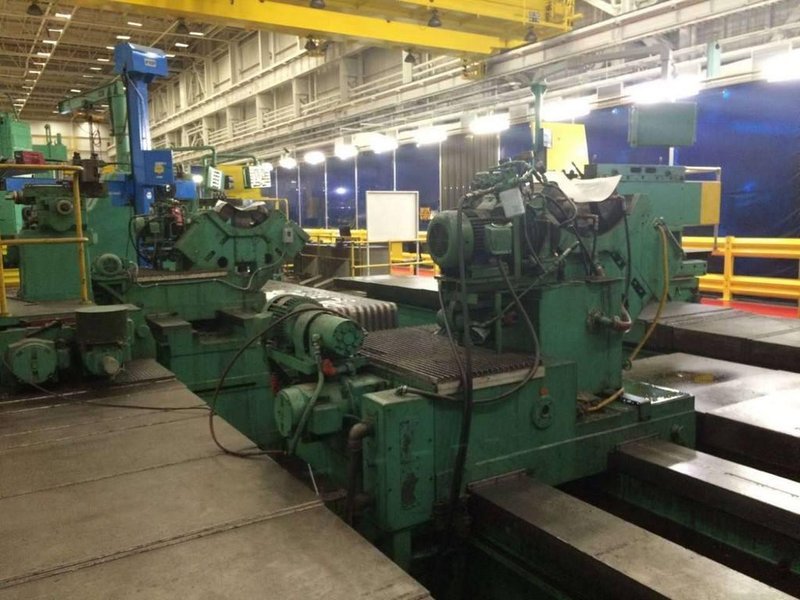

Lathes Flat Bed Manual & CNC

SPECIFICATIONS:
Maximum Swing Over Bedways 250"
Maximum Turning Diameter Over Carr. 112"
Distance Between Centers 516"
Headstock Faceplate Diameter 80"
Speeds .5-25 RPM
Maximum Weight of Workpiece 150 Ton
Max Weight With Steady Rest 300 Ton
Feeds, Longitudinal 0.005 to 18 IPR
Feeds, Cross 0.0025 to 9 IPR
Rapid Traverse, Longitudinal 80 IPM
Rapid Traverse, Cross 40 IPM
Main Drive Motor 125 HP
Headstock Slideways 2
Carriage Slideways 3
Approximate Machine Weight 400,000 Lbs



Equipped With:

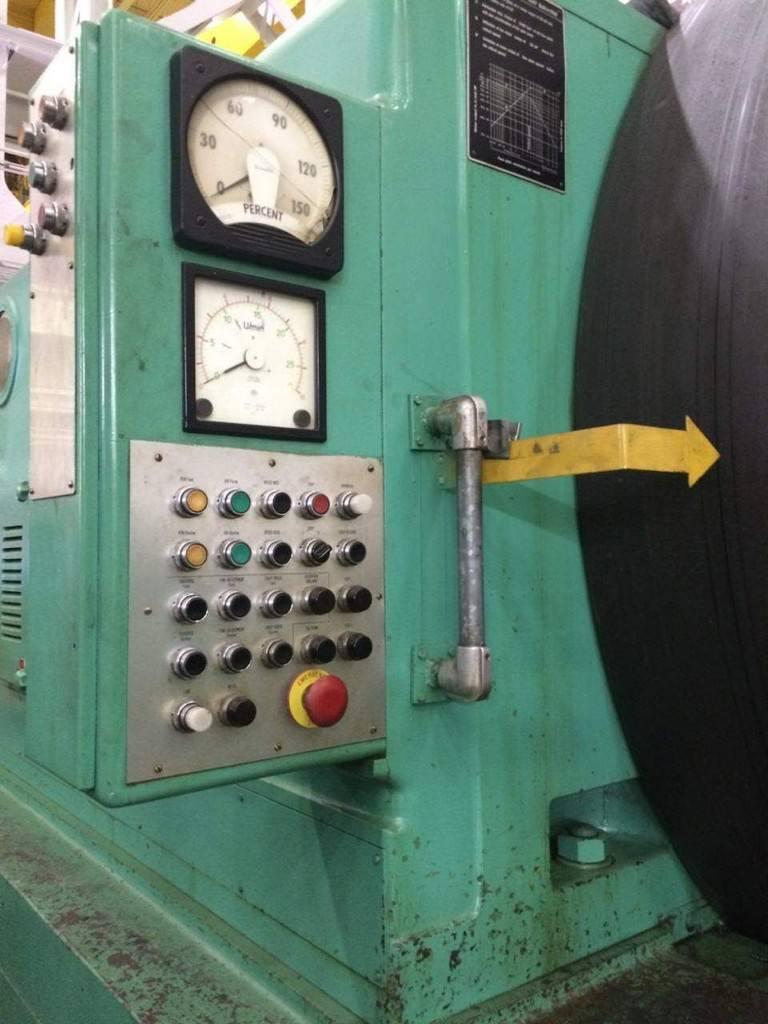

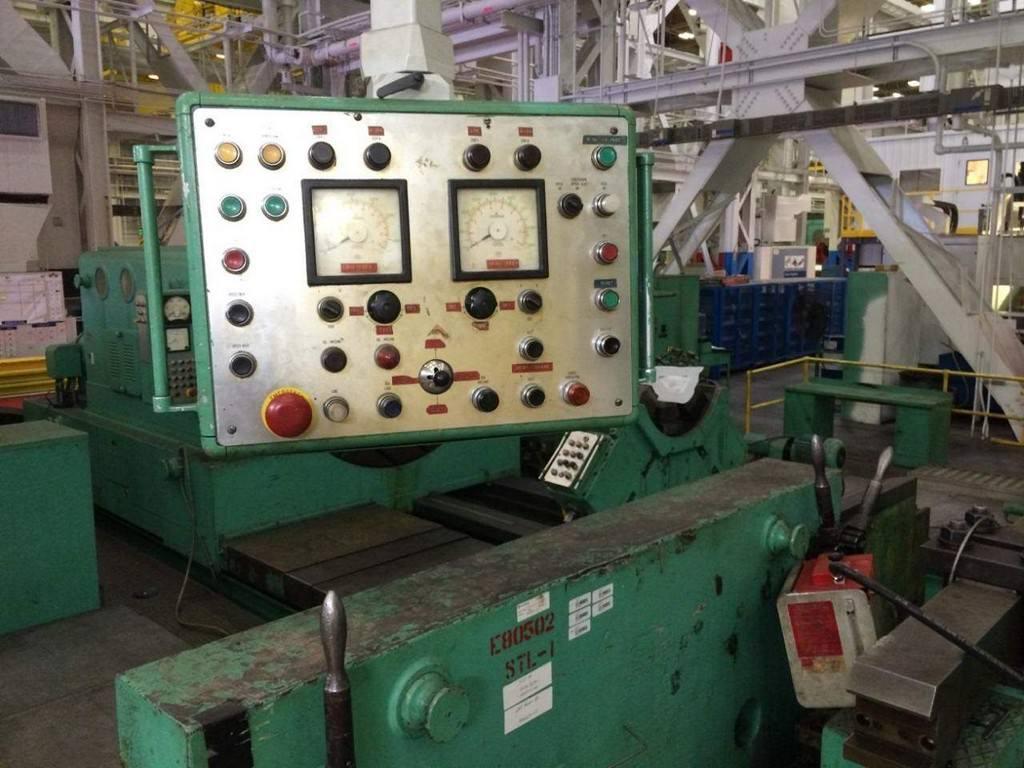

Pendant Control Stations

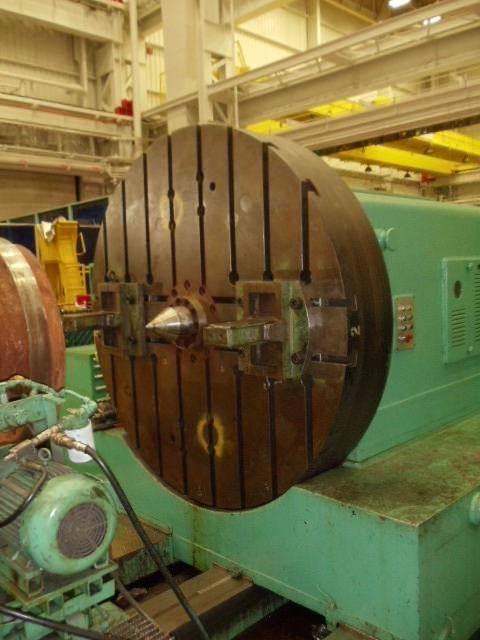

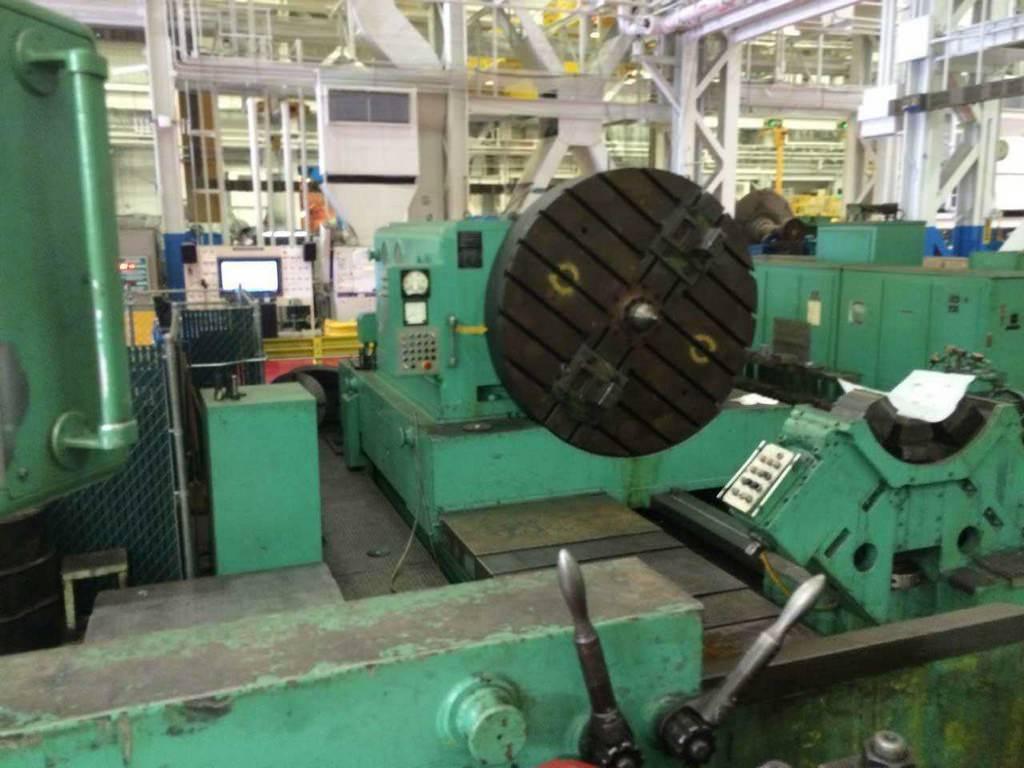

80" Diameter Face Plate
Power Tailstock
Telescoping Steel Way Covers
Operators Platform
Trionics Digital Readouts

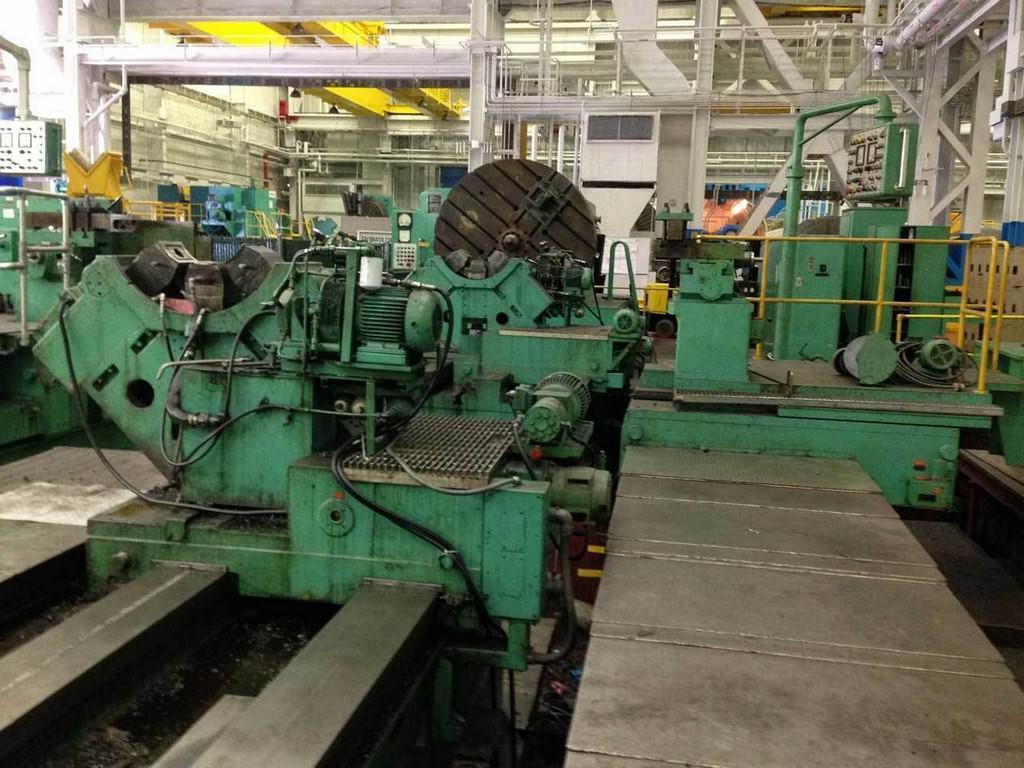

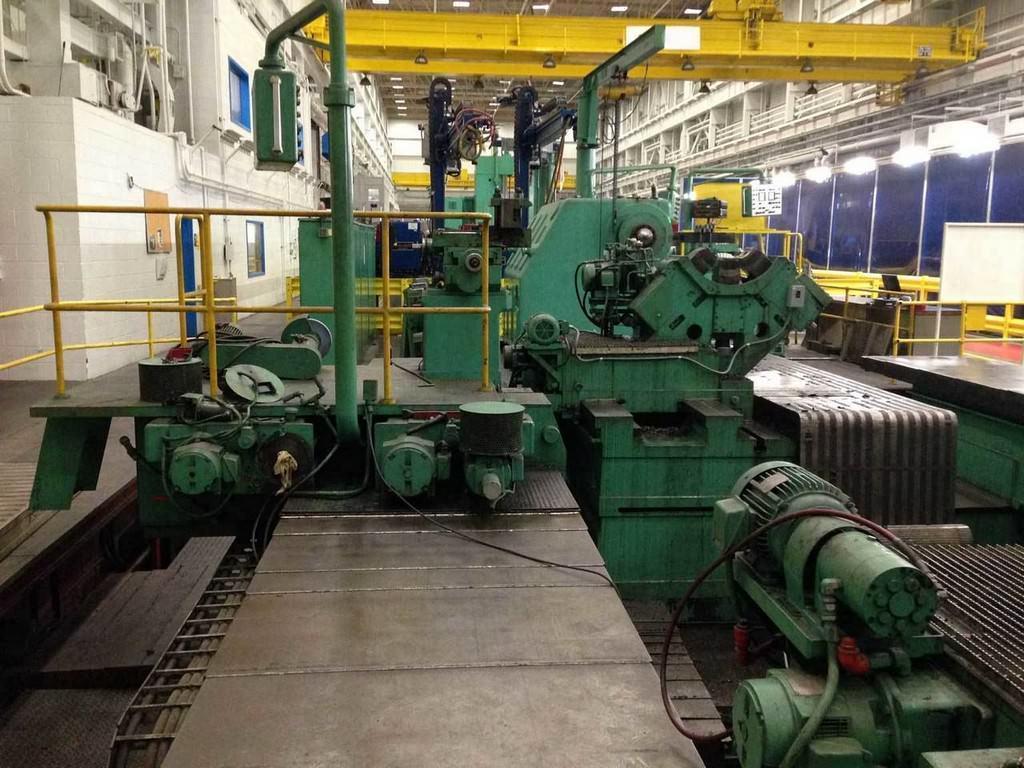

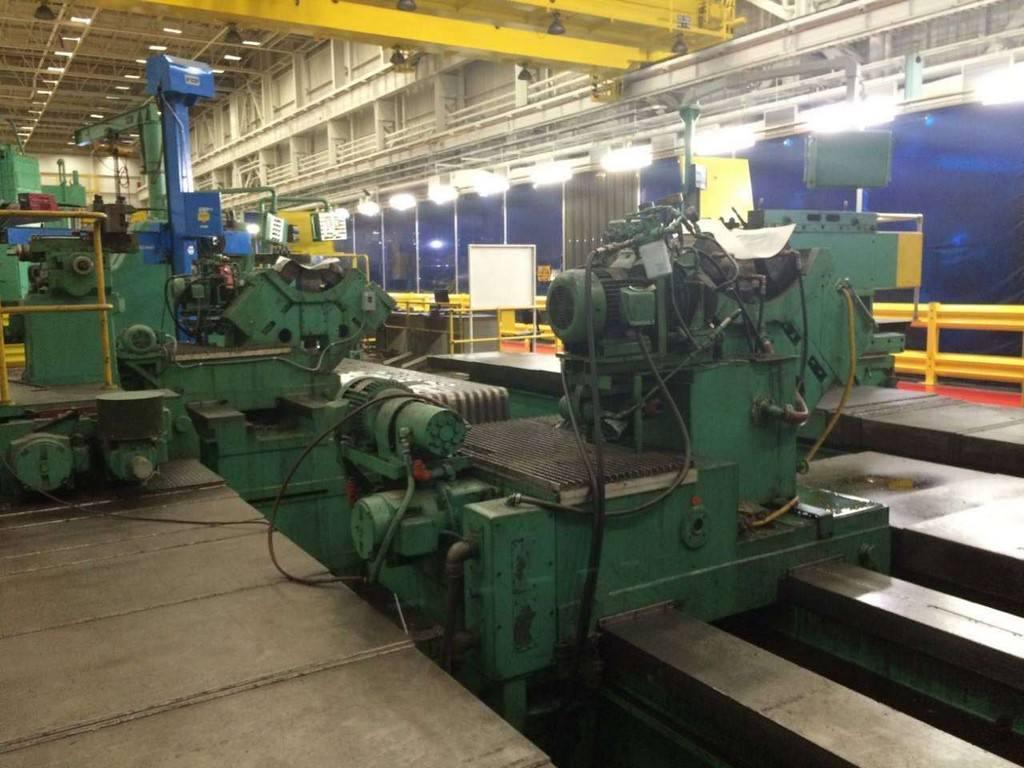

3-Carriages With Full Operators Controls
5-Way Bed 3+2 For Carriage Slide & Tailstock
2-Power Steady Rests 18" to 28" Capacity
Heavy Duty Steady Rest, 150 Ton Capacity
Steel Sliding Ways Covers


NOTES: Modular Style, 2-Front Carriages, 1-Rear Carriage, Dissassembled As Taken
From Service. Used For Turning Large Turbine Rotors.
