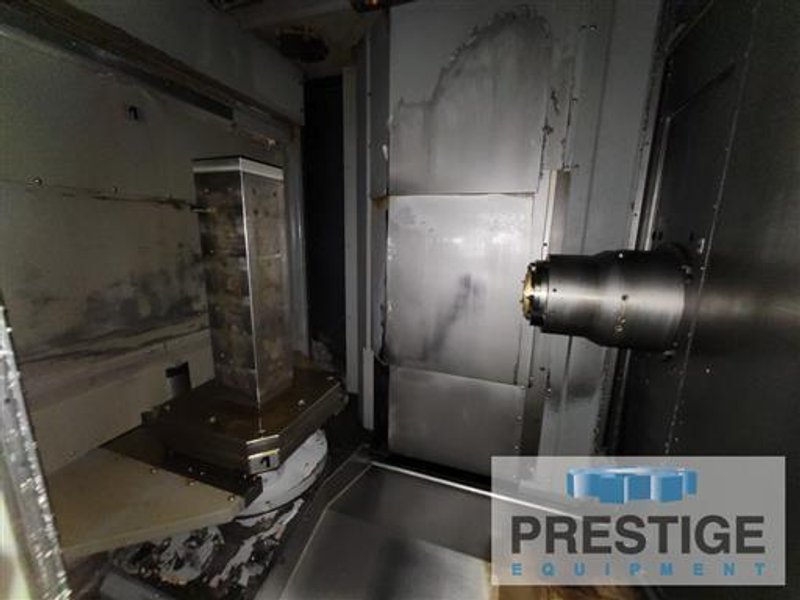

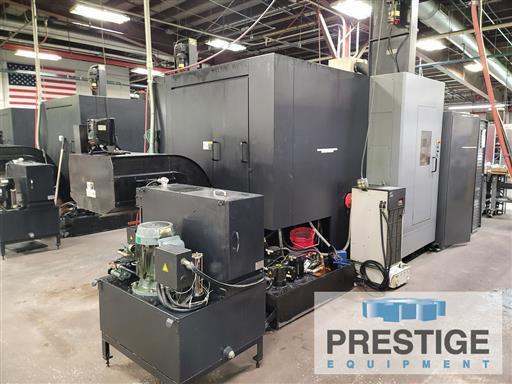

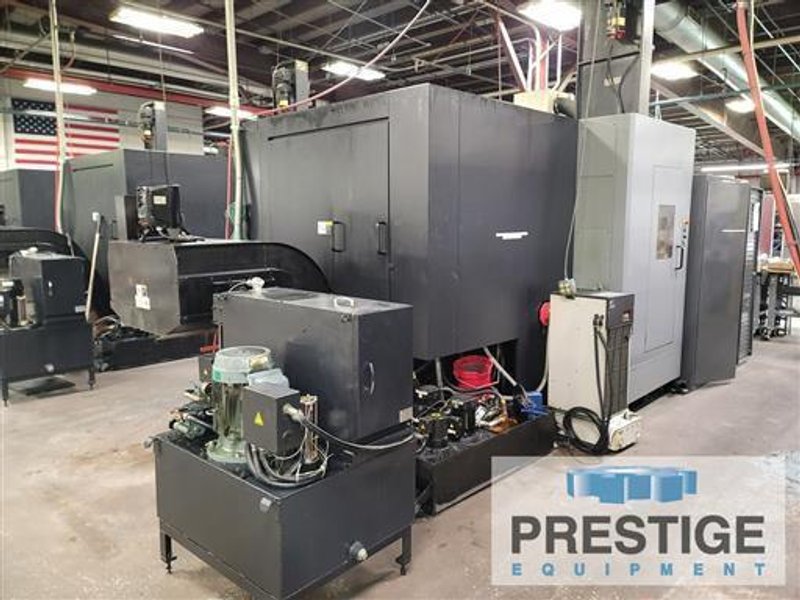

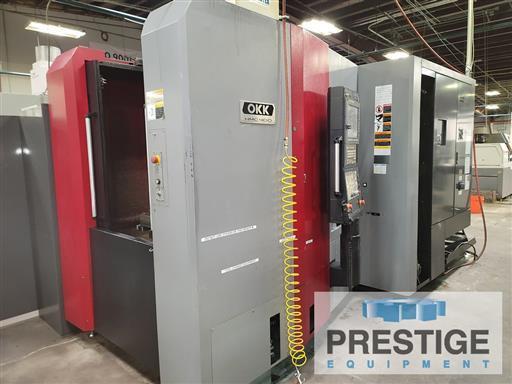

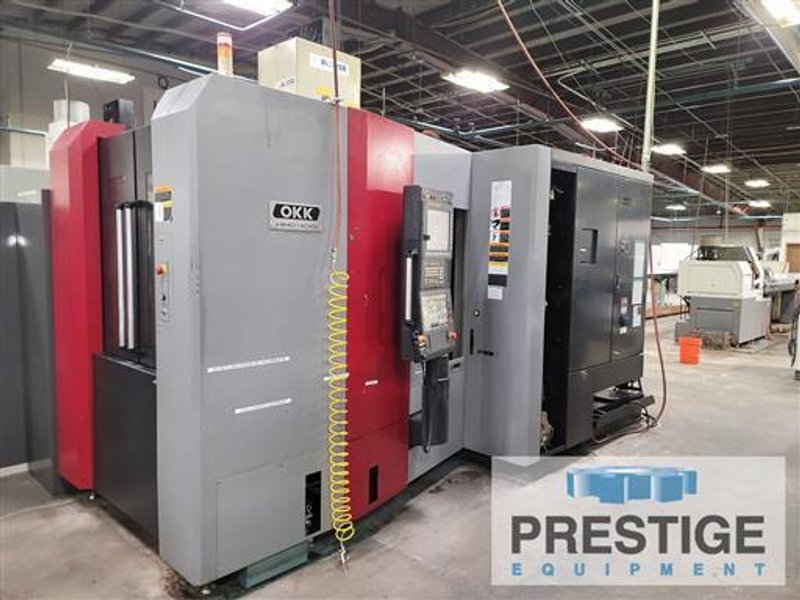

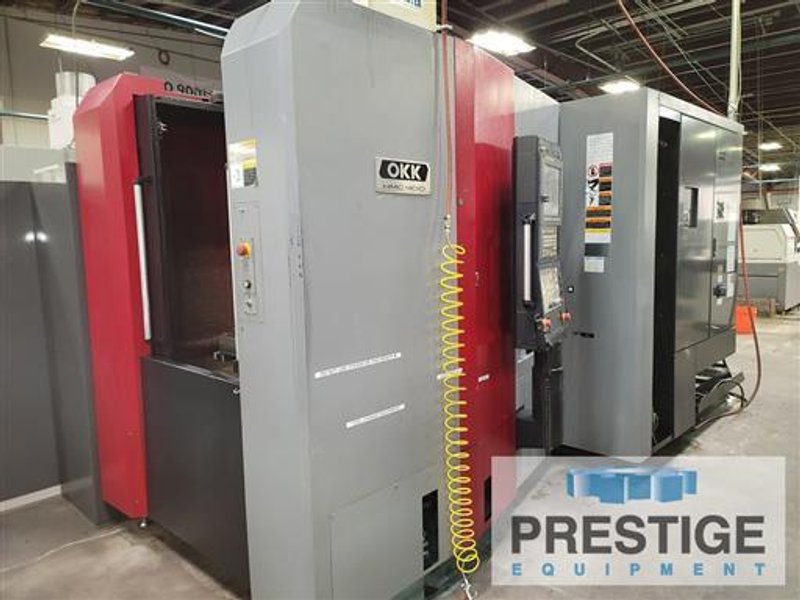

OKK HMC400 4-Axis CNC Horizontal Machining Center

CAPACITY:
X-Axis Travel 22.05"
Y-Axis Travel 22.05"
Z-Axis Travel 27.17"
Max. Workpiece Diameter x Height 24.8" x 36.22"
Table Top To Spindle Centerline 3.15-25.20"
Table Center To Spindle Nose 1.97-29.13"

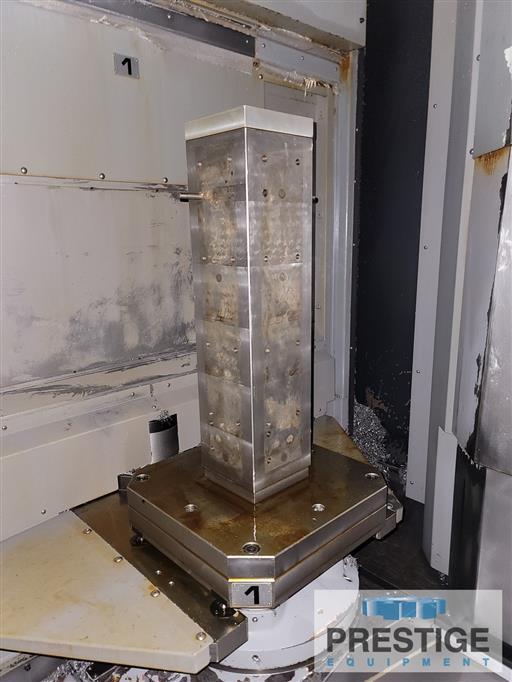

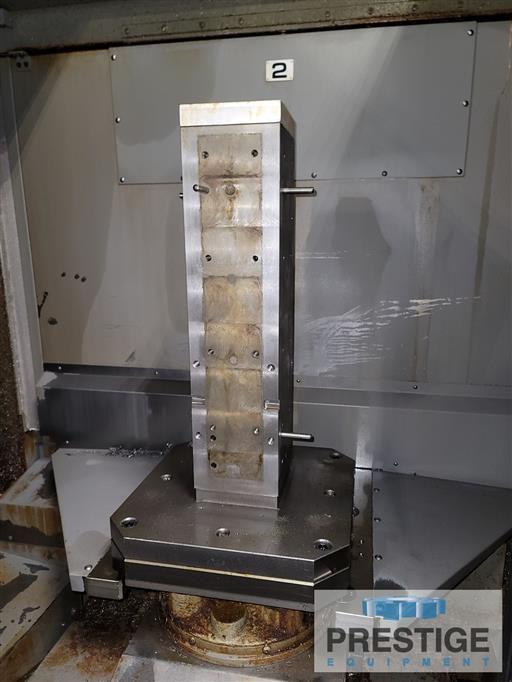

PALLETS
Number Of Pallets 2
Pallet Size 15.75" x 15.75"
Pallet Indexing 0.001 Degree, Full B-Axis

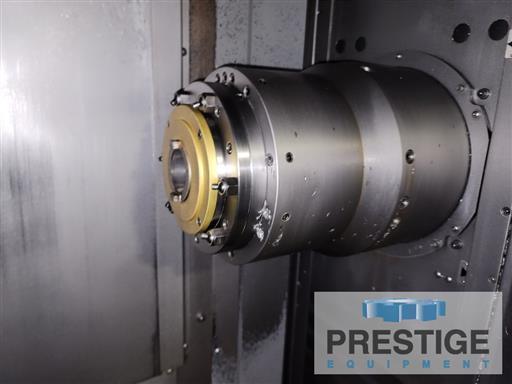

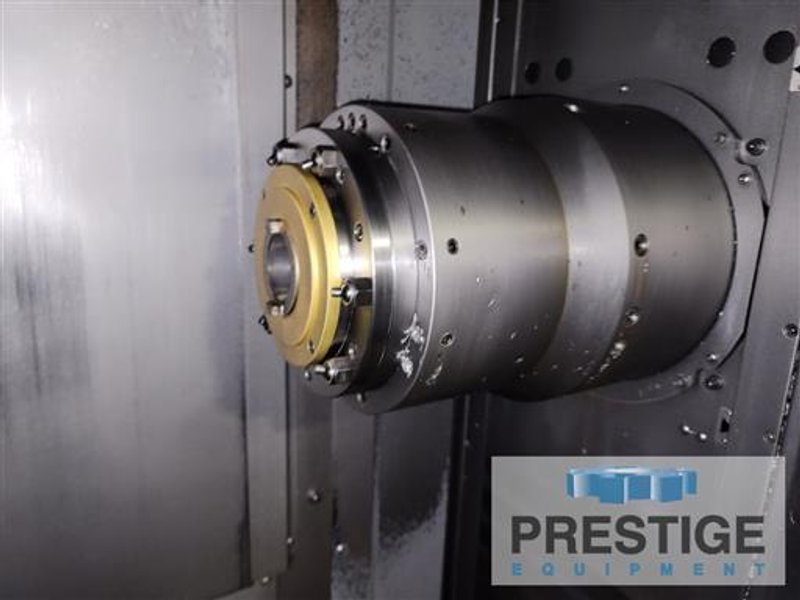

SPINDLE:
Spindle Speeds 100-15,000 RPM
Spindle Motor 50 HP
Spindle Taper CAT 40
Spindle Torque 184 FT/LBS
TOOL CHANGER:
Tool Capacity 60 ATC
Max. Tool Dia. Adjacent Full/Empty 3.74"/6.69"
Max. Tool Length 17.72"
Max. Tool Weight 26 Lbs.
FEEDRATES:
Rapid Traverse Rate, XYZ Axes 2480 IPM
Cutting Feed Rate XYZ Axes 0.04"-575 IPM
DIMENSIONS & WEIGHTS:
Floor Space Required 102.56" x 76.38"
Machine Height 103.94"
Approximate Weight 19,000 LBS



Equipped With:

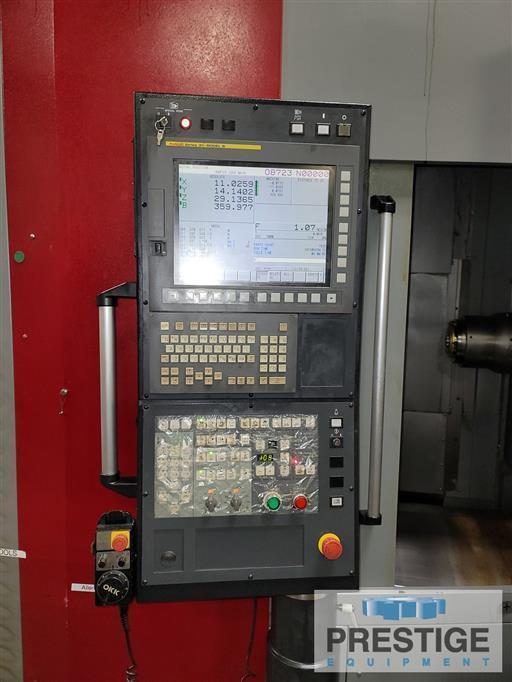

Fanuc 31i-B CNC Control
Dual 15.7" x 15.7" Pallets
Full B-Axis Contouring
15,000 RPM Spindle
60-Station Automatic Tool Changer
High Pressure Thru-Spindle Coolant
Renishaw OMP60 Probe System

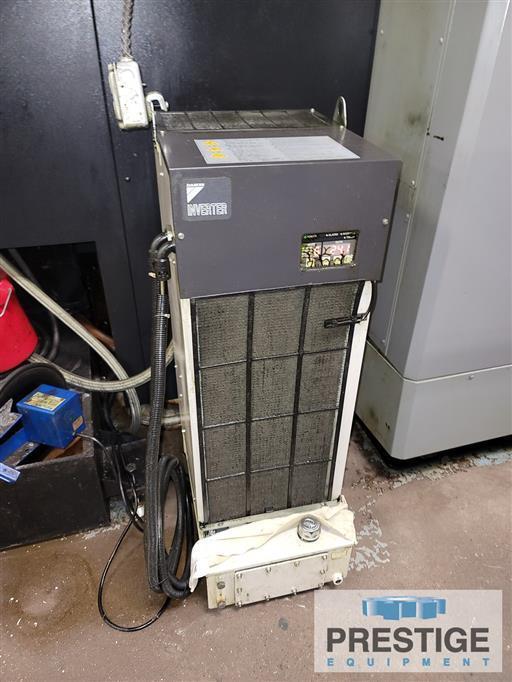

Daikin Inverter

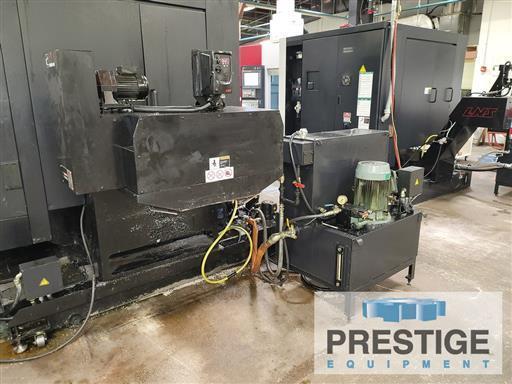

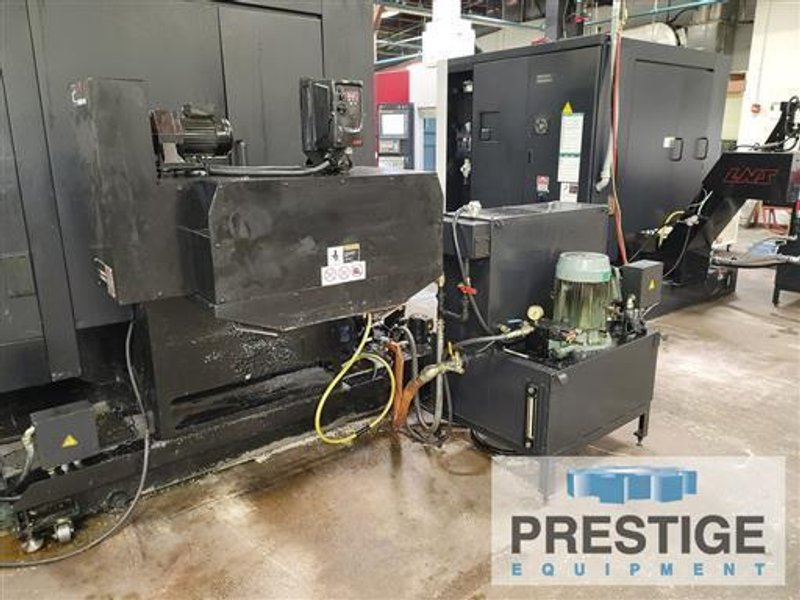

LNS Turbo HB Chip Conveyor


HOUR COUNT:


Power On
39,130







Cutting Time
15,788






LOCATION: Under Power In Our Philadelphia Warehouse
