CAPACITY:

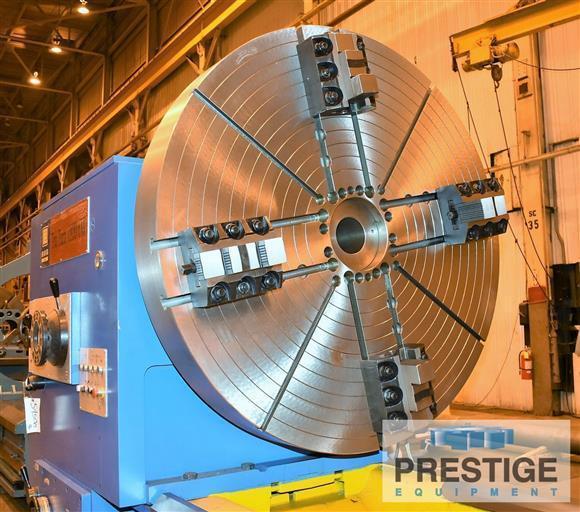

Swing Over Bed 56.69" Swing Over Cross Slide 41.33" Width of Guide Way 43.3" Distance Between Centers 314.96" Spindle Speeds (21 Speeds) 3.15-315 RPM Spindle Bore 5.11" Spindle Nose 1: 30 Tailstock Diameter 11.02" Tailstock Travel 11.81" Taper of Tailstock Bore 1: 7 Weight Capacity 20,000 kg Equipped With: 49.21" Diameter Face Plate with 4-Top Jaws (1) Roller Type Steady Rest: 4.72" - 18.89" (2) Roller Type Steady Rest: 15.74" - 27.55" (1) Roller Support, Open Steady Rest: 19.68" -39.37" Power Drive To Top Slide For Conical Cutting Swivel Compound Inch / Metric Threading Thread Dial Work Light Built in 4-Way Tool Post Pan Bed and Coolant System Live Quill in Tailstock Motorized Tailstock Flame Hardened Bed Ways 40 HP Drive Motor With Controls 3/60/440 Volt Electrics 1-Year Parts Warranty DELIVERY: 3-5 Months From of Confirmed Order |
