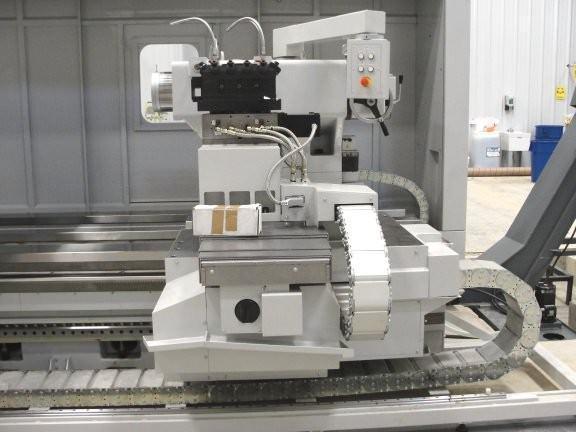

Microcut BNC 5000 x 4M 51.18" x 157.48" CNC Lathe

CAPACITY:
Swing Over Bed 51.18"
Swing Over Cross Slide 38.58"
Overall Bed Width 47.24"
Maximum Turning Length 157.48"
Maximum Weight Between Centers 22,000 Lbs.
Weight Capacity with 2-Steady Rest 33,048 Lbs.
X-Axis Travel 32.08"
Z-Axis Travel 236.22"
Spindle Speeds, 2-Ranges (Variable) 1-735 RPM
Spindle Bore 6.02"
Spindle Nose Mount A2-11
Spindle Drive Motor (220 Volt) 80 HP / 100 HP
Quill Diameter 9.44"
Quill Stroke 9.05"
Quill Taper #6 MT
Approximate Weight 60,000 Lbs.



Equipped With:
Fanuc 0iTD CNC Control with Manual Guide i
RS 232 Communication Port
Fanuc Package Servo Motor (Spindle & Axis Servo Motors)
HP-350 Heavy Duty 4-Position Turret (VDI)
Auto Spindle Speed Changer
Traveling Front Single Door Interlocked with Carriage
Turcite B on Carriage Way
Automatic Lubrication System
Chip Conveyor w/ Wash Down (157.48" Long)
Coolant System
(1) Roller Steady Rest (1.9"-15.74")
(1) Roller Steady Rest (19.96"-23.63")
Operation Manuals, Electric Schematics, Programming Manual


WARRANTY: Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control


DELIVERY: 9-Months From Order
