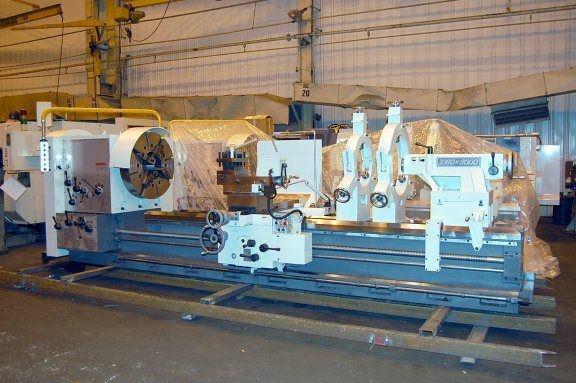

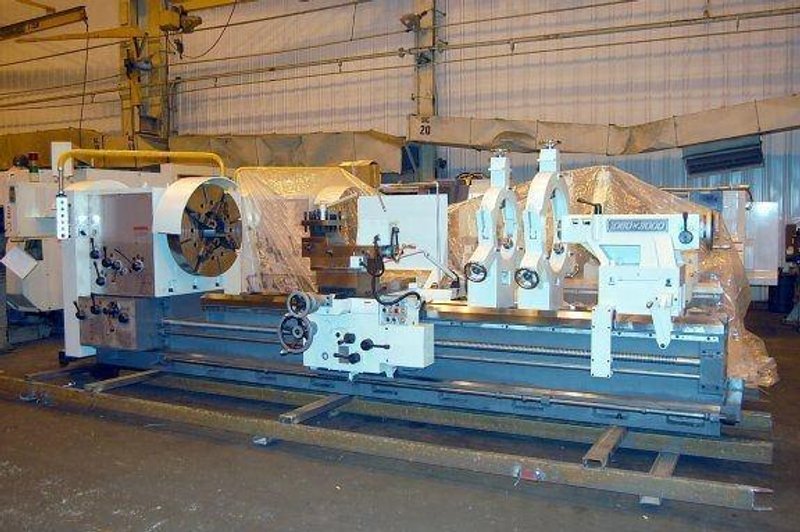

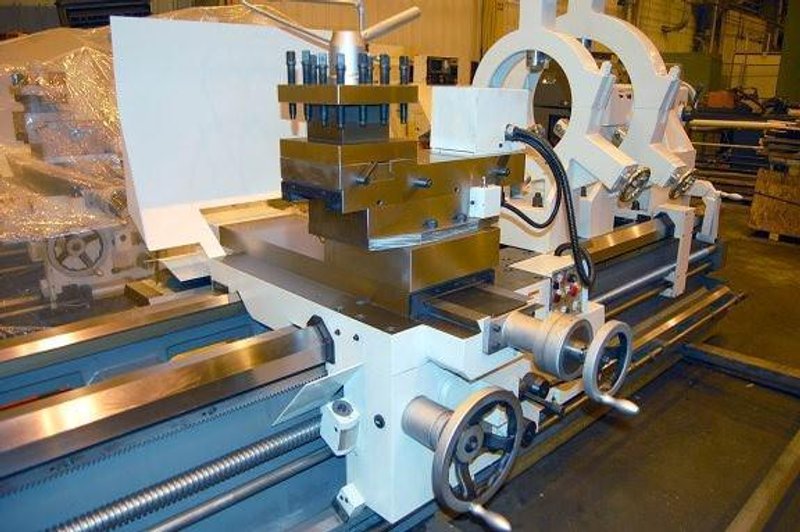

Lathes Oil Field & Hollow Spindle

CAPACITY:
Swing Over Bed 50"
Swing Over Cross Slide 37.16"
Swing over Gap 67.71"
Distance Between Centers 125.98"

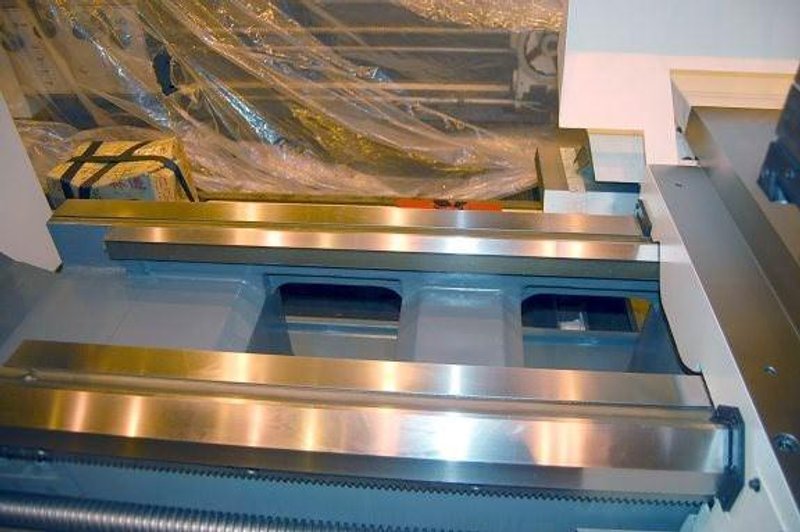

Bed Width 24.60"
Spindle Bore 12"
Spindle Nose A2-20
Spindle Speeds (18).................... 2-390 RPM 2-390 RPM
Maximum Weight Between Centers 15,400 Lbs
Maximum Weight with 1-Steady Rest 17,600 Lbs
Maximum Weight with 2-Steady Rests 20,900 Lbs
Quill Diameter 6.49"
Center Taper #6 MT
Quill Travel 11.81"
Approximate Weight 17,820 Lbs.



Equipped With:

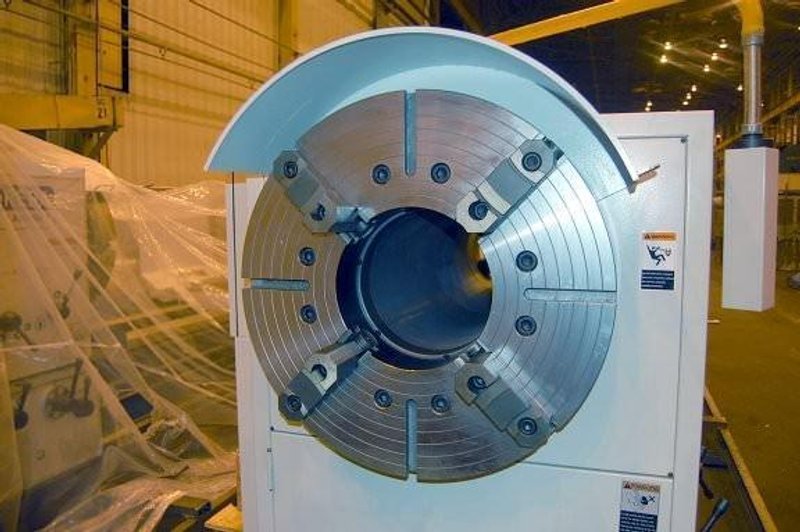

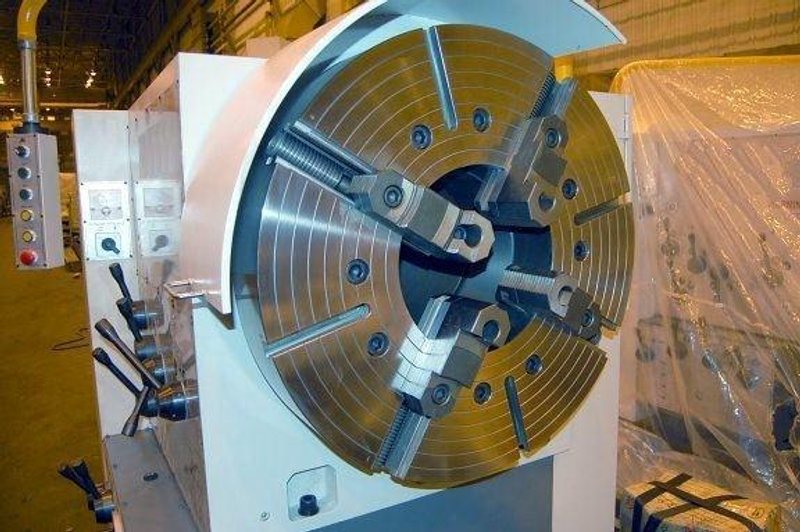

(2) 30" 4-Jaw Chucks with 12" Bore
Inch/Metric Threading
Taper Attachment

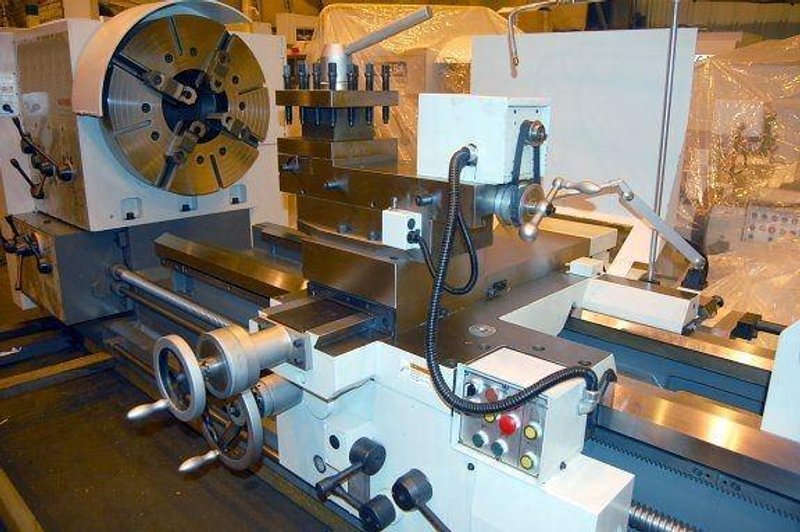

4-Way Tool Post
6-Position Rapid Traverse
Adaptor For Rear Chuck

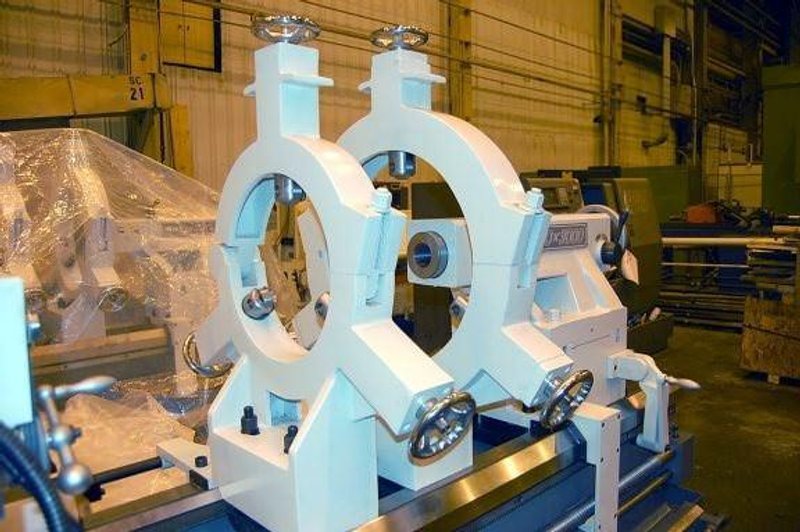

Steady Rest (3.9"-14.9")
Steady Rest (13.7"-25.5")
25 HP Main Motor


NOTE: Machine is sold with a 1 year PARTS Warranty
Delivery 5-Months From Order
