CAPACITY:

Swing Over Bed 62.99"
Swing Over Cross Slide 50.39"
Overall Bed Width 51.18"
Maximum Turning Length 314.96"
Weight Between Centers (Unsupported) 22,000 Lbs.
Weight Between Centers (2 Steady Rest). 33,048 Lbs.X-Axis Travel 31.49"
Z-Axis Travel 314.96"
Spindle Speeds, 2-Ranges (Variable) 1-735 RPM
Spindle Bore 6.02"
Spindle Nose Mount A2-11
Spindle Drive Motor (220 Volt) 80 HP / 100 HP
Quill Diameter 9.44"
Quill Stroke 9.05"
Quill Taper #6 MT
Rapid Traverse (X/Z) 393.70 IPM
Approximate Dimensions 490.94" x 133.38" x 105.51"
Approximate Weight 72,600 Lbs.

Equipped With:

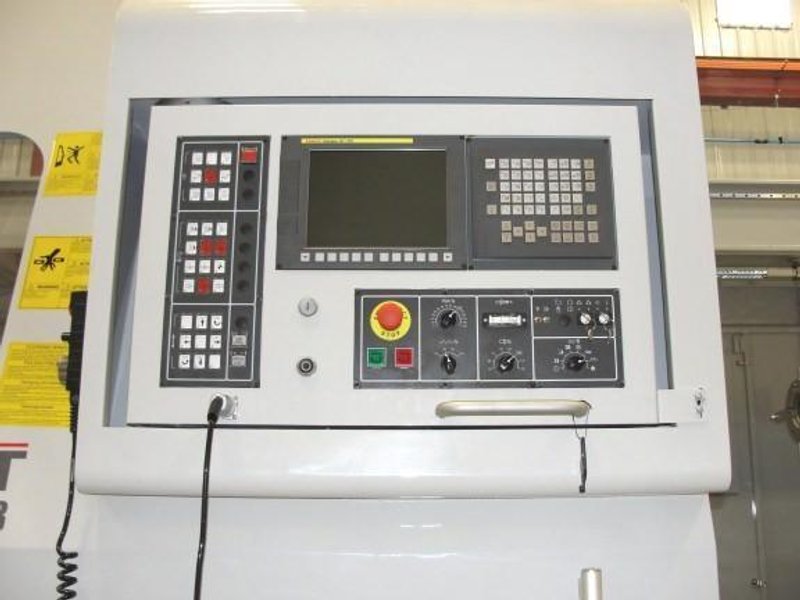

Fanuc 0iTF CNC Control with 10.4" LCD & Manual Guide i
Chuck Sliding Guard with Interlock Device

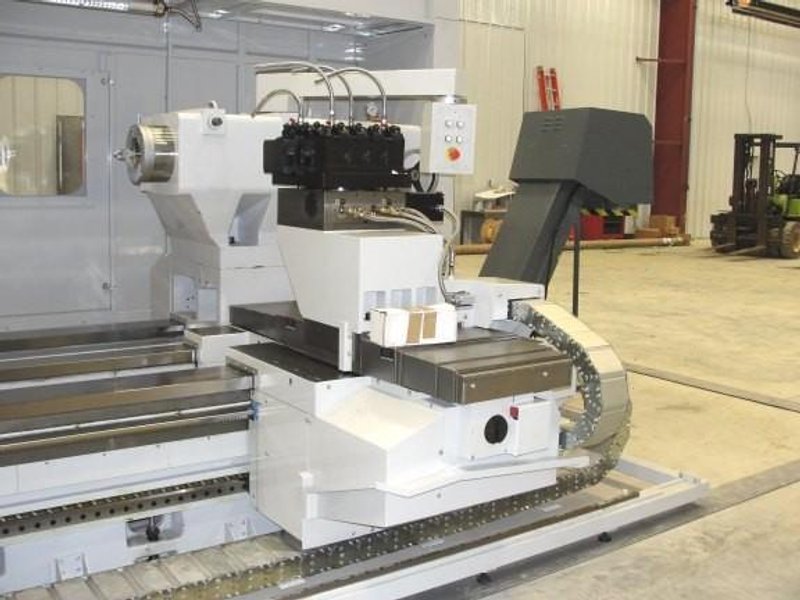

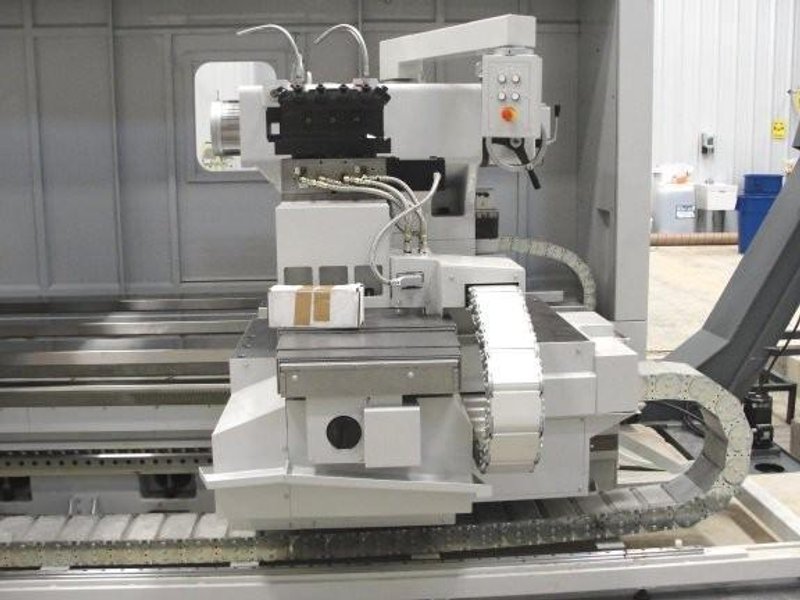

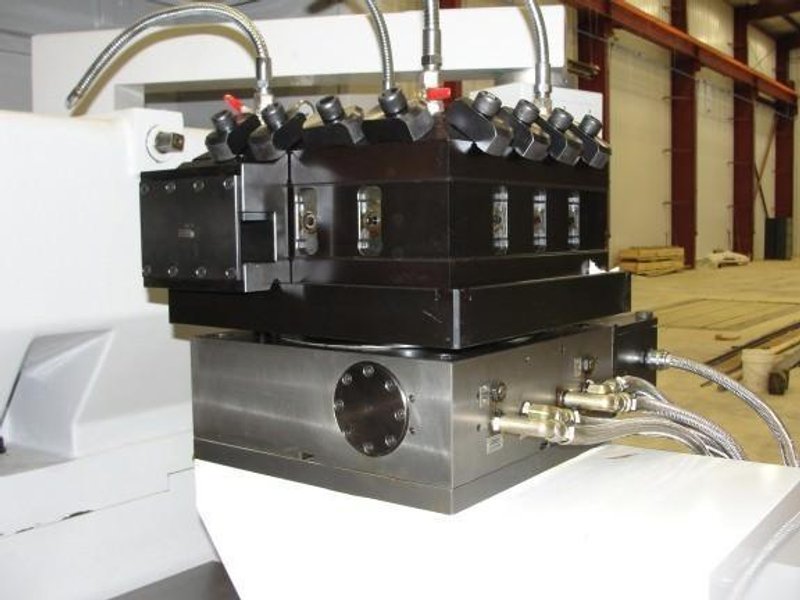

HP-350 Heavy Duty 4-Position Turret (VDI)
Auto Spindle Speed Changer

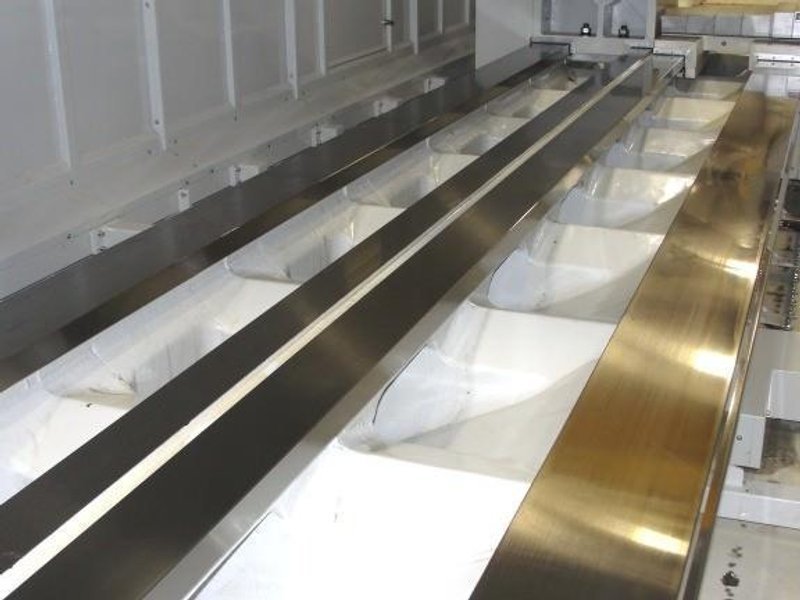

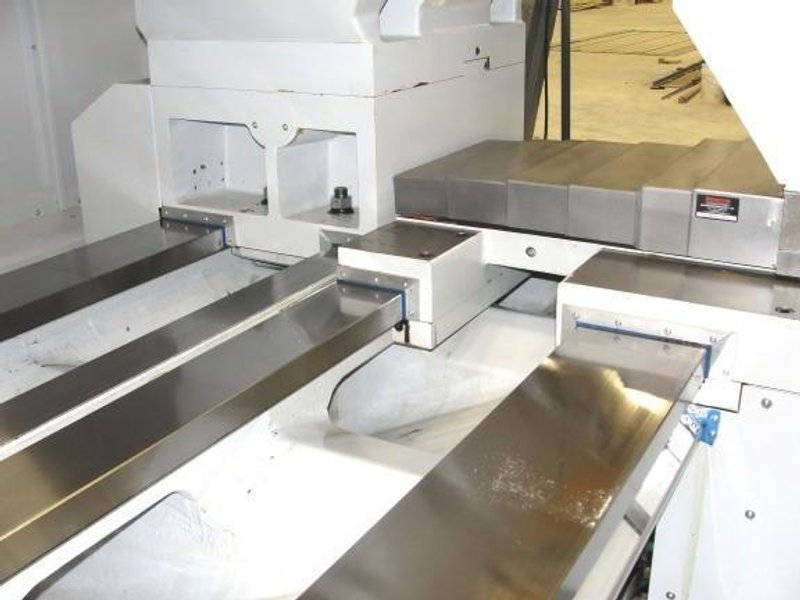

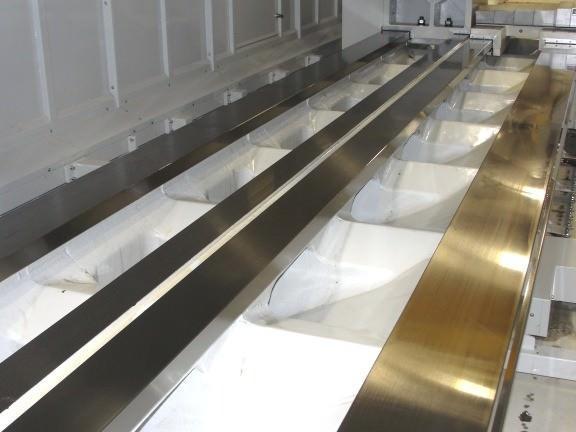

Four Wide Guide Ways in One Piece
Travelling Front Single Door Interlocked with Carriage

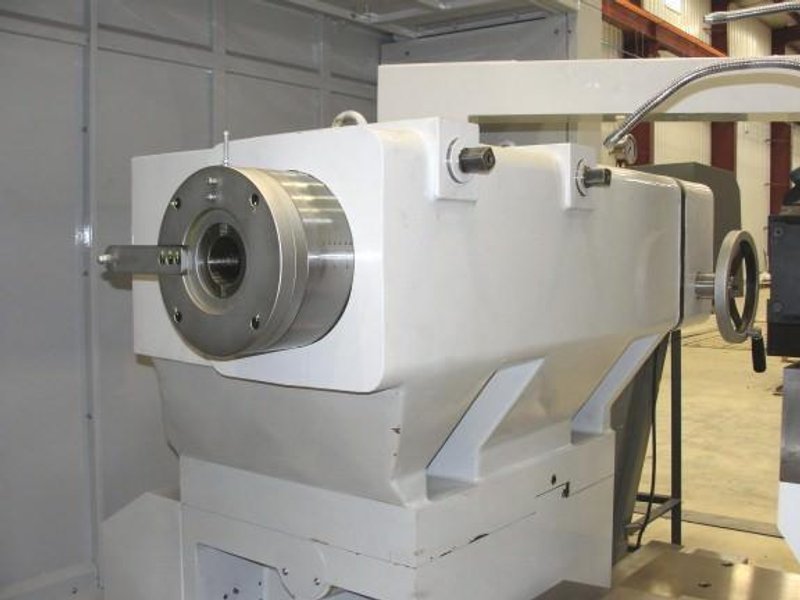

Motorized Tailstock
Linear Scale For Z Axis

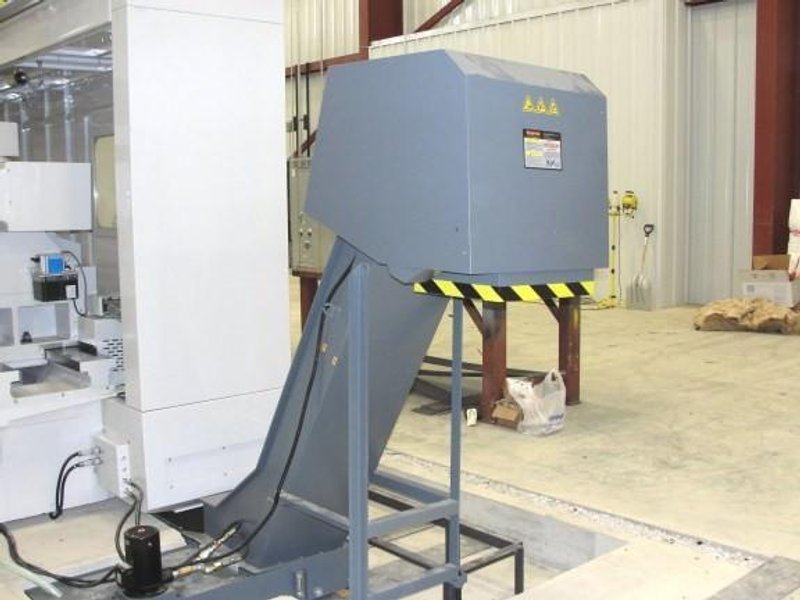

Chip Conveyor w/ Wash Down (314.96" Long)
Coolant System
Central Lubrication System
CE-Regulated of Conformity for EU Countries
(1) Roller Steady Rest (1.9"-15.7")
(1) Roller Steady Rest (14.9"-23.6")
(1) Roller Steady Rest (22.83"-31.5")
Operation Manuals, Electric Schematics, Programming Manual

Note:


Full 1-Year Parts Warranty on Machine
Full 2-Year Parts Warranty on CNC Control
Delivery From Factory:

6-Months From Order
