CAPACITY:

Max. Swing Over Bed 22.50"
Max. Machining Diameter 22.50"
Swing Over Carriage 18.50"
Max. Machining Length 60"
Main Spindle Speeds 35-3500 RPM
Spindle Bore Diameter 3.46"
Spindle Nose A2-8
Spindle Drive Motor 40 HP/ 30 HP
C-Axis Spindle Indexing 0.001 Degree
Rotary Tool Speeds 15-6000 RPM
Live Spindle Motor 10 HP
X-Axis Stroke 17.75"
Y-Axis Stroke 3.54"
Z-Axis Stroke 62"
Rapid Traverse (X/Y/Z Axes) 472 IPM/ 393 IPM/ 708 IPM
Rotary Tool Shank CAT #40
Tailstock Diameter 3.94"
Tailstock Quill Stroke 5.12"
Tailstock Spindle Center MT #5
Tailstock Travel 55.51

Equipped With:

Mazatrol T-Plus CNC Controls
12" 3-Jaw Hydraulic Chuck

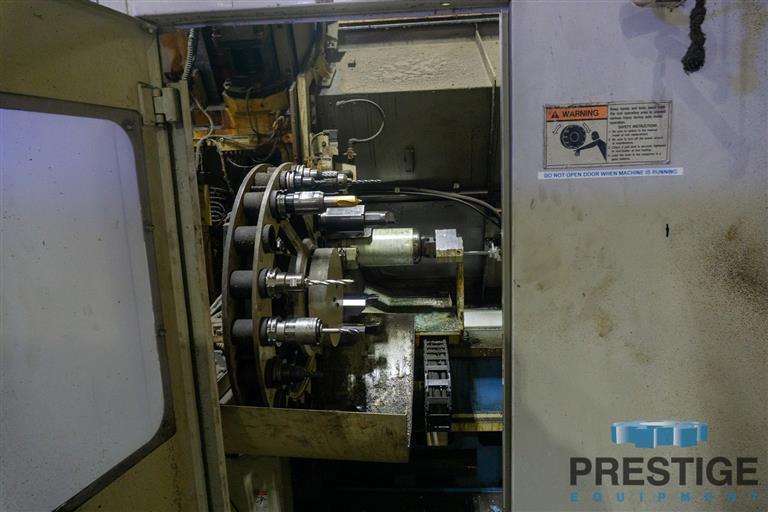

20-Position Automatic Tool Changer
Coolant thru Spindle
Chip Conveyor

Note:


Inspect In Plant Under Power
