SPECIFICATIONS:

Maximum Swing Diameter 10.62"
Max. Turning Diameter 9.8"
Max. Turning Length 23.3"
Hole Through Draw Tube 2.57"
Hole Through Spindle 2.99"
Spindle Bearing Diameter 4.72"
Spindle Nose A2-6
Spindle Speeds 40-4000 RPM
Live Tooling Speeds 6,000 RPM
Spindle Motor 20 HP / 15 HP
Turret Positions 16
X1 Travel 7.67"
X2 Travel 8.26"
Z1 Travel 24.39"
Z2 Travel 24.39"
Maximum ZS Travel 27.16"
Y-Axis Travel 3.93"=+/-1.96"
Y-Axis Rapids 393.69 IPM
Y-Axis Feed Rates 1-189 IPM
X/Z Axis Rapids 945 IPM
X/Z Axis Feed Rates 1-1,890 IPM
Approximate Machine Weight 19,800 Lbs.

Equipped With:

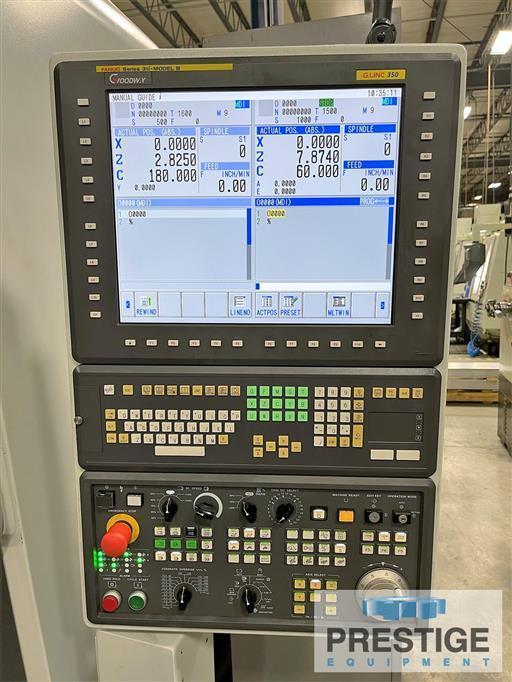

Fanuc 31iB GLINC 350 CNC Control

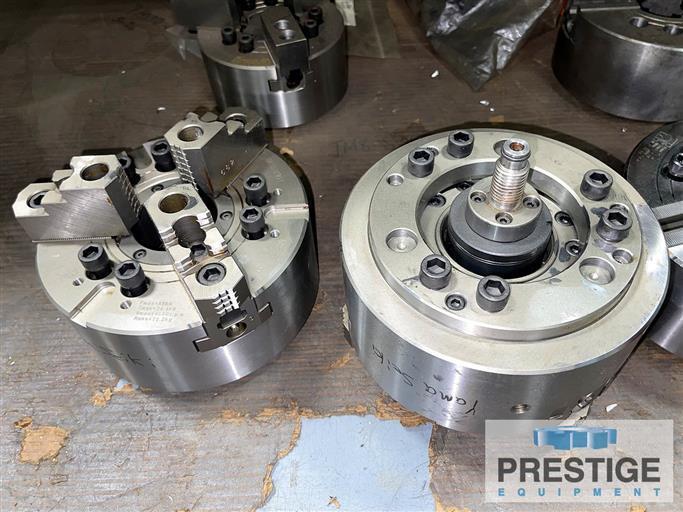

8" Left & Right 3-Jaw Hydraulic Chucks

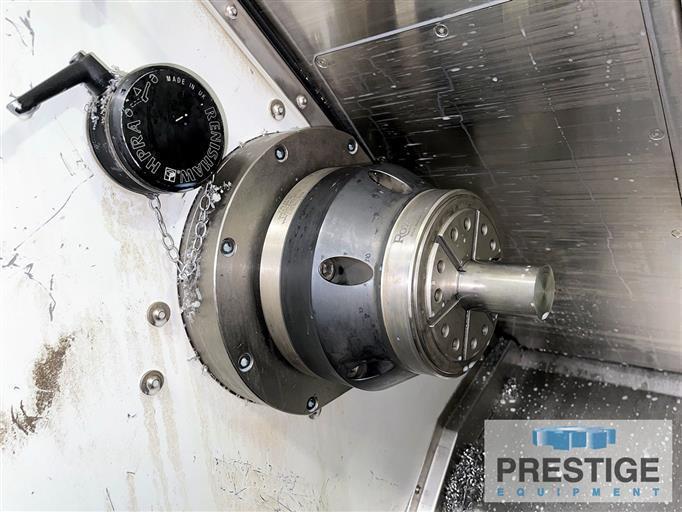

ATS S26 Collet Chuck-Main Spindle
ATS S26 Collet Chuck-Sub Spindle

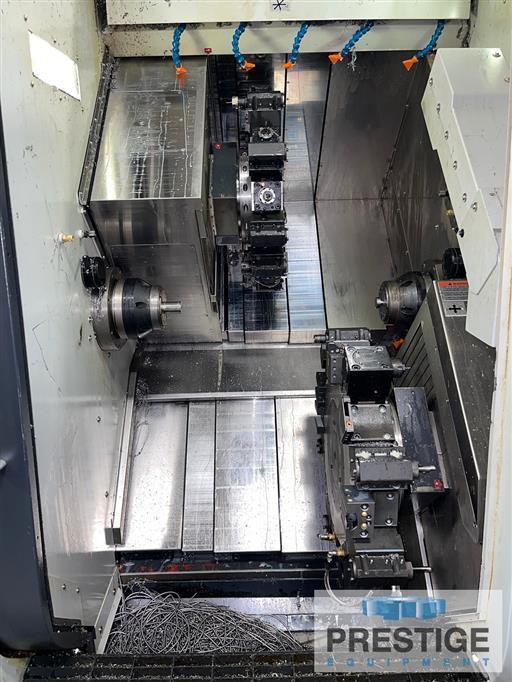

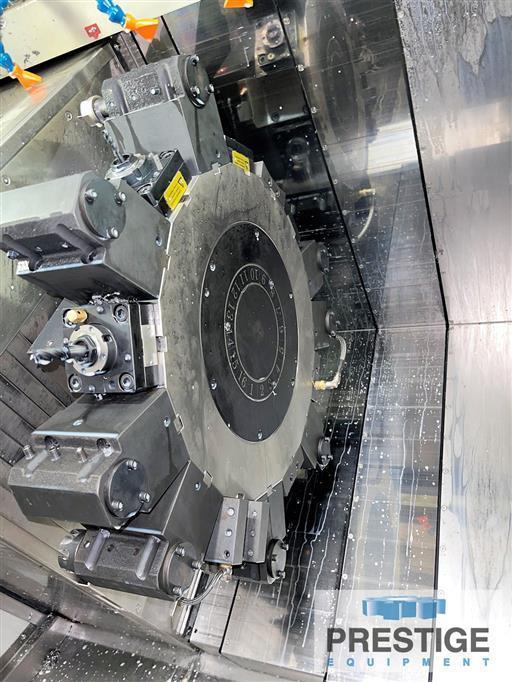

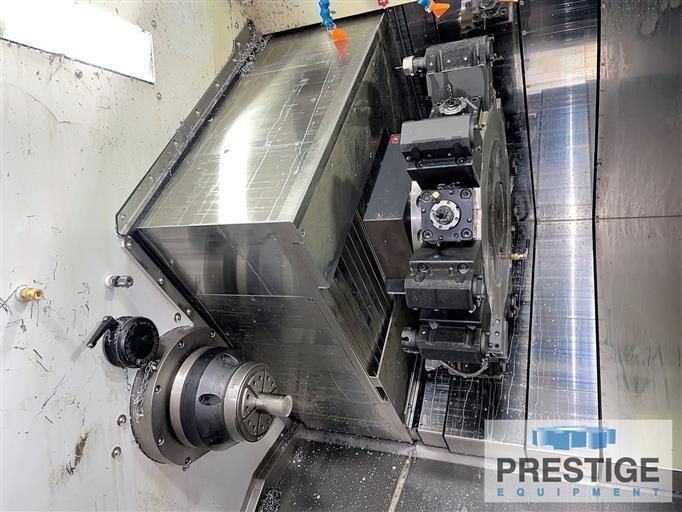

16 Station Upper Turret with Live Tools and Y-Axis

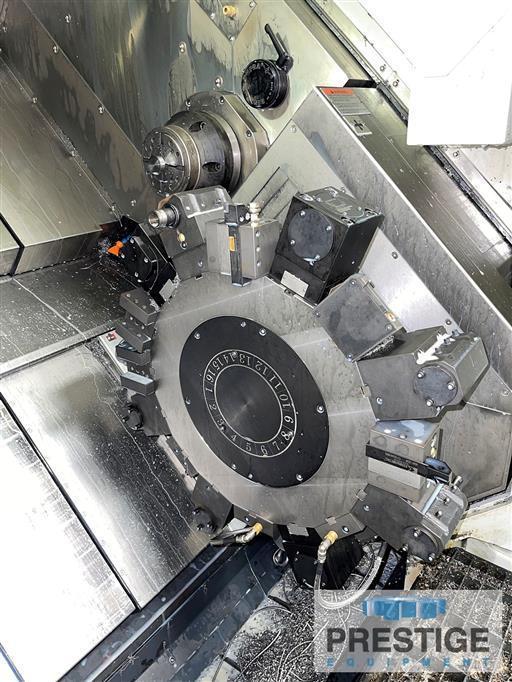

16 Station Lower Turret with Live Tools
30 Degree Slant Bed

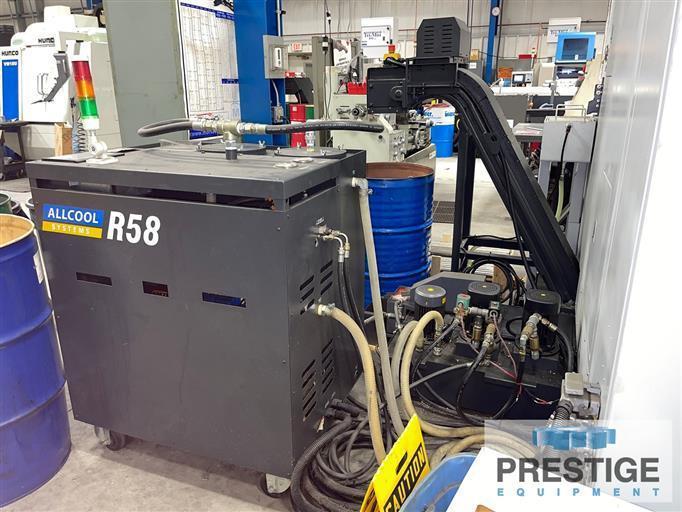

All Cool R58 1,000 PSI High Pressure Coolant System
Renishaw Tool Pre-Setter
Coolant Thru Sub-Spindle
Parts Catcher

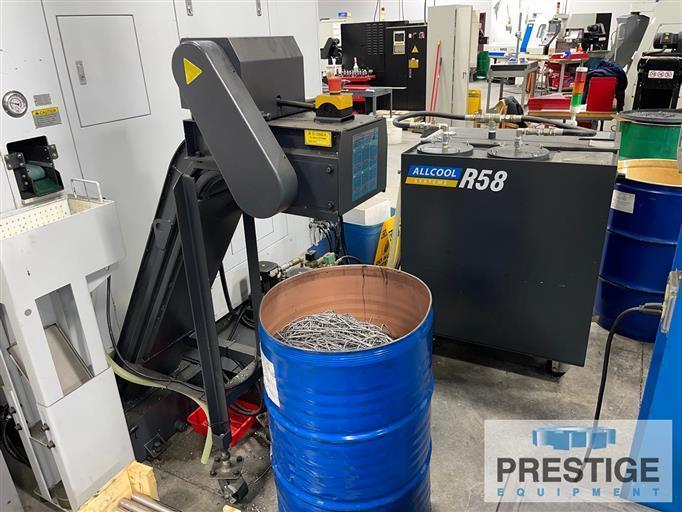

Chip Conveyor

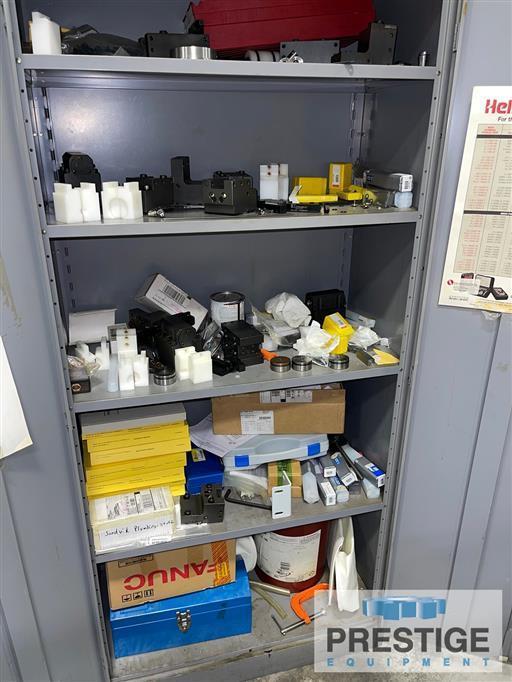

Spare Parts
Bar Feed Interface

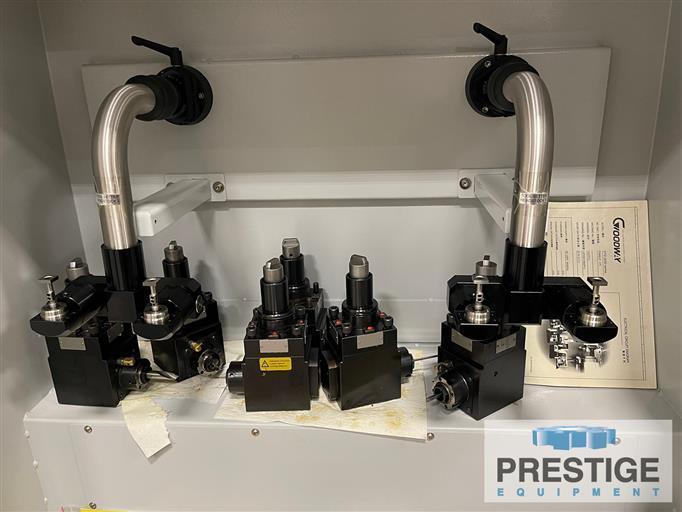

Loaded with Tooling (Includes BMT 55 Live Tools, Approx. 10-12)
HOURS:

8,470 Power on Hours
2,409 Run Hours
1,261 Cutting Hours
