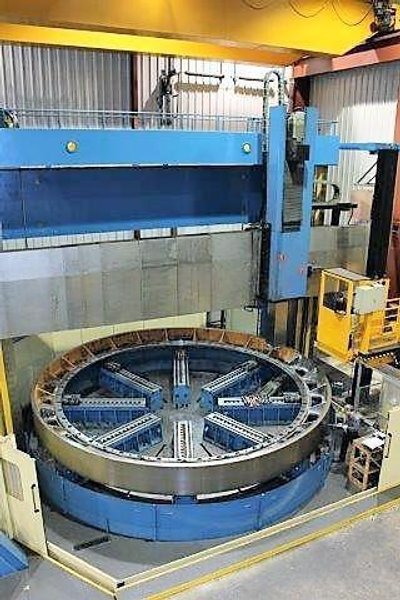

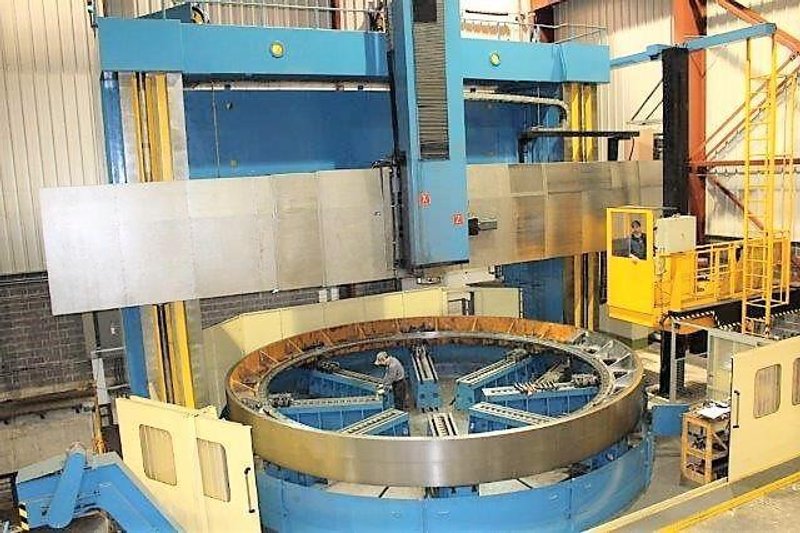

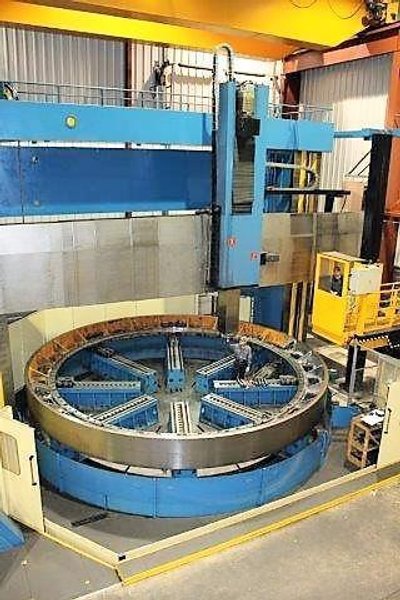

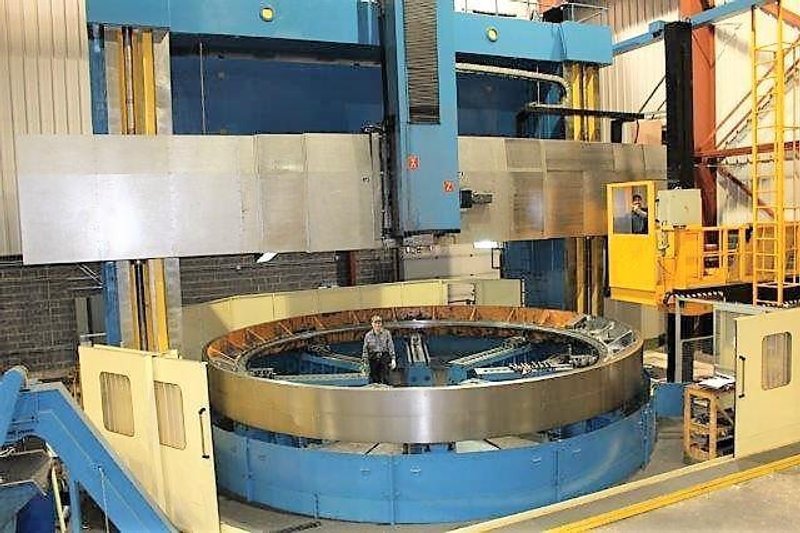

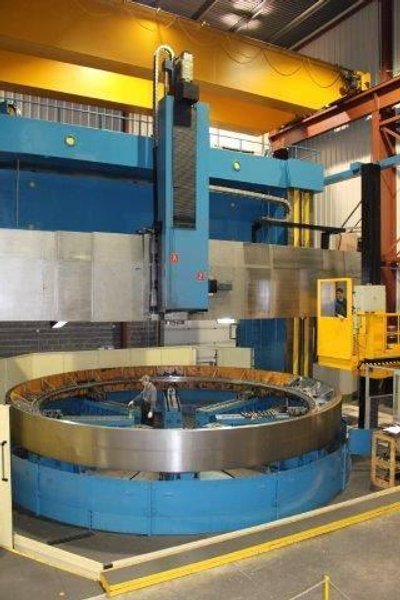

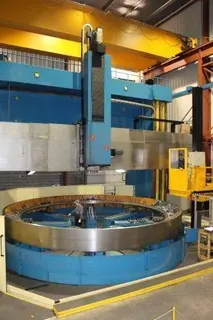

CKX 248" CNC Vertical Boring Mill with Live Spindle

SPECIFICATIONS:
Table Diameter 248.03"
Turning Diameter 314.96"
Maximum Turning Height 157.48"
Maximum Stroke of Vertical Rams 98.42"
Ram Cross Section 15.74" x 15.74"
Cross Rail Travel 137.79"
Table Load Capacity 160 Tons
Table Speed Ranges .315-31.5 RPM
MILLING SPINDLE:
Table Indexing and Milling Speeds .0002-.2 RPM
Table Indexing .001 Degrees
Milling Spindle Taper ISO #50
Milling Spindle Speeds, Max 800 RPM
Milling Spindle Motor 46 HP
FLOOR SPACE & MACHINE WEIGHT:
Machine Footprint 595" x 410"
Machine Height 488"
Machine Weight 350 Tons



Equipped With:
Siemens 840DE CNC Control
Ram With Live Spindle
Turning, Milling, Drilling & Threading Cycles
Heidenhain Rotary Encoder
Right Angle Head

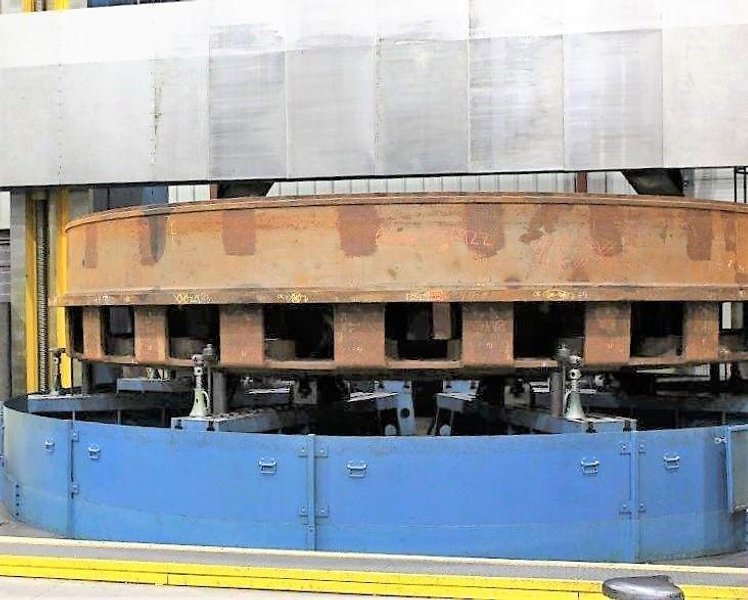

Table Outrigger Supports for 8 Meter Turning
Independent Elevating Operator Platform
Steel Sliding Way Covers
Chip Conveyor
167 HP Main Motor


NOTES: Inspect In Plant Under Power!
