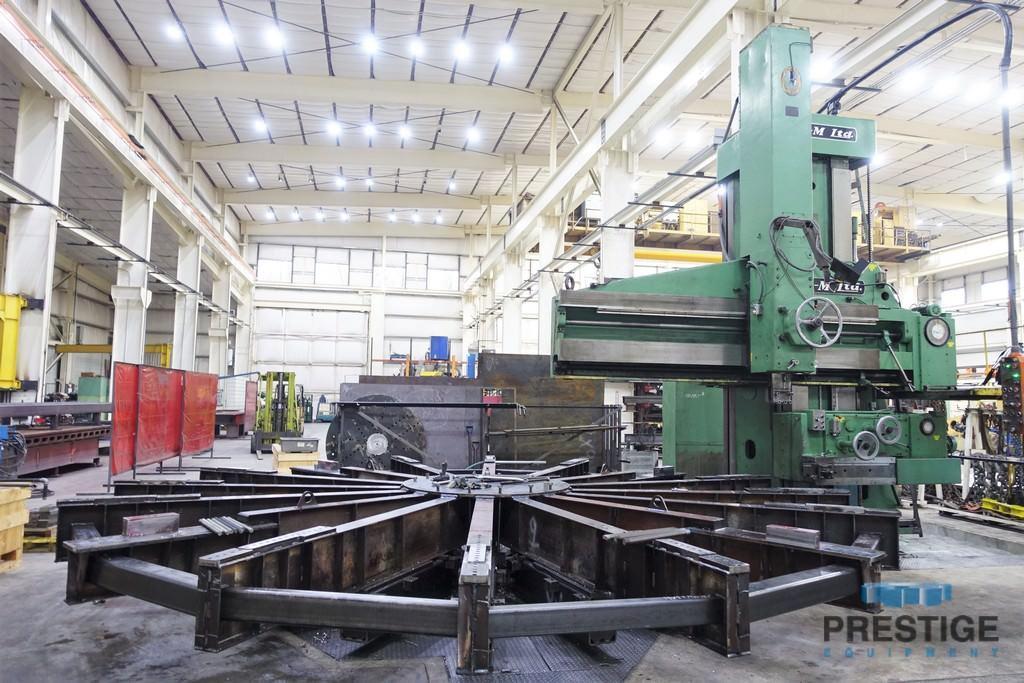

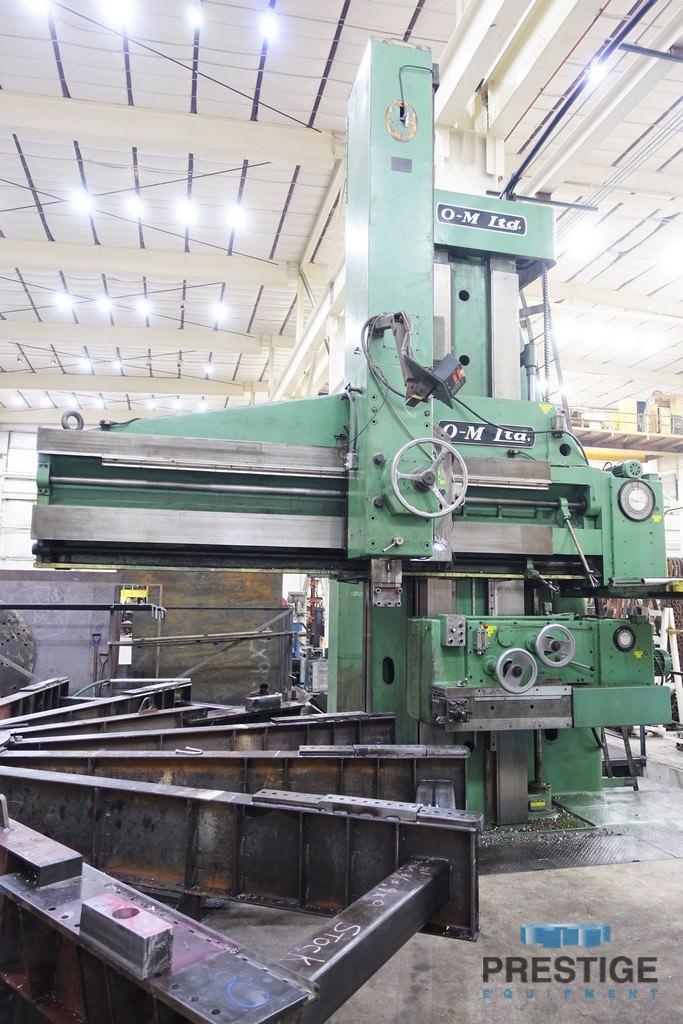

O-M Ltd TMS1 30/70 118"/275" Openside Vertical Boring Mill

CAPACITY:
Table Diameter 118.11"
Maximum Turning Diameter 275.59"
Maximum Turning Diameter To Center 196.85"
Maximum Turning Height 112.20"
Maximum Height Under Cross Rail 124.21"
Column Travel 70.86"
Vertical Travel of Ram Head 59.05"
Horizontal Travel of Ram Head 100.39
Ram Swivel +/- 30 Degrees
Side Head Stroke 24"
Vertical Travel of Cross Rail 78.74"
Table Speeds 16
Table Speed Range .3 to 40 RPM
Feeds, Ram & Side Head 16
Feed Range, Ram & Side Head .0003-0.59 IPM
Maximum Torque 58,000 ft lbs
Table Weight Capacity 132,000 Lbs
Floor Space L-R x F-B 400" x 300"
Maximum Height In Operation 300"
Weight 152,500 Lbs



Equipped With:
118.11" T-Slotted Table With 4-Top Jaws

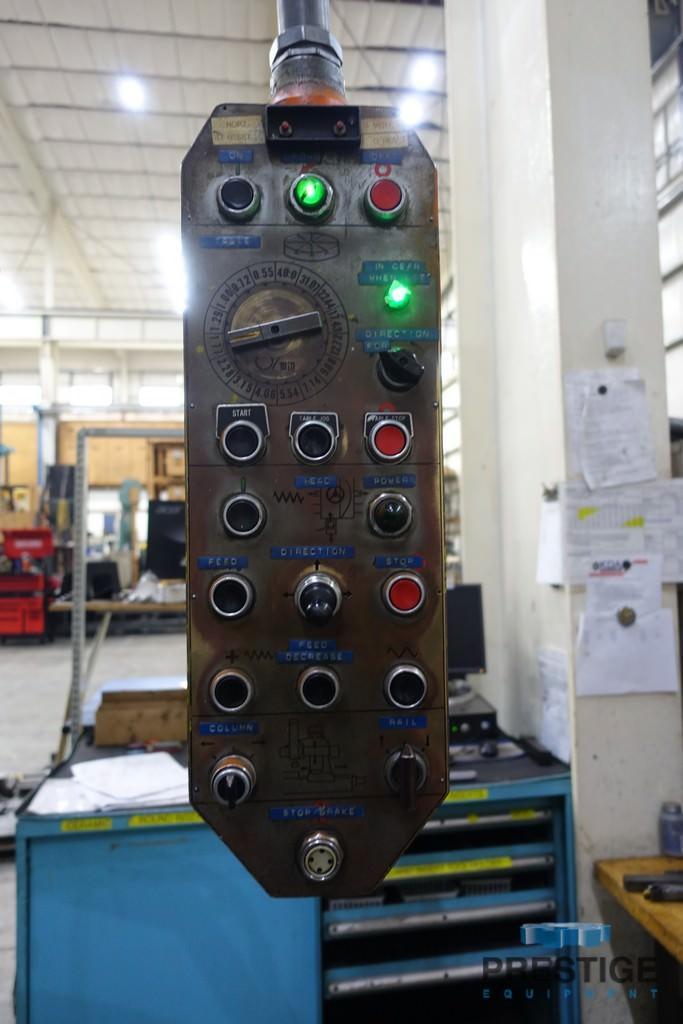

Full Pendant Control

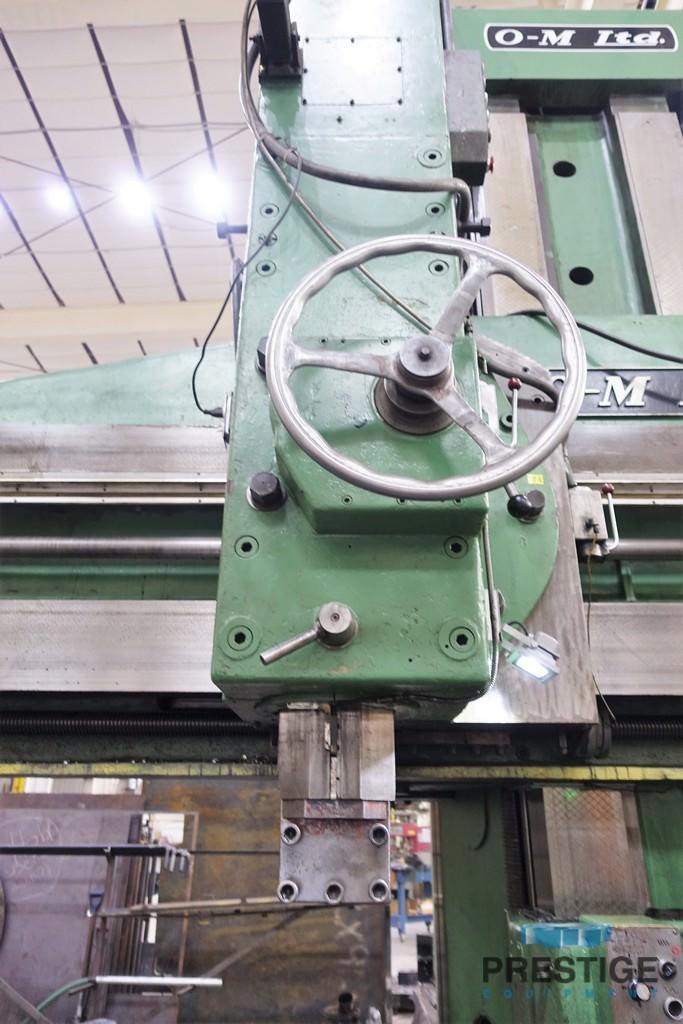

Vertical Ram

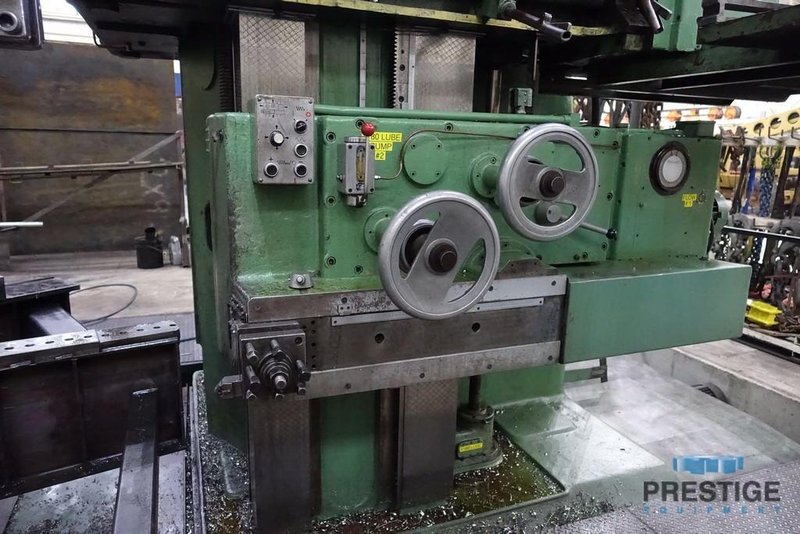

Side Head
60 HP Main Motor
