CAPACITY:

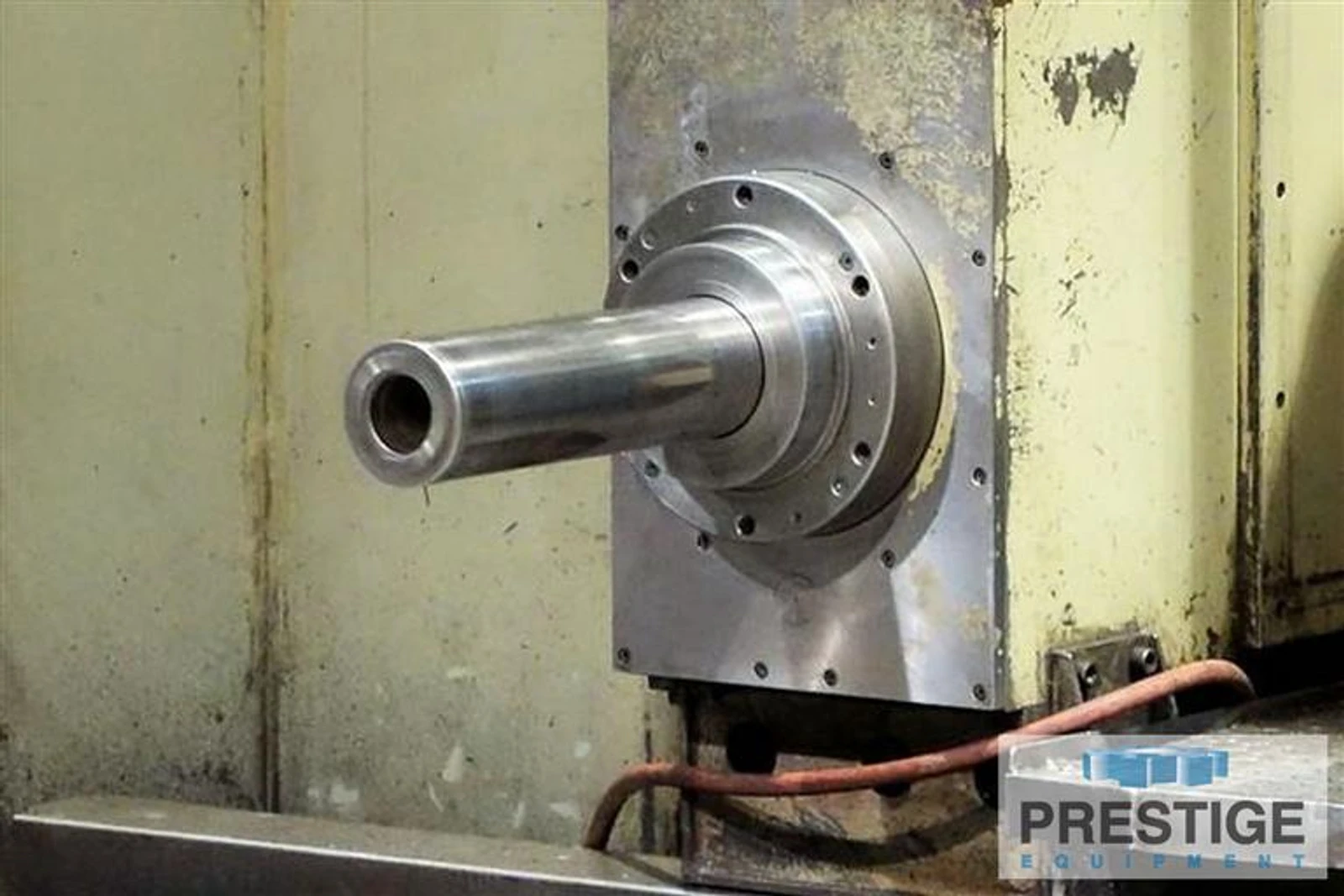

Spindle Diameter 5.12"

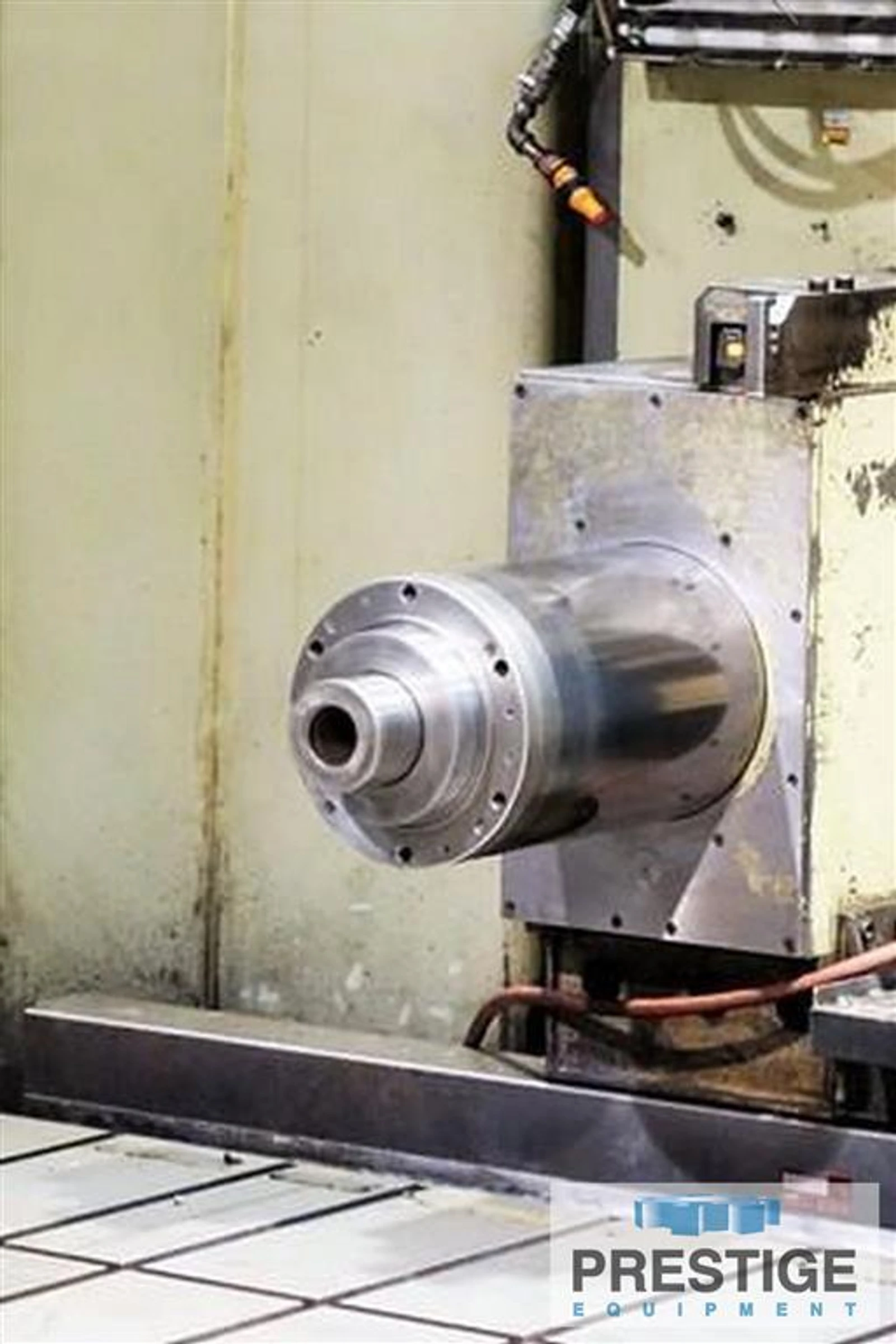

Quill Diameter 13.38"
Milling Sleeve Diameter 8.8"
Vertical Headstock Travel, Y-Axis 118.11"
Column Travel, X-Axis 295.27"
Boring Spindle Travel, Z-Axis 39.37"
Quill Travel, Z-2 Axis 17.7"
Total Axial Travel, Spindle & Quill 39.37"
Spindle Speed Ranges 2
Spindle Speeds, Infinitely Variable 10-1250 RPM
Spindle Taper #50
Feeds, Variable 0.04 - 157 IPM
Rapid Traverse 157 IPM
Spindle Motor 30 HP / 40 HP
Approx. Machine Dimensions 496" x 175" x 289"
Machine Only Weight 69,500 Lbs

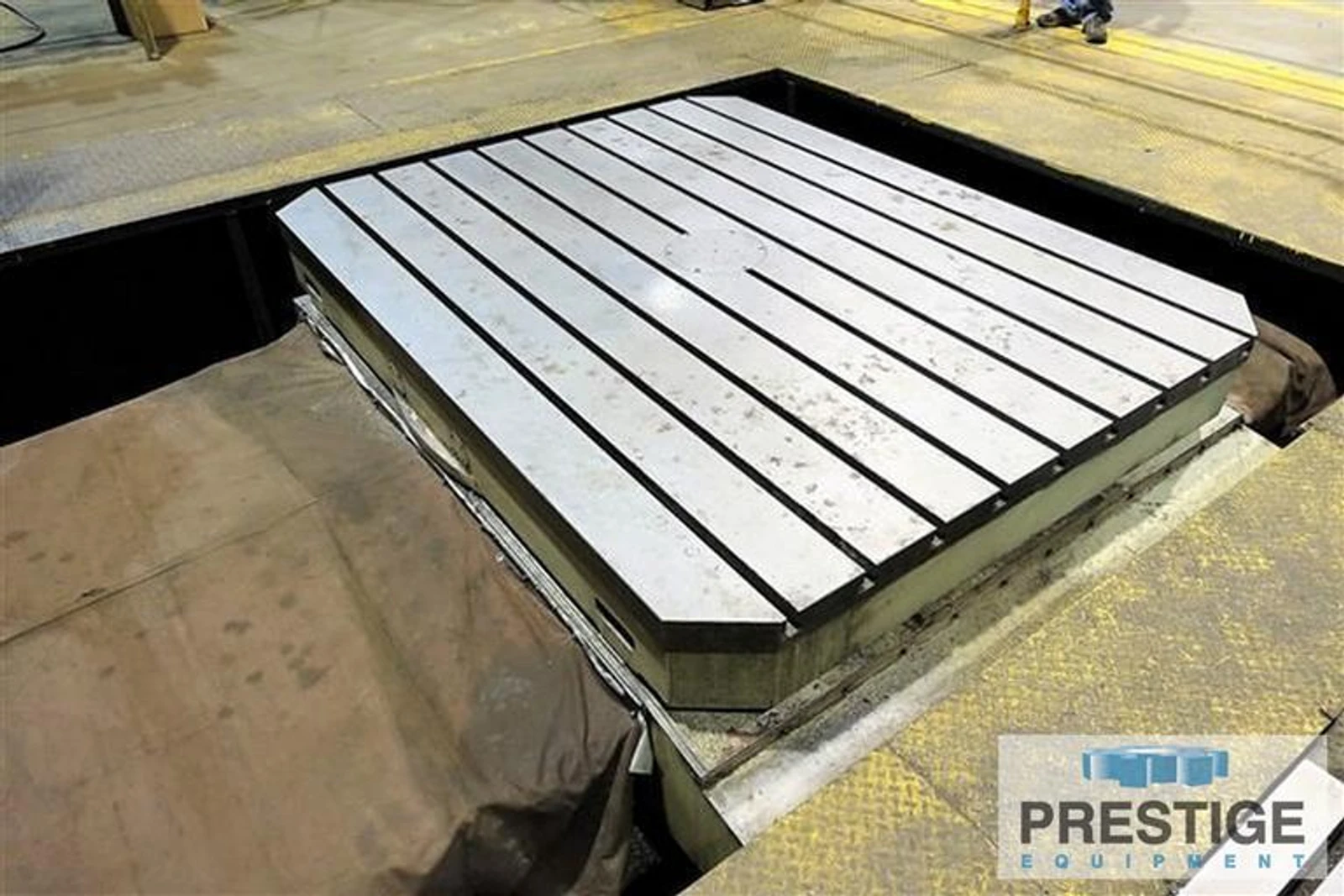

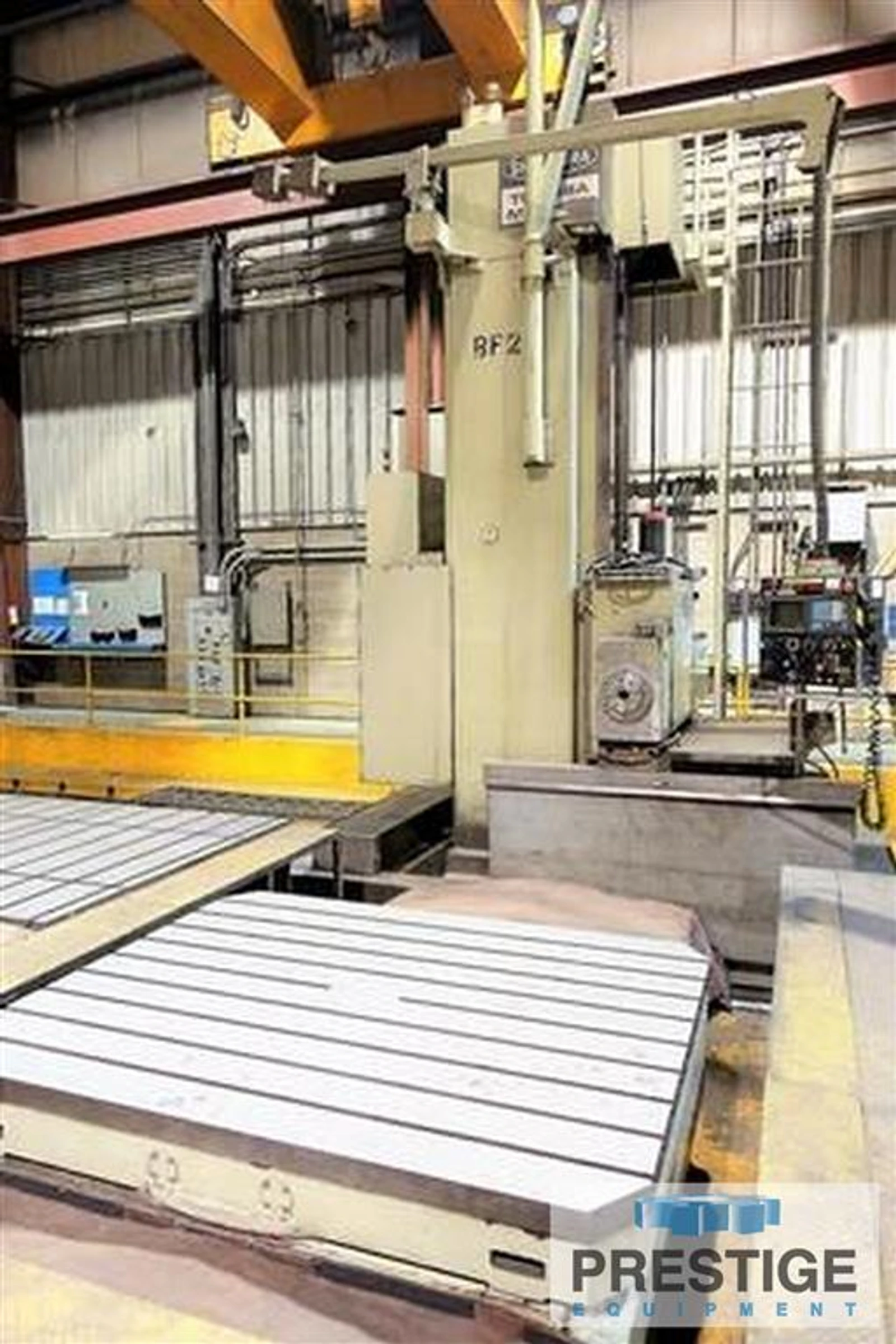

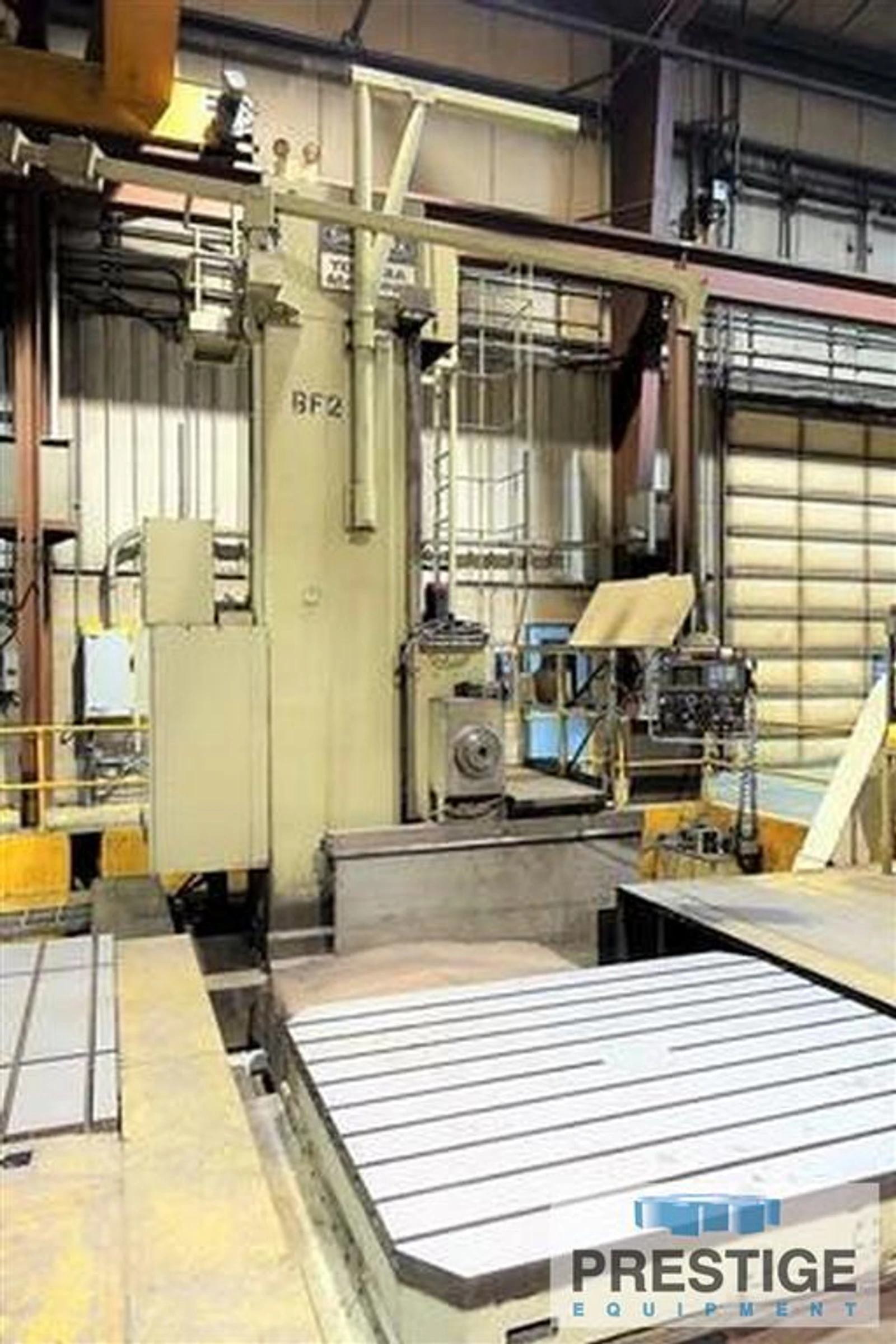

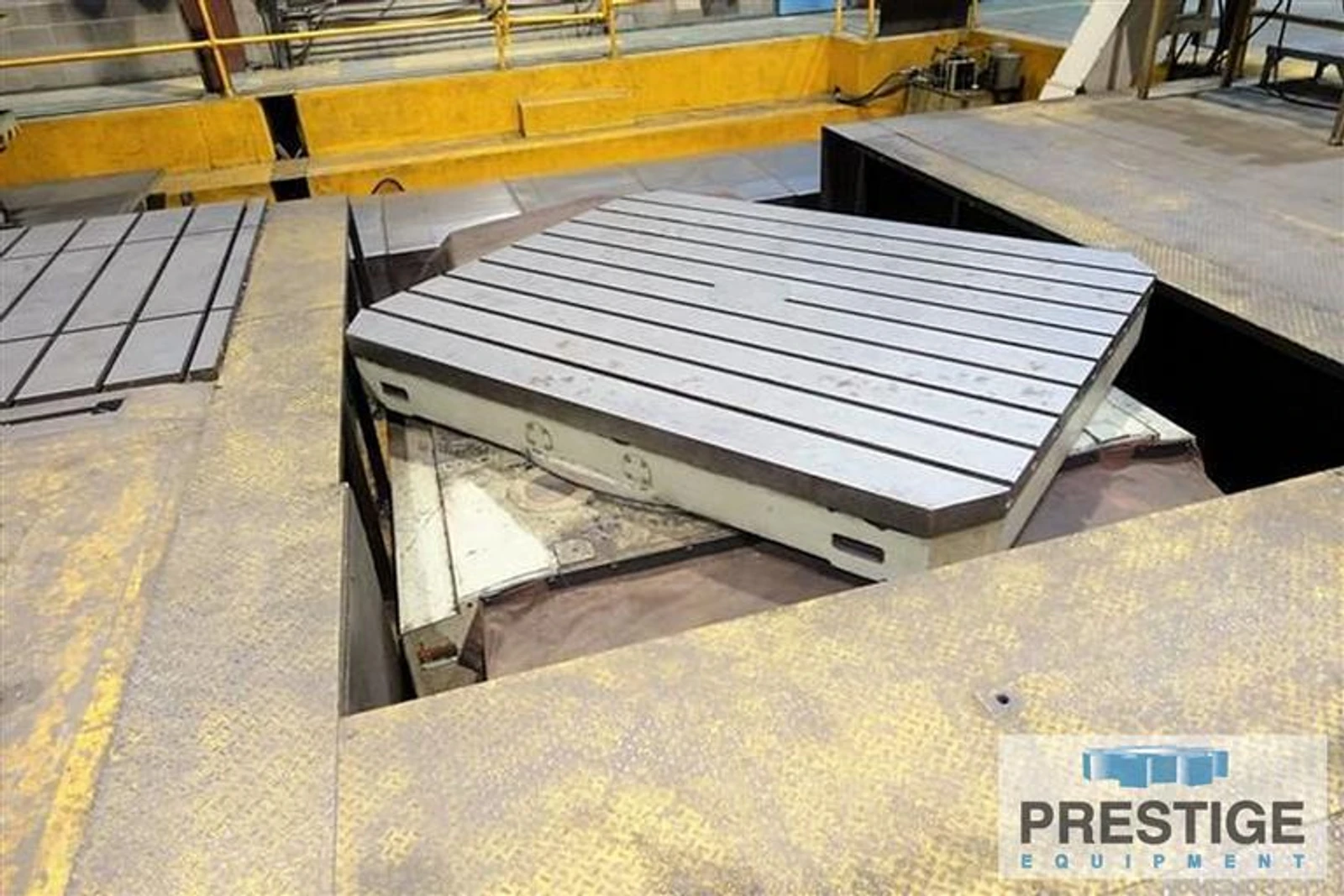

TOSHIBA CNC INFEEDING ROTARY TABLE:
Table Size 78.74" x 98.42"
Table Infeed 78.74"
Table Rotation .001 IPM
Table Weight Capacity 97,000 Lbs



Equipped With:

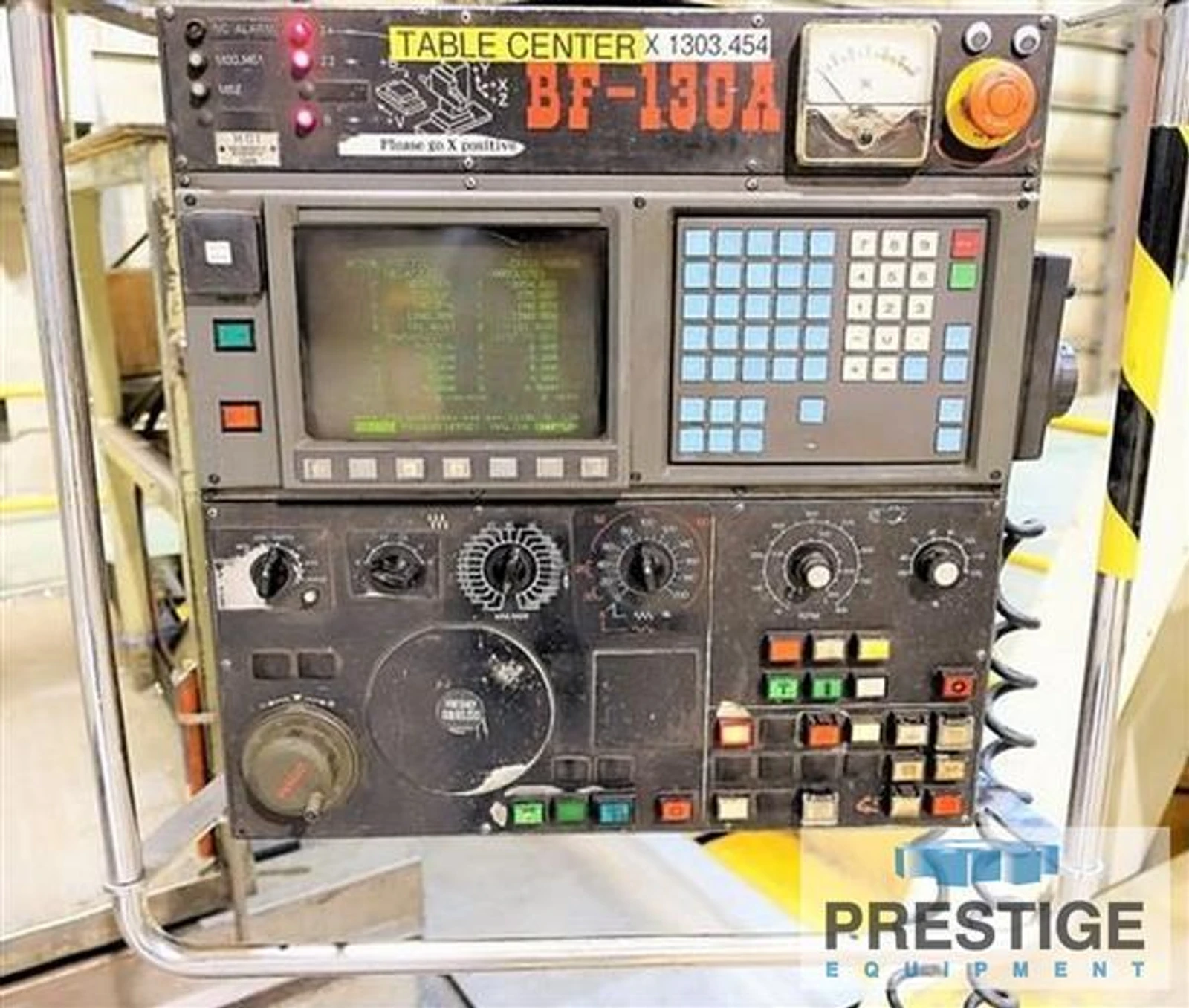

Fanuc 15M CNC Control
Toshiba BD 20/25 CNC Infeeding Rotary Table

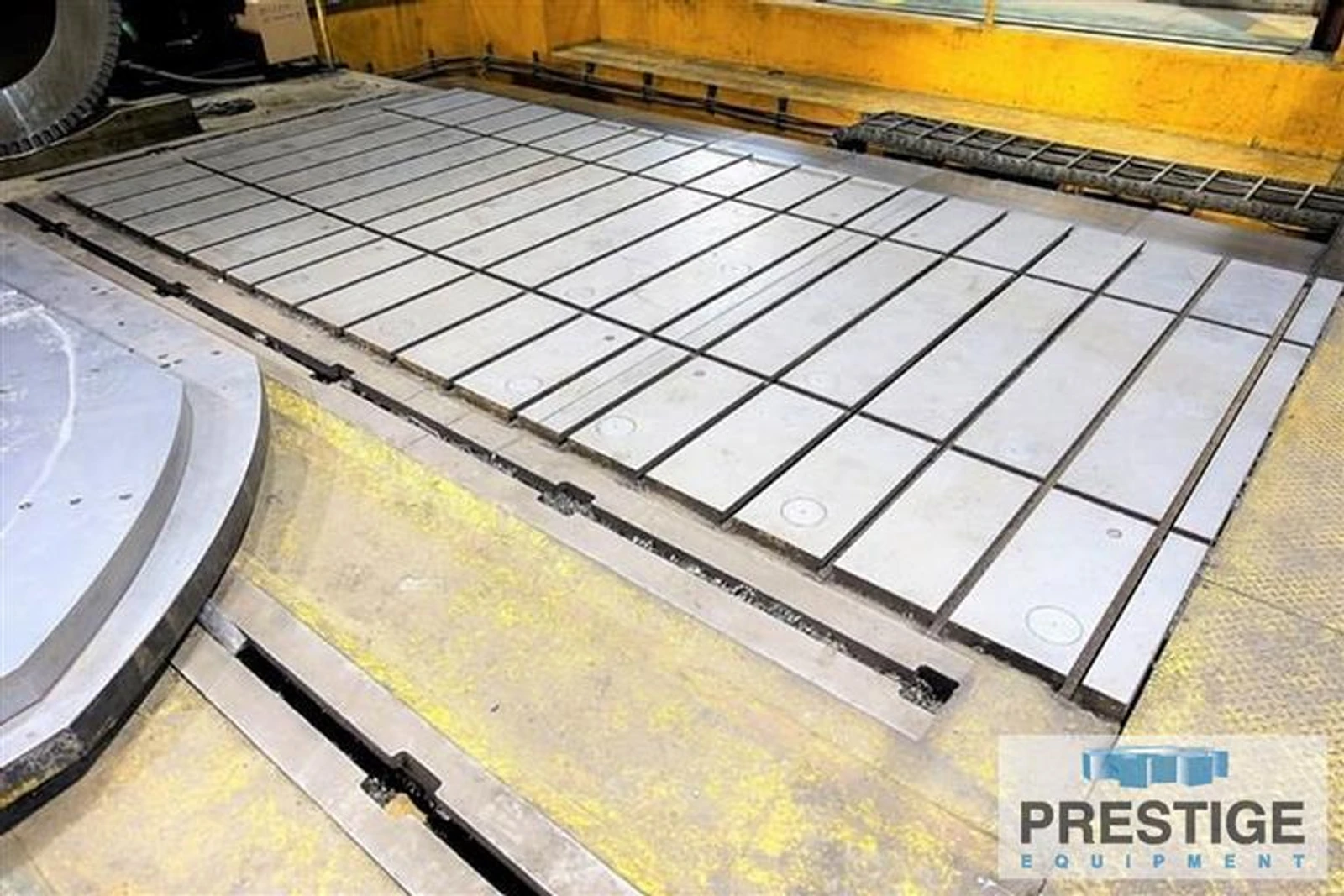

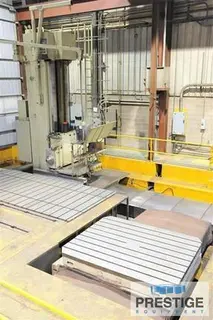

189" x 94" T-Slotted Floor Plate

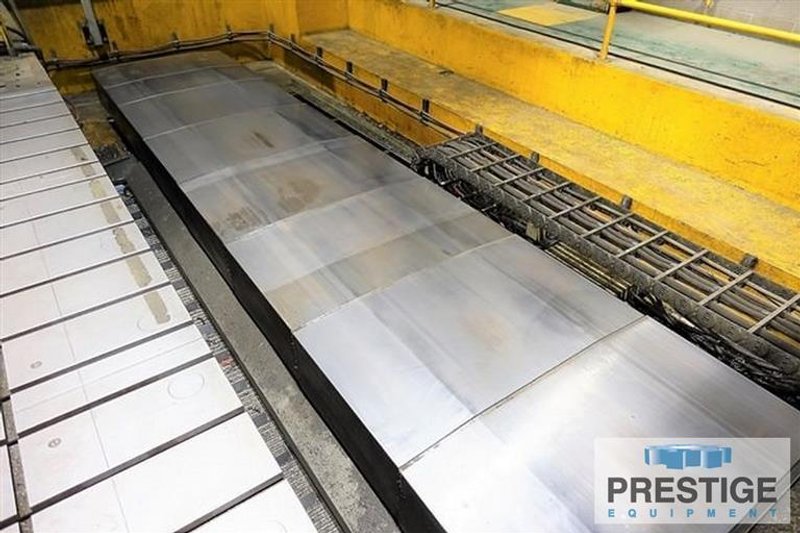

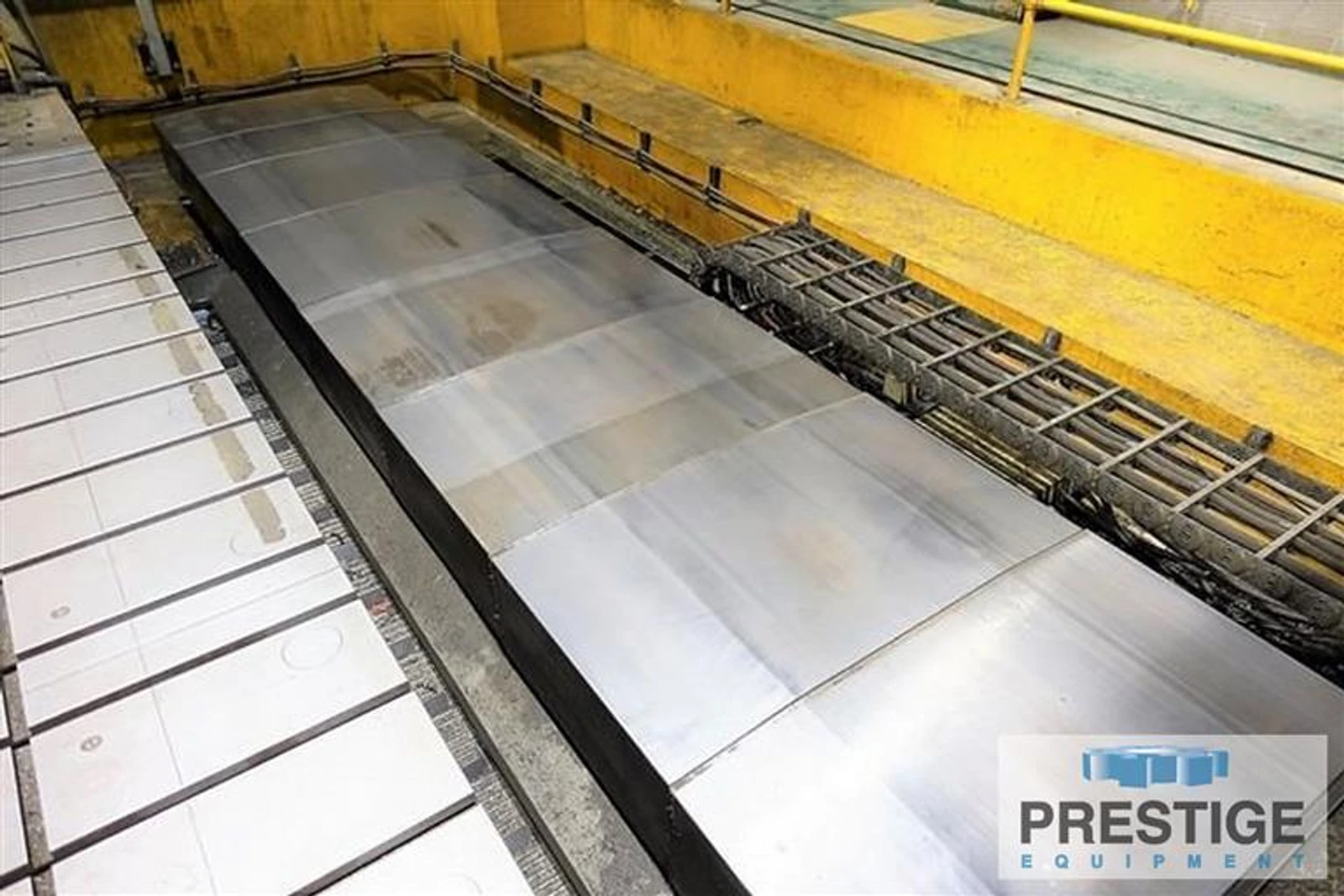

Telescoping Way Covers on Runway
Ball Screws & Independent Drives
40 HP Spindle Drive
