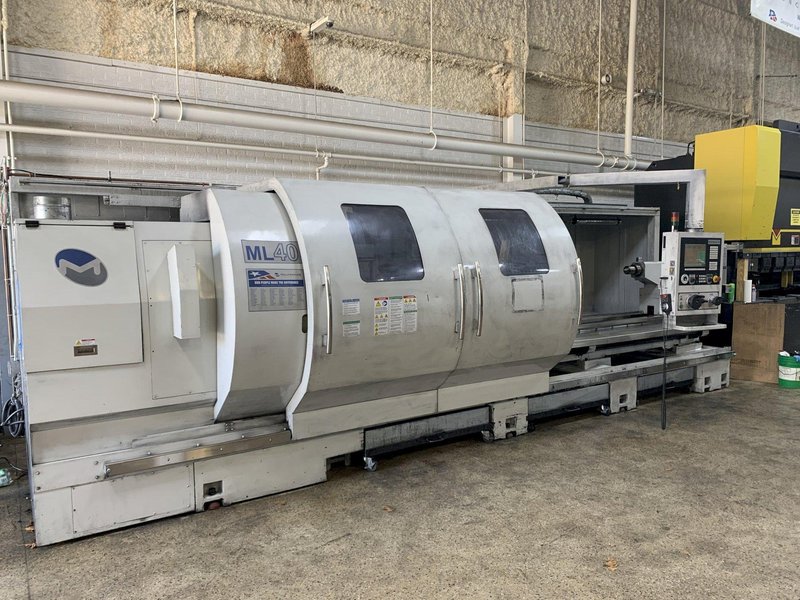

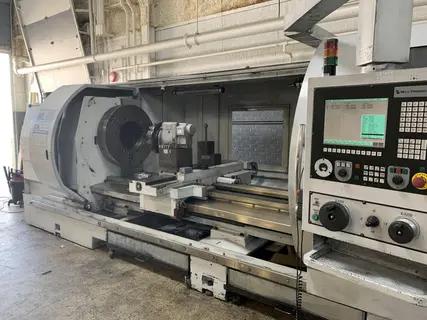

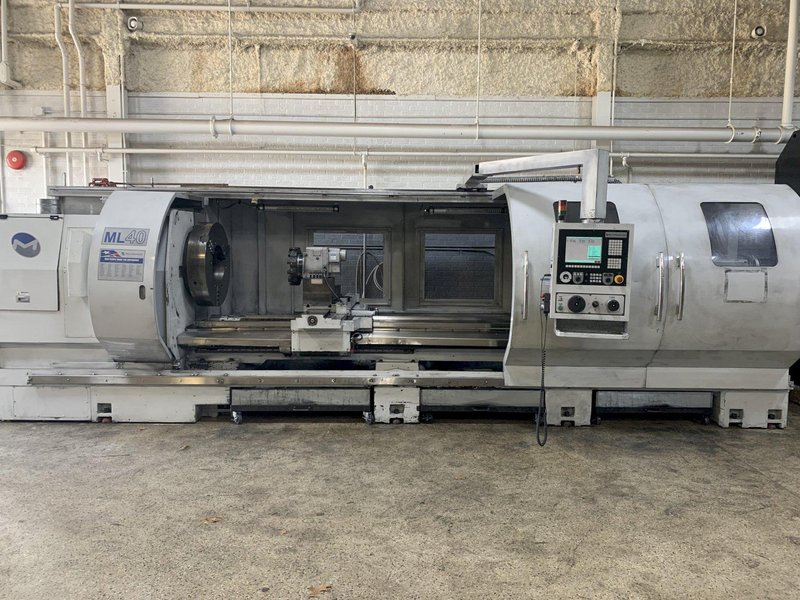

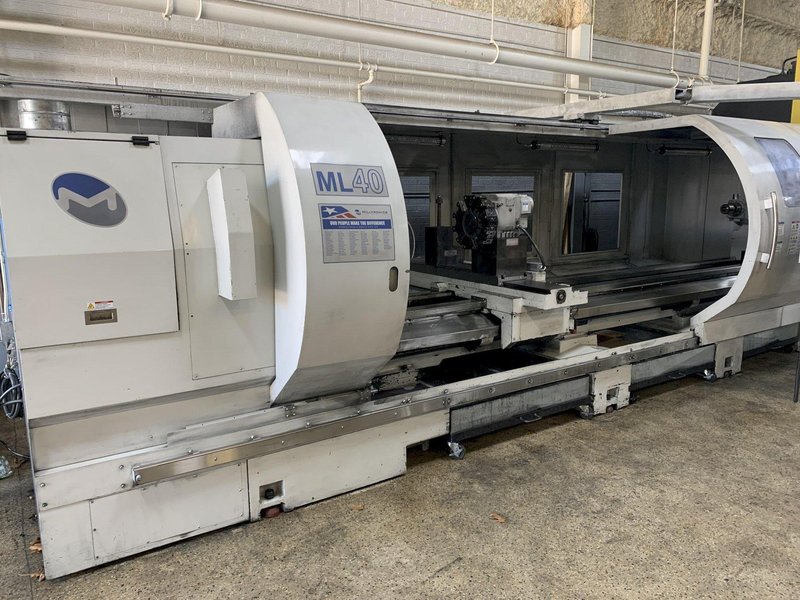

Milltronics ML40/160 Big Bore CNC Flat Bed Engine Lathe, S/N 11251, New 2010.

Milltronics ML40/160 Big Bore CNC Flat Bed Engine Lathe, S/N 11251, New 2010.

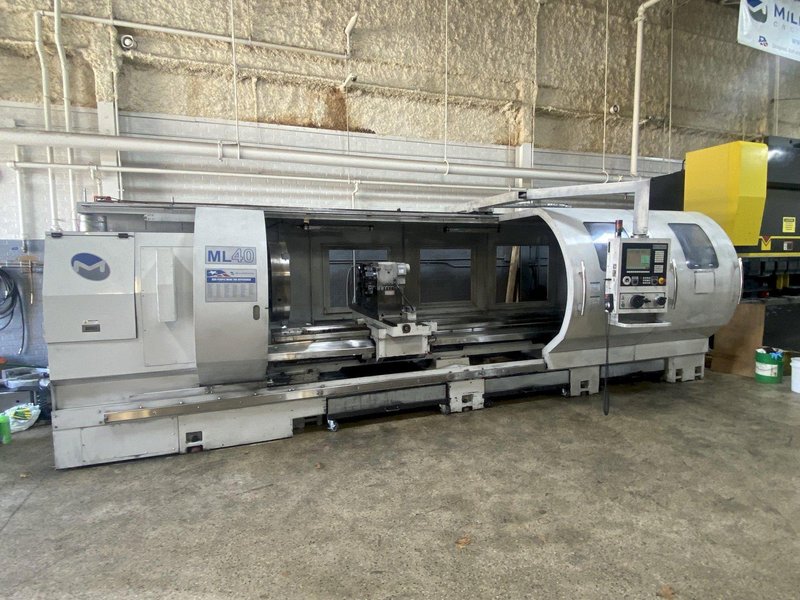

Name: Milltronics ML40/160 Big Bore CNC Flat Bed Engine Lathe, S/N 11251, New 2010.
Brand: MILLTRONICS
SKU: 34718
Availability: PreOrder

Brand

MILLTRONICS

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Specifications:
Swing over bed - 39.7"
Swing over gap - 50"
Swing over cross slide - 26.6"
Gap distance - 14.6"
Center distance - 160"
X-Axis travel - 21"
Z-Axis travel - 160"
Spindle bore - 14"
Spindle nose - A2-20
Spindle speed range low - 10 to 375 rpm
Spindle speed range high - 10 to 500 rpm
2-Speed AC Spindle motor (1 min / 30 min) - 35/25 HP
Tailstock quill travel - 9"
Tailstock quill diameter - 4.92"
Tailstock quill taper - MT6
Automatic turret - 12 Tools
Tool selection - bi-directional
Turret tooling size - 1"
X,Z axis rapid traverse rate - 500 ipm
Max cutting feed rate - 100 ipm
Machine height - 90"
Floor space - 272" L x 110" D
Machine weight, approx - 29,000 lbs.

Includes the following:

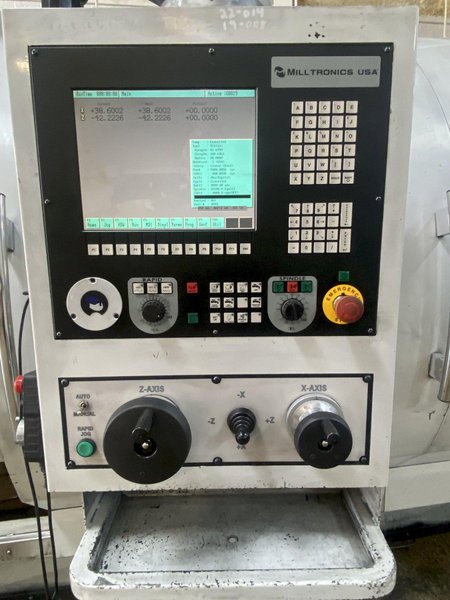

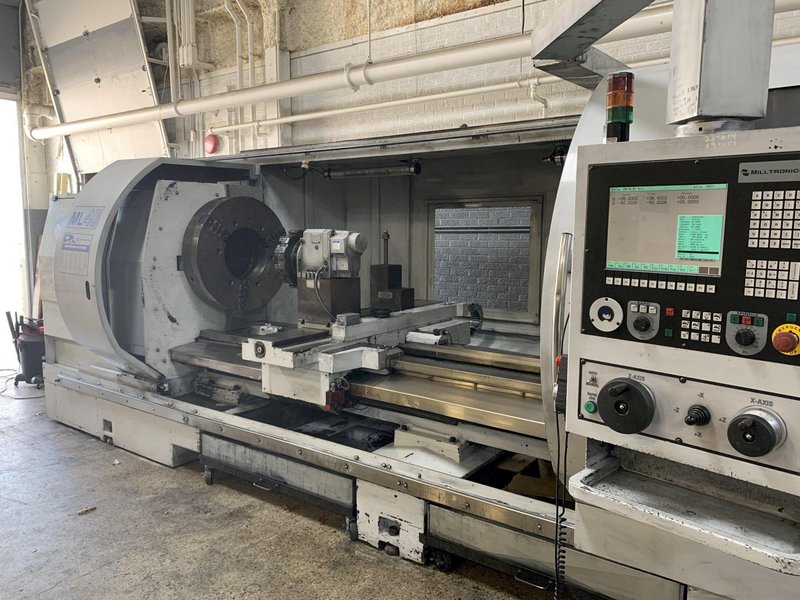

Milltronics 7200 Conversational CNC Control
12" LCD Active Matrix Color Display
14” Spindle Bore ($90,000 option back in 2010)

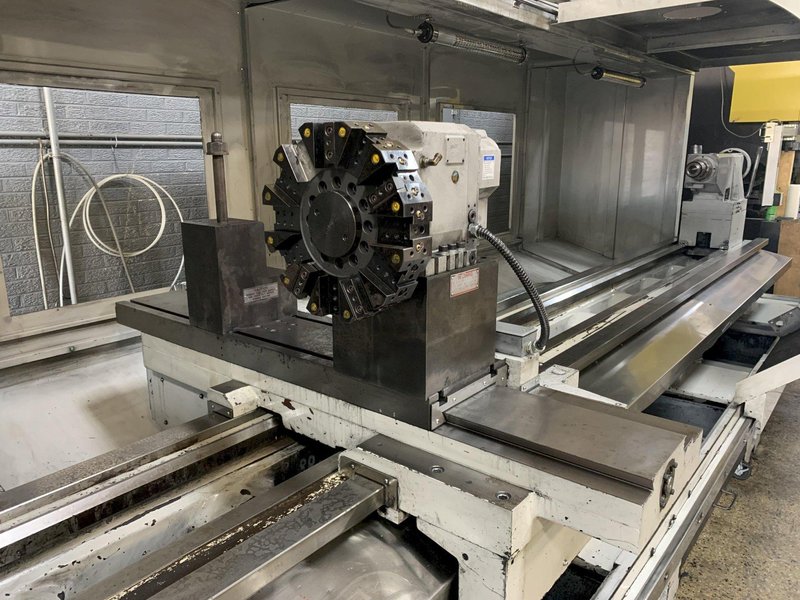

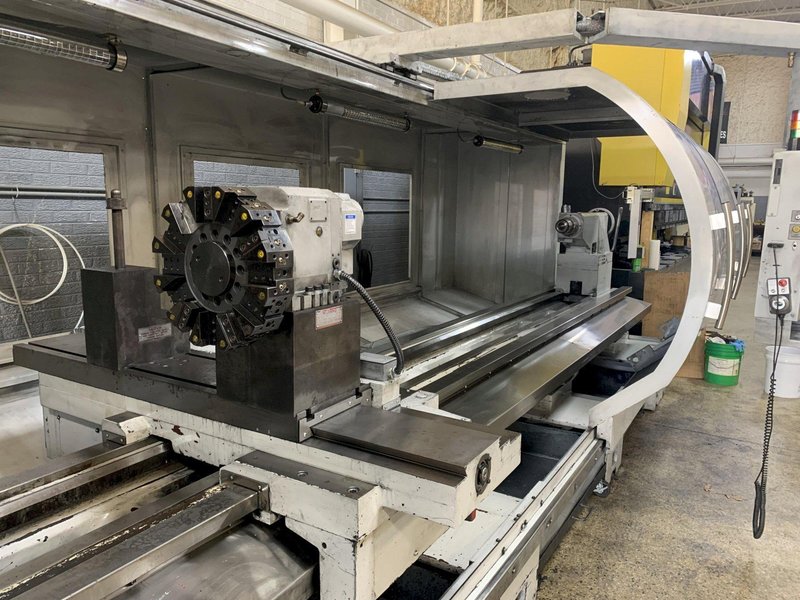

12 Station Front Mount Pragati Turret
35/25 HP Spindle Motor. Range 1: 10-375 RPM, Range 2: 10-500 RPM
Software Package A (Thread Chasing, Constant Surface, Rigid Tap)
High Torque AC Digital Servo Drives
Edit Lockout Key
End of Cycle Light
Worklights
Remote Handwheel

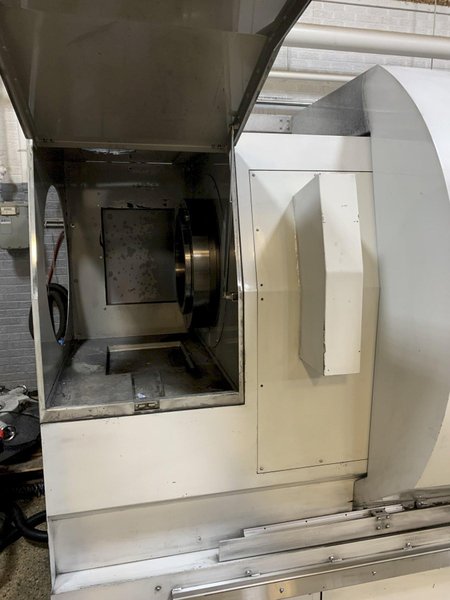

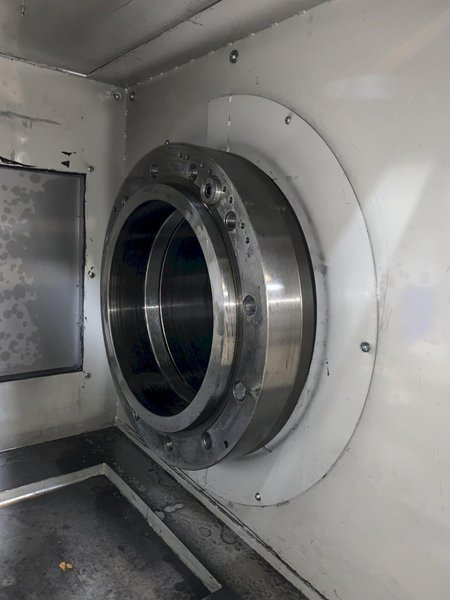

Rear Mounted Chuck Flange with A2-20 mount (same as front)

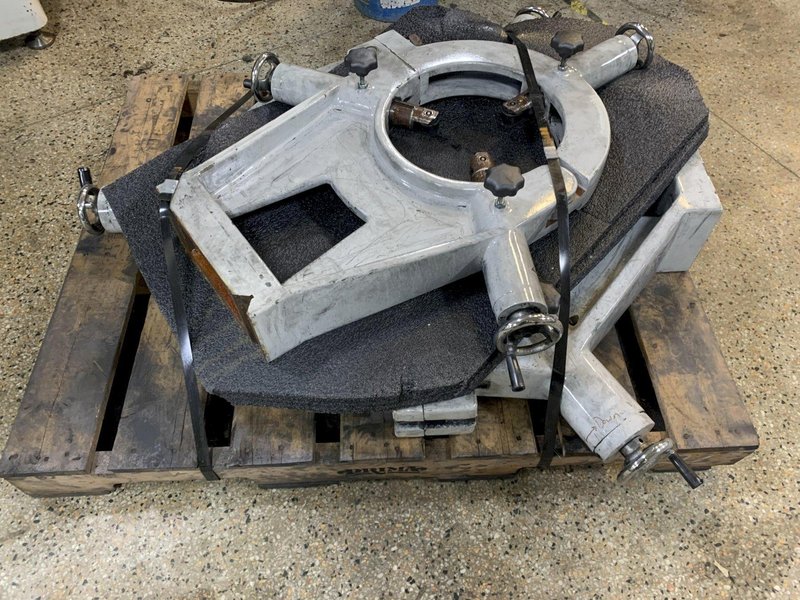

50-300mm Steady Rest
250-500mm Steady Rest
31.5” 3-Jaw Chuck (no jaws)
Live Center
Automatic Metered Lubrication

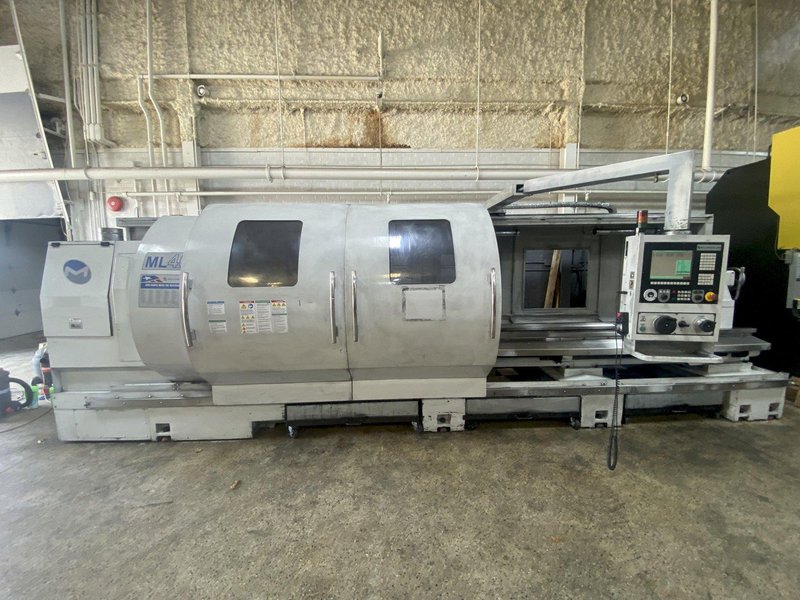

Heavy Duty Metal Enclosure with Sliding Front Door
Chip Drawer Containment System

Notes:
* Not presently equipped with coolant pump or chiller.
* New price in 2010 as equipped listed for over $300K.
* Must transport on air ride.
* Specifications subject to independent verification by the buyer.
