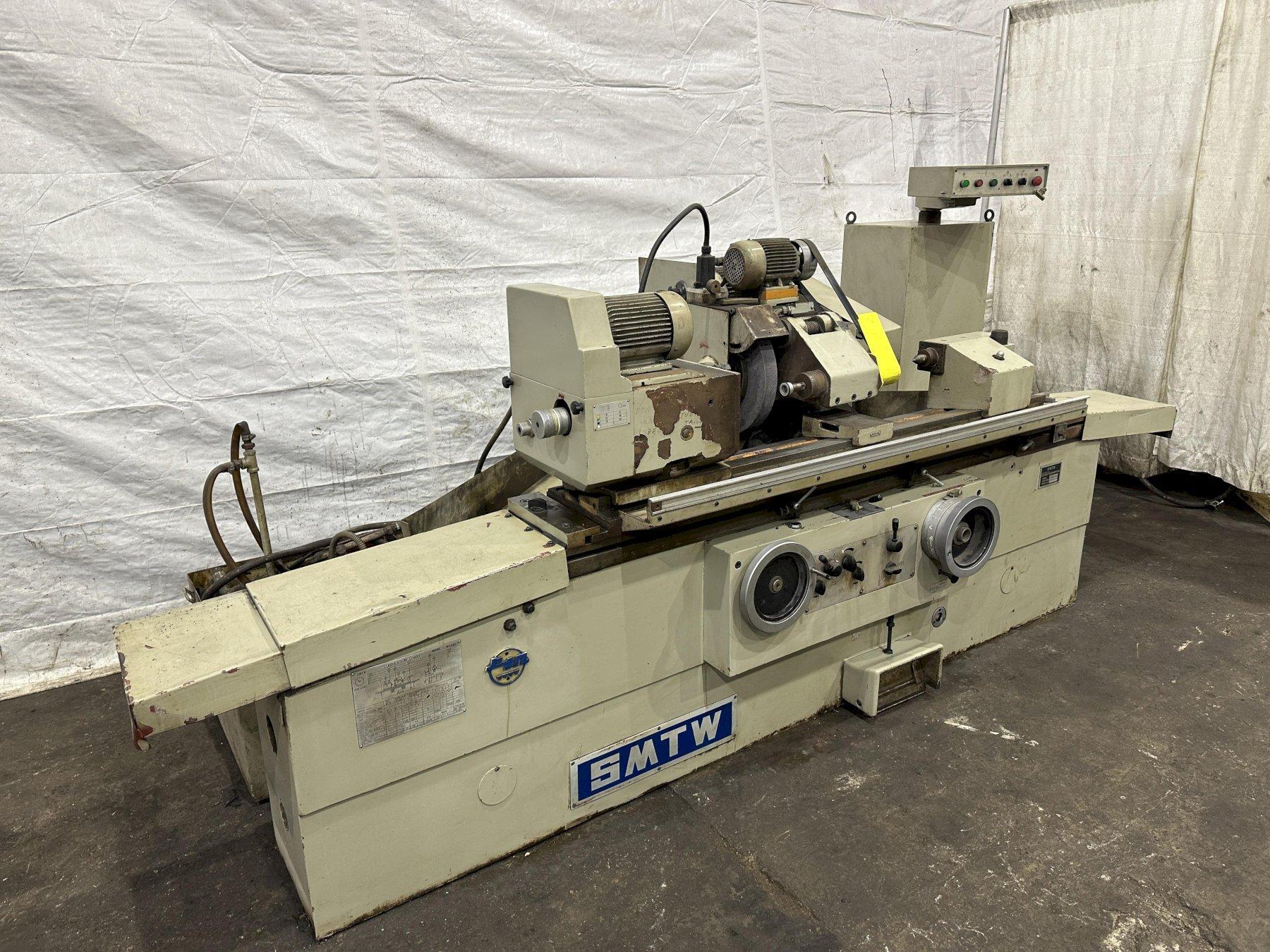

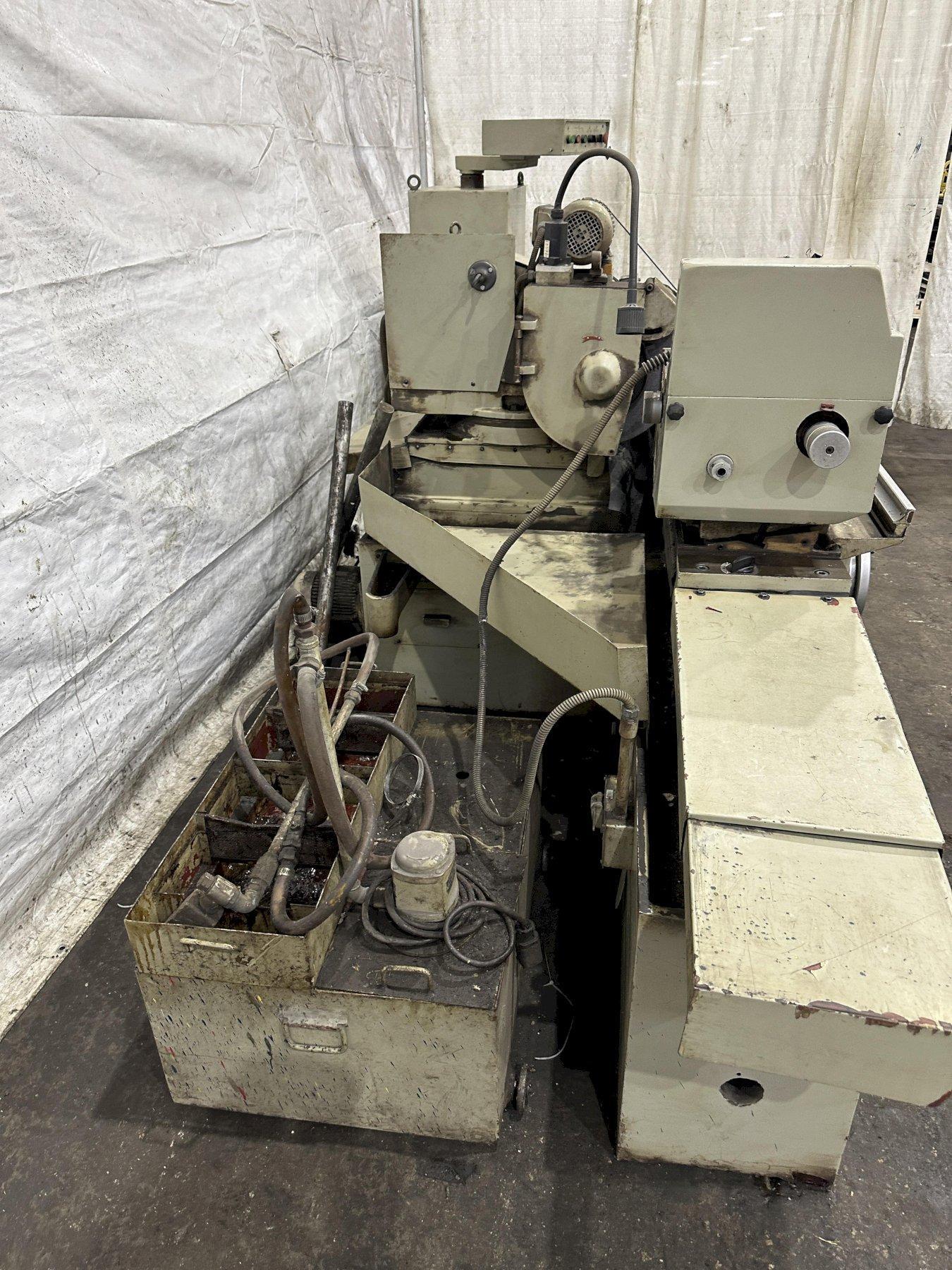

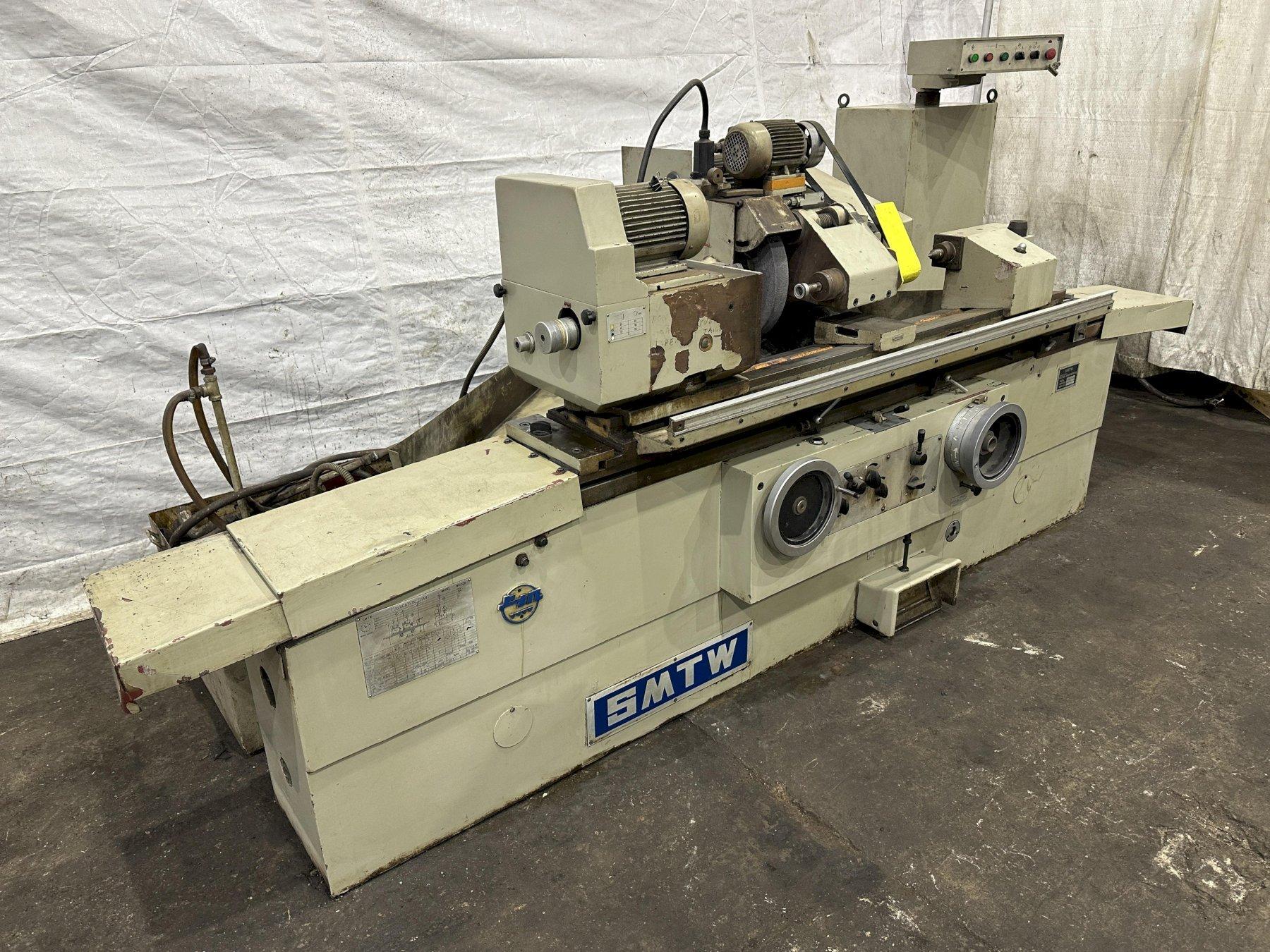

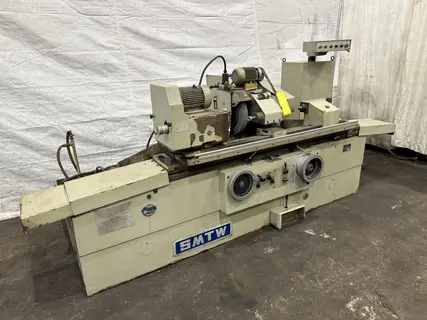

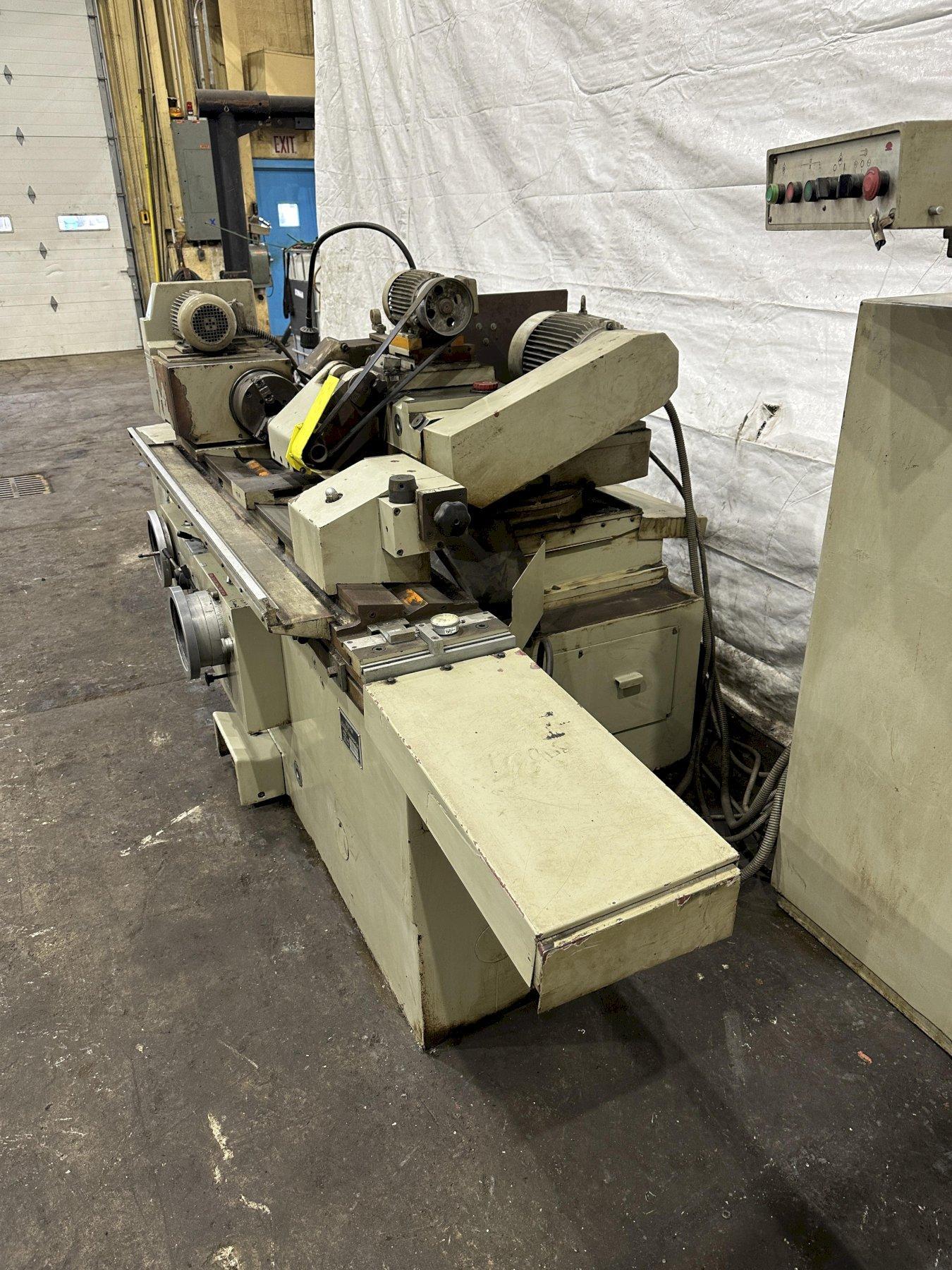

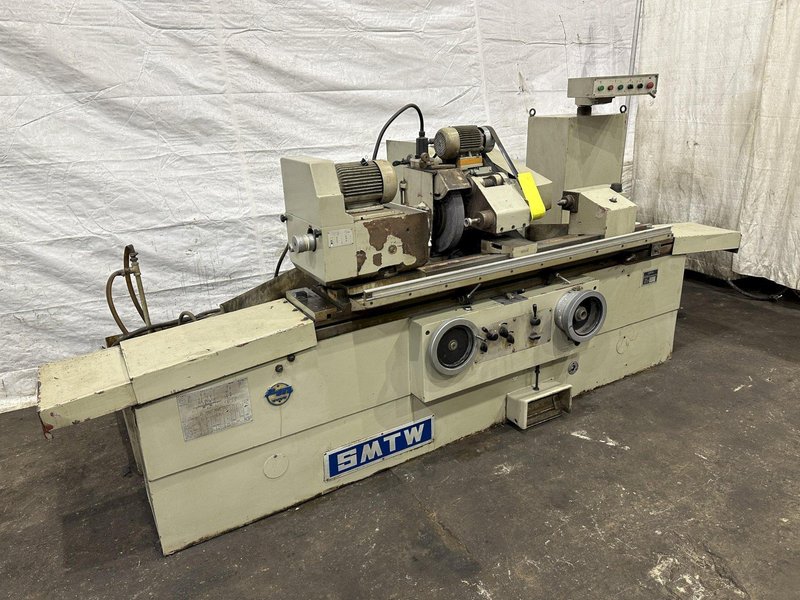

14" X 40" SMTW OD/ID CYLINDRICAL GRINDER: STOCK #77748

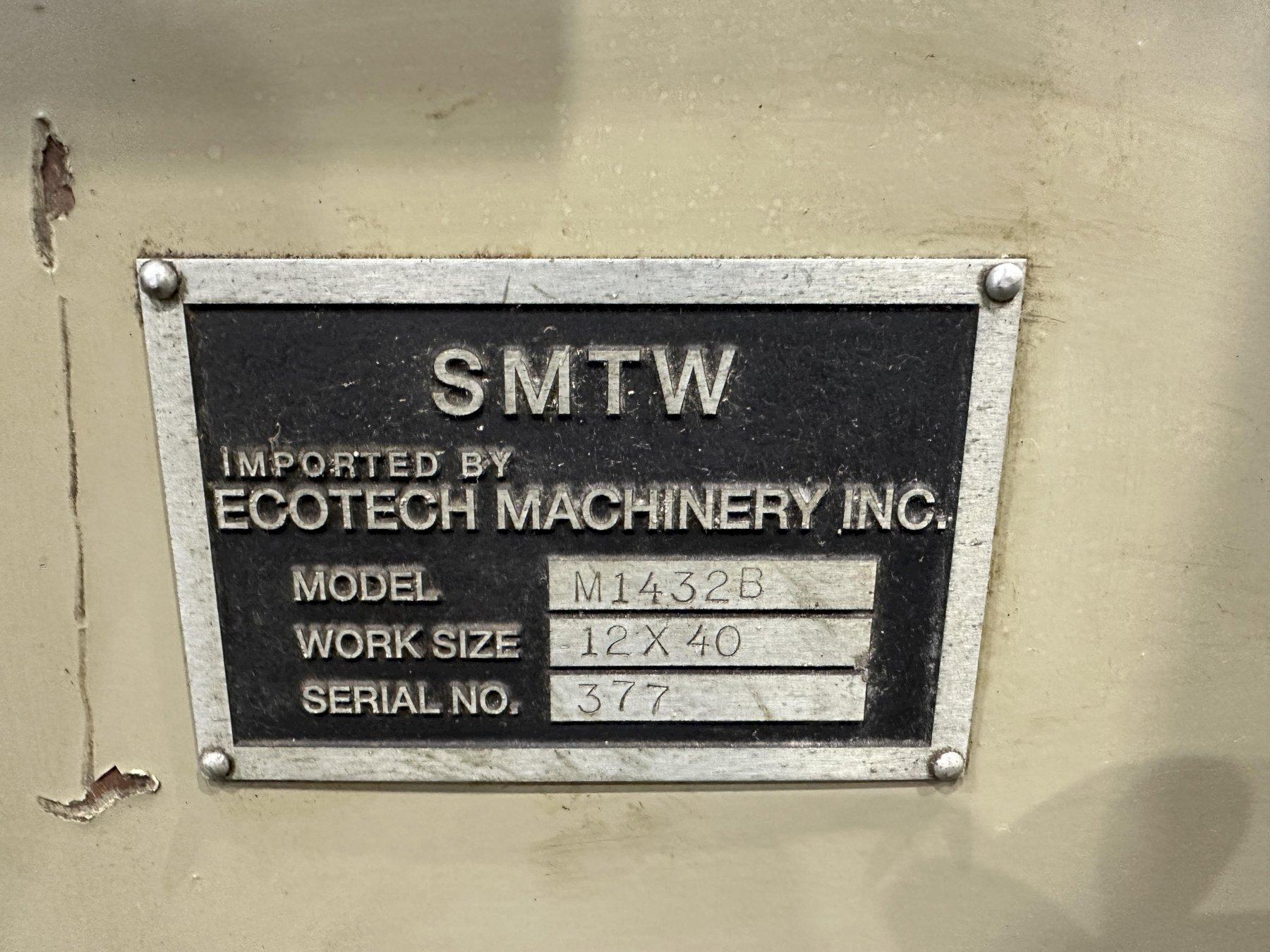

SERIAL .................................. 377

MODEL ................................... MG1432B

MAXIMUM SWING OVER BED .................. 12"

MAXIMUM CENTER DISTANCE ................. 40"

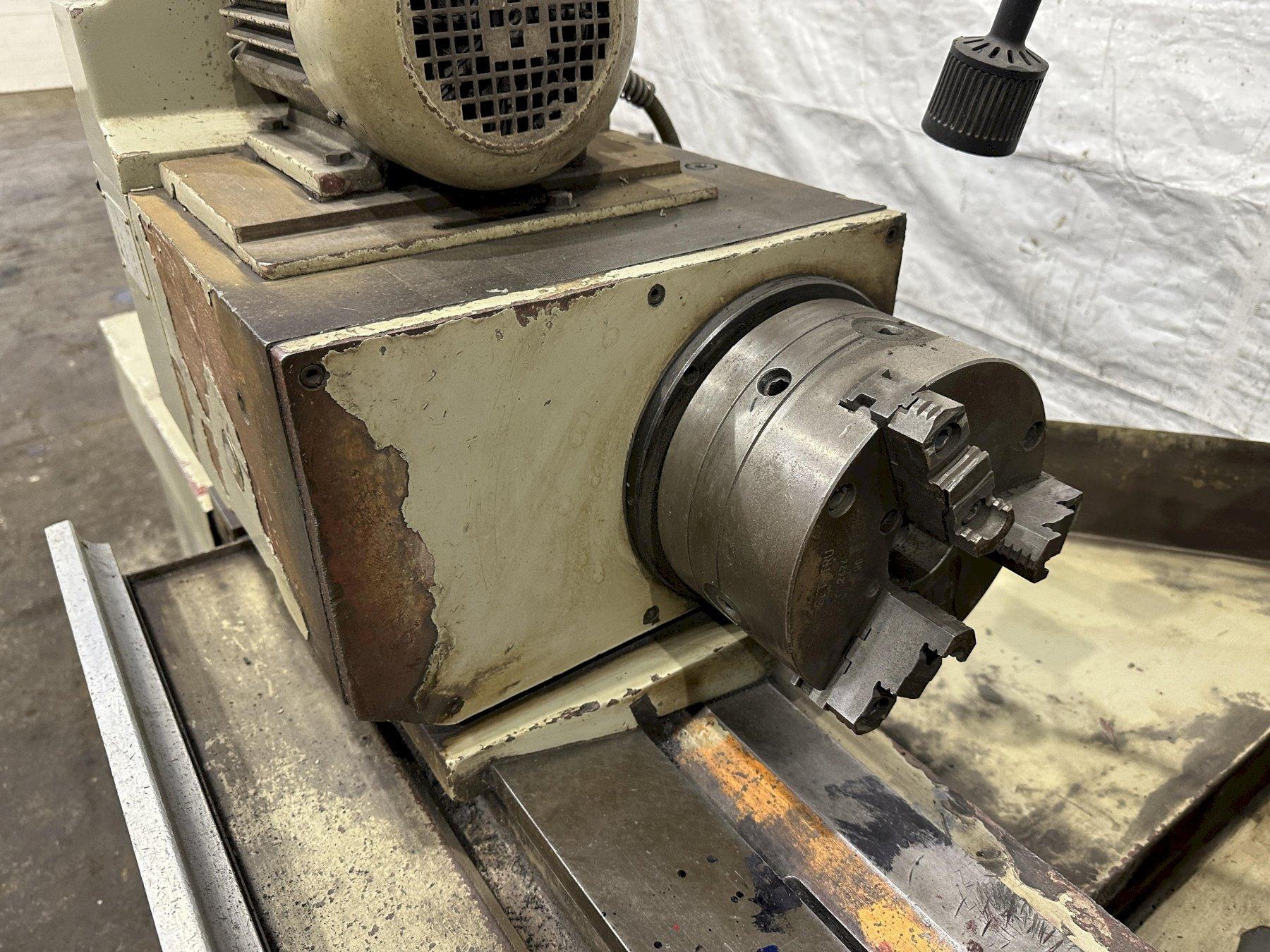

WORK HEAD SPEEDS ........................ 24 TO 240 RPM

GRINDING WHEEL SPEEDS ................... 1680/840 RPM

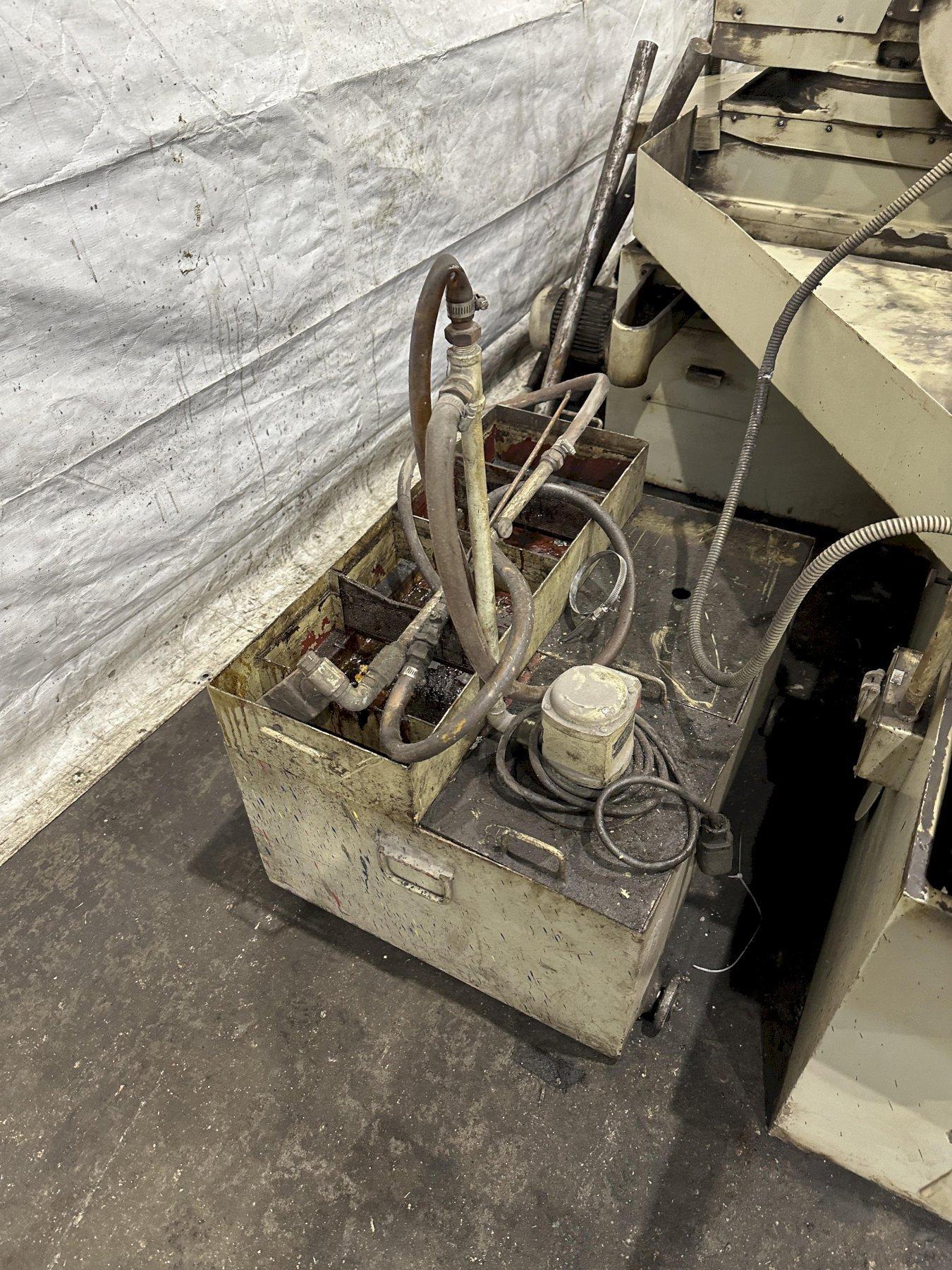

HYDRAULIC TABLE TRAVERSE ................ YES

AUTOMATIC WHEEL HEAD IN FEED ............ YES

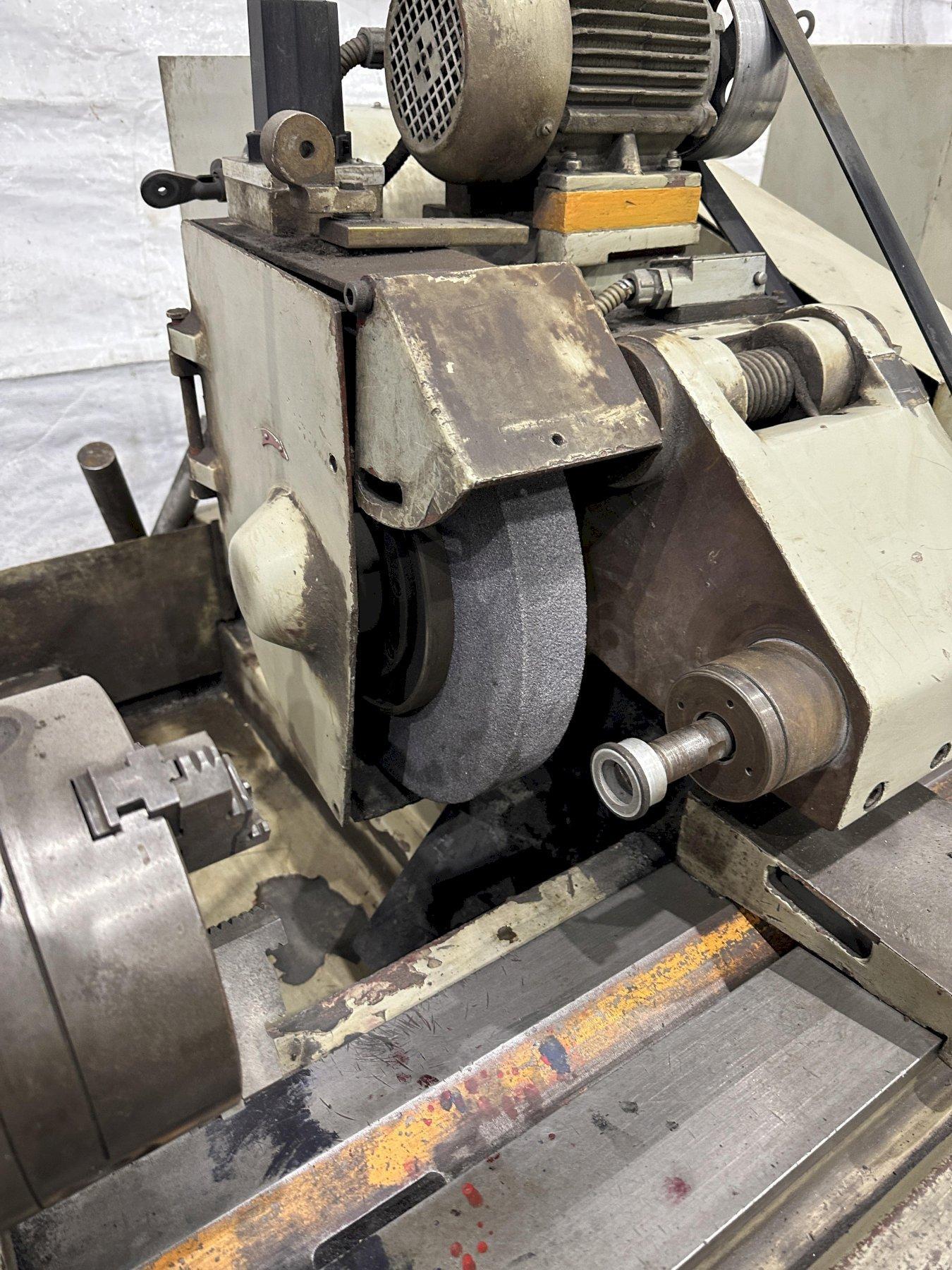

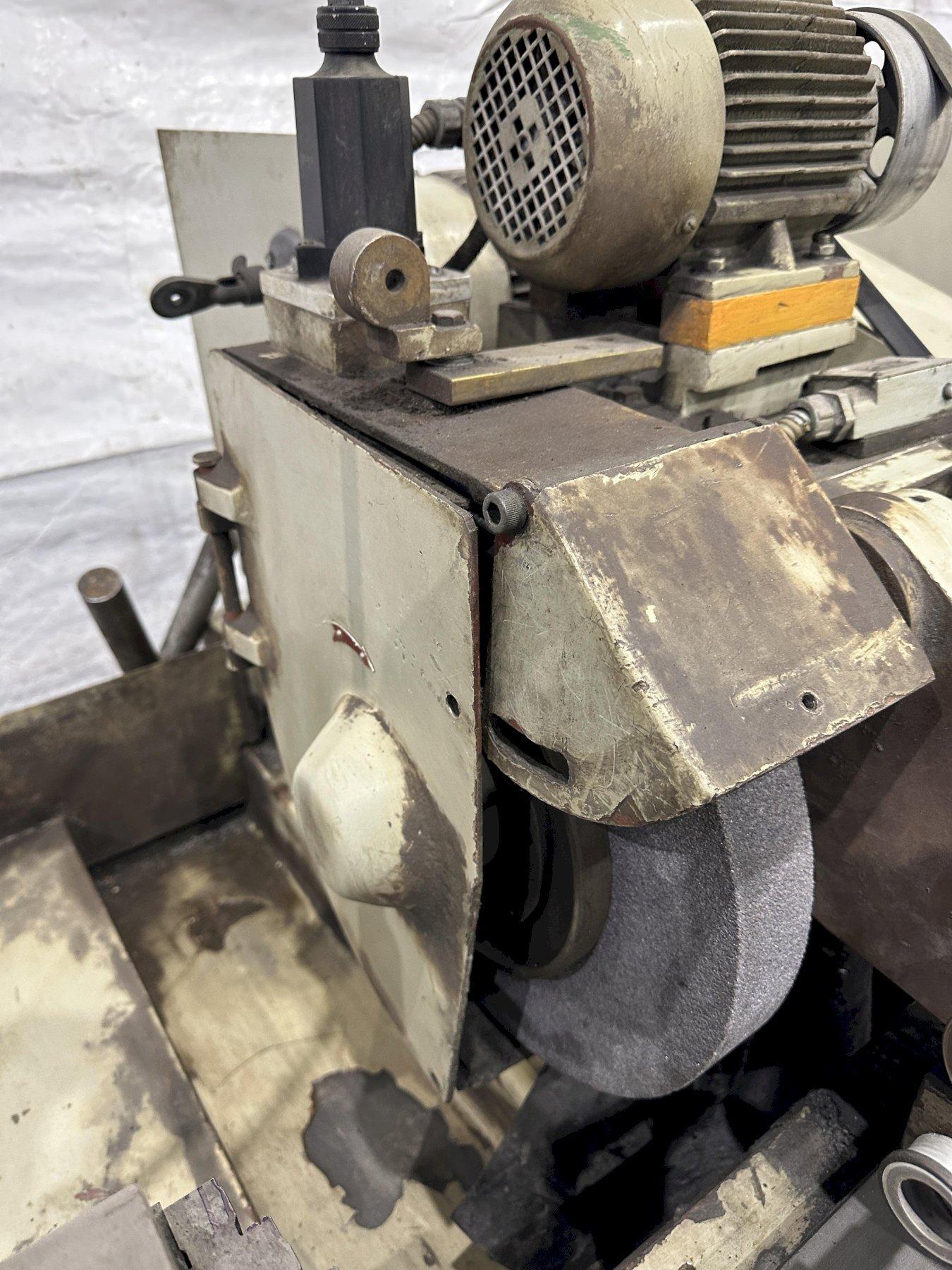

GRINDING WHEEL SIZE ..................... 16" X 2" X 8"

SWIVEL TABLE ............................ YES

WORK HEAD SWIVELS ....................... YES

GRINDING HEAD SWIVELS ................... 360 DEGREES

COOLANT ................................. YES

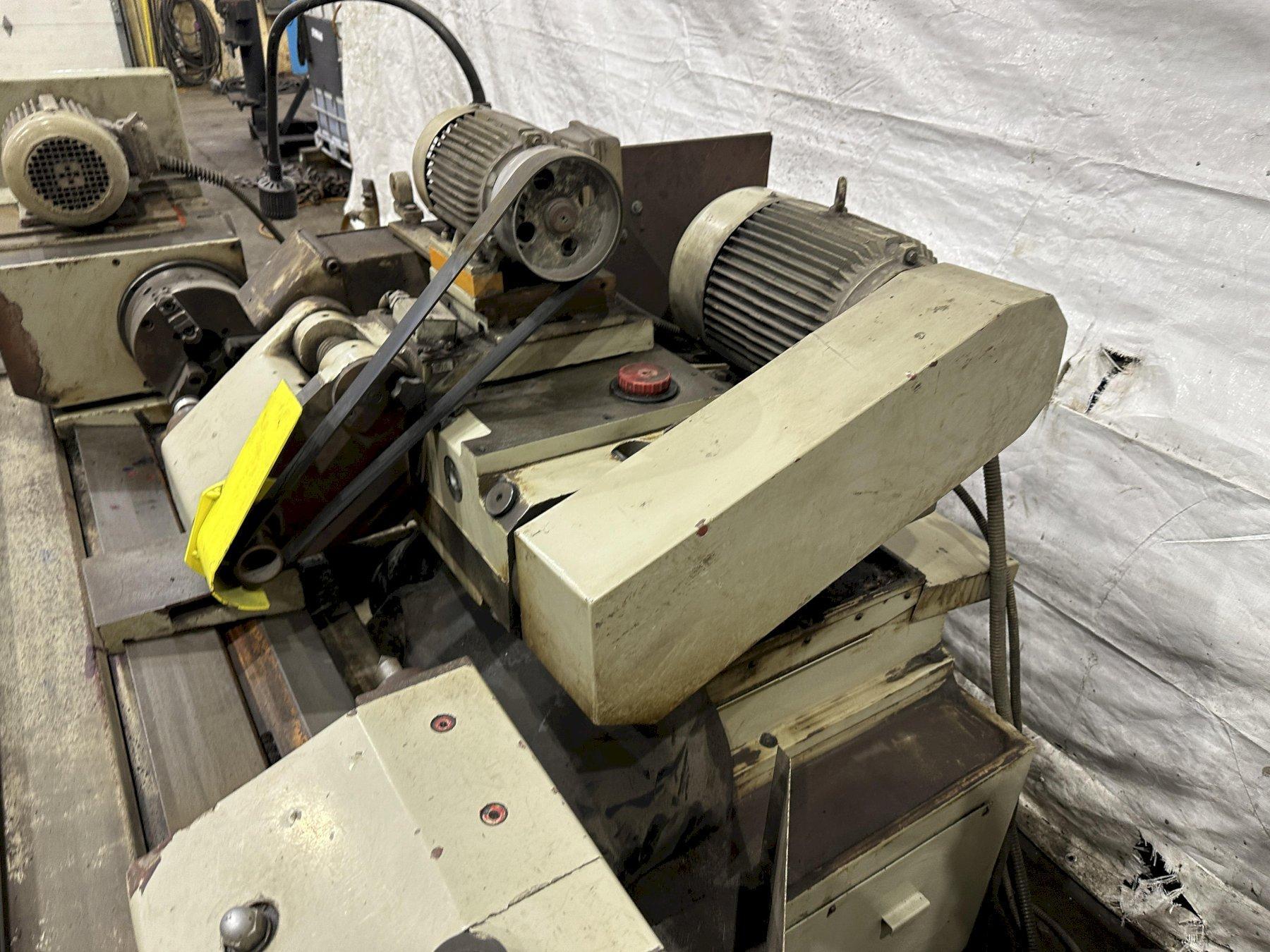

SPINDLE MOTOR ........................... 5 HORSEPOWER

HYDRAULIC MOTOR ......................... 1 HORSEPOWER

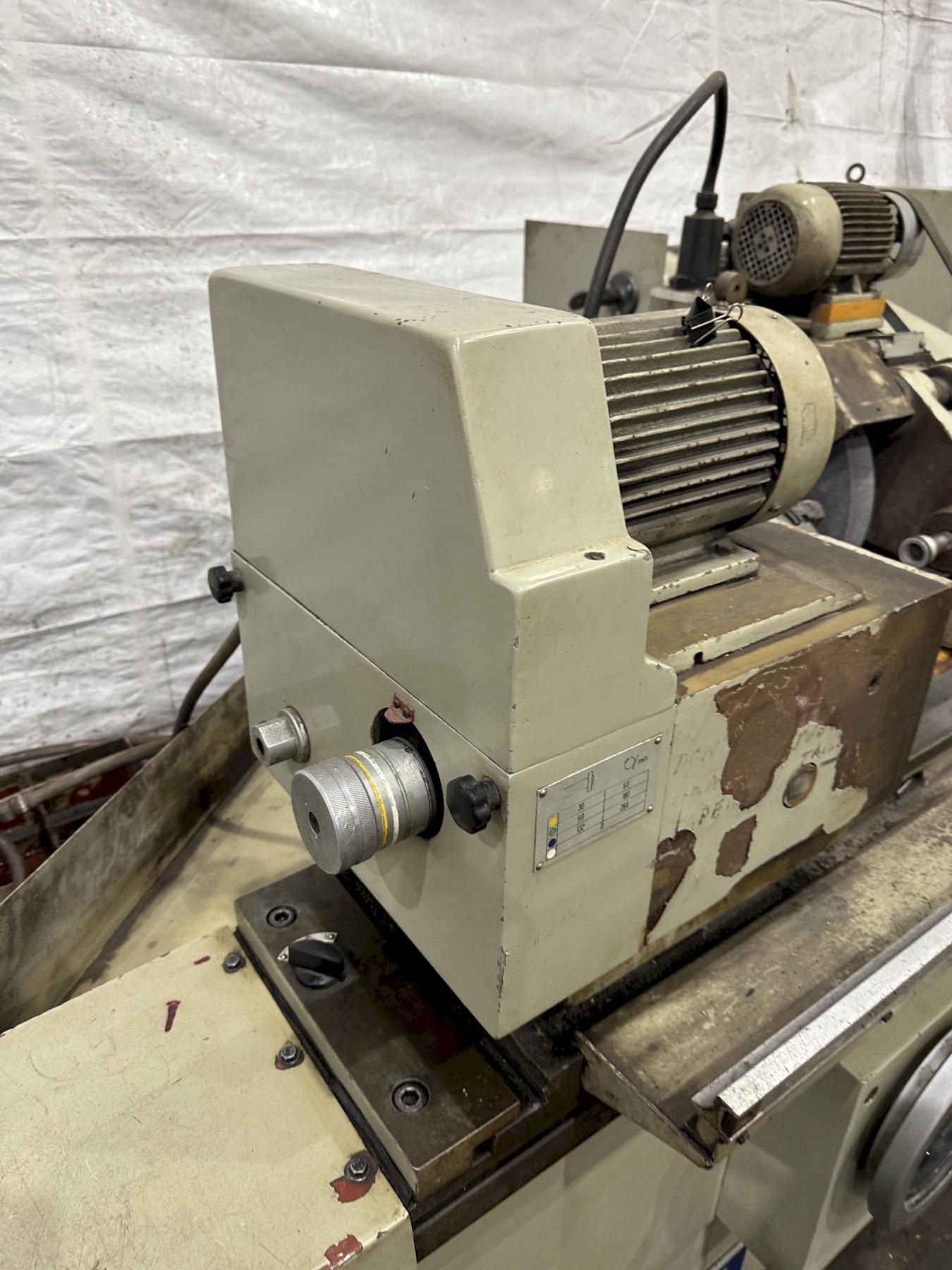

WORKHEAD MOTOR .......................... 3/4 HORSEPOWER
