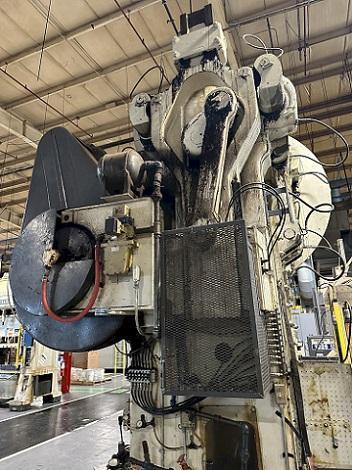

150/110 TON BLISS MODEL #3-3/4-B DOUBLE ACTION TOGGLE PRESS
Brand
Category
Model
Not specified
Stock #
116304
Year
Not specified
Condition
Used
Location
Not specified
|
150/110 TON BLISS MODEL #3-3/4-B DOUBLE ACTION TOGGLE PRESS
SERIAL ...................... 1273
MODEL ....................... 3-3/4 B
YEAR ........................
SLIDE PLUNGER CAPACITY ...... 150 TON
BLANKHOLDER CAPACITY ........ 110 TON
SLIDE PLUNGER STROKE ........ 20"
BLANKHOLDER STROKE .......... 11-1/2"
SLIDE PLUNGER SHUT HEIGHT ... 26"
BLANKHOLDER SHUT HEIGHT ..... 24"
ADJUSTMENTS ................. 6"
SLIDE PLUNGER AREA .......... " L-R X " F-B
BLANKHOLDER AREA ............ " L-R X " F-B
BED AREA .................... " L-R X " F-B
WIDTH BETWEEN UPRIGHTS ...... "
STROKES PER MINUTE ..........
RUN MODES ................... INCH, SINGLE, CONT
PROGRAMMABLE RUN MODE ....... YES
CONTROLS .................... ROCKFORD SSC-1550
HAND & FOOT TRIP ............ YES
LIGHT CURTAINS .............. YES
KNOCKOUT .................... YES
AIR CLUTCH .................. YES
AIR BRAKE ................... YES
LUBE SYSTEM ................. YES
STROKE COUNTER .............. YES
E-STOP BUTTON ............... YES
FLOOR STANDING .............. YES
MOTOR ....................... 15 HP
|
