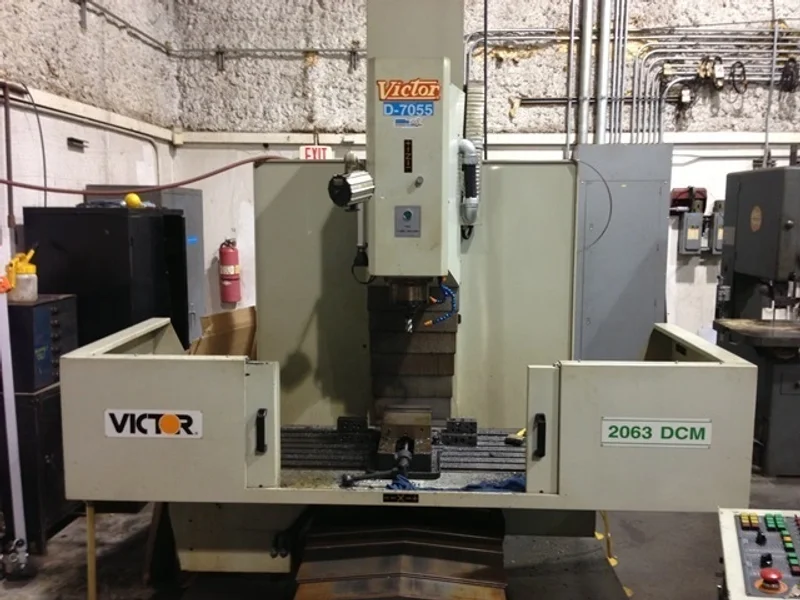

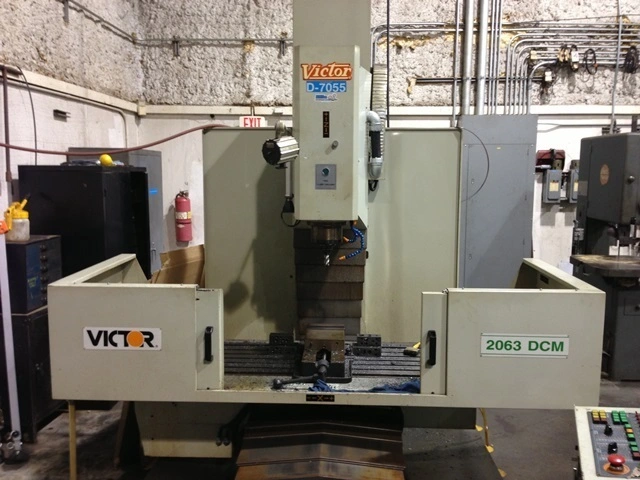

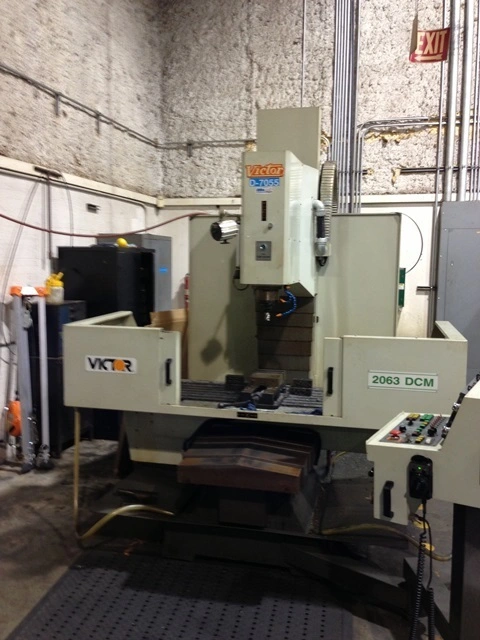

VICTOR 2063 DCM 20" X 63" VERTICAL MACHINING CENTER, STOCK# 13275J

Specifications:

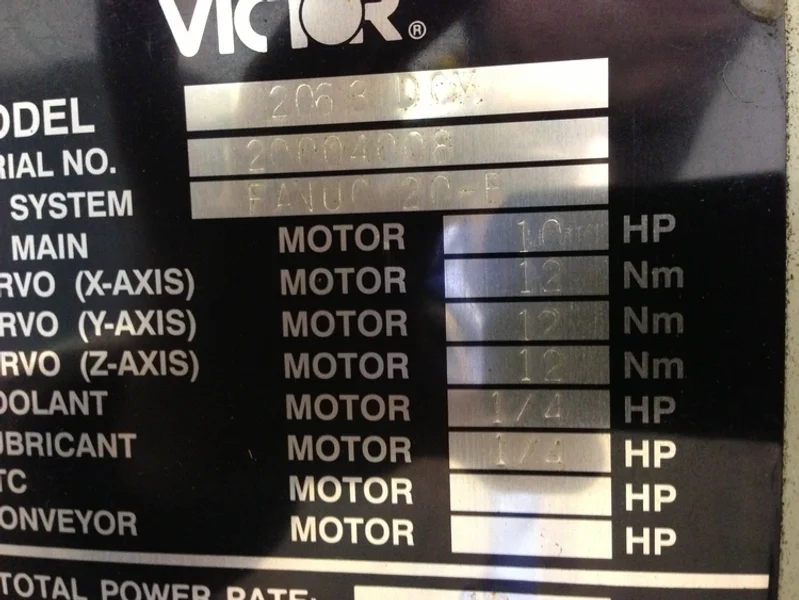

VICTOR 2063DCM 20"x63" Table S/N# 2000400E X-Axis:50" Y-Axis:25" Z-Axis:24"

Specifications

A. MACHINE

Model: 2063DCM 20" x 63" Table Rigid Head (Digital Control Mill)

B. TRAVELS

01) X-axis: 50"

02) Y-axis: 25"

03) Z-axis: 24"

04) Rapid traverse (X / Y / Z axis): 400 / 400 / 300 in/min

05) Spindle nose to table surface: 3" ~ 27"

06) Spindle center to column distance: 25.5"

C. TABLE

07) Table size: 19.7" x 63"

08) T-slot width: 0.71"

09) Number of T-slots: 5

10) Max. load capacity: 3,300 lb.

D. SPINDLE

11) Quill diameter: 5.9"

12) Quill travel: N/A

13) Spindle head swivel angle: N/A

14) Spindle speeds: 0 ~ 6,000 rpm

15) Spindle taper: CT 40 (BT 40 optional)

E. CONTROL

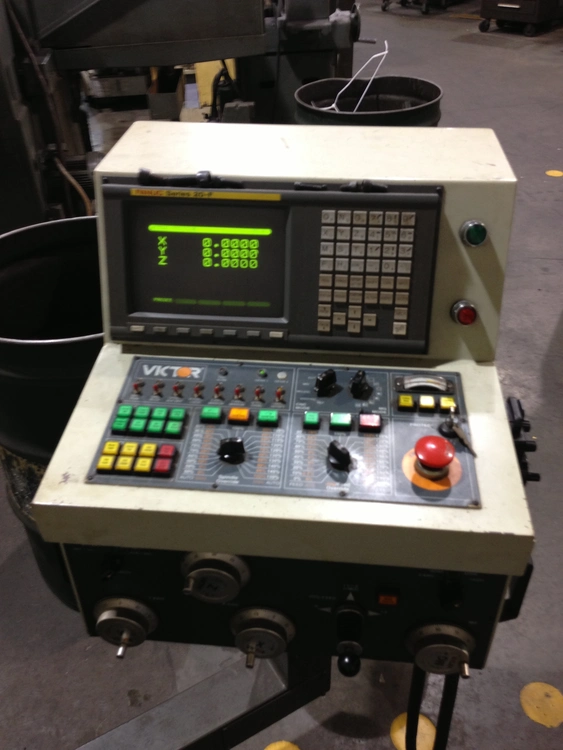

16) CNC control system: Fanuc 20-FA

17) No. of electronic handwheels: 4 Handwheels (X, Y, Z & Programmable)

F. SERVO MOTOR SYSTEM

18) Servo motor: FANUC A/C brushless servo motor

19) Amplifier system: FANUC digital servo amplifier drives

20) Servo motor torque (X / Y / Z axis): 106 in-lb. / 106 in-lb. / 106 in-lb.

G. POWER

21) Spindle motor: 10 HP

22) Voltage: 220V / 3 Phase

H. AUTO TOOL CHANGER (OPTIONAL)

23) Tool capacity (optional): 20 (optional)

24) Type (optional): Carousel (optional)

I. ACCURACY

25) Positioning ("): 0.0004"

26) Repeatability ("): 0.0002"

J. WEIGHT & DIMENSIONS

27) Shipping dimensions (LxWxH): 142" x 145" x 117"

28) Net weight: 7,700 lb.

29) Gross weight: 8,140 lb.
