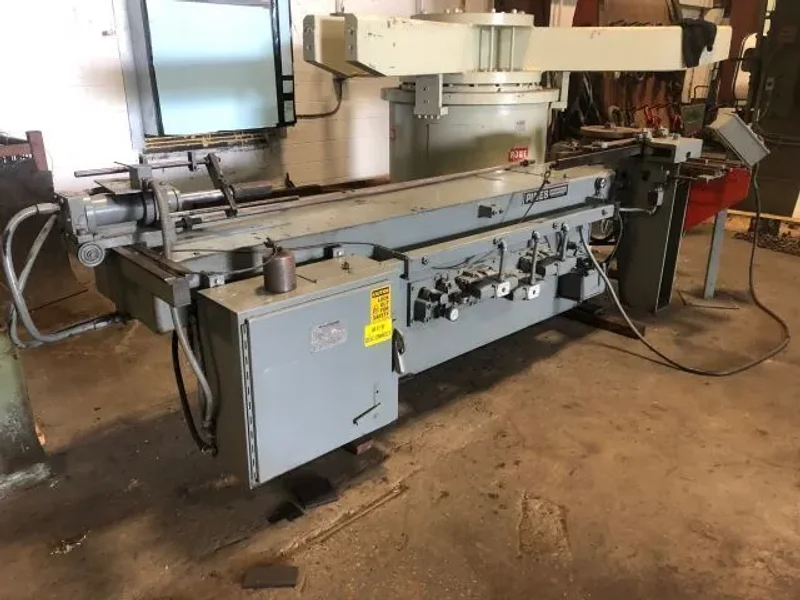

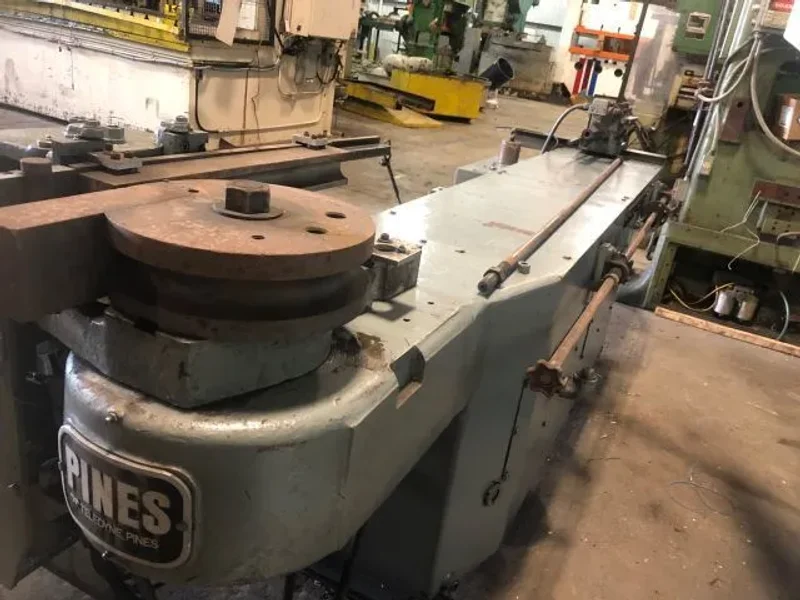

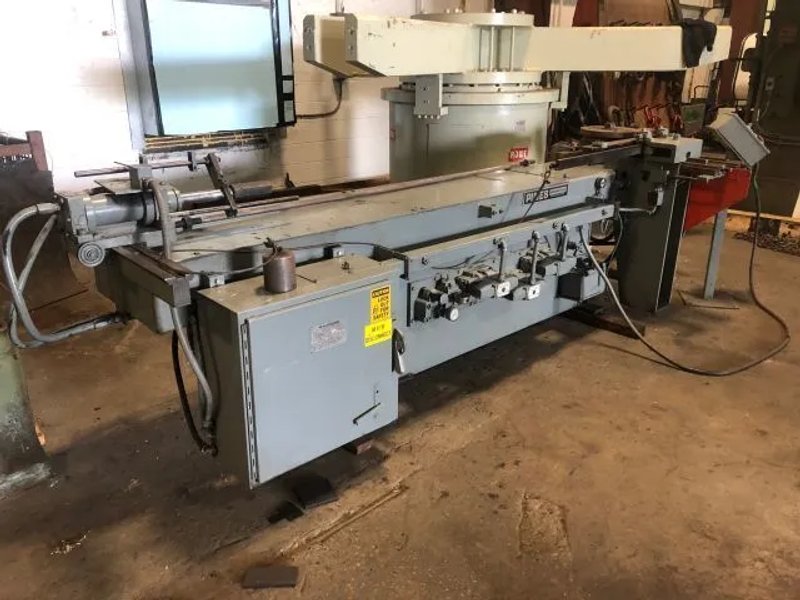

PINES 3 1/2" o.d. x .083" BENDER, STOCK# 13865T

PINES #2 BENDER, STOCK# 13865T
MDL# 2

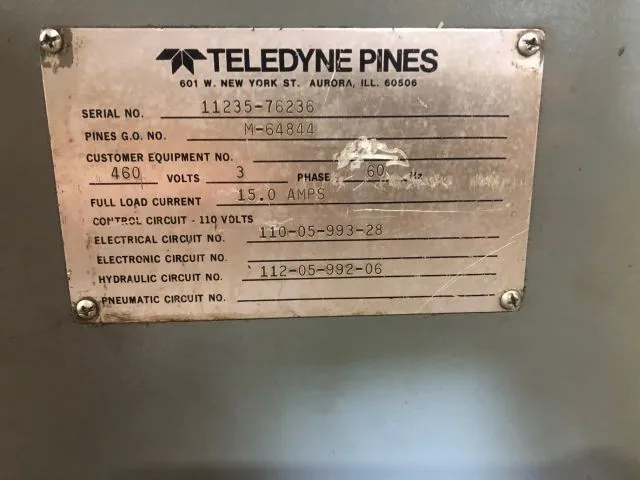

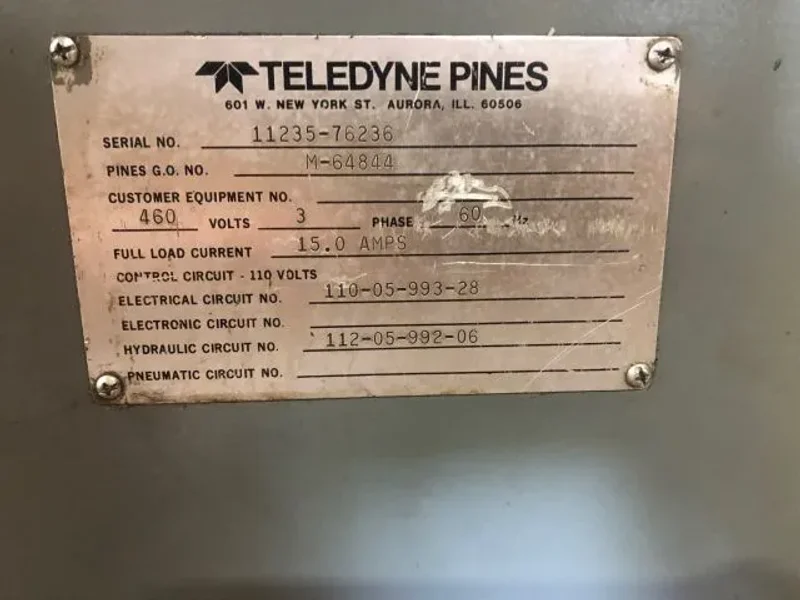

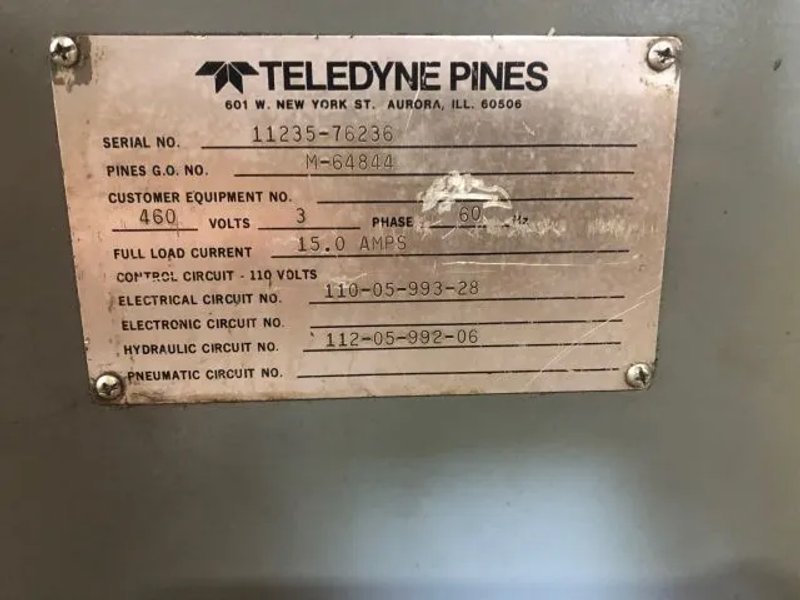

S/N#11235-76236
Maximum radius (standard) 12"
Maximum tube length over mandrel 7'5"
Average maximum bending arm speed 11 rpm
Standard operating pressure 2,000 PSI
Bending capacities:
I.P.S. extra heavy pipe 2"
Non-ferrous tubing Y.P. to 25,000 psi 3 1/2" o.d. x .120" wall
Steel tubing Y.P. to 40,000 psi 3 1/2" o.d. x .083" wall
Stainless steel tubing Y.P. to 60,000 psi 3" o.d. x 065" wall
Steel bar round Y.P. to 40,000 psi 1 7/8" dia.
Steel bar square Y.P. to 40,000 psi 1-11/16"
Angle bar W.P. to 40,000 psi 3" x 3" x 5/16"
Maximum bend angle plus overbend for springback 180 degrees
Bend angle accuracy /- 1/4 degree
Motor 20 HP
Dimensions 156" x 58" x 43" high
Weight 4,500 lbs.,Counter-Clockwise Rotation
Mandrel extractor
8 station turret degree of bend
Bijur auto lube

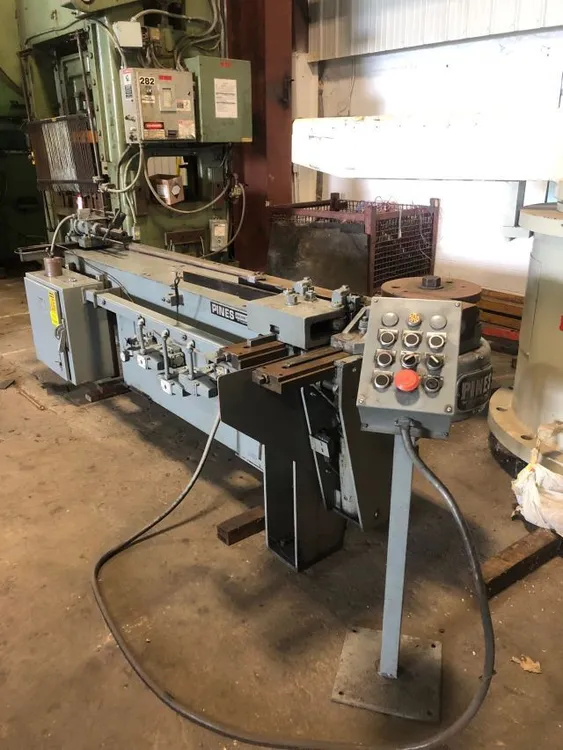

Motor and controls
