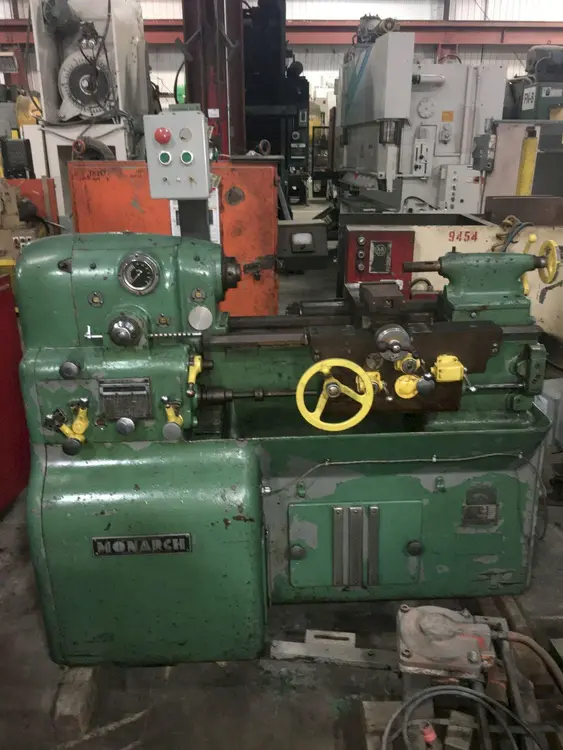

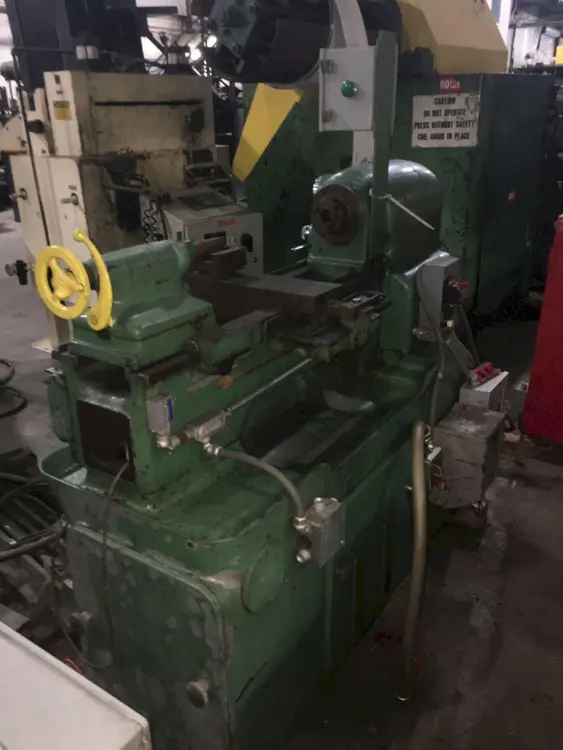

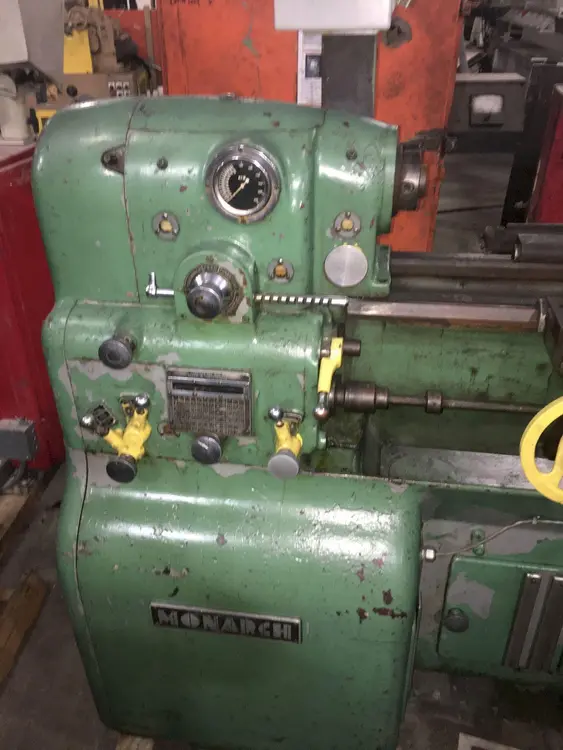

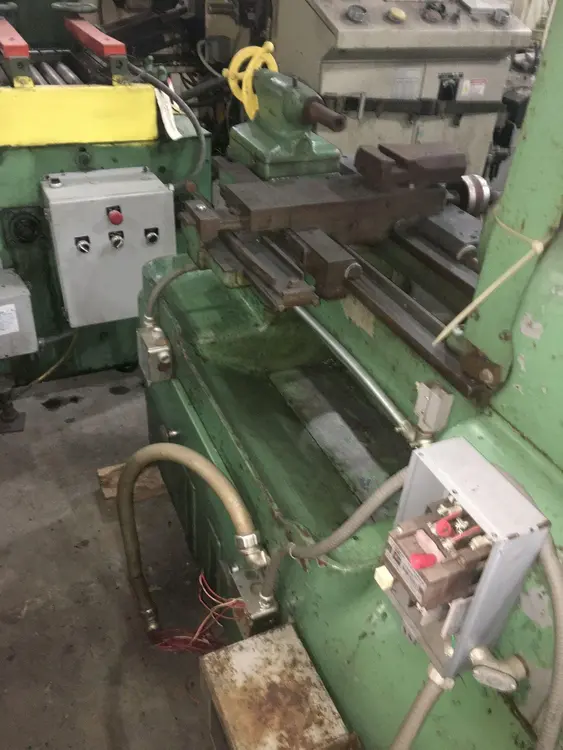

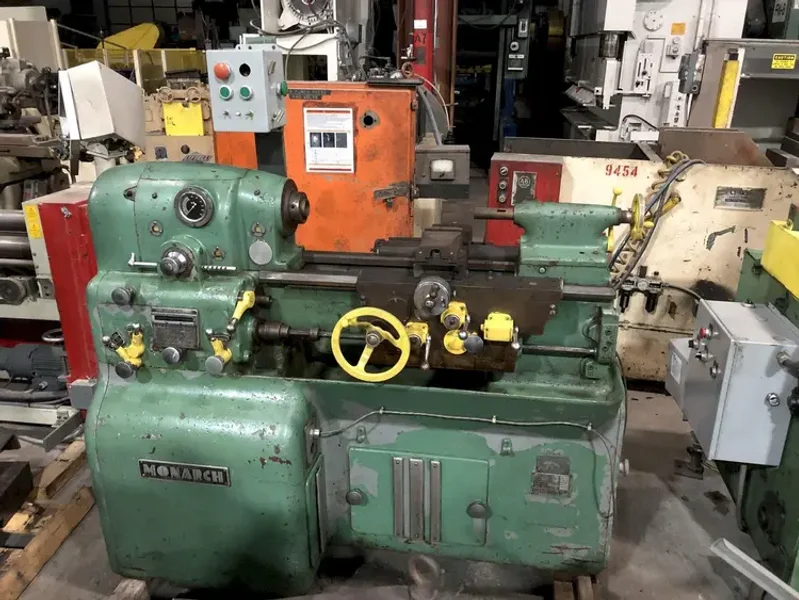

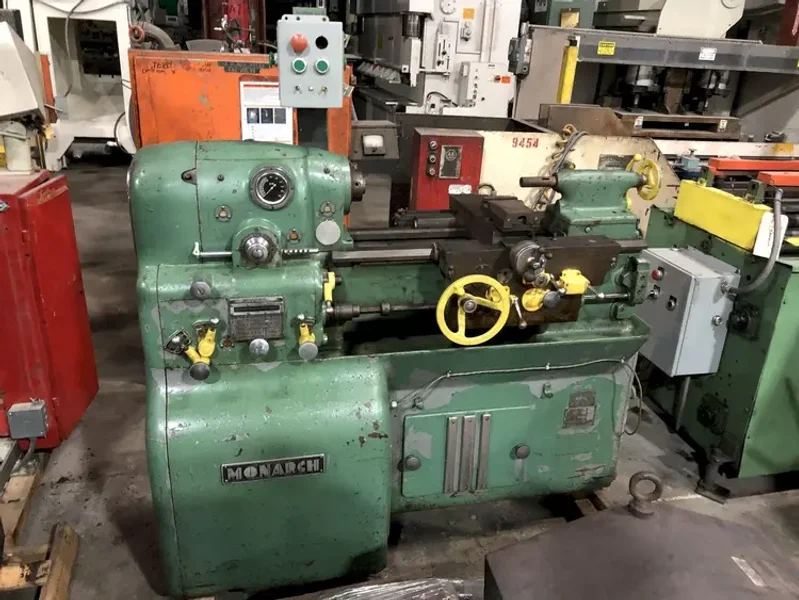

MONARCH EE TOOLROOM LATHE, STOCK# 14092T

MONARCH EE TOOLROOM LATHE, STOCK# 14092T

Brand

MONARCH

Overview

Type:

Engine Lathes

Category:

Machine Tools

Manufacturer:

MONARCH

Model:

EE TOOLROOM

Condition:

Used - Excellent

Stock #:

14092T

Status:

For Sale

Specifications

MONARCH EE 12-1/2" X 20" LATHE, STOCK# 14092T

Swing Over Bed 12 1/2"

Swing Over Cross Slide 7 1/4"

Distance Between Centers 20"

Spindle Speeds (Variable) 40- 4,000 RPM

Spindle Nose D1- 3

Hole Thru Spindle 1 13/32"

Threads (Inch) (60) 3- 184 TPI

Feeds (50) 0.0005"- 0.016"

Cross Slide Travel 8"

Tailstock Quill Taper #2MT

Tailstock Quill Travel 3 1/2"

Horsepower 3 H.P

Dimensions (L x D x H) 63" x 35" x 48"

Weight 3,000 LBS.

EQUIPPED WITH

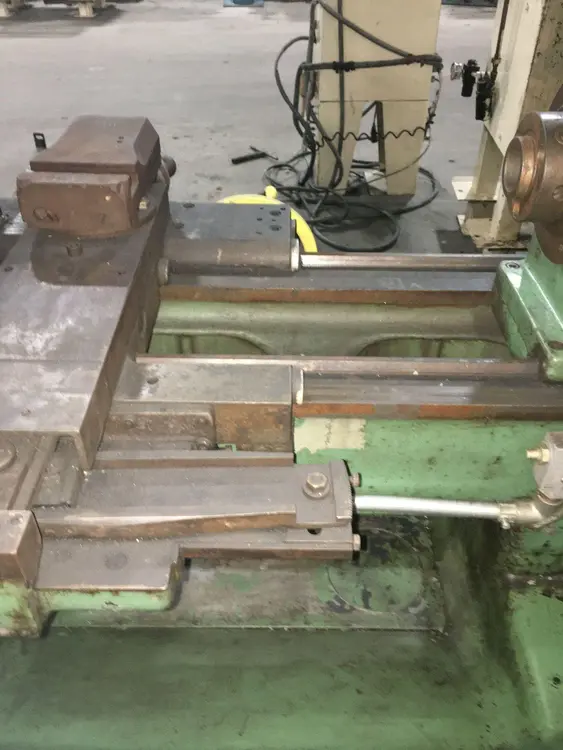

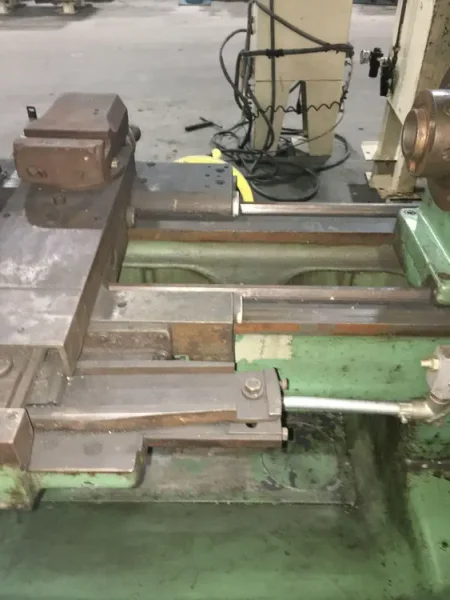

Taper Attachment

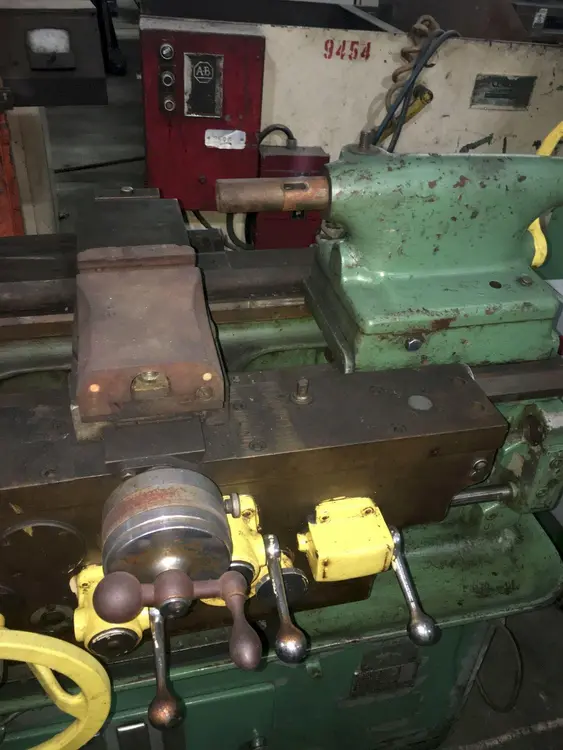

Tailstock

****** LEADSCREW AND HANDLE OF COMPOUND REST IS MISSING
