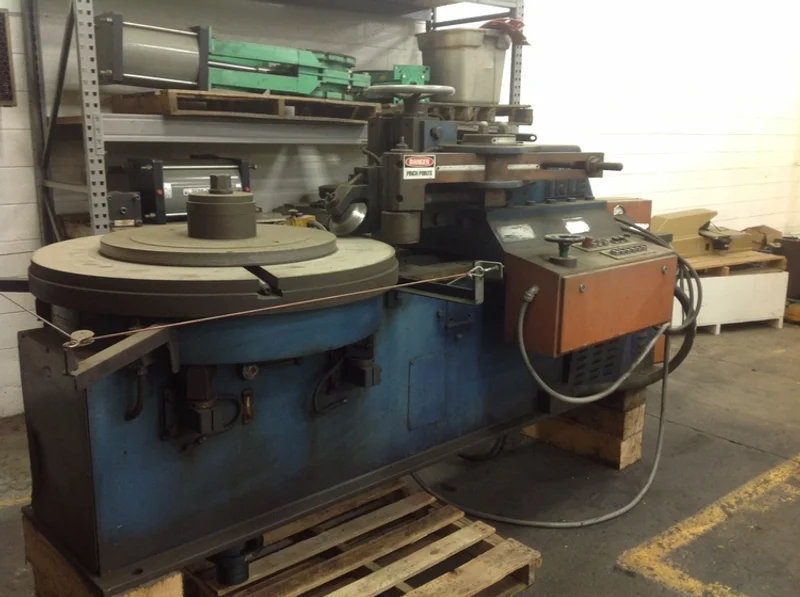

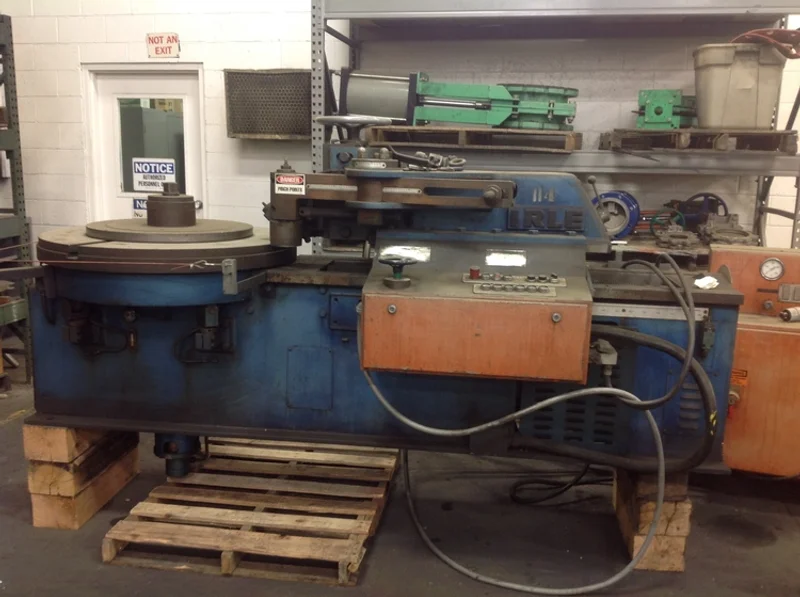

IRLE MODEL B-100H RIM/RING FORMER, STOCK# 13108J

Minimum I.D.: 8"

O.D. Range: 17" 26" & 40"

Maximum O.D. with 3-Roller Bending: No Limit

Face Plate Rotations: 2/3/5 RPM

CAPACITIES:

Flat on Flat: 1-3/4" x 1/2" to 8" Min. Dia.

2-3/8" x 5/8" to 20" Min.Dia.

2-3/4" x 3/4" to 40" Min. Dia.

3-1/4" x 3/4" to 60" Min. Dia.

Angles Leg Out: 3" x 3" x 3/8" to 40" Min. Dia.

3-1/2" x 3-1/2" x 5/16" to 60" Min. Dia

Angles Leg In: 2-3/8" x 2-3/8" x 1/4" to 40" Min. Dia.

3" x 3" x 5/16" to 60" Min. Dia.

Bar: 2-1/8" to 40" Min. Dia.

Flats on Edge: 7/8" x 4" to 40" Min. Dia.

Channels In: 3-1/2" to 40" Min. Dia.

Channels Out: 3-1/2" to 40" Min. Dia.

Tees/In: 3" to 40" Min. Dia.

Tees/Out: 3-1/2" to 40 Min. Dia.

EQUIPPED WITH:

Adjustable Support Rolls

Hydraulic Power Unit

Electrical Control System

Approximate Overall Dimensions: 140" L-R x 60" F-B x 60" H

Approximate Weight: 10,000 Lbs.

Serial Number: 1297

* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
