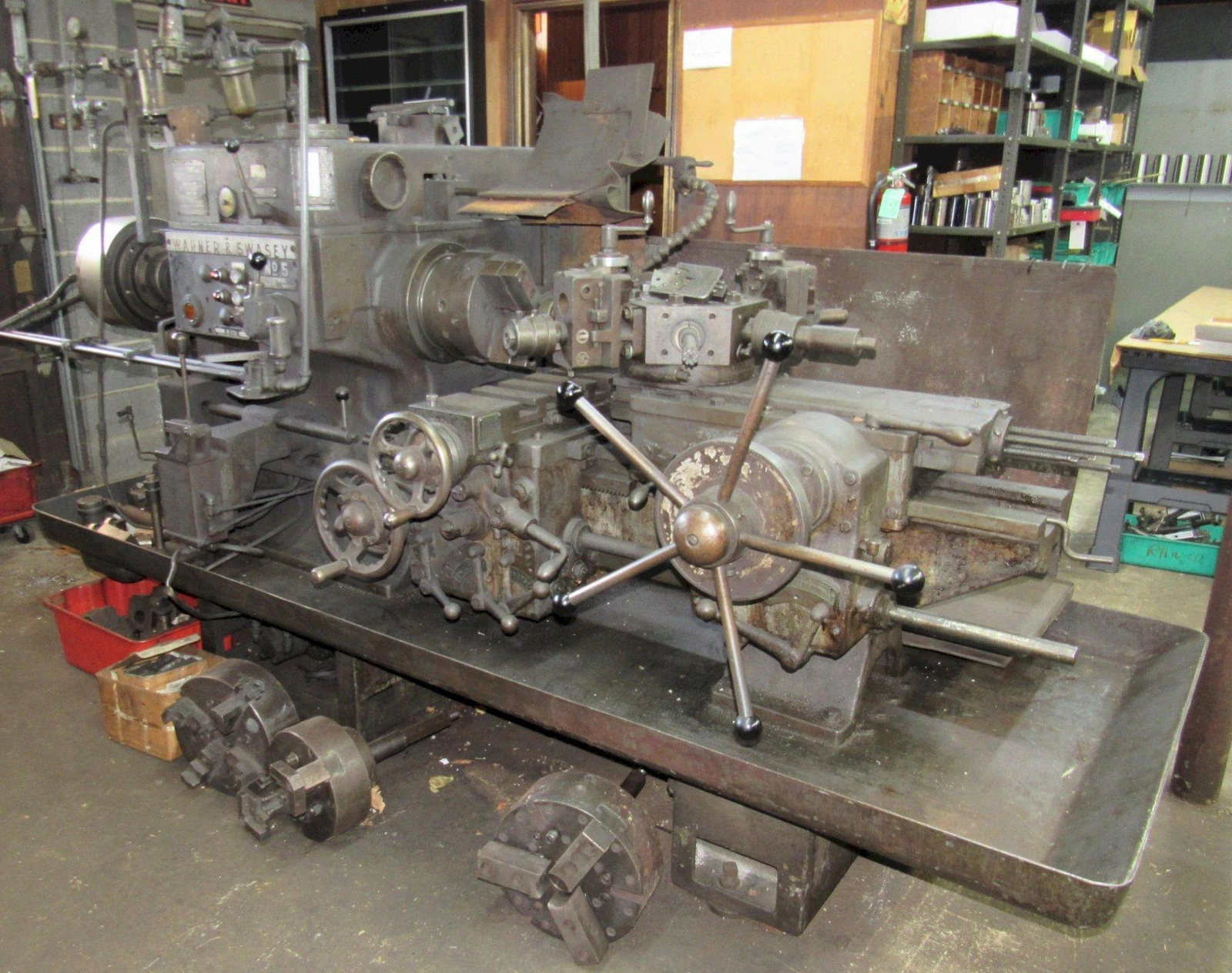

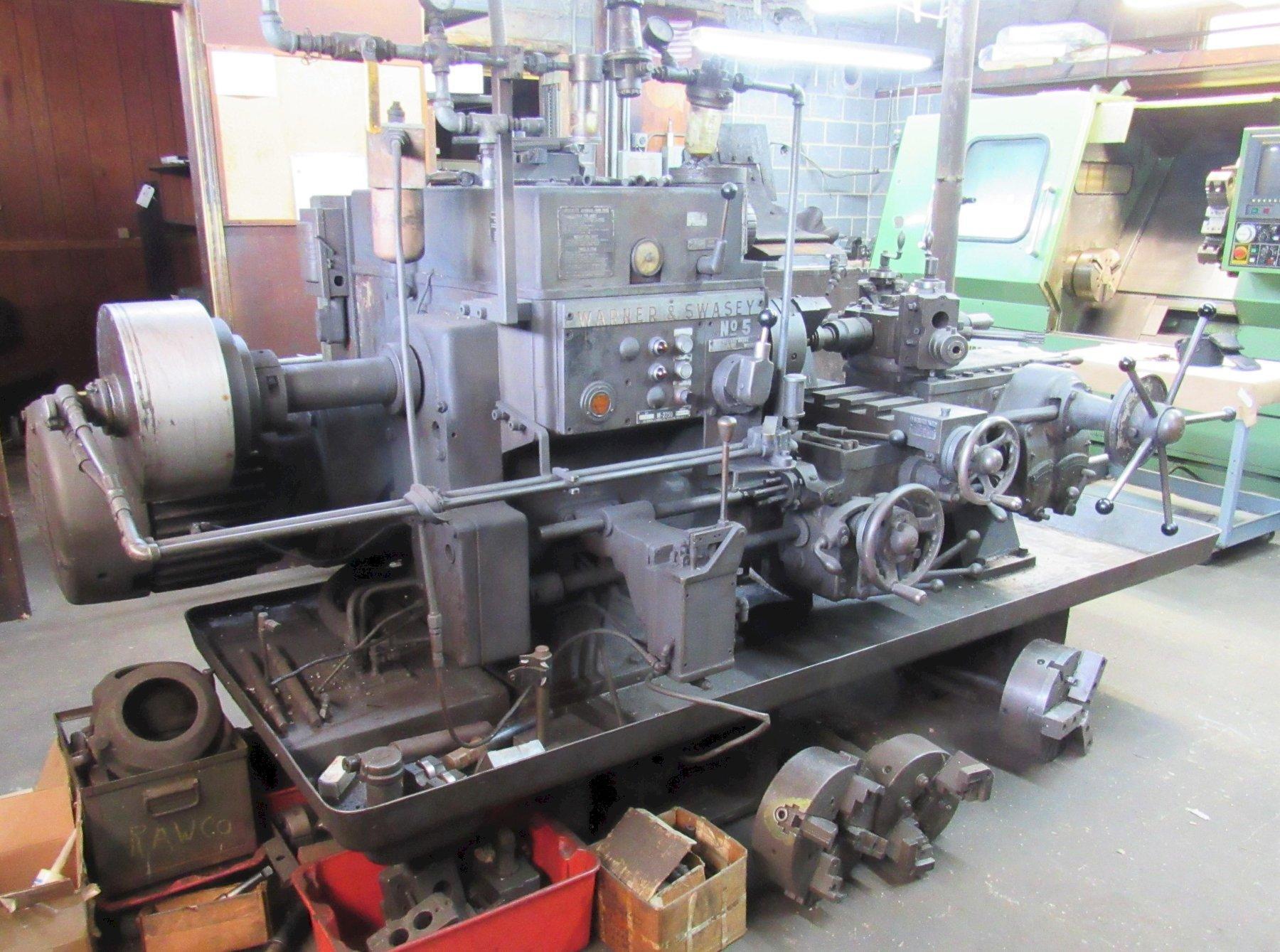

#5 WARNER & SWASEY MODEL #2250 RAM TYPE TURRET LATHE: STOCK #77721
Brand
Category
Type
Model
NO.5 M-2250
Stock #
77721
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL .............................. 1535342 MODEL ............................... M2250 SWING OVER BED ...................... 20" SWING OVER CROSS SLIDE .............. 10-1/4" SPINDLE NOSE TO TURRET FACE (MAX.) .. 36-1/2" HOLE THRU SPINDLE ................... 2-7/8" SPINDLE SPEEDS ...................... (24) 25 TO 1556 RPM CARRIAGE LONGITUDINAL FEEDS ......... (6) .0023 TO .022 IPR CARRIAGE CROSS FEEDS ................ (6) .0015 TO .014 IPR TURRET FEEDS ........................ (6) .003 TO .024 IPR CHUCK ............................... 3 JAW AIR CLOSER .. YES CHIP PAN ............................ YES COOLANT ............................. YES TOOLING (ADJUSTABLE SLIDE) .......... 2 SPINDLE MOTOR (2-SPEED) ............. 20/10 HORSEPOWER |
