60" x .250" x 50,000# Braner Loopco Dual Head Loop Slitting Line
Brand
Category
Model
Not specified
Stock #
116278
Year
Not specified
Condition
Used
Location
Not specified
|
Coil Capacity Uncoiler to Recoiler: 50,000#
Thickness Range: .030" - .250"
Entry Coil Width: 6" - 60"
Minimum Slit Width: .625"
Coil ID: 20"
Coil OD: 72"
Arbor Diameter: 9.5"
Complete Line With: Mandrel Uncoiler Serial No. 9003701
Hydraulic Expansion
Hydraulic Sliding Base
Powered Hold Down Roll
4 Leaf Mandrel
Aeromet Drum
Feed-Up Drive
Wichita Water Cooled Brake with Cooler
Peeler Table Pinch Rolls
Fairchild Weston X=Ray Gauge (Sliding Base)
Rotary Crop Shear
Pinch Rolls

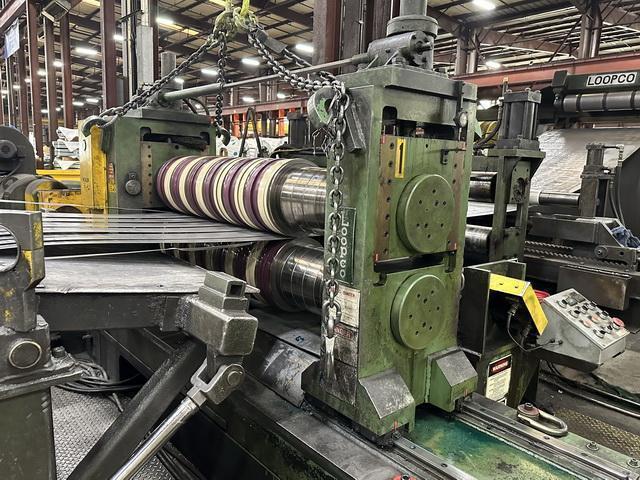

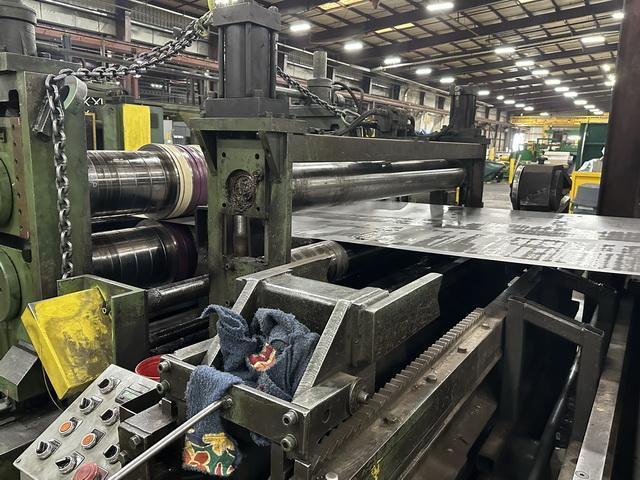

2 Slitting Heads 9.5" Diameter Arbors
Motorized Arbor Adjustment
Hydraulic Sliding Outboard for Tooling Change

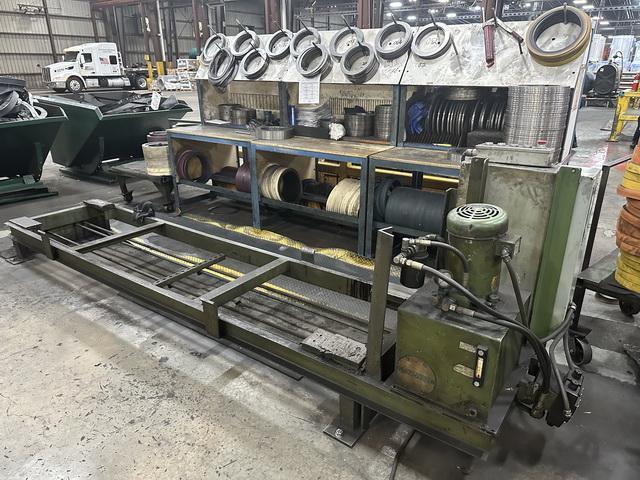

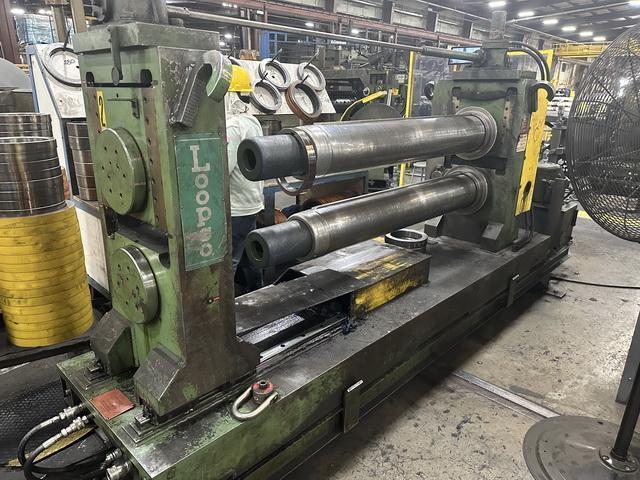

2 Slitter Head Set Up Stations with Hydraulic Power
40HP AC Feed Up Drive
150HP DC Motor Drive
Looping Pit Cross Over Table 2 Coiltech Scrap Winders
Combination Rotary / Drag Board Tension Stand Entry Tooling Shaft
Drag Pad with Hydraulic Pressure

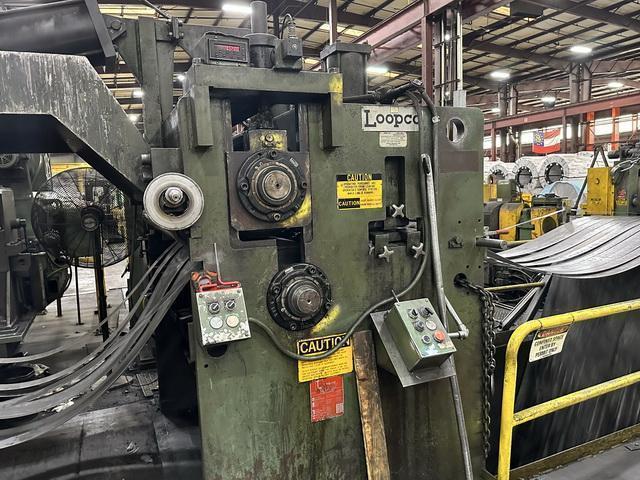

2 Roll Rotary Tension Stand
Dual Water Cooled Brakes with Coolers

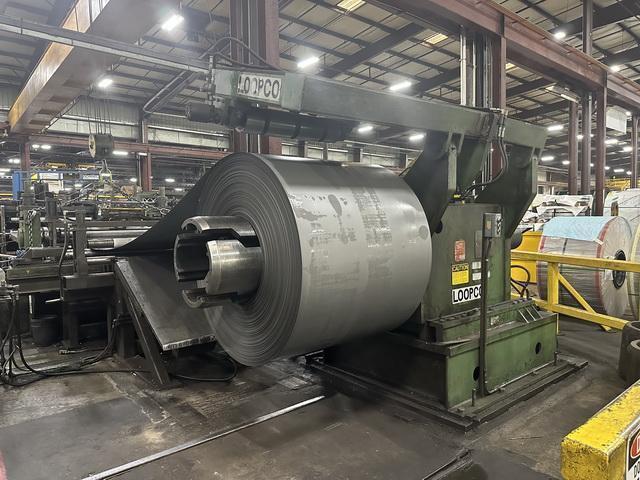

Recoiler Overarm Seperator
Hydraulic Push-Of
Hydraulic Drum
2 Speed Gear Box

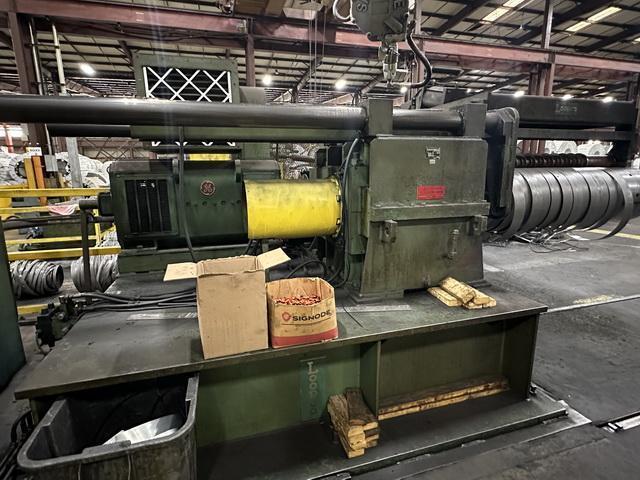

250HP DC Motor
Operator Push Button Station
Digital Footage Counter
Coil Weight Production
Run Time
Line Speed
(Above Shows Per/Shift and Per Coil)
Hydraulics, Electrics and Controls |
