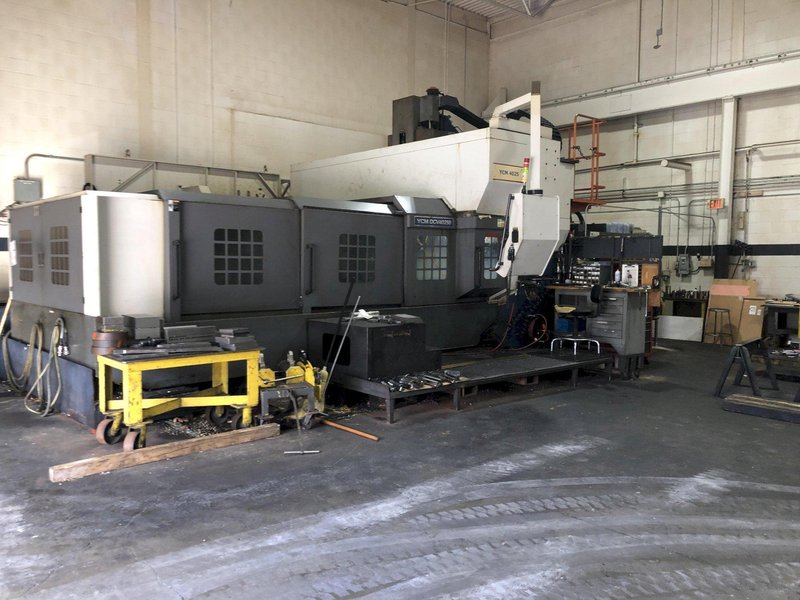

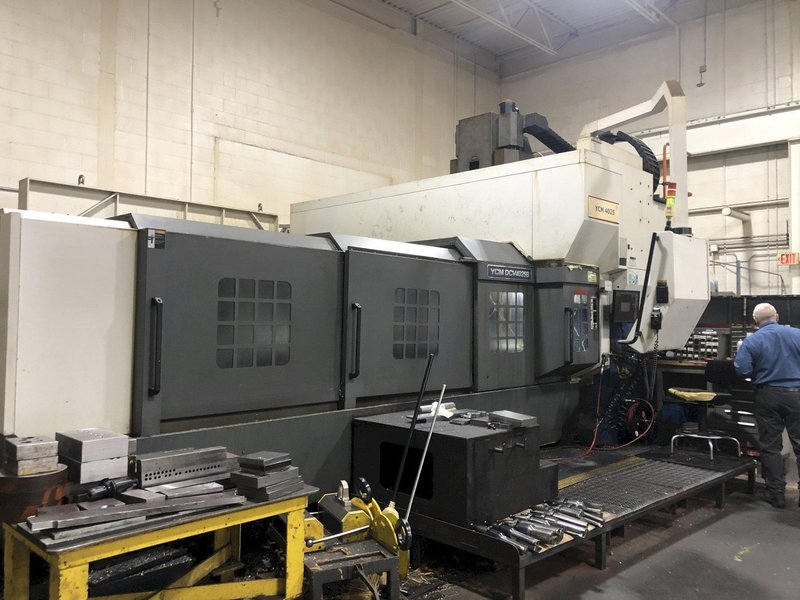

YCM DCV 4025B CNC BRIDGE TYPE MACHINING CENTER
Brand
Category
Model
DCV 4025B
Stock #
Not specified
Year
2008
Condition
Very Good
Location
Michigan
|

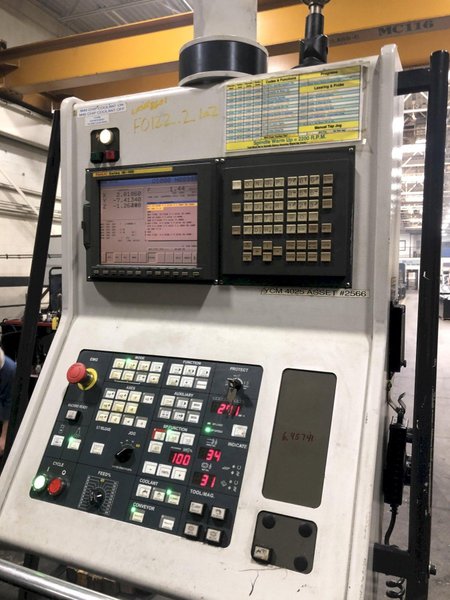

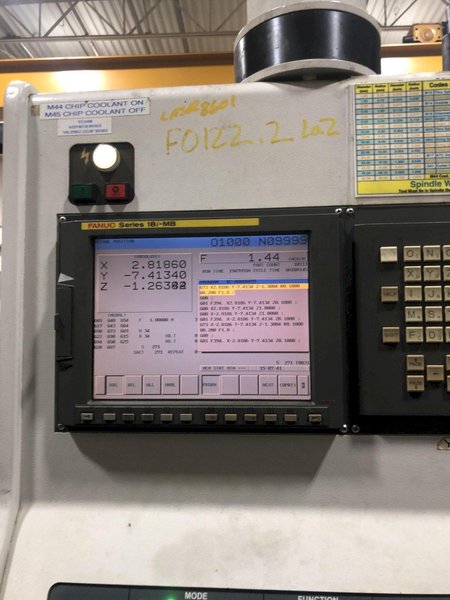

CONTROL: MBX 200FB (FANUC)

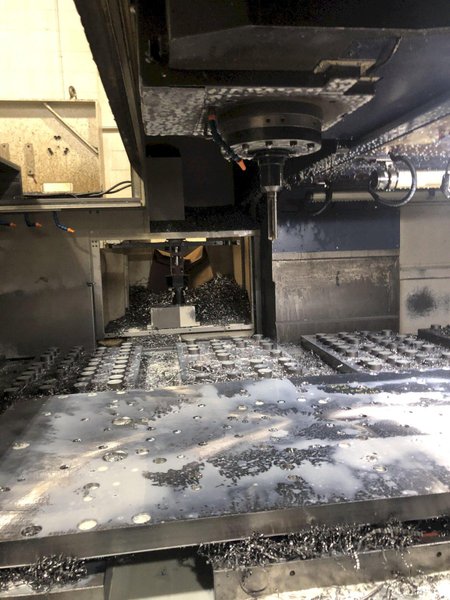

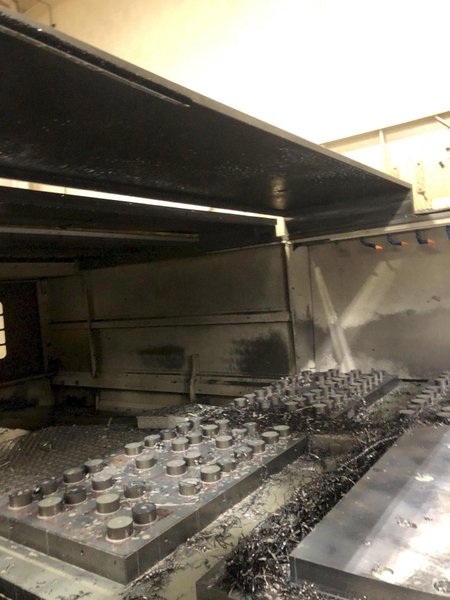

TABLE SIZE....................................................: 158" x 94.5"
TABLE WEIGHT CAPACITY .....................: 44,092 LBS.
LONGITUDINAL TRAVEL (X)...................: 160"
CROSS TRAVEL (Y)............................: 98"
VERTICAL TRAVEL (Z)..........................: 40"
FEED RATE X, Y, Z .....................................: 472/591/591 IPM
CUTTING FEED RATE ...............................: 0.04~394 IPM
SPINDLE SPEEDS........................................: TO 10,000 RPM
SPINDLE DRIVE...........................................: 25/30 HP (18.5/22 kw)
SPINDLE TAPER..........................................: CAT 50

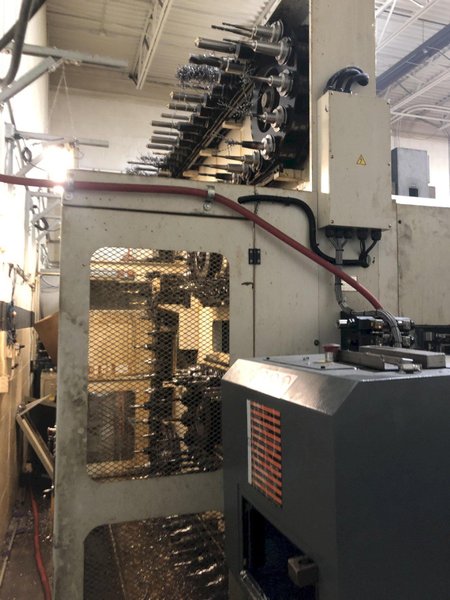

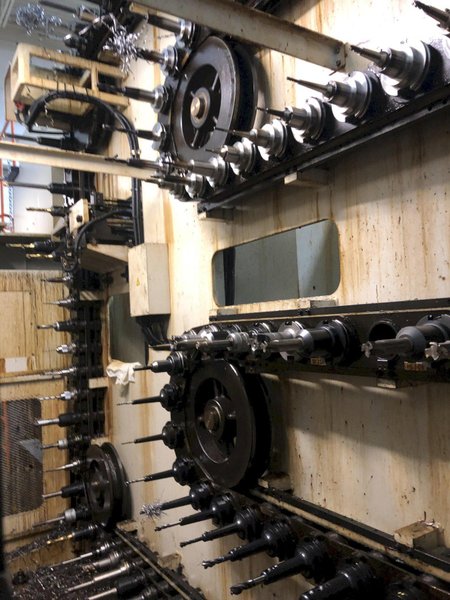

TOOL CHANGER .......................................: 40 ATC
DISTANCE BETWEENS COLUMNS.......: 107.9"
MAX. TOOL WEIGHT ...............................: 44.1 Lbs.
MAX. TOOL DIMENSIONS ....................: 4.92" x 13.78"
DISTANCE SP NOSE TO TAPLE TOP....: 7.87~47.87"
GROSS MACHINE......................................: 101,412 Lbs.
EQUIPPED WITH:
ELECTRICS-220/480
COOLANT THROUGH SPINDLE
CHIP CONVEYOR

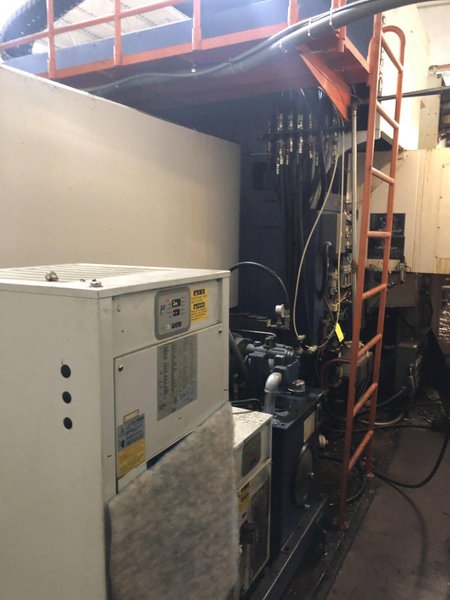

CHILLER UNIT
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS
TOOL SELECTION RANDOM METHOD
|
