Capacity | 3 inches |
Horz/Vert | horizontal |
Weight | 1600 pounds |

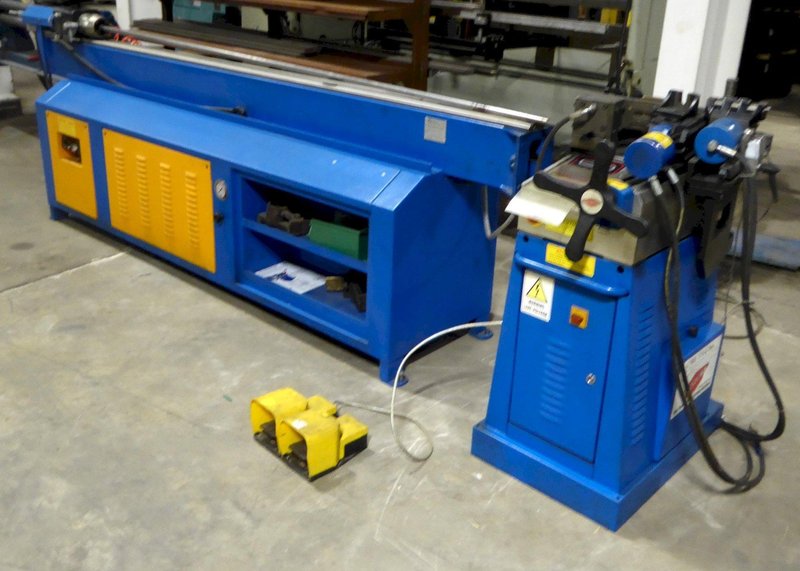

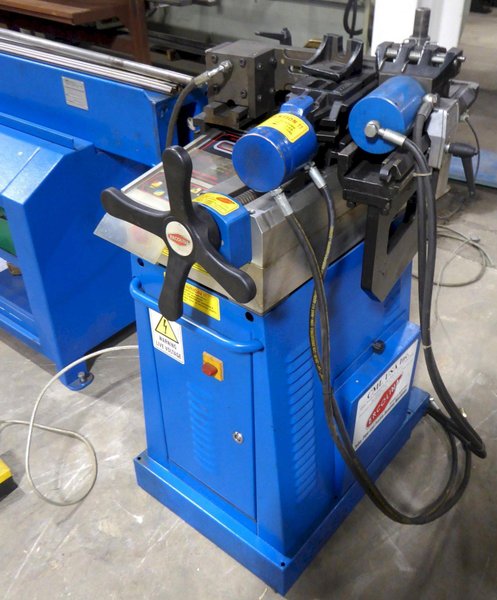

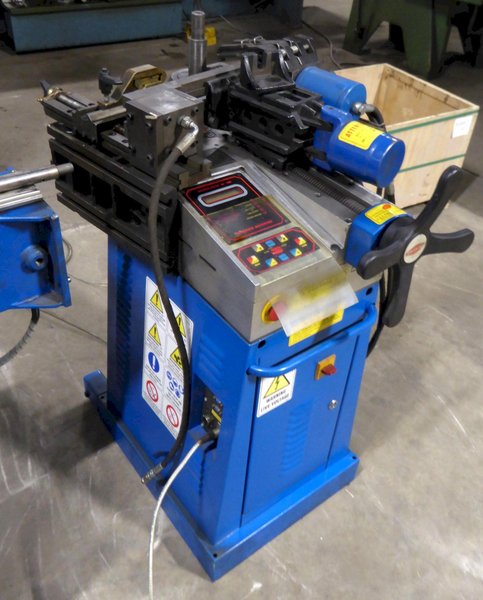

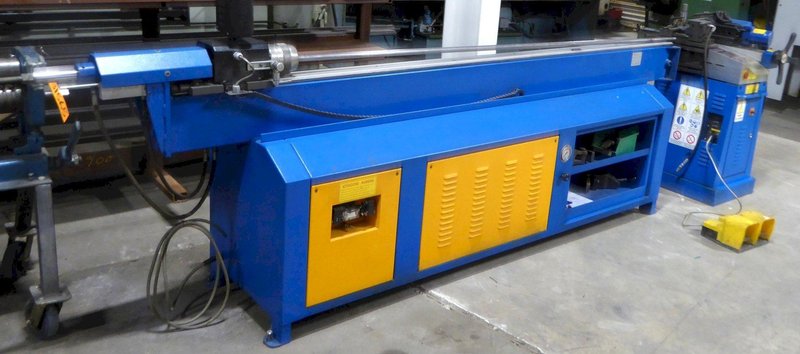

ERCOLINA ROTARY DRAW MANDREL TUBE & PIPE BENDING MACHINE

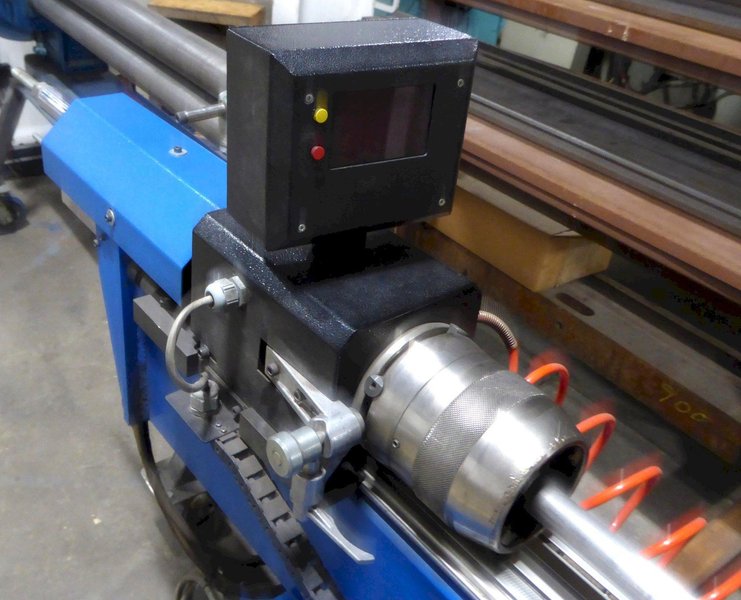

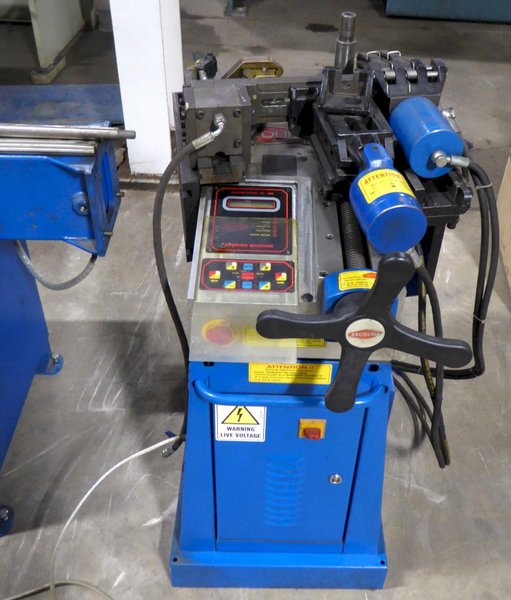

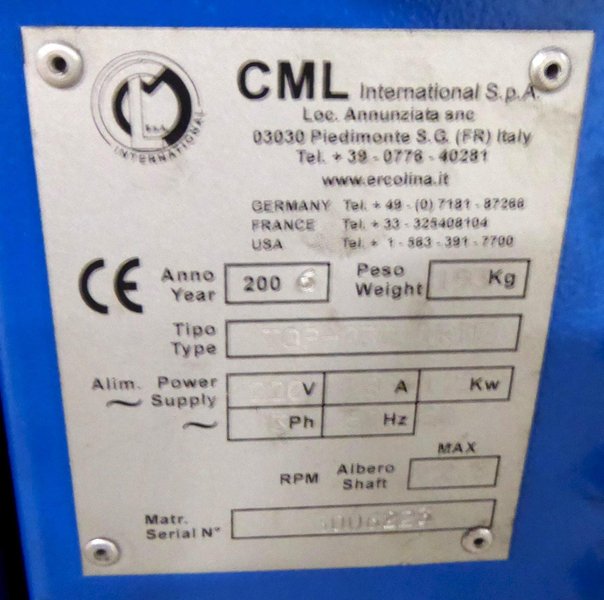

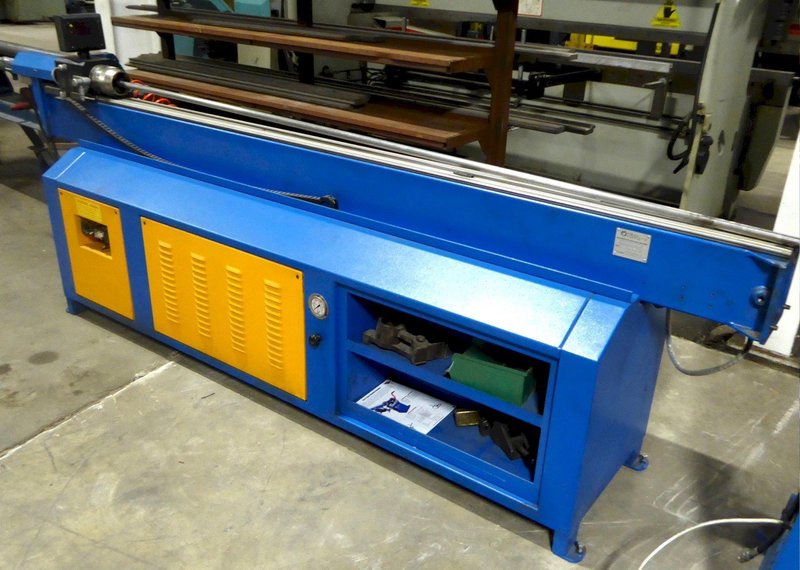

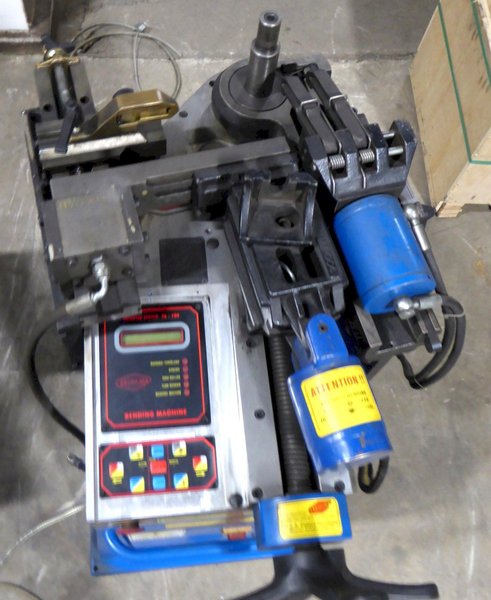

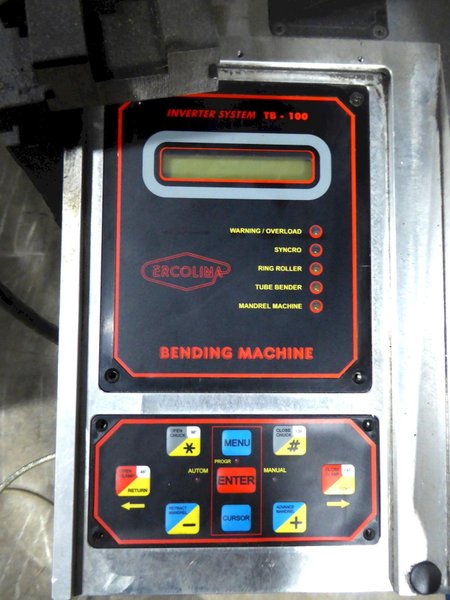

MODEL: TOP-030 SERIAL NUMBER: 3006223 Bender appears to be in excellent condition with very little use. "Ideal for prototype or small production applications. Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials." GENERAL SPECIFICATIONS Maximum Tube Capacity, Mild Steel: 2-1/2" (.083" Wall) Maximum Tube Capacity, Stainless: 2-1/2" (.065" Wall) Maximum Tube Capacity, Square Tube: 2" (.065" Wall) Maximum Pipe Capacity: 1-1/2" Schedule 40 Maximum Bending Radius: 7-7/8" Minimum Bending Radius: 1.5 x 0 Maximum Shaft Rotation: 210 Degrees Maximum Bending Angle: 180 Degrees Maximum Tailstock Capacity: 2-3/8" Maximum Material Length, 10' Table: 118" Number Of Programs: 30 Precision Of Bend Angle: +/- 1 Degree EQUIPPED WITH Operator-Friendly Control Pad. Step-By-Step Programming 10' Mandrel Table w/DRO System For Linear and Rotational Positioning Programmable Bend Angle Programmable Bend Sequencing and Mandrel Retraction Independent Clamp and Pressure Die Adjustment Quick Change Tooling Variable Bending Speed 2024 New Price: $56,100.00 Approximate Weight: 1600 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
