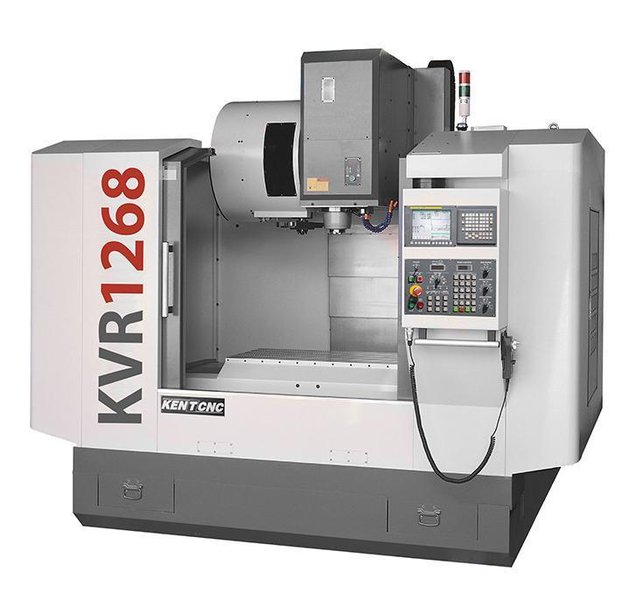

NEW KENT USA MODEL KVR-1268 CNC VERTICAL MACHINING CENTER

Brand

KENT USA

Product Highlights

The Kent CNC Heavy Duty Vertical Machining Centers are designed with high rigidity and high precision for heavy workpieces. The XYZ box ways are hardened and precision grounded for maximum repeatability. Our box way series can accommodate for heavier weight and milling capacity. The heavy duty box way VMC series combines proven machine design with advance technology in control and manufacturing. Reliability and performance make this series a favorite among demanding job shops and in-house productions alike. Vertical machining centers with linear guide ways are also available.

The Box Way Advantage

The Kent CNC Heavy Duty vertical machining centers come with large milling capacity options of up to 60” x 32” x 28” travel areas and 63” x 28” table sizes. The heavy cutting 30 HP spindle and rigid machine structure enable higher machining efficiency milling on up to nearly 5,000-lb table loads with better finish and longer tool life – resulting in greater productivity and profitability all around. All VMCs come factory installed with Fanuc 0i-MD CNC. With over 18,000 machine tools sold worldwide since 1979, Kent CNC Heavy Duty Box Way VMCs are proven to increase productivity, delivering reliable and profitable performance. For other capacity requirements, please see our Linear Way, Traveling Column and Double Column vertical machining centers.

Large working capacity of up to 60” x 32” x 28” travels and 63” x 28” table
Powerful 30HP servo spindle motor
Dual auger type chip conveyor
High flow high capacity coolant system with built-in chip flush and chip auger conveyor
Manual Guide “i” computer assist programming
Fanuc “i” series high torque dual wound high/low spindle motor
- Certified Meehanite^® FC-25 grade machine casting for superior dampening and stability

  SPECIFICATIONS

  Type Box
  Travels (X,Y,X) 50" X 27" X 24"
  Spindle Nose To Table Surface 5" - 29"
  Spindle Center To Column Surface 28"
  Table Dimensions 24" x 60"
  Table Load Capacity 2,640 Lbs
  Spindle Nose BT40 / BT50
  Spindle Speed
  BT-40 6000 RPM (Optional 8000 RPM)
  BT-50 4500 RPM (Optional 6000 RPM)
  Rapid Traverse (X, Y, Z) 591 IPM
  Cutting Feed Rate (X, Y, Z) .04 - 197 IPM
  Main Motor
  BT-40 10 HP (Optional 15HP)
  BT-50 14.8 HP (Optional 20 HP)
  Coolant System 0.8 HP
  Lubrication System 0.3 HP
  Spindle Chiller System 1 HP For Spinlde 8000 RPM
  Magazine For Carousel Type 16 ATC (Optional 20 ATC)
  Magazine For Arm Type 24 ATC (Optional 32/40 ATC)
  Approx Dimensions 126" x 130" x 110"
  Approx. Weight 14,300 Lbs

  CNC Controller Fanuc 0i / 18Mi | Anilam 6300 | Fagor 8040-MC | Mitsubishi Meldas 64S/655 | Siemens 810/840 |

  Intek M350/M450 | Selca 4045DH
