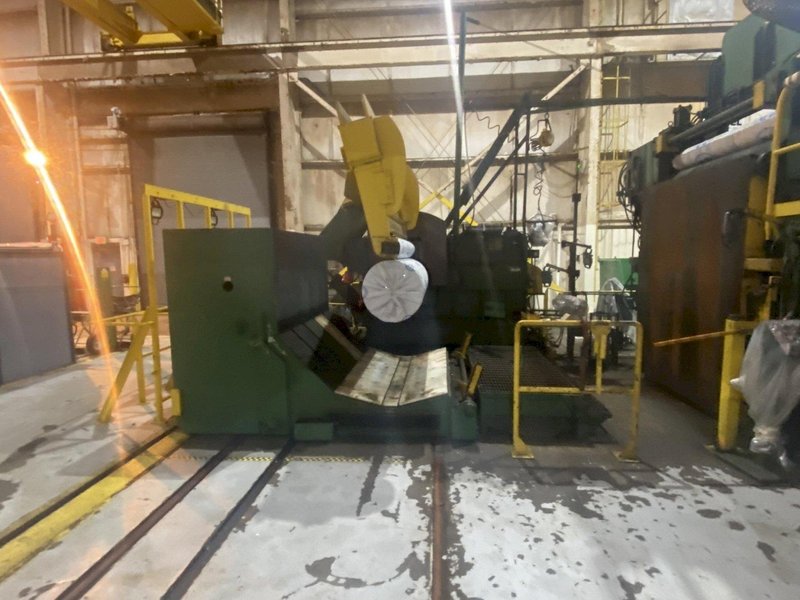

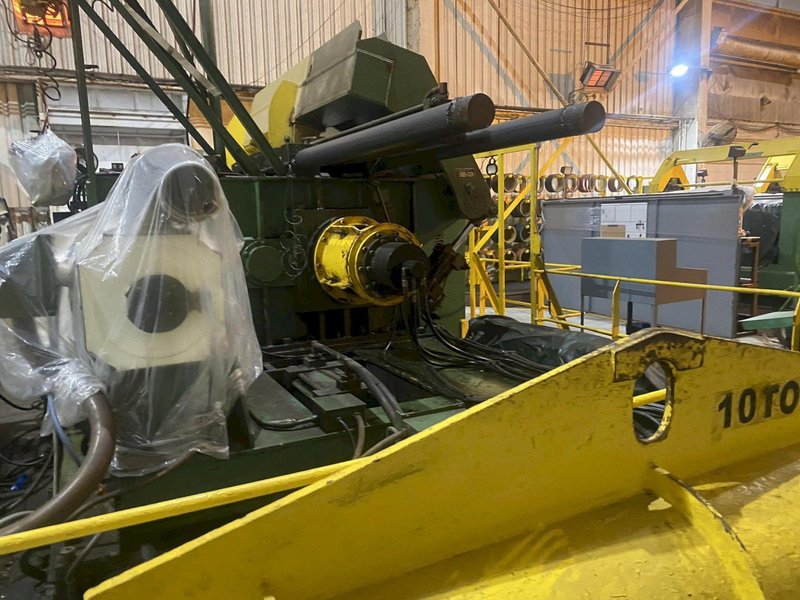

72" x .500" x 69,000# PRO-ECO RECOILER WITH SLIDE BASE, TWO (2) QUICK-CHANGE "QUILL-TYPE" DRUMS, OVERARM SEPARATOR & COIL PUSHER ASSEMBLY
Brand
Category
Type
Model
Not specified
Stock #
116221
Year
Not specified
Condition
Used
Location
Not specified
|
Manufacturer: Pro-Eco
Line Direction: Right to Left
Recoiler Drive: 200 HP (147 Kw) DC, w/ Two Speed Gearbox
Line Speed: 150 FPM (46 MPM) Max. in Low Gear
300 FPM (91 MPM) Max. in High Gear
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)
Coil Width: 72" (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.
Coil Weight: 69,000# (31,298 Kg) Max. on 24" (610 mm) drum
50,000# (22,680 Kg) Max. on 20" (508 mm) drum
Coil OD: 76" (1930 mm) Max.
Coil ID: 20" (508 mm) and 24" (610 mm) Quill Type Drums
The recoiler grips and recoils multiple strips of material
Heavy duty slide base supports a two-speed, parallel shaft gearbox
Gearbox includes a hollow bore, tapered sleeve riding in precision bearings
Tapered sleeve supports quick-change "quill-type" drum and shaft assemblies
Drums expand and collapse by rotating hydraulic cylinder
Heavy-duty overarm separator assembly guides slit strands winding on the recoiler drum
Overarm spindles are supported in a cantilever frame
Heavy-duty coil pusher assists pushing coils off the recoiler
The recoiler motor and gearbox are included.
|
