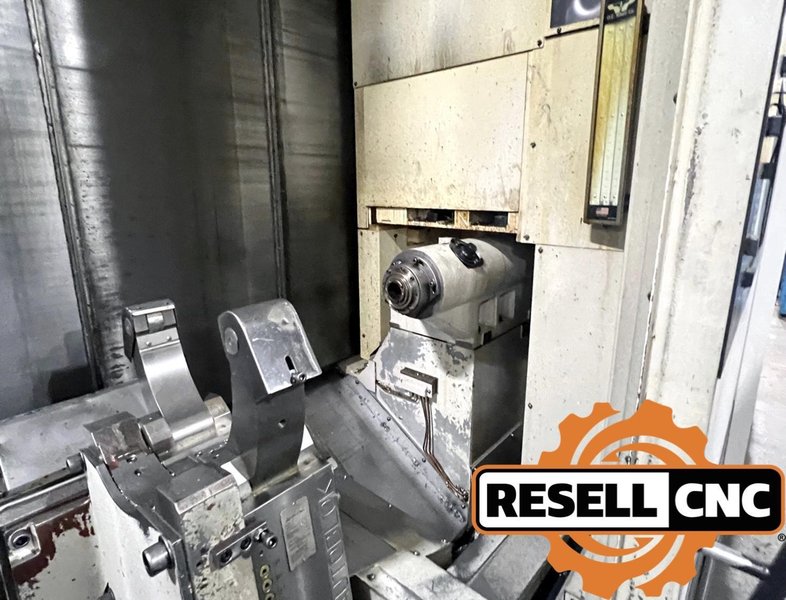

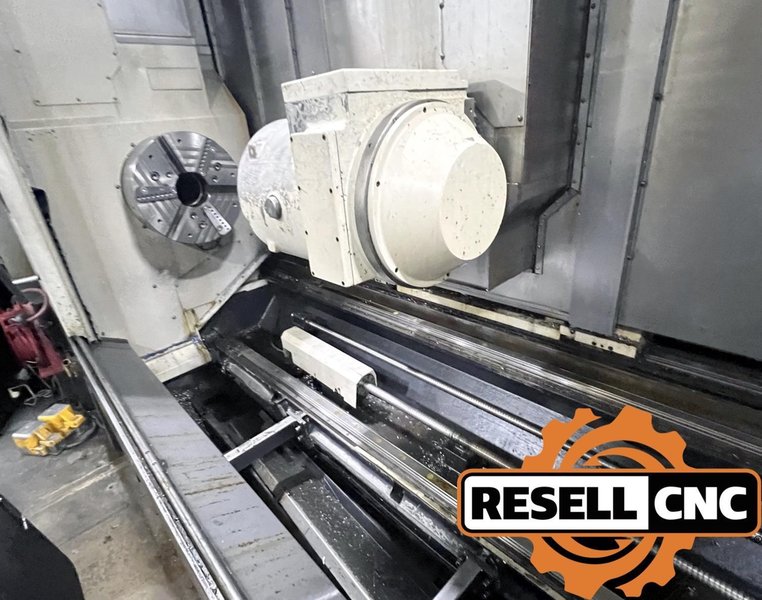

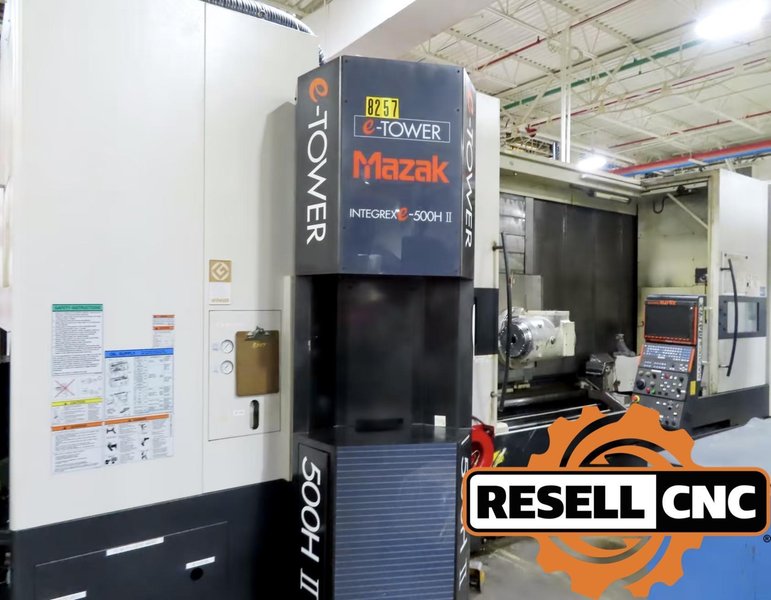

2007 Mazak Integrex e-500H2 5-Axis CNC Machining/Turning Center

SPECIFICATIONS:

Distance Between Centers: 120”

Max. Swing Over Bed: 32.28”

Max. Turning Length: 120.07”

Max. Turning Diameter: 32.28”

Bar Capacity: 6”

Chuck Size: 20”

Spindle Bore: 7.28”

Spindle Speed: 1,600 RPM

Spindle Motor: 45 HP

Tool Positions: 80

EQUIPPED WITH:

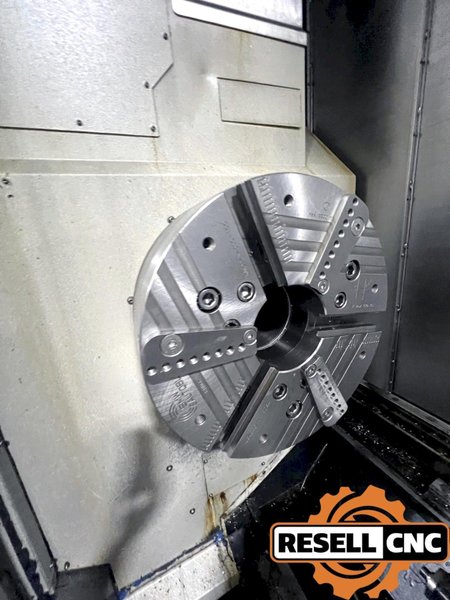

SMW Autoblok Hydraulic Chuck KNCS-N-500-155

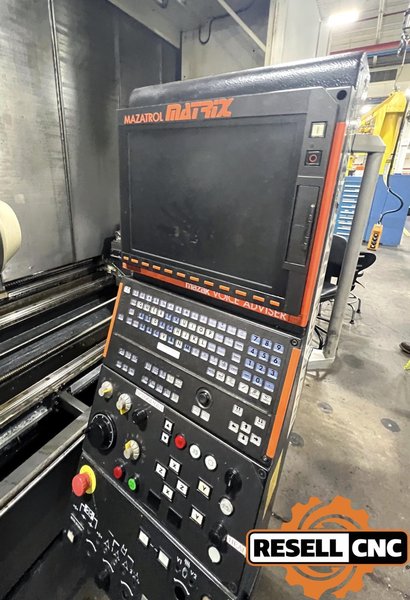

Mazatrol Matrix CNC Control

            Color Monitor

EIA/ISO Code Input Function

Ethernet / LAN

Macros

Spindle Orientation

USB

Travels:

C-Axis: 0.0001 Degree

Y-Axis: 19.68”

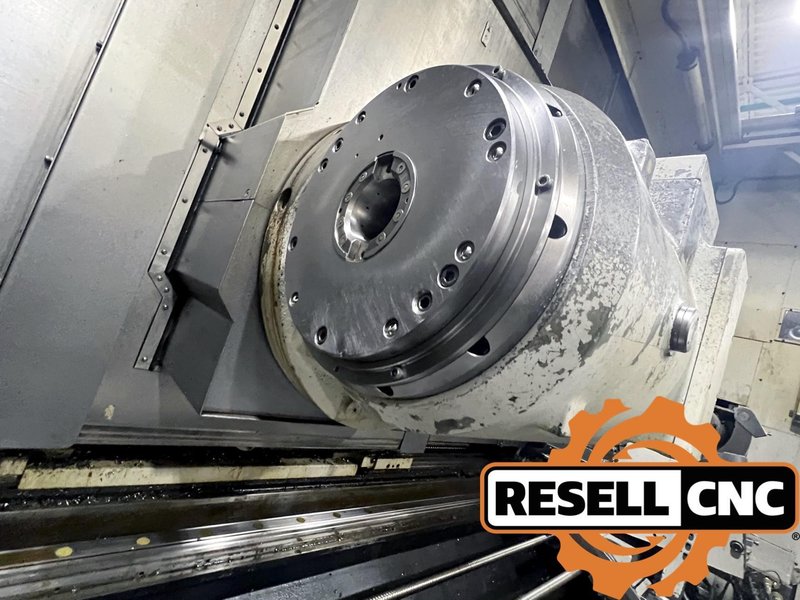

CAT#50 Universal Head

SMW Autoblok SLUZ5 Programmable Steady Rest

Filter Mist Unit

Long Boring Bar Stocker

Chip Conveyor - Side 120"

Automatic Tool Eye

Mazak Monitoring System - B MP10

Renishaw TS-27R Probe System

Coolant Thru-Milling Head

Flush Coolant

Hydraulic Pressure Interlock

Double Foot Switch, Chuck Open/Close

*All Specifications Subject to Verification*
