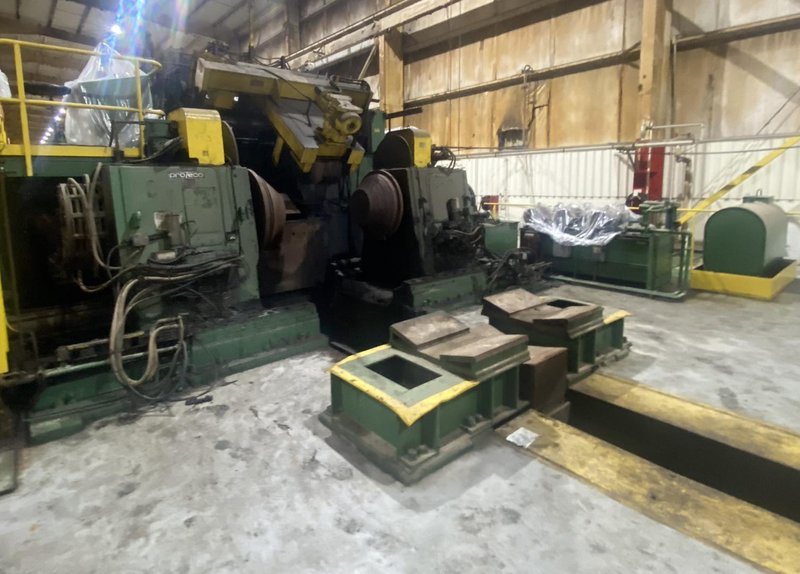

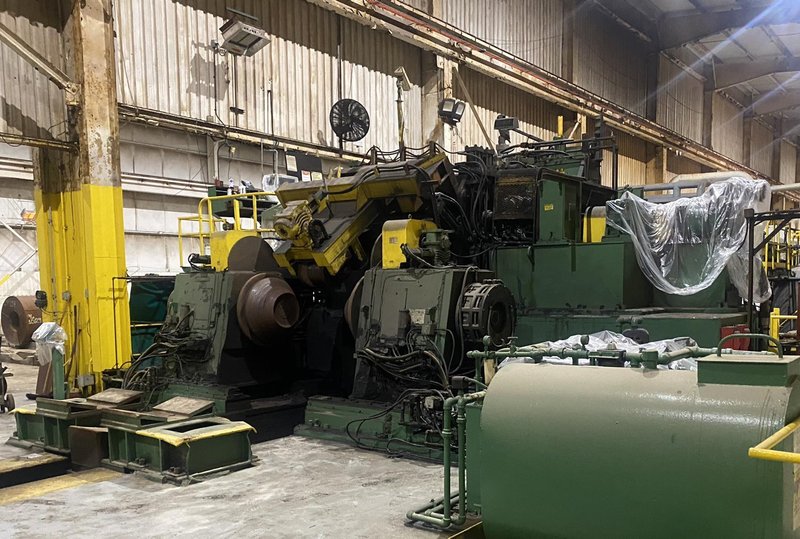

72” x .500” x 69,000# PRO-ECO PIT TYPE COIL CAR & DUAL CONE UNCOILER
Brand
Category
Type
Model
Not specified
Stock #
116183
Year
Not specified
Condition
Used
Location
Not specified
|
Manufacturer: Pro-Eco
Line Direction: Right to Left
Uncoiler Feed-Up Drives: Hydraulic Gearmotors with Water Cooled Brakes
Materials: Cold Rolled & Hot Rolled Steel (Pickled or Black)
Coil Width: 72” (1829 mm) Max.
Strip Thickness: .500" (12.70 mm) Max., .054" (1.37 mm) Min.
Coil Weight: 69,000# (31,298 Kg) Max.
Coil OD: 80” (2,032 mm) Max.
Coil ID: 19” (483 mm) to 33” (838 mm)
ITEM 1) PRO-ECO PIT TYPE COIL LOADING CAR
The coil car removes coils from storage saddles and loads them onto an uncoiler
“V” shaped saddle is elevated by hydraulic cylinder and supports the coil from the outside diameter
Saddle is mounted on a traversing cart with flanged wheels driven by hydraulic gearmotor
ITEM 2) PRO-ECO DUAL CONE UNCOILER WITH WATER COOLED BRAKES
The uncoiler grips, feeds, and maintains back tension on a coil in process
Dual housings with steel cones keyed to main shafts riding in precision bearings
Housings are positioned by hydraulic cylinders on welded steel sub-bases
Water-cooled brakes are back driven by the main shafts to maintain tension
Hydraulic gearmotors drive the cones during feed-up
|
