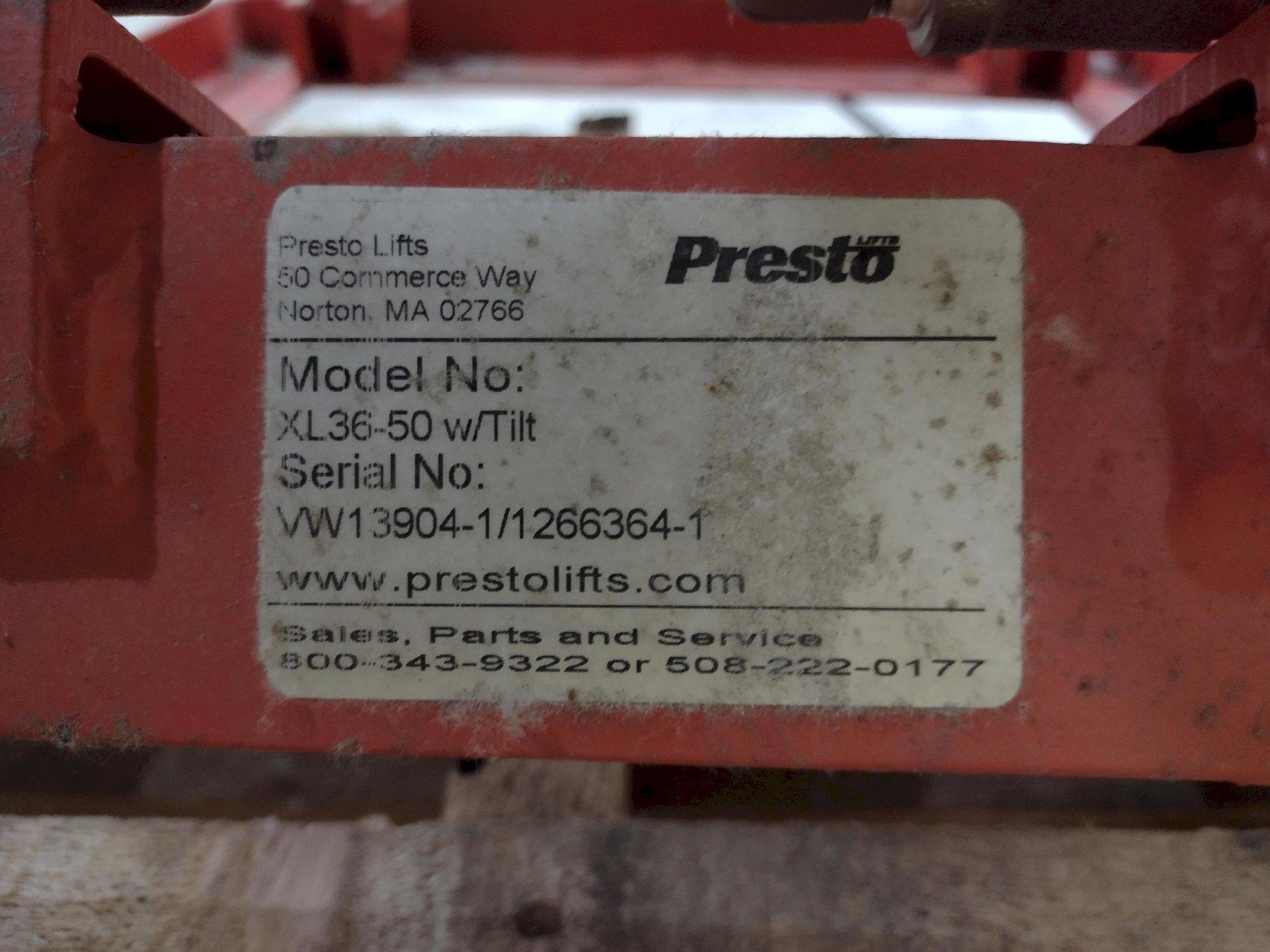

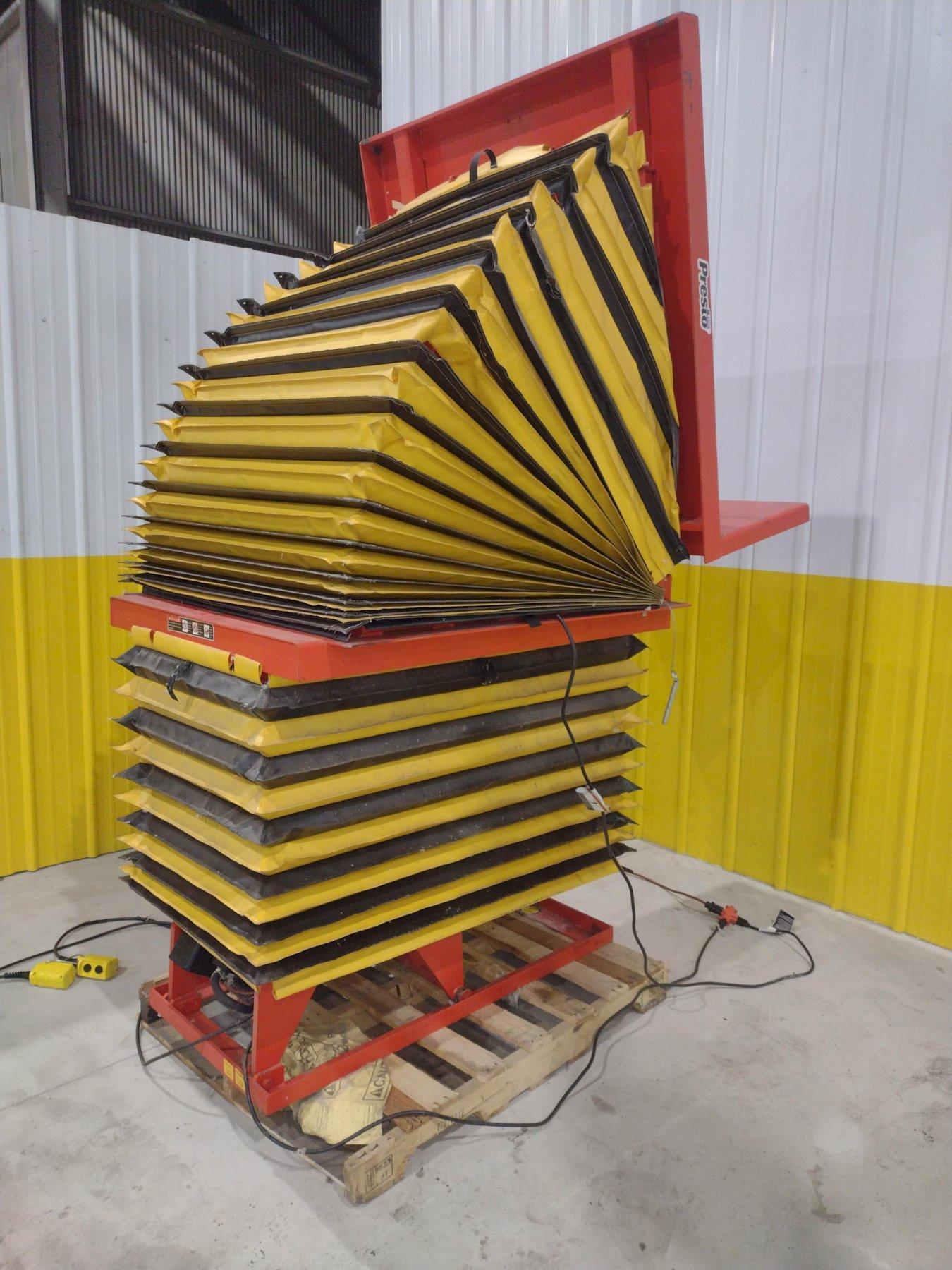

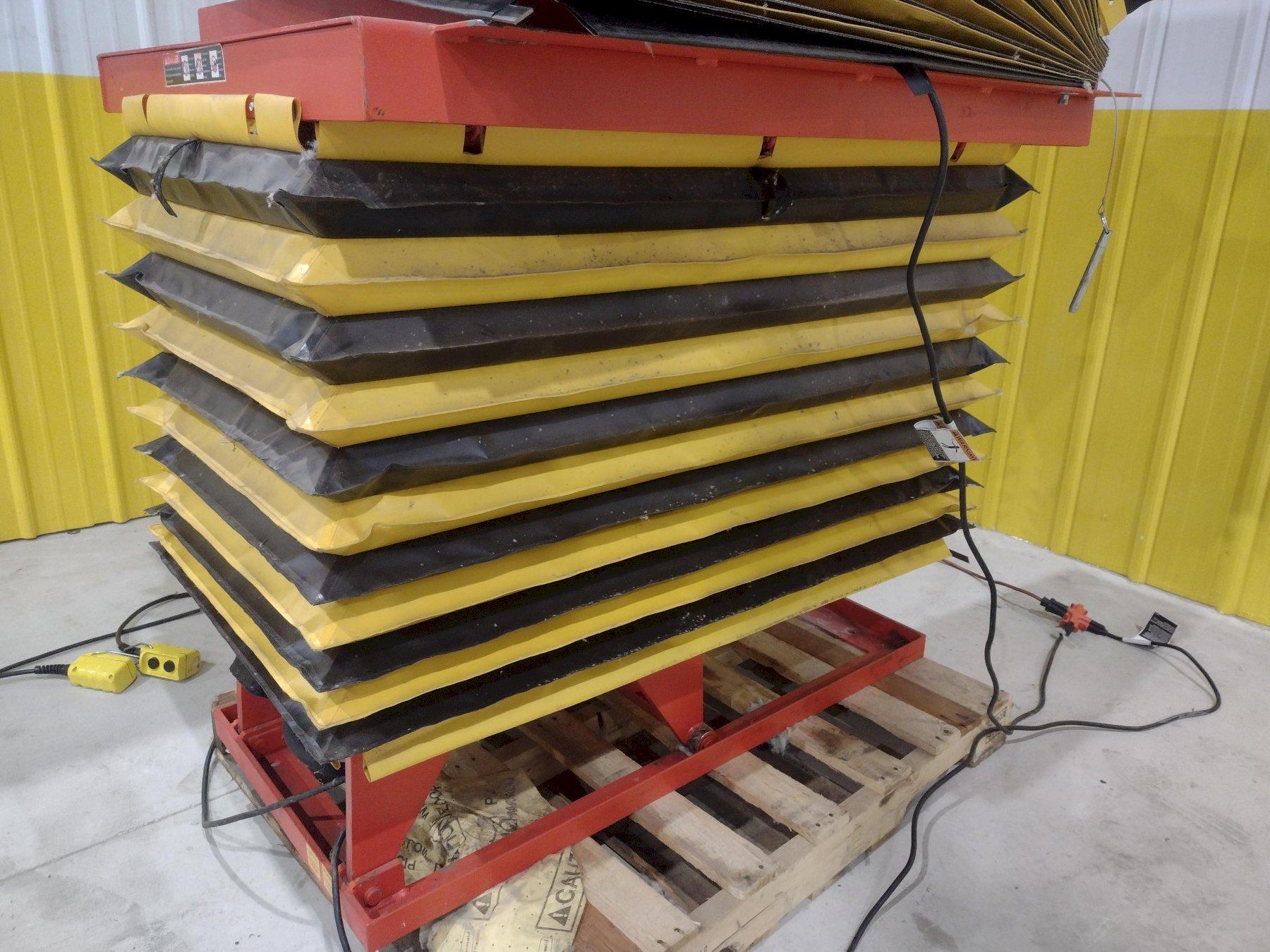

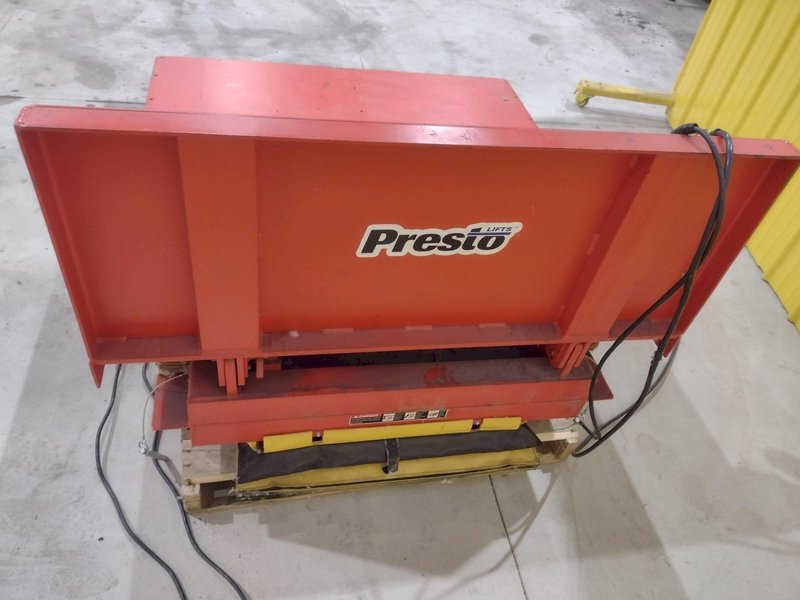

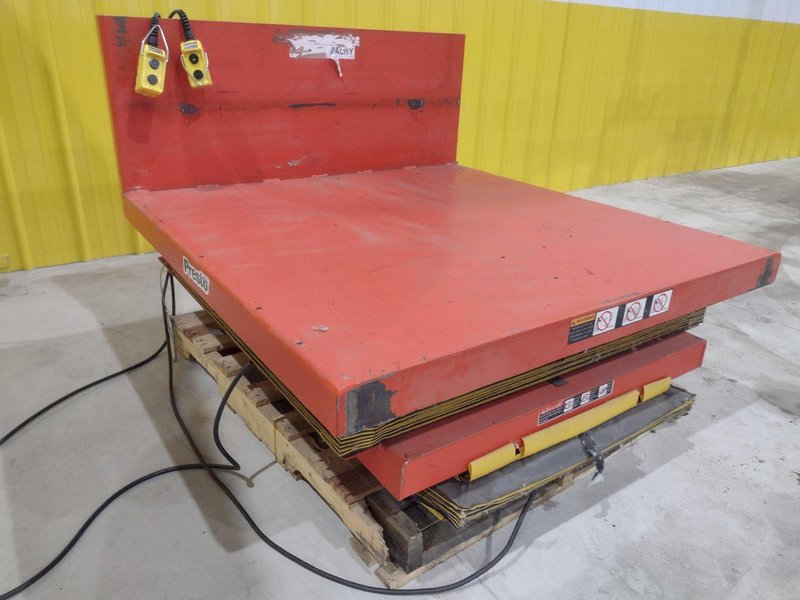

MODEL ........... XL36-50 W/TILT UT90-20

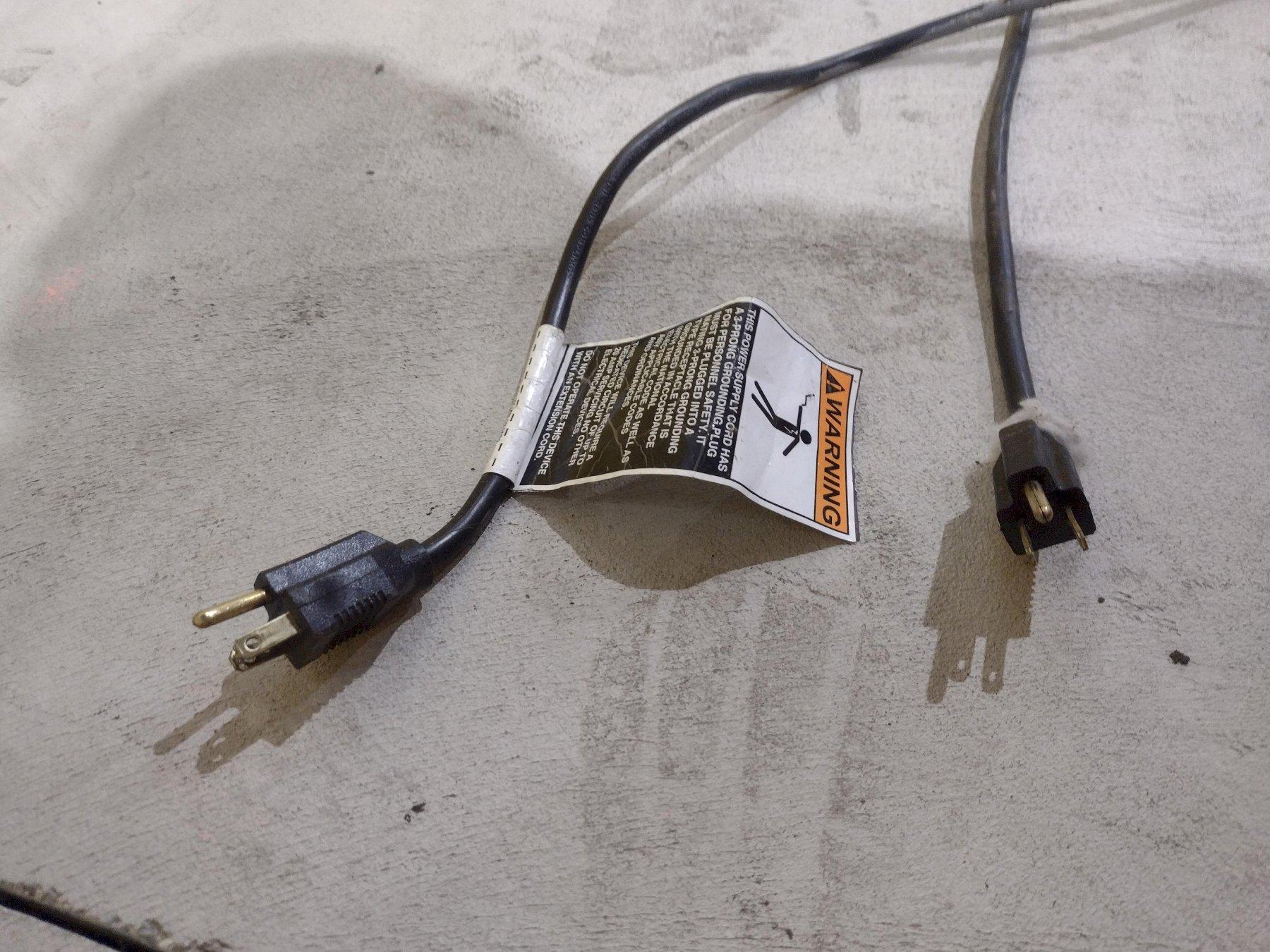

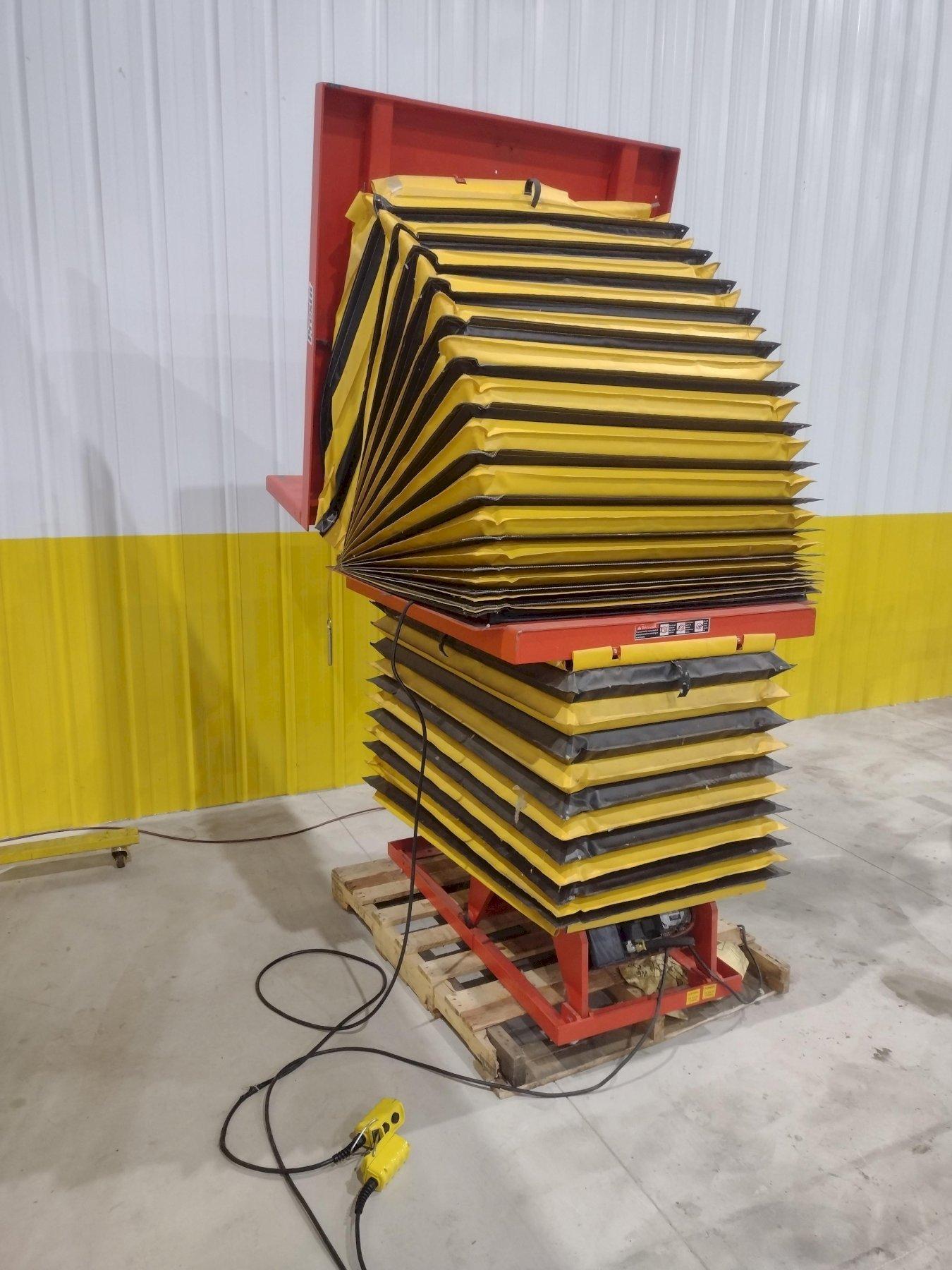

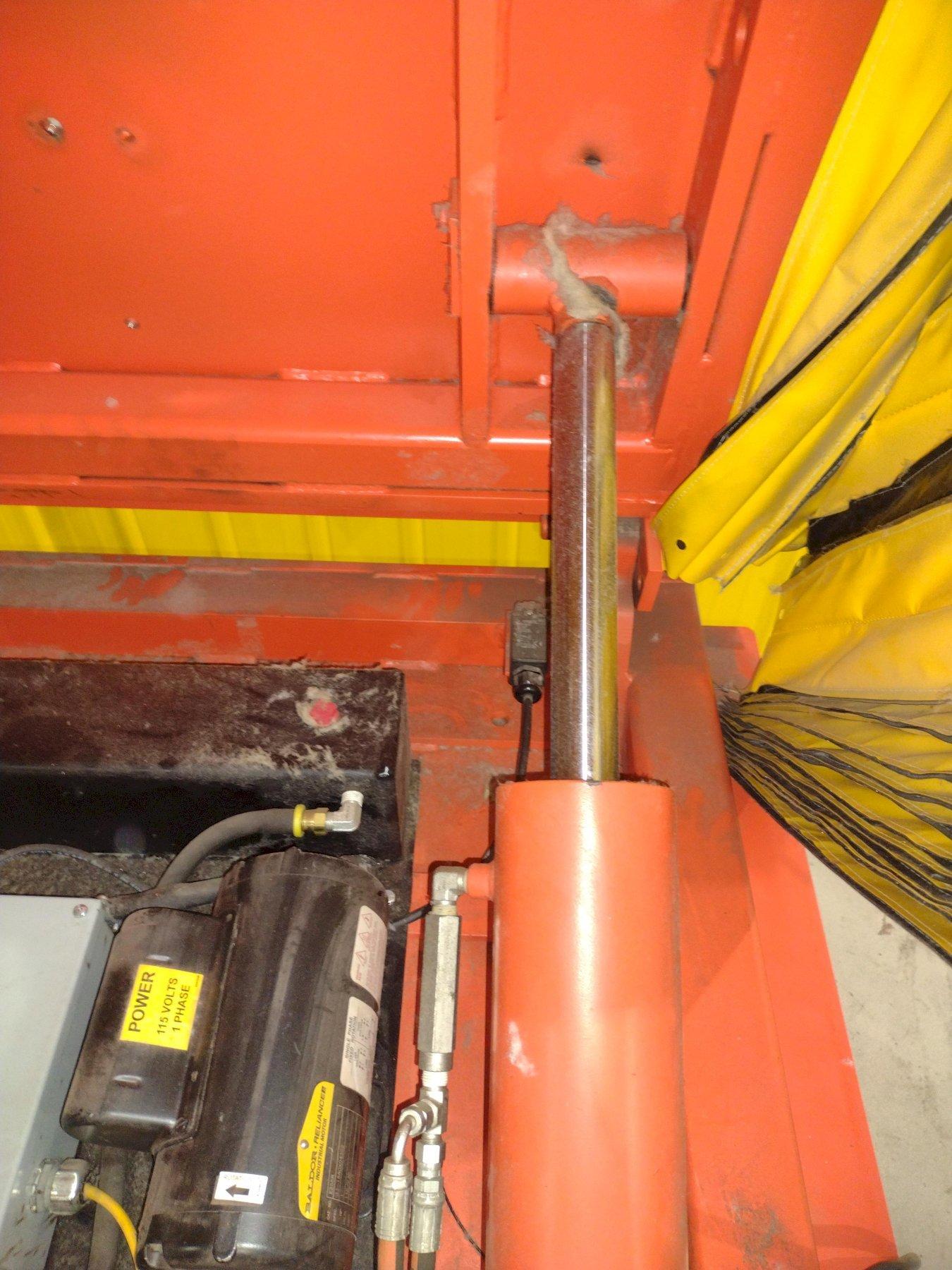

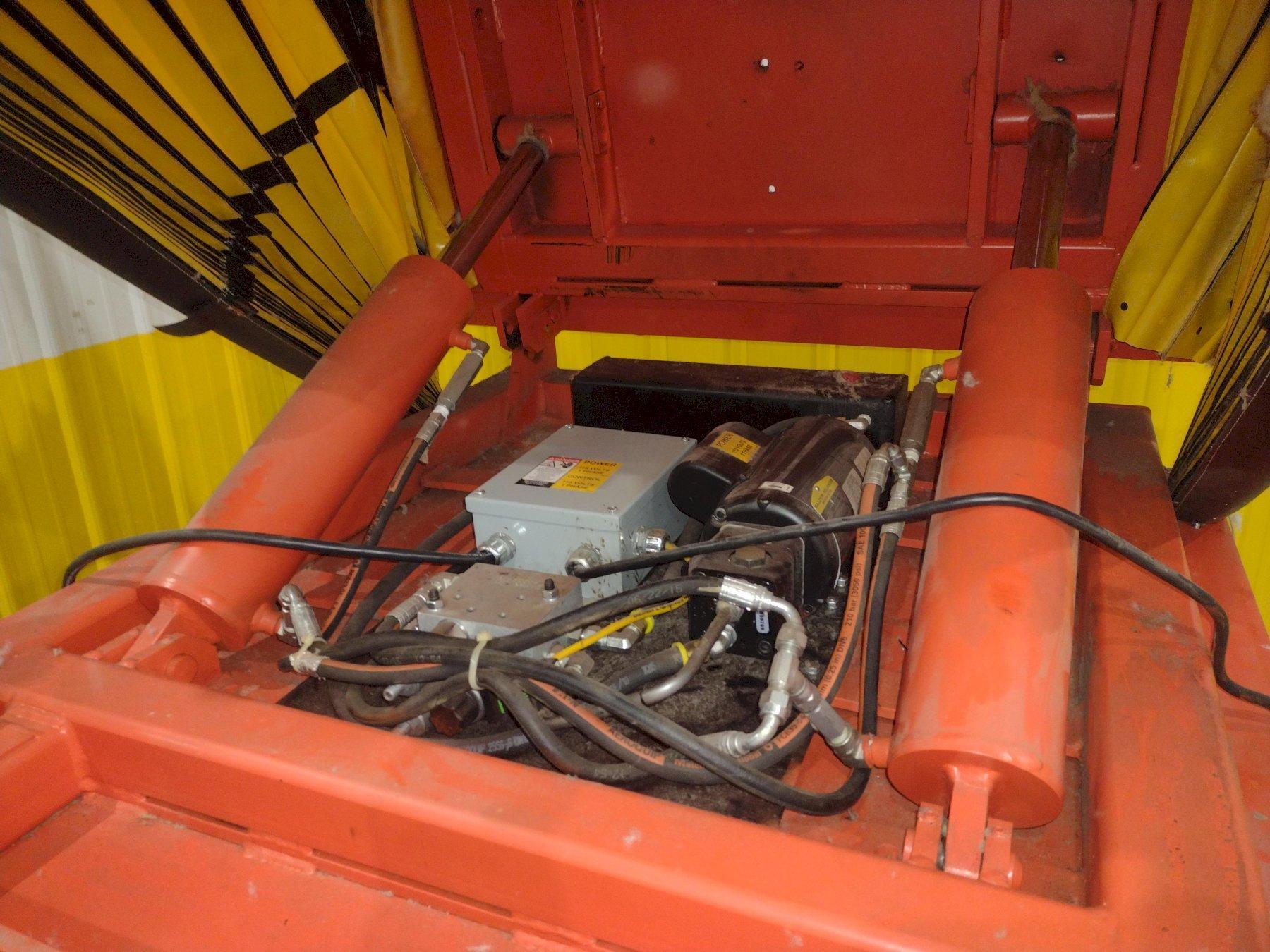

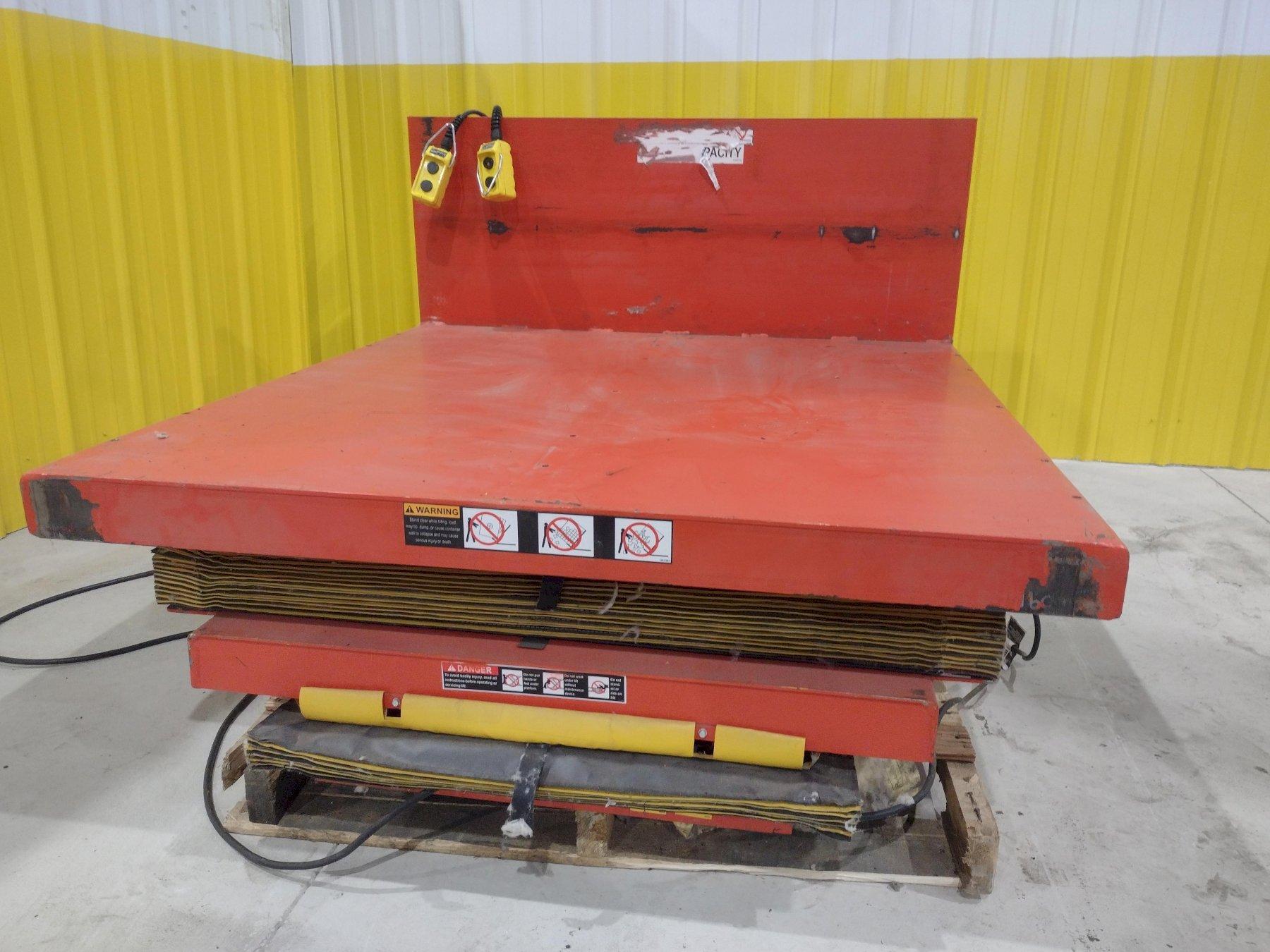

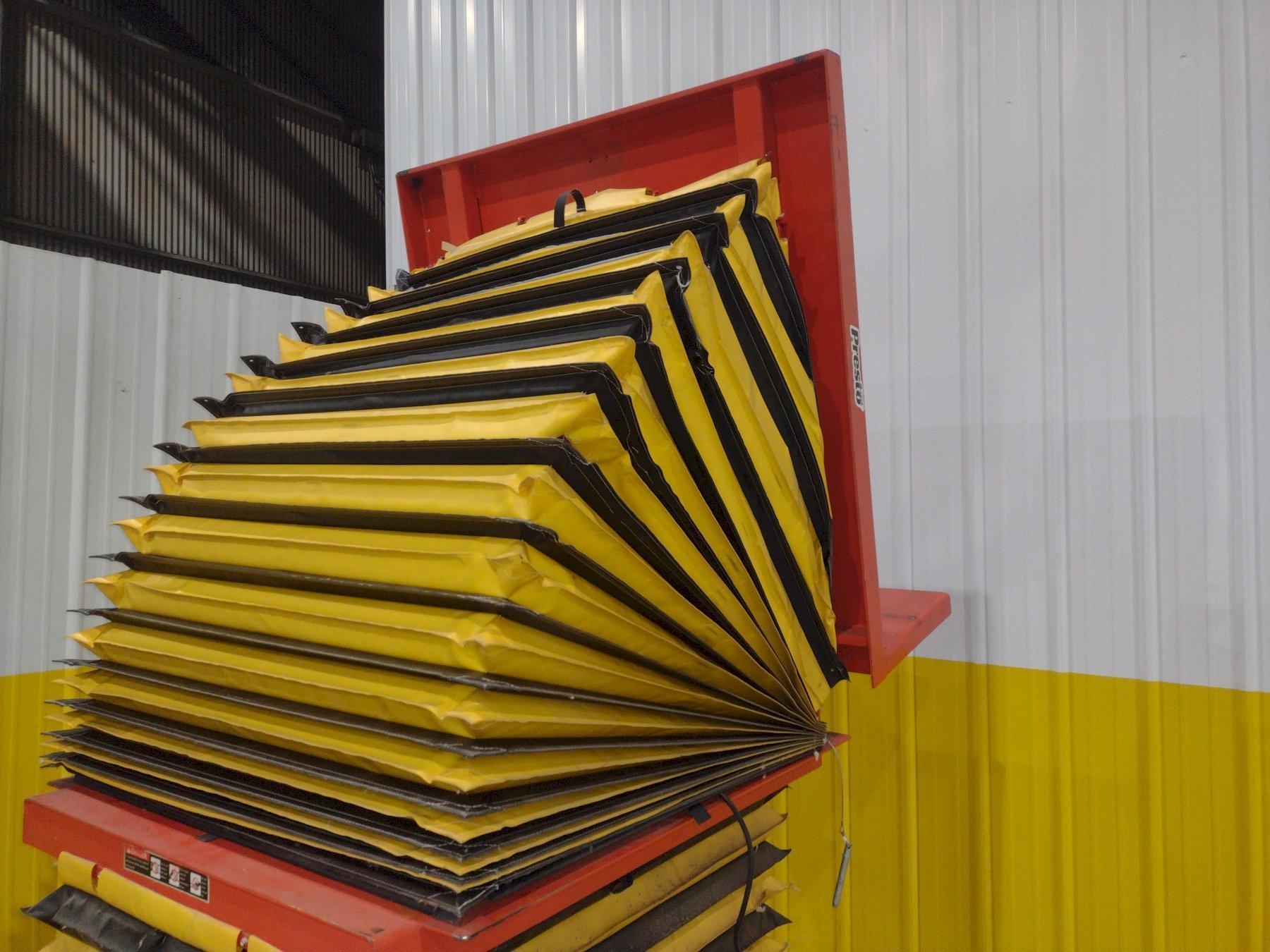

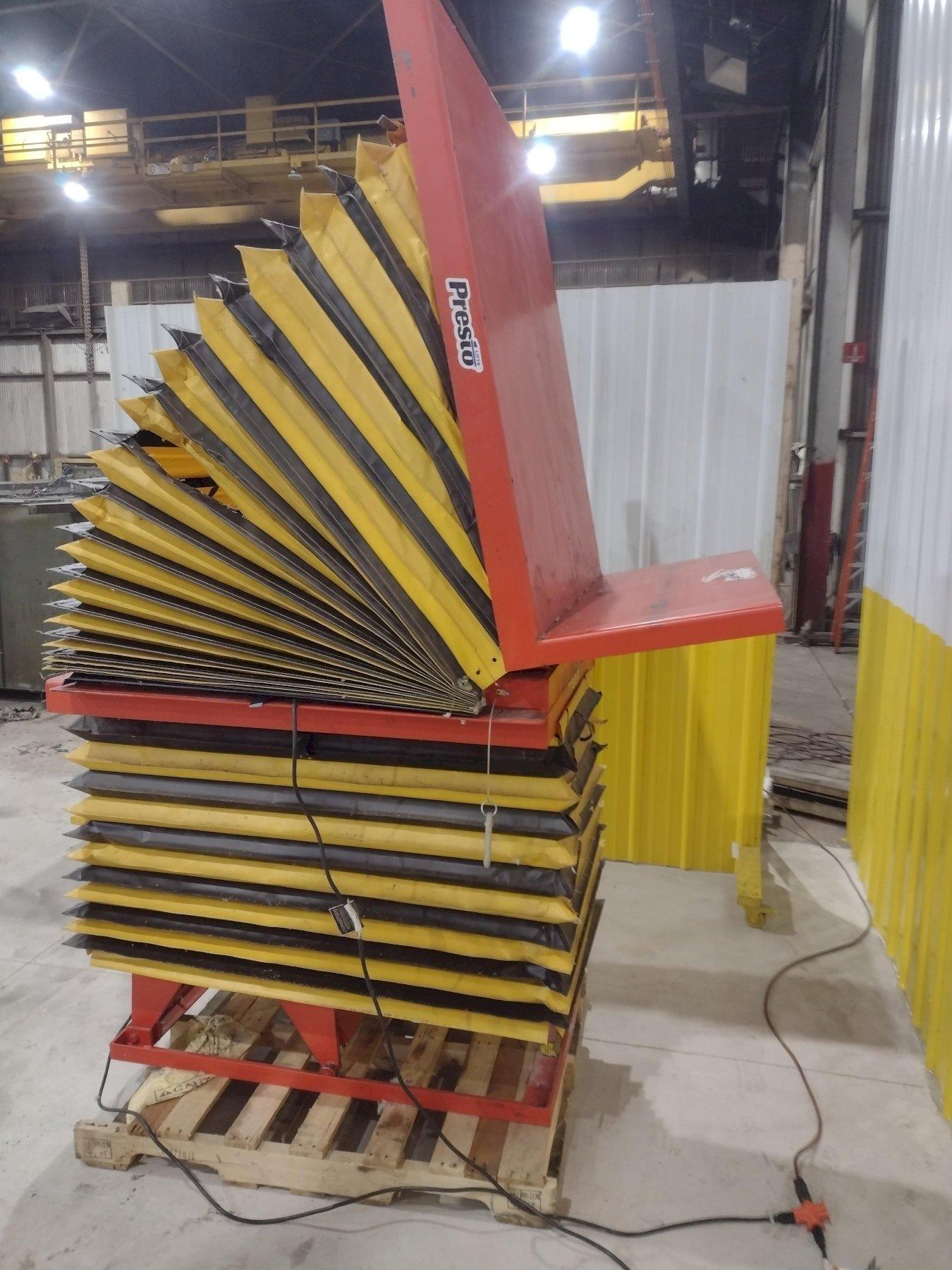

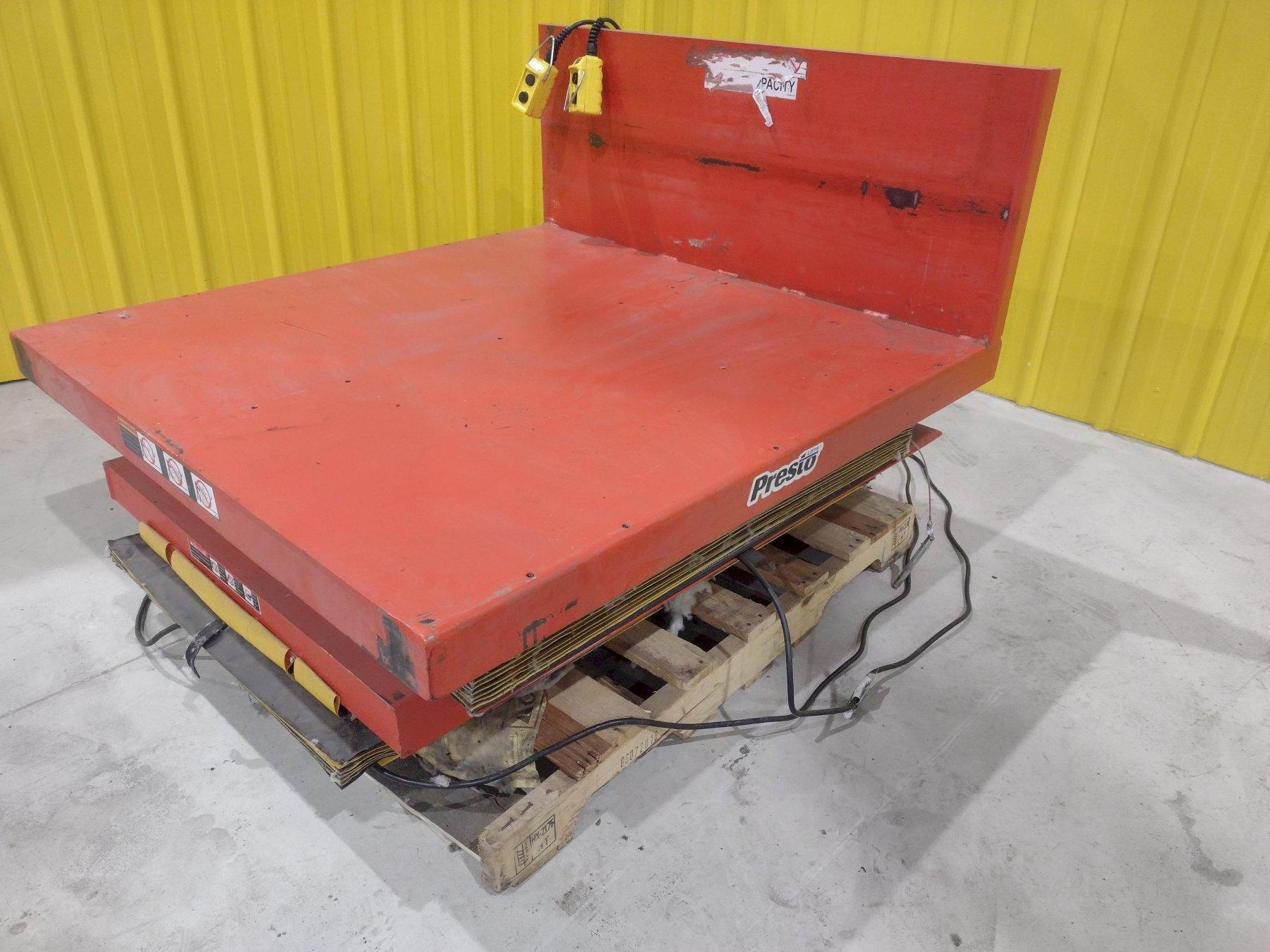

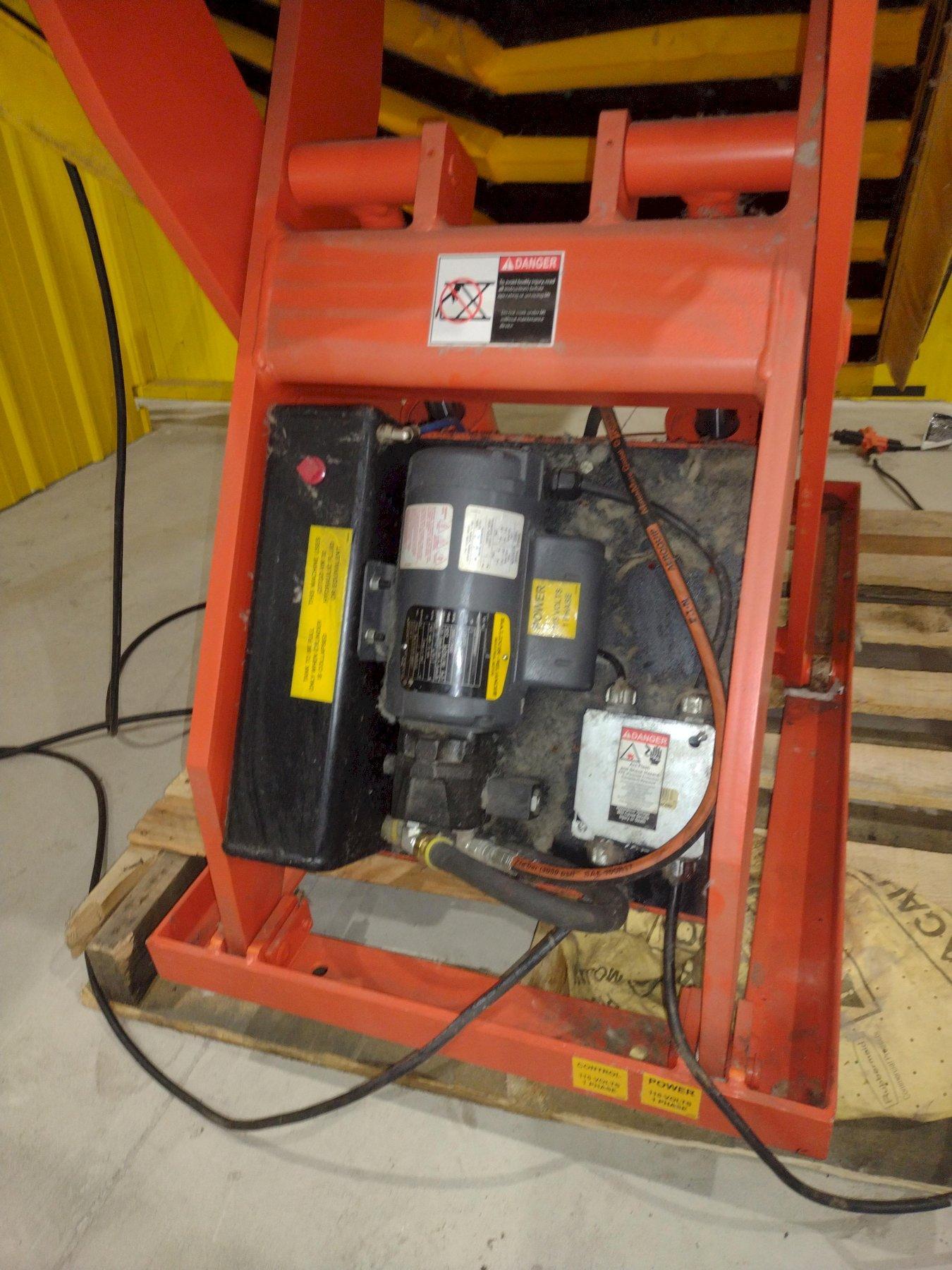

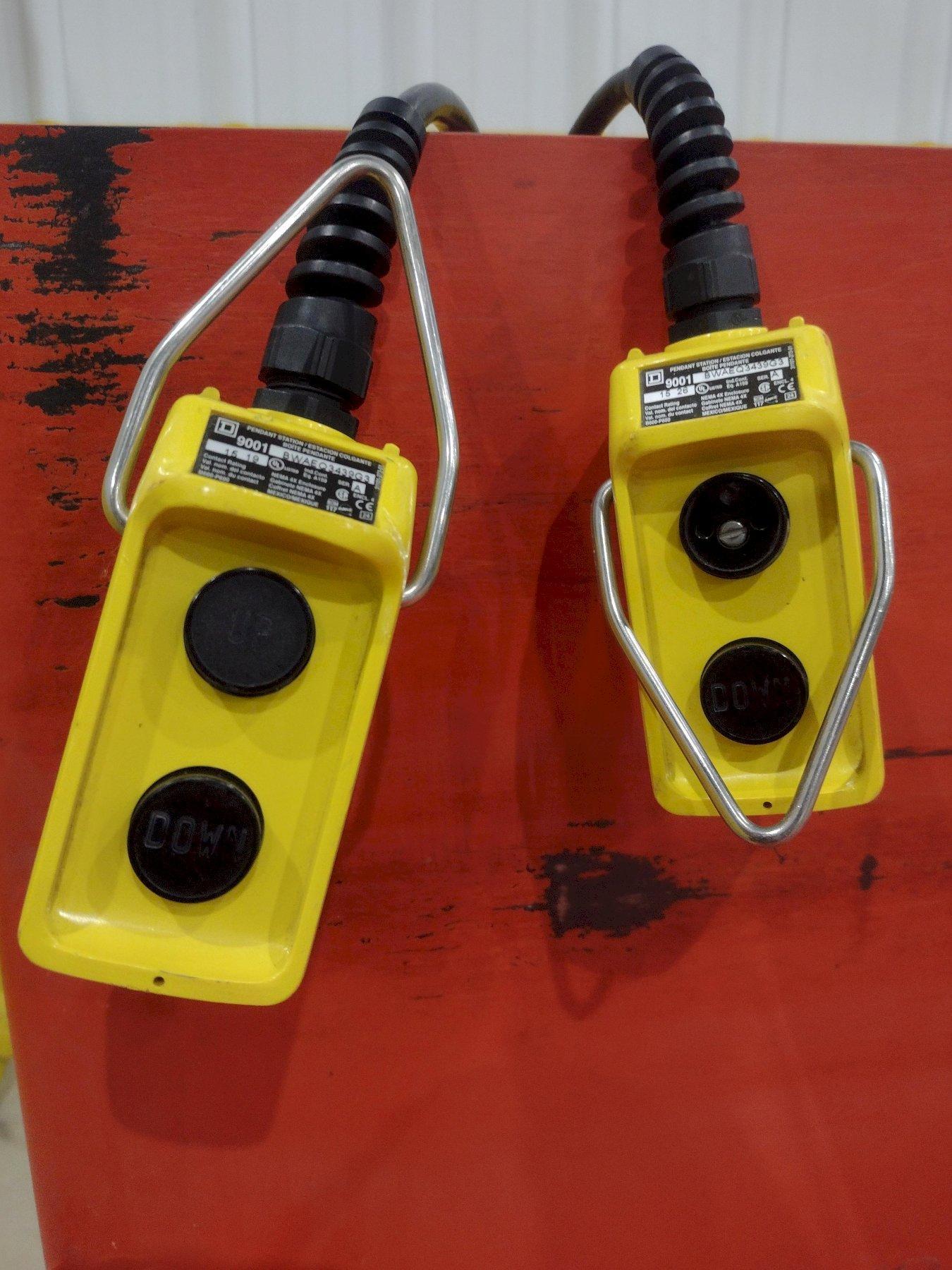

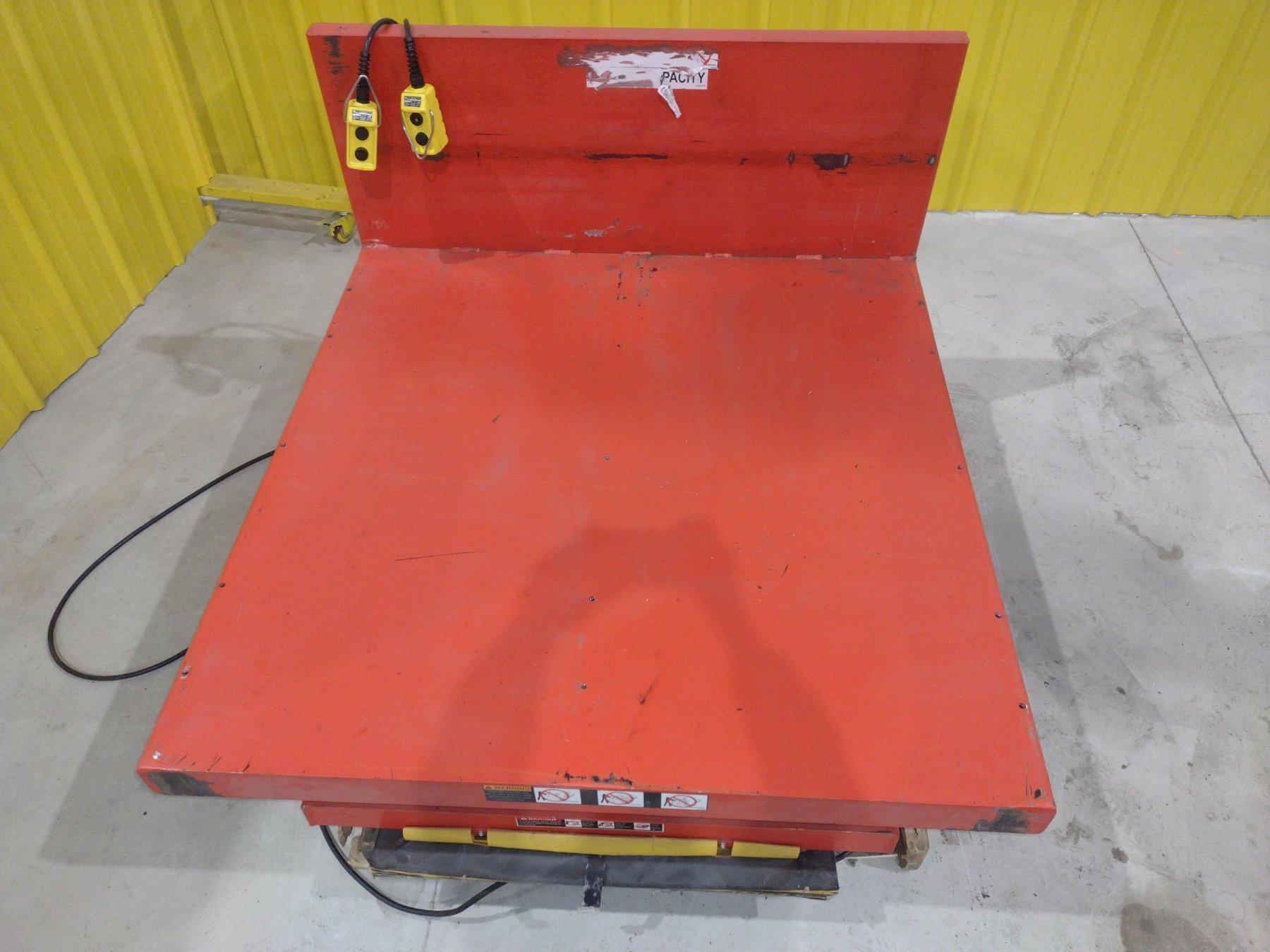

SERIAL .......... VW13904-1/1266364-1 DATE ............ 2015 CAPACITY ........ 2,000 LBS UNIFORM LOAD LIFT RISE ....... 36 IN @ 48 SEC (APPROX.) TILT RISE ....... 90° @76 SECONDS (APPROX.) LIFT BELLOWS .... 30" MOTOR ........... 1 HP POWER ........... 115V, SINGLE PHASE CONTROL ......... PUSH BUTTON X2 TILT PLATFORM DIMENSIONS ...... 48" X 48" LAGS ............ 44-5/8" LIFT BASE ....... 48-3/8" LIFT PLATFORM ... 48-1/2" TILT ............ 75° WITH LIMIT SWITCH DIMENSIONS HEIGHT (FULLY RAISED) .......................... 98-3/4" HEIGHT (LOWERED) ............................... 69-3/4" PLATEN LEDGE FULL TILT HEIGHT (LIFT RAISED) .... 55-7/16" PLATEN LEDGE FULL TILT HEIGHT (LIFT LOWERED) ... 19-7/16" LOWERED ........................................ 19-1/2" RAISED ......................................... 52" VERTICAL TRAVEL ................................ 36" LIFT TABLE & TILT TABLE DUST SKIRTS MODIFICATION 1: OVERSIZE LIFT PLATFORM (36" X 48-1/2") MODIFICATION 2" OVERSIZE TILT PLATFORM (48" X 48" WITH 48" X 18" PLATEN) |
