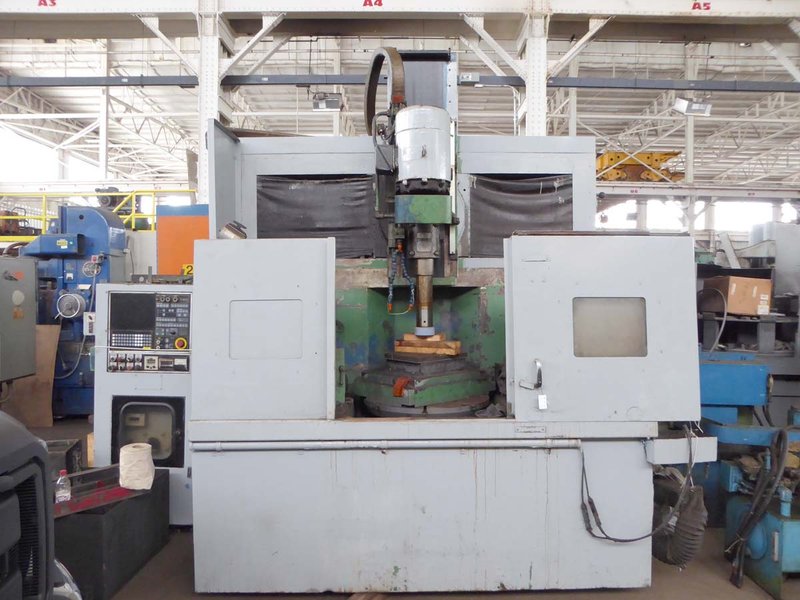

Springfield VGC 25, Universal Vertical Spindle Grinder
Brand
Category
Model
VGC 25
Stock #
16537
Year
1988
Condition
As-Is
Location
Michigan
|
Table:
25" Standard Diameter of Table 35" maximum Swing 1-175 Work Spindle RPM 8"-A2 Work Spindle Nose Vertical Slide: 21" Standard Vertical Slide Stroke 2-180 IPM Vertical Slide Traverse Rate 4.5" Grinding Spindle Mounting Diameter (Cartridge Style) 0-45 Deg Vertical Slide Angle Adjustments (Left or Right) .0002 Minimal Feed Increment w/ positive stop screw 18" Nominal Hole Depth 20" Standard Clearance over Work Table 6-7/8 x 1" Maximum Wheel Size 10 HP Grinding Motor Horsepower 3-30 IPM Horizontal Traverse Rate .0002 to .003 Horizontal feed Rate on Diameter (IPM) Selling "AS-IS" |
