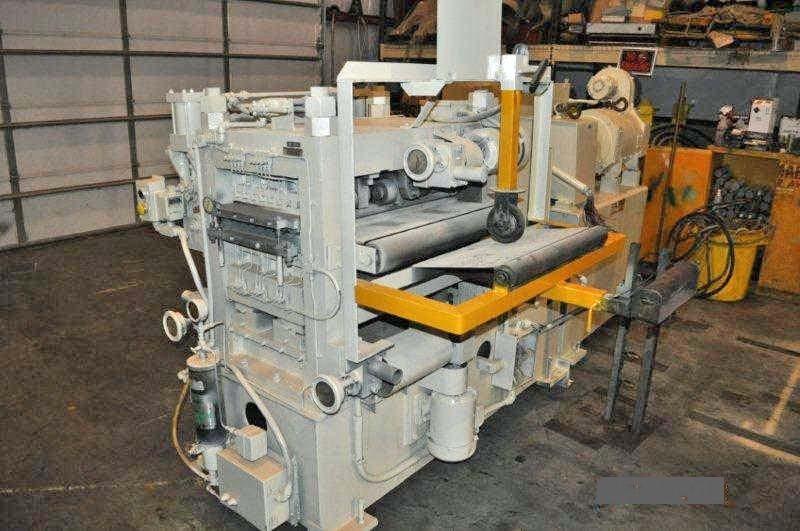

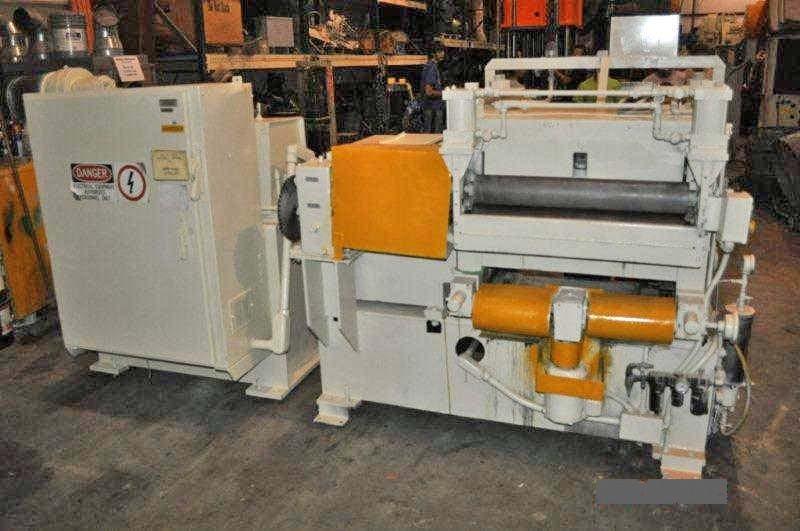

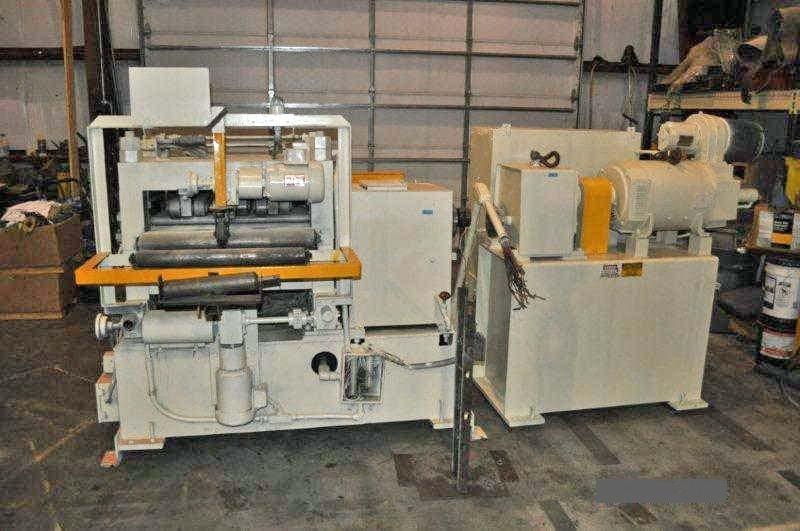

Herr Voss Leveler

Model: S.P. 30/1.500-17/3, 4HI, LH

-Capacity: 28" x 0.028" - 0.071" Mild Steel

-Nameplate Capacity: 18" Wide x 0.028" - 0.071" @ 140,000 PSI Yield

  Note: 18" wide capacity is based on overall spacing of backups.

        Leveler will accept 28" wide material.

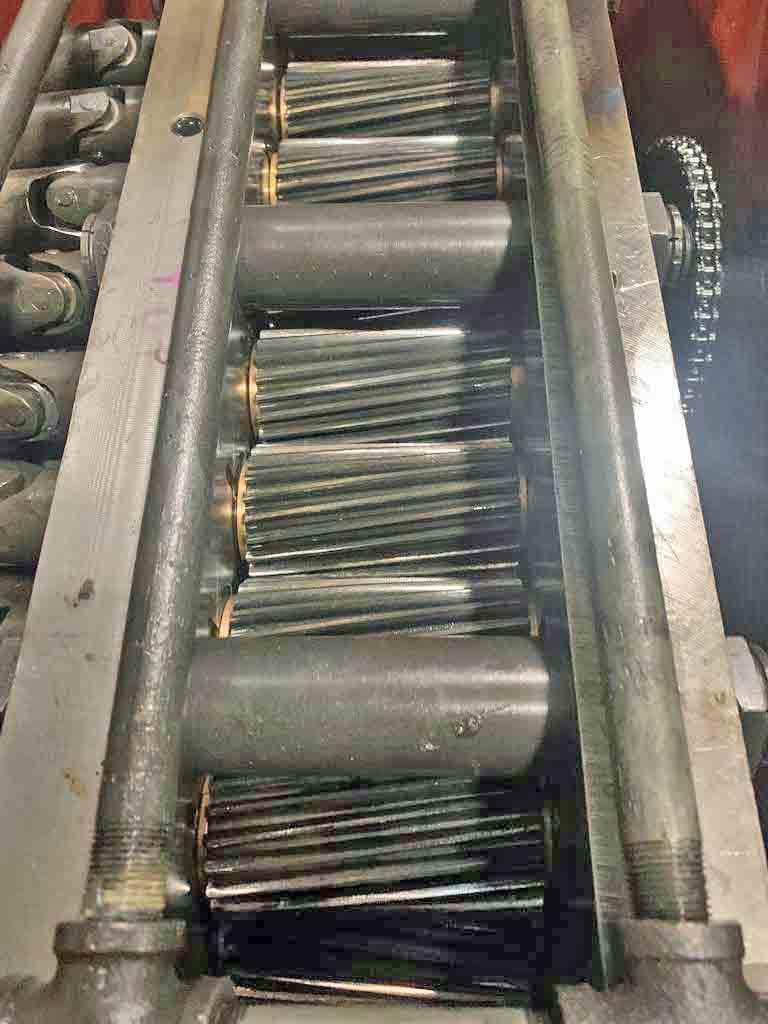

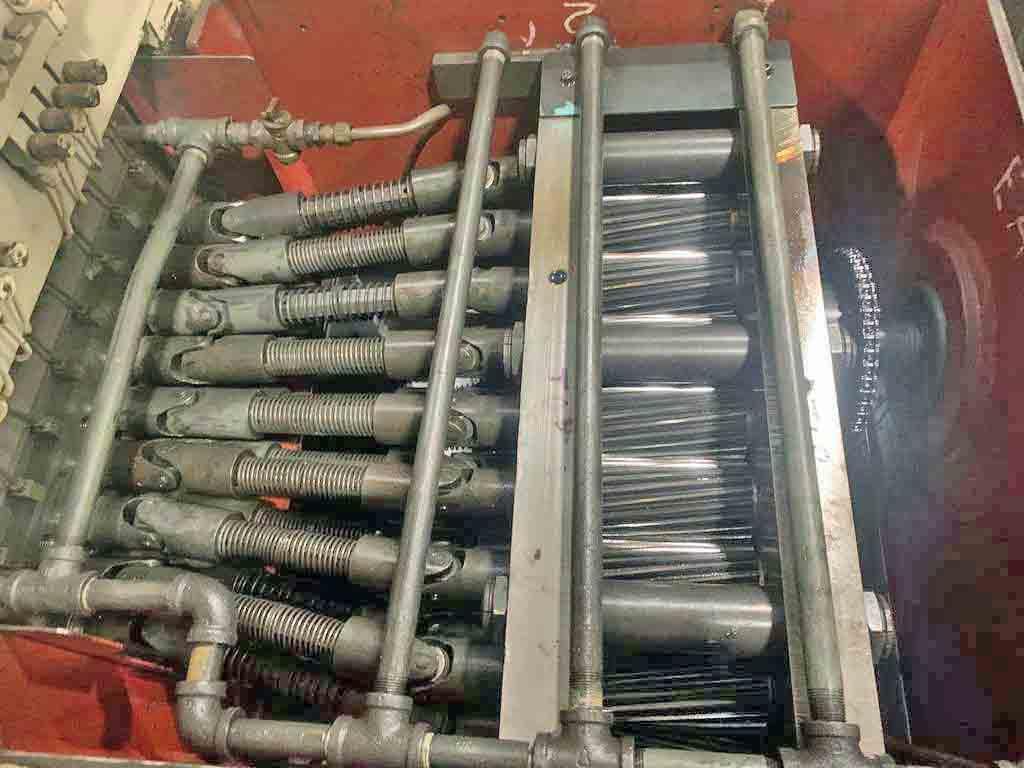

-17 Work Rolls, (8 over 9)

-1.500" Diameter x 30" Face Rolls

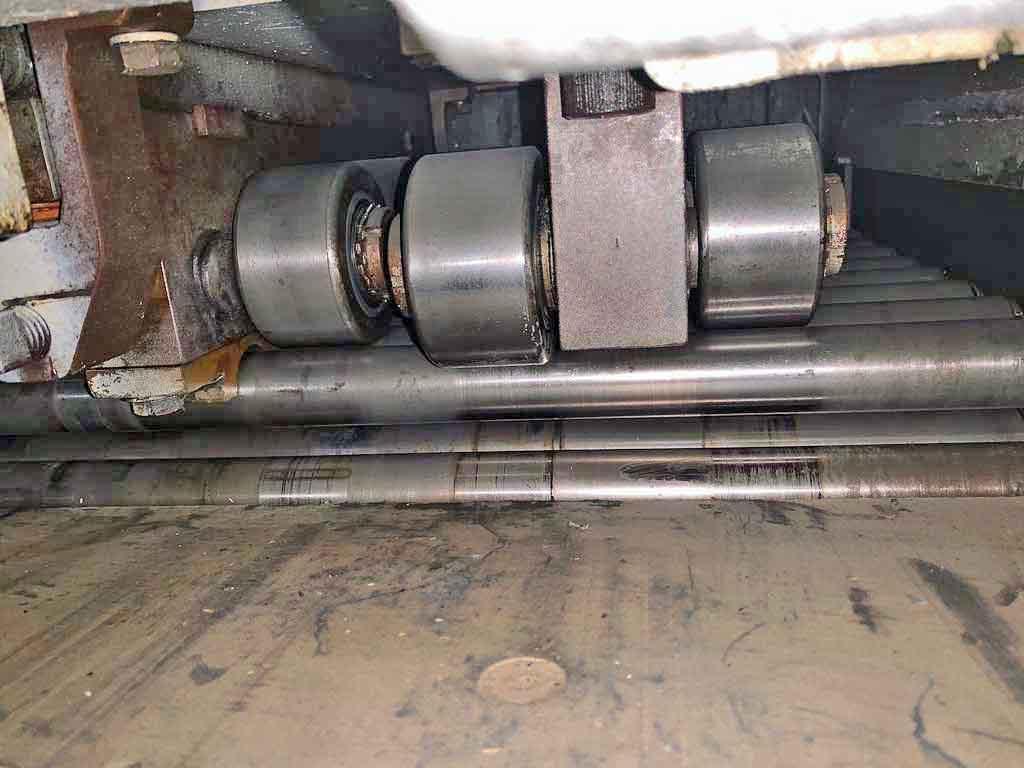

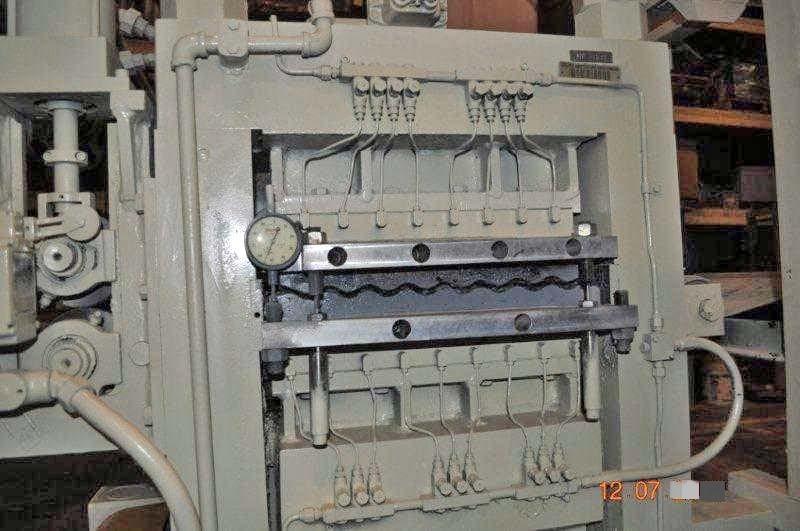

-(3) Flights of Backups

  Center Backup manually adjustable

-Entry Pinch Rolls, 4.5" Dia.

-Line Speed:  40 - 80 FPM

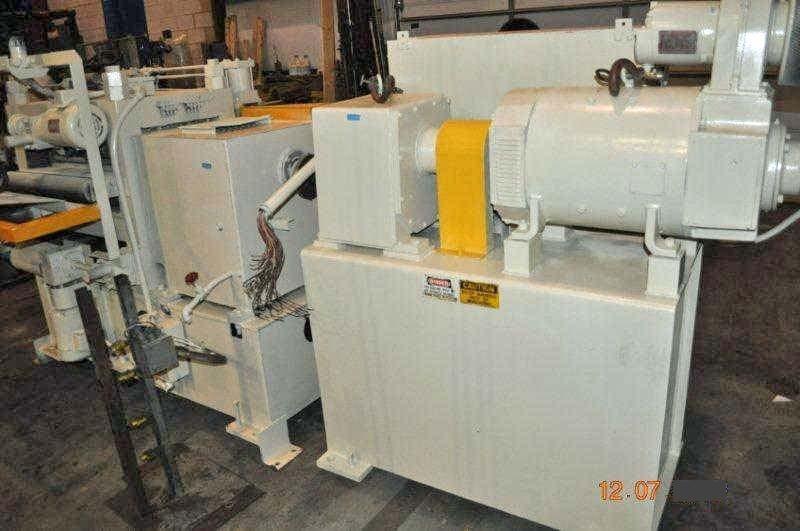

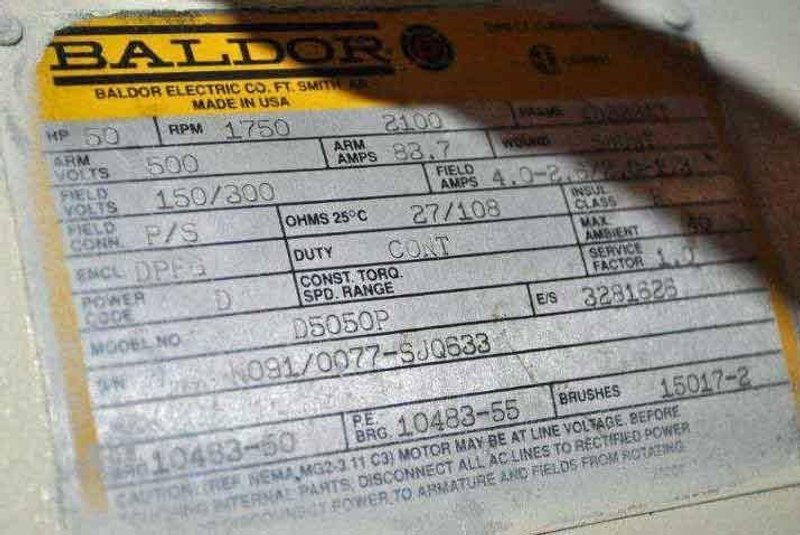

-50 HP Baldor DC Motor, 1750/2100 RPM, 500 V

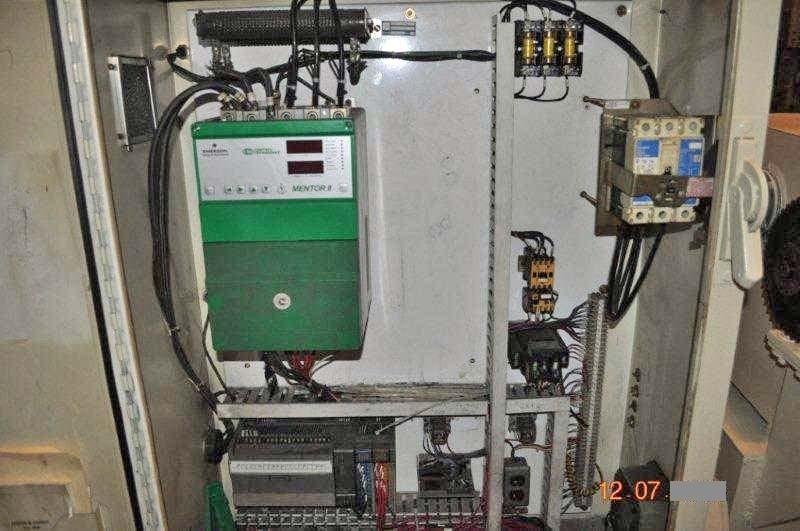

  Variable Speed Control

-Gearbox was rebuilt in 1999

-Philadelphia In-Line Reducer w/3.88:1 ratio

-Less Operators Control Panel

-Line Direction:  Left to Right

-Overall Size:  Leveler: 73" L x 50" W x 68" High

Drive: 83" L x 40" W x 62" High
