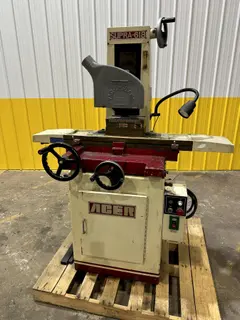

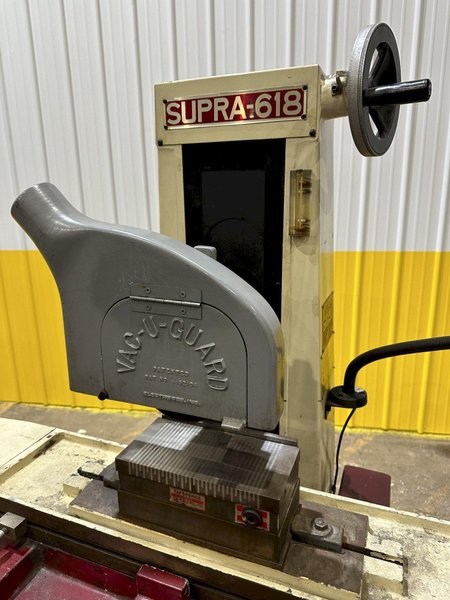

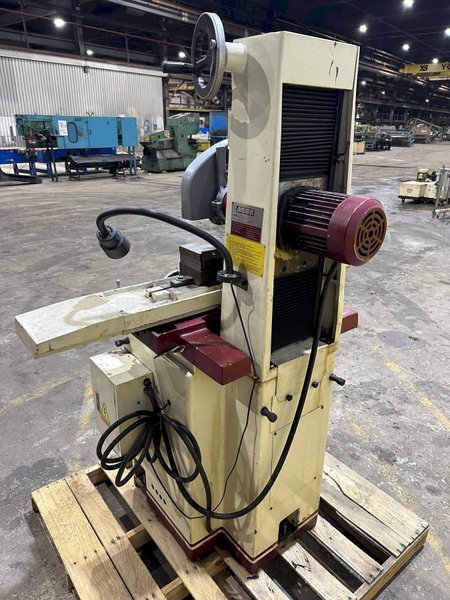

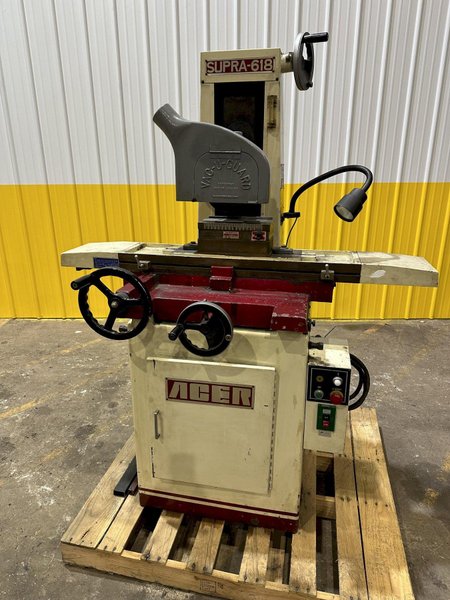

6" X 18" ACER MODEL #SUPRA-618 HAND FEED SURFACE GRINDER: STOCK #19878
Brand
Category
Type
Model
SUPRA-618
Stock #
19878
Year
1996
Condition
Good
Location
Ohio
Price
$2,452.00
|
SERIAL ................................... 9608736
NEW ...................................... 1996 MODEL .................................... SUPRA-618
CAPACITY ................................. 6" x 18"
SPINDLE CENTER TO TABLE .................. 18"
TABLE TRAVEL ............................. 20"
CROSSFEED TRAVEL ......................... 7-1/2"
DOWNFEED HANDWHEEL PER GRADUATION ........ 0.0005"
PER REVOLUTION ........................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ....... 0.0005"
PER REVOLUTION ........................... 0.2"
STANDARD GRINDING WHEEL .................. 8" X 1/2" X 1- 1/4"

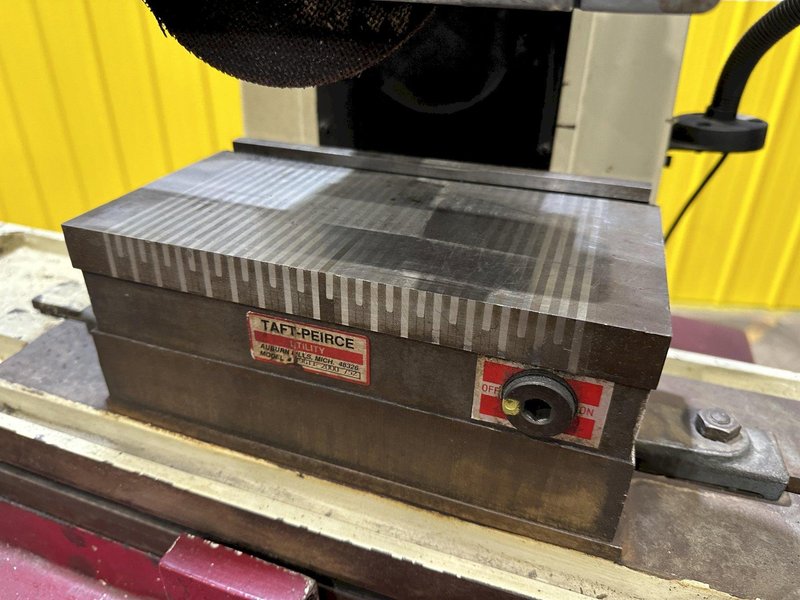

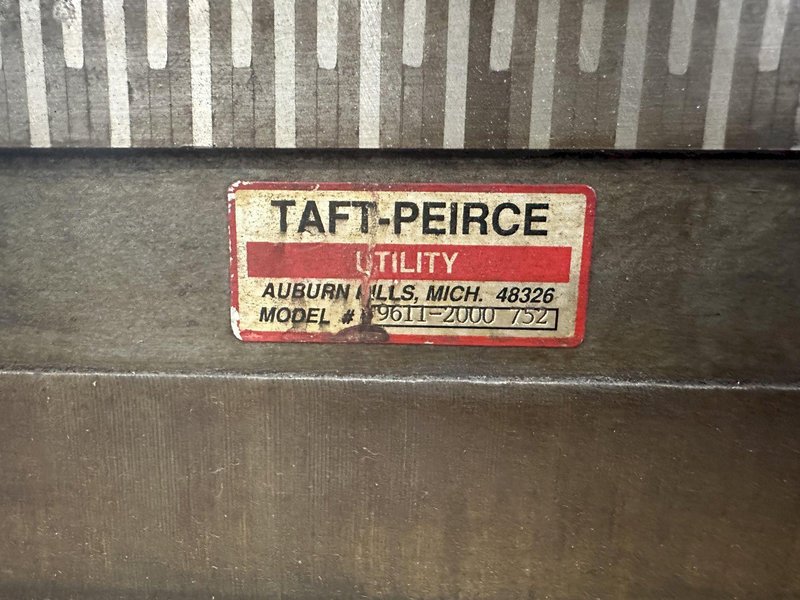

CHUCK FINE LINE .......................... 6 "X 18 "X 4"
WALKER VARIABLE HOLD CHUCK CONTROL ....... YES
MAXIMUM TABLE LOAD CAPACITY WITH CHUCK ... 320 LBS
HAND FEED ................................ YES
MOTOR .................................... 2 HORSEPOWER |
