Seibu MEX15 "Ultra Precision" Wire EDM, X, Y, Z axis travel, +/-0.5 um Pitch Cutting Accuracy, X, Y, Z axis travel: 5.90” x 5.90” x 4.72”, Wire diameter: ..001” - .006”; Seibu SmartNC Control +more

Brand

SEIBU

Category

EDM Machines

Type

EDM, Wire

Model

MEX15 Ultra-precision

Stock #

MEX15 Ultra-precision

Year

Not specified

Condition

New

Location

Not specified

Specifications
Files & Videos

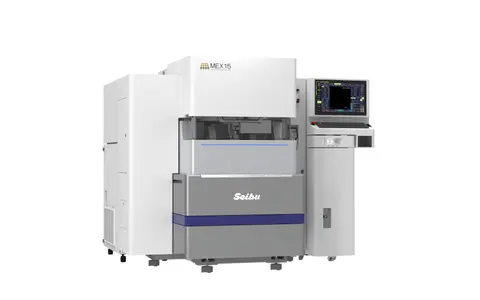

Seibu MEX15 "Ultra Precision" Wire EDM

High Speed-Ultra Precision

Seibu MEX15 "Ultra Precision" Wire EDM is built for the ultimate in wire EDM precision. The machine is designed to deliver high material removed rates while holding a pitch accuracy of ±0.5 micron. Machine castings are ground and hand scrapped for complete flatness. Guideways are checked for flatness lasered for straightness and test cuts are performed on all machines which are then checked on a CMM for accuracy resulting high precision parts. The MEX15 "Ultra Precision" Wire EDM features the user-friendly Seibu Smart NC Control (Fanuc Drives/Control) series control with a 21.5-inch TFT LCD touchscreen that contains over 4000 cutting conditions. The GUI for Windows graphical interface makes it easy for operators to learn the control. The control has been customized to show more information so operators can check the necessary cutting data or maintenance work on any screen at any time. The control has been customized to show more information so operators can check the necessary cutting data or maintenance work on any screen at any time. Seibu Control consistancy across all models of Seibu wire edms.

Specifications

Axis travel XYZ	5.90” x 5.90” x 4.72”
Max. workpiece weight	26.45 lbs.
max. workpiece dimensions WxDxH	7.05” x 6.49” x 2.36”
Wire diameter	.001” - .006”
Automatic wire threader	standard
U-V axis travel UxV	±2.4” × ±2.4”
Max.taper angle	±10°@ 2.36”
Max.taper angle	（Not - option)
Machine Dimensions WxDxH	68.1” x 68.3” x 73.0”
Machine Weight	8,598 lbs.

Selling Features
• 100% made in Japan
• hand scraped meehanite castings
• Seibu Smart NC Control (Fanuc Drives/Control)
• air cooled cabinets
• 17" dry annealing auto. wire feeder
• absolute glass scale feedback
• core stitch circuit
• super fine finish circuit
• anti-electrolysis control
• corner control
• workpiece straightness circuit
• different height software
• hardened insulated work table
• vertical worktank door with signal lights
• worktank sensors
• automatic water level control
• LED worktank light
• remote control handbox
• dielectric chiller
• pre filter
• 4 MAN Triple bellow paper filters (Filters Sit out of Water with Air Blow Out)
• 2 DI bottles
• wire alignment block
• tool box

Optional Items
• 45° taper
• EL coating
• rotary table
• thermal adjust 24
• small hole attachment device
• 20kg wire spooler

Specifications are subject to change without prior notice.
