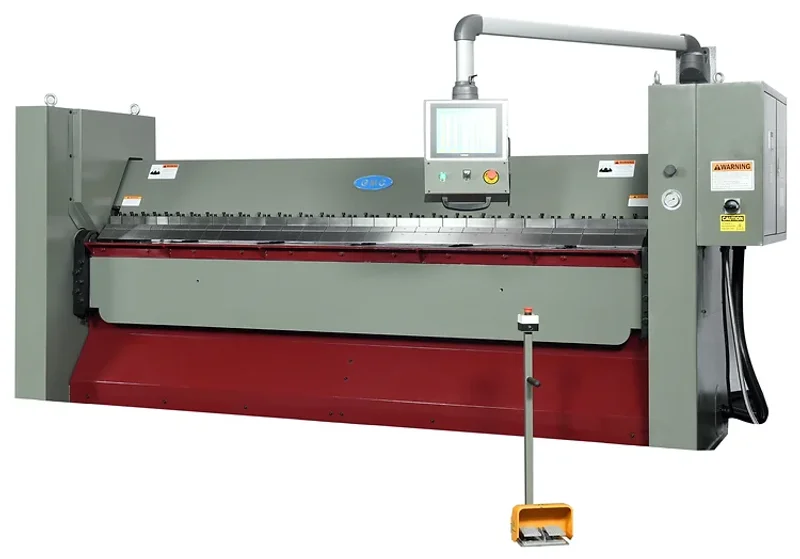

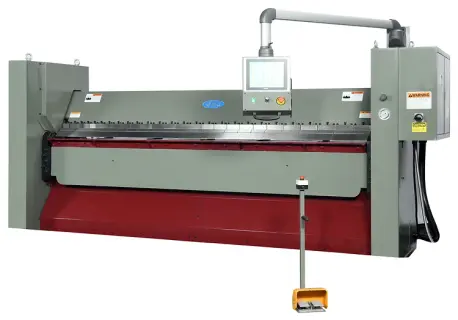

NEW 10' X 10 GAUGE GMC MODEL HBB-1010NC HYDRAULIC BOX AND PAN BRAKE WITH NC CONTROLLER

Brand
GMC
Category
Bending & Forming Equipment
Type
Brakes, Box & Pan (incld Finger)
Model
HBB-1010NC
Stock #
19139
Year
Not specified
Condition
New
Location
Not specified
NEW 10' X 10 GAUGE GMC MODEL HBB-1010NC HYDRAULIC BOX AND PAN BRAKE WITH NC CONTROLLER
  • ISO 9001 certified
  • Meet OSHA and CE safety standard

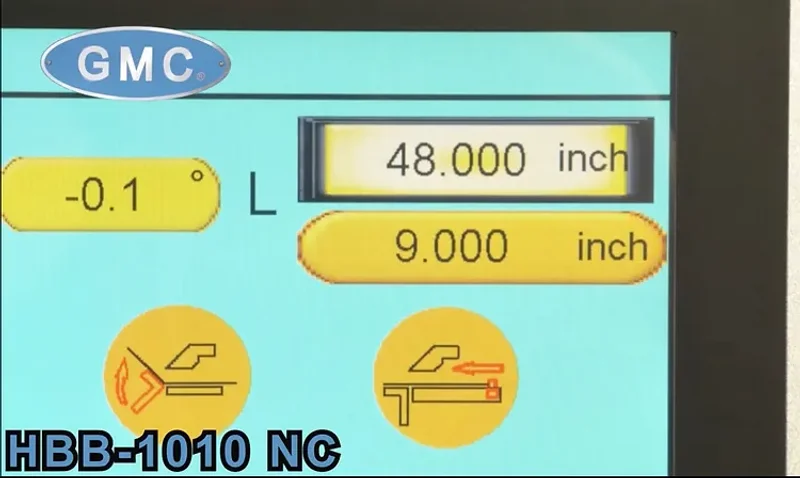

  • 48” NC table back gauge with fingers

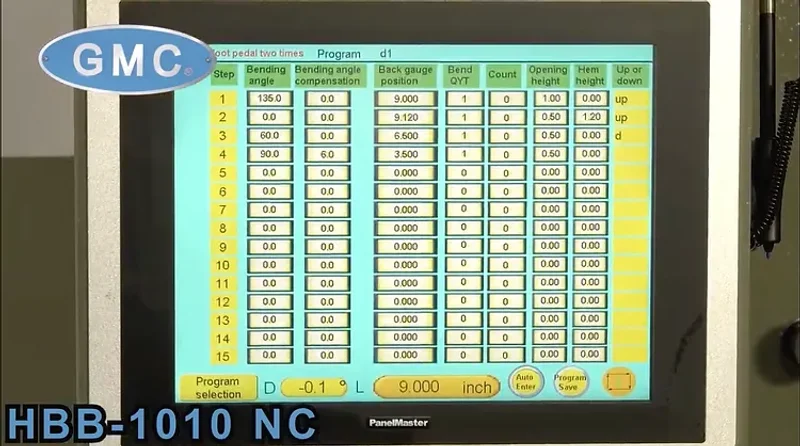

  • Max. 16 bends per program
  • Upto 100 Program Storage
  • Programmable Angle/ Angle Correct
  • NC ram height control for open hemming

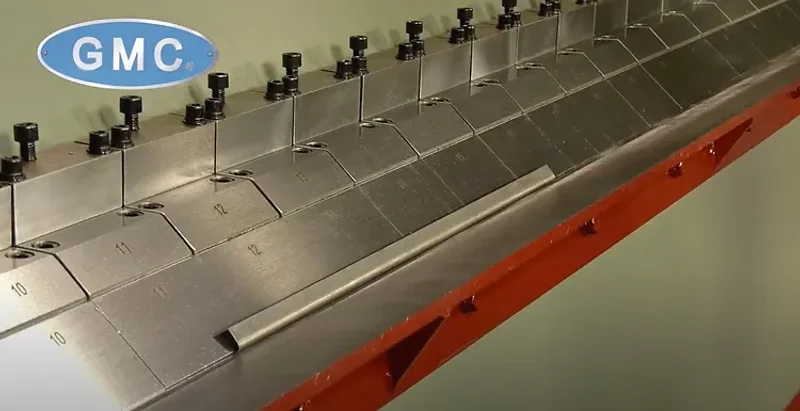

  • Hardened fingers and table
  • Germany Rexroth  hydraulic system
  • Yaskawa Servo motors and Drives

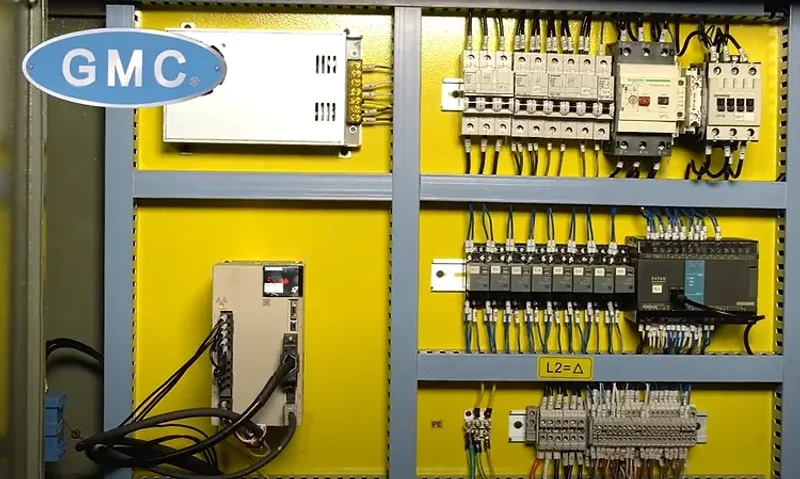

  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts


OPTIONAL EQUIPMENT
  1. One piece 10’ straight finger - $2,995.00
  2. One day on-site training - $4,995.00


Capacity:

Mild Steel

Stainless Steel

Hemming max thickness:



10 Ga.

14 Ga.

22 Ga.
Bending length capacity 10'
Bend Angel Degree, programmable 135 degree
Max. Box Depth 6"
Large Beam Opening/Clamping Opening 3"
Beam front/back adjustment 1"
Min. Reverse Bend 1"

Max. Table Back Gauge Distance

Min. Table Back Gauge Distance

48-3/8"

1/4"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Assorted fingers

3"

4"

5"

6"

Main Motor

Servo Motor for back gauge

10 HP 3 Phase

Prewired: 220VAC 35A

1 HP

Hydraulic Oil Tank Capacity:

Recommended hydraulic oil:

32 Gal.

Shell #68 or equivalent

Machine Weight:

Shipping weight:

Machine Dimensions:

Shipping Dimensions:

11,550 lbs.

11,850 lbs.

175" x 93" x 76"

163" x  85" x 78"
