Maximum Cutoff Diameter (100,000 PSI) ( .393") | 10mm |
Maximum Kickout Length ( 3") | 76.2mm |
Minimum Kickout Length ( .590") | 15mm |
Maximum Cutotff Length ( 3.149") | 80mm |
Pieces Per Minute | 200 |

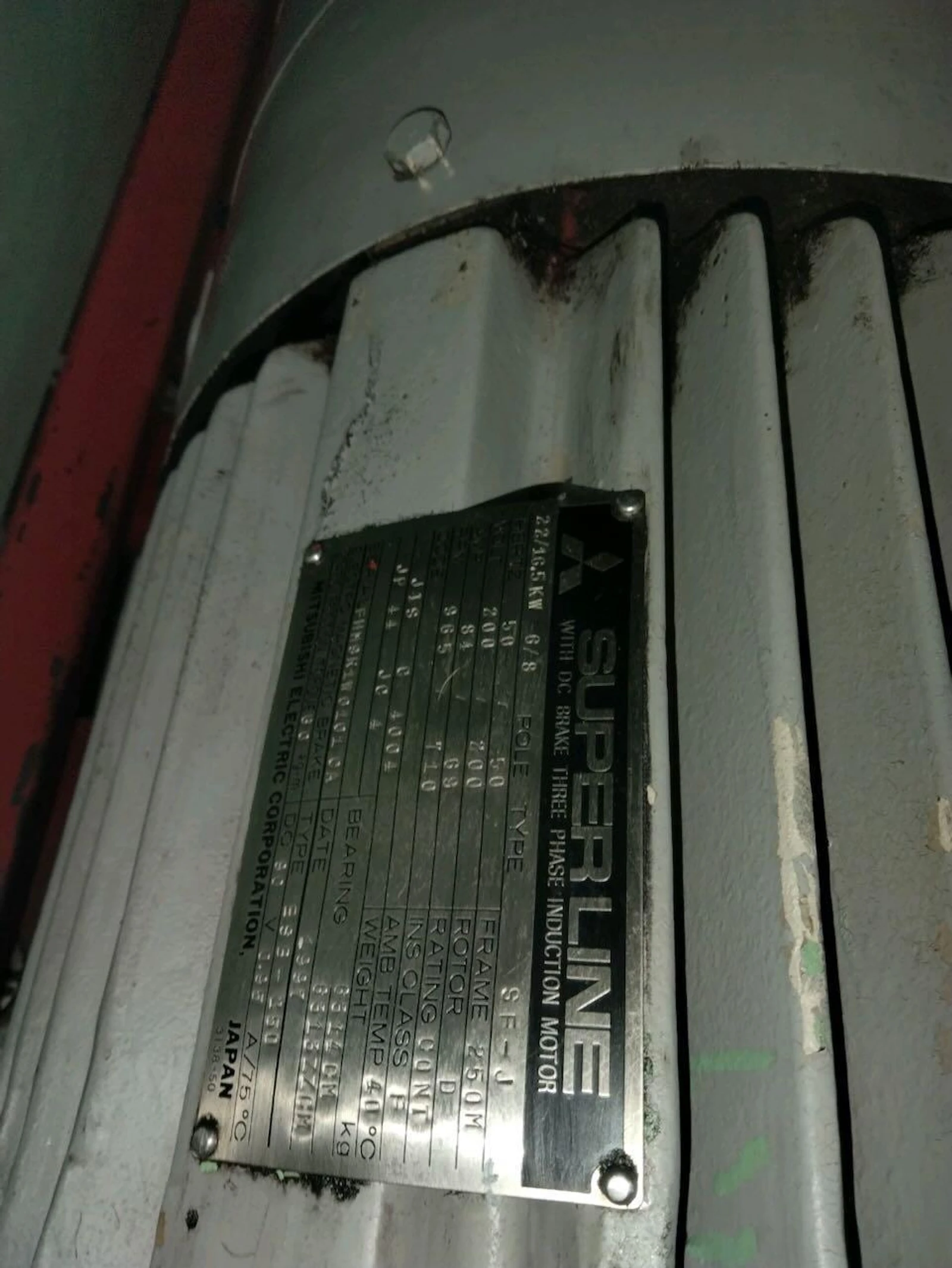

Electrics | AC Motor and Controls 200 Volts 3 Phase |
Weight | 24,250 Lbs. |
O.A. Dimensions | 5'7" x 13'2" |
Equipped with: Set Up Jig/ Extra Transfer , Spare Punch Blocks, Die Block ,

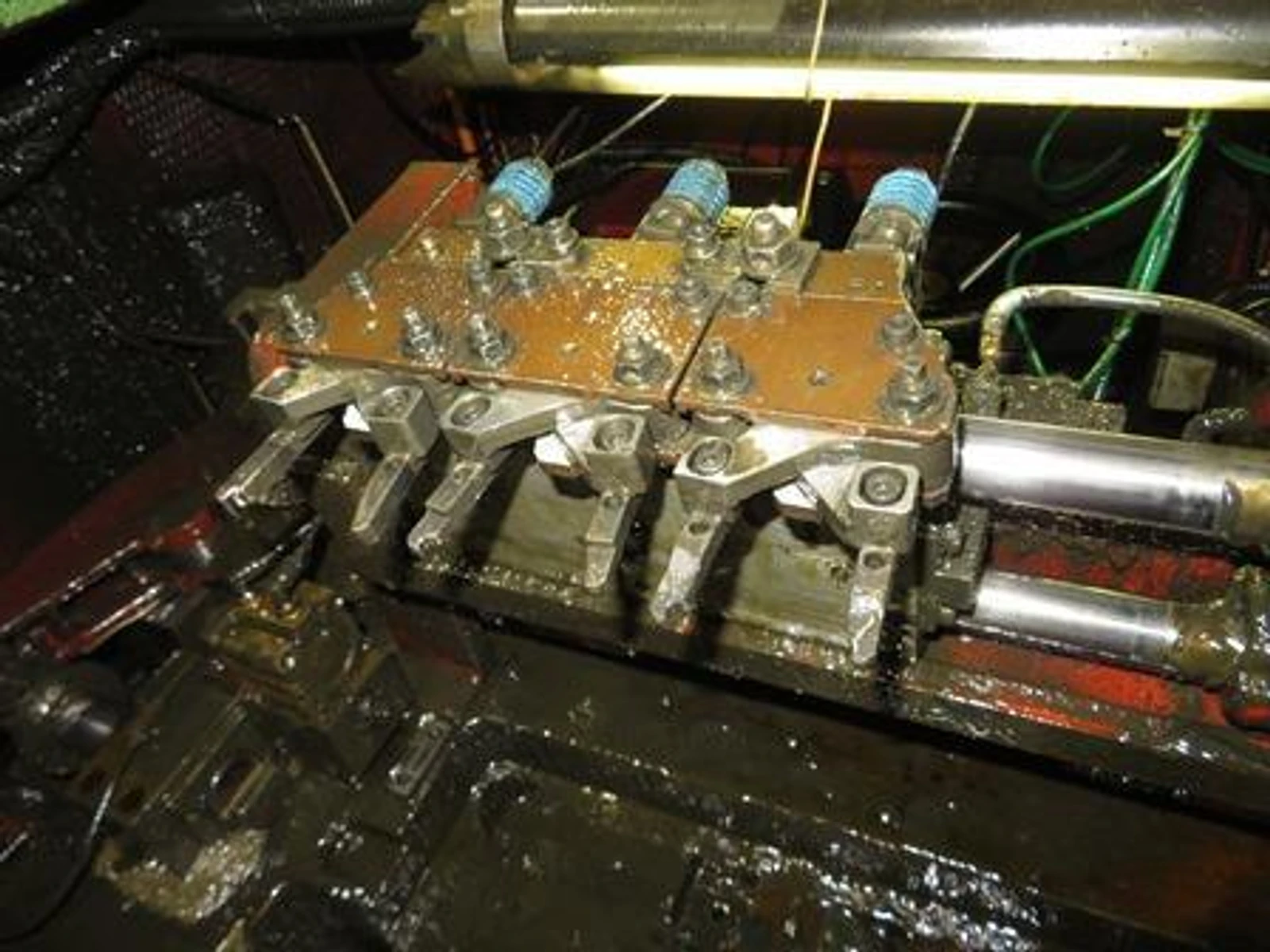

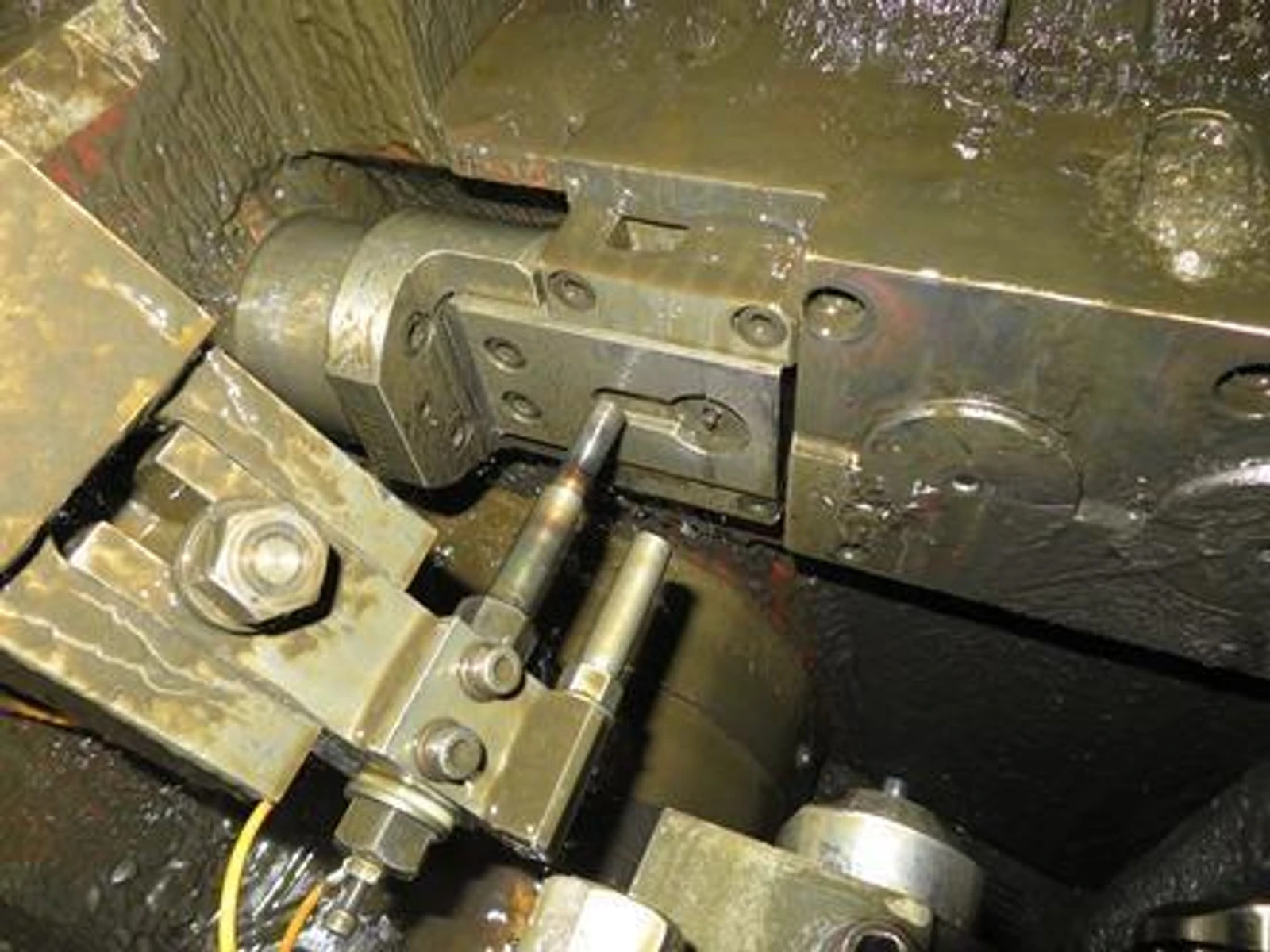

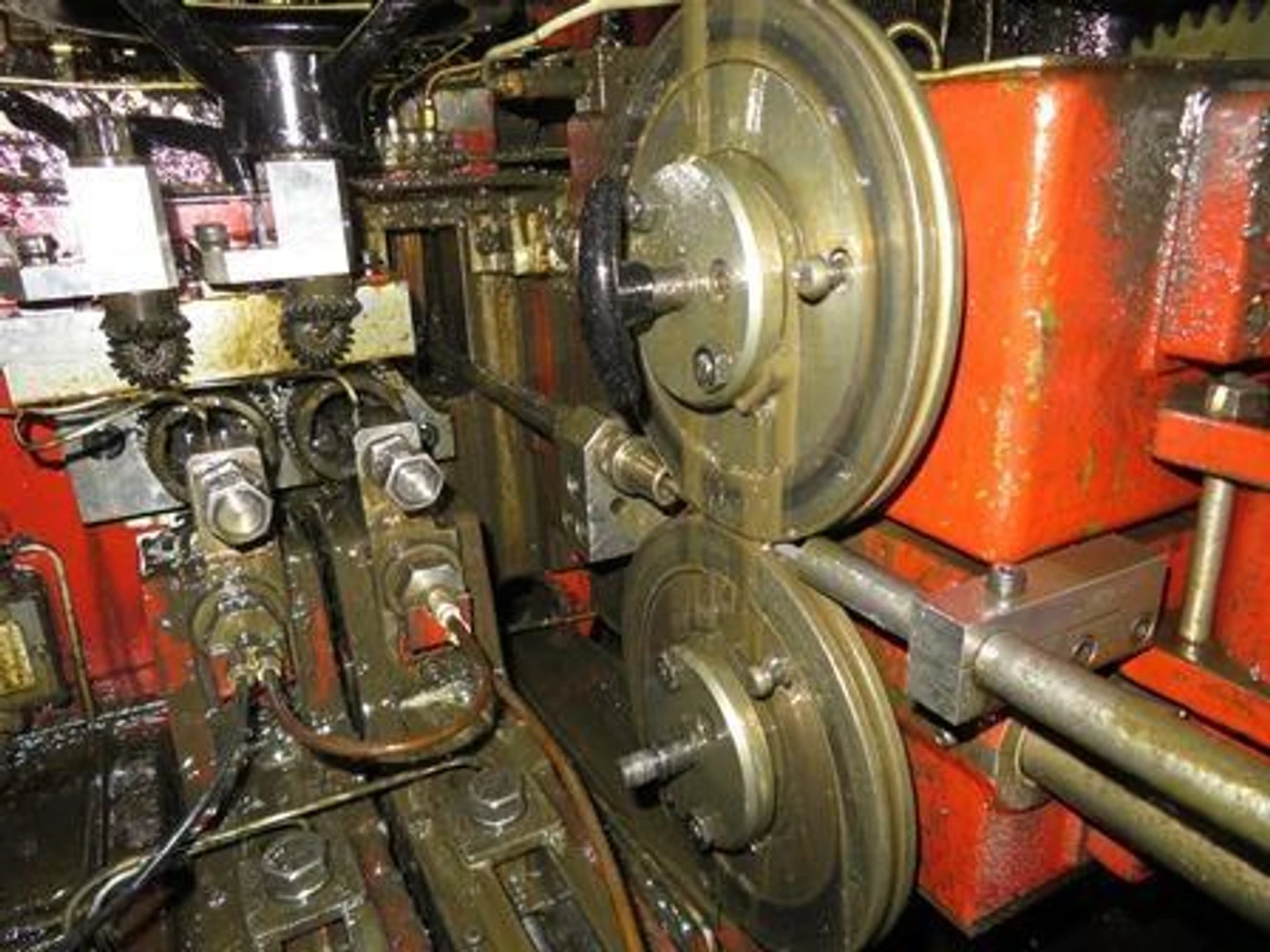

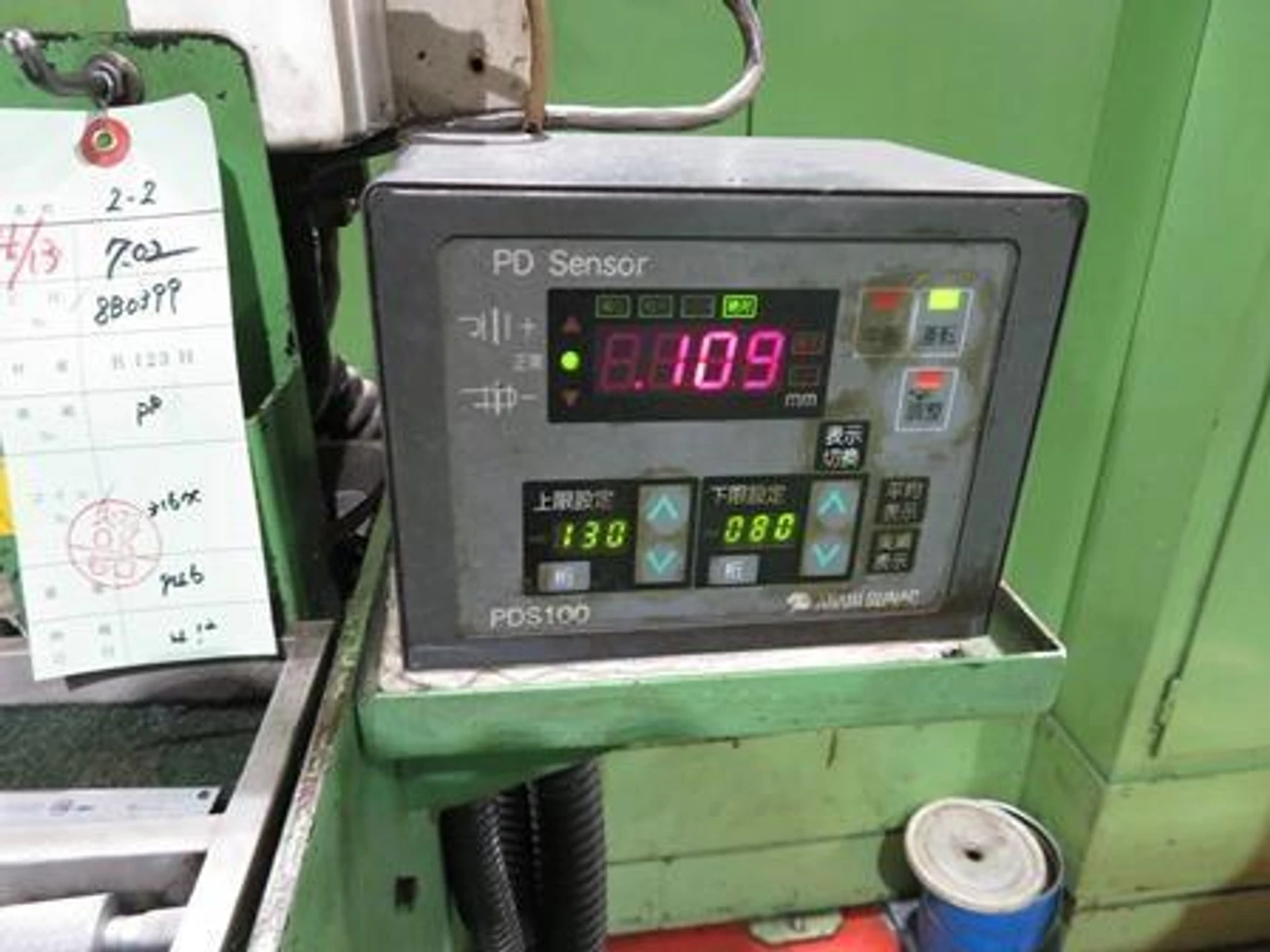

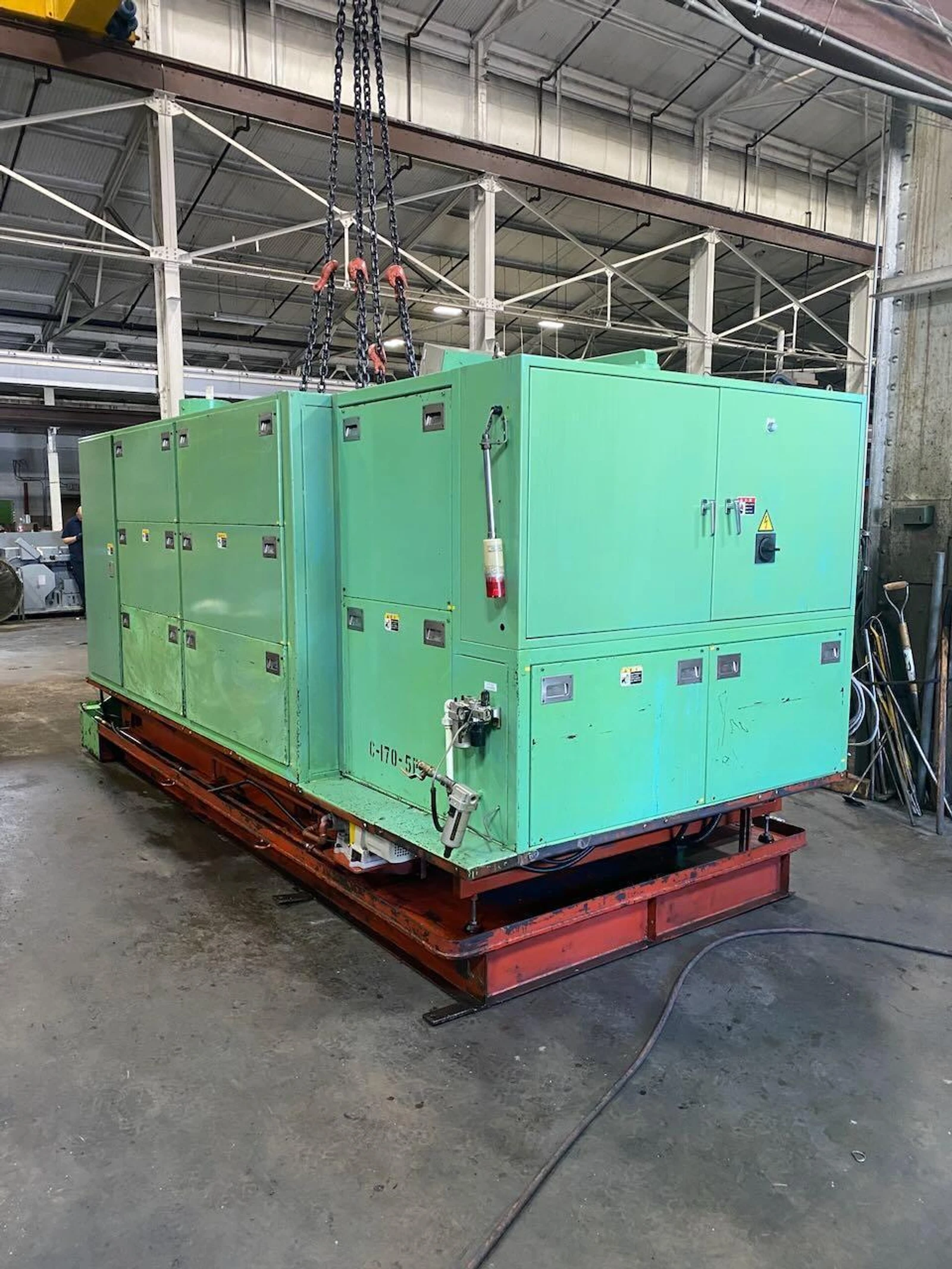

Bushing Cutoff, PKO in Both Punches and Stripper / Wiper Mechanism IFO Type Straight Across Transfer with Extra Discharge Finger Set for eliminating double hits in the 2nd Die. Short Cutoff Detector and Automatic Drop , 1st Finger Force Opening Centrifugal Oil Cleaner Quick Change Feed Rolls 2 Plane Wire Straightener Stock Gauge with Handle and Counter 2 Speed Motor Full Sound Enclosure PD Sensor Finish Parts Conveyor with Roll Sorter Special Note: This is an AOT-10B machine modified features from the ST and AQ series machines. Round Bushing Type Cutter eliminates the need to adjust the Cutter as on Standard AOT series machines. |
