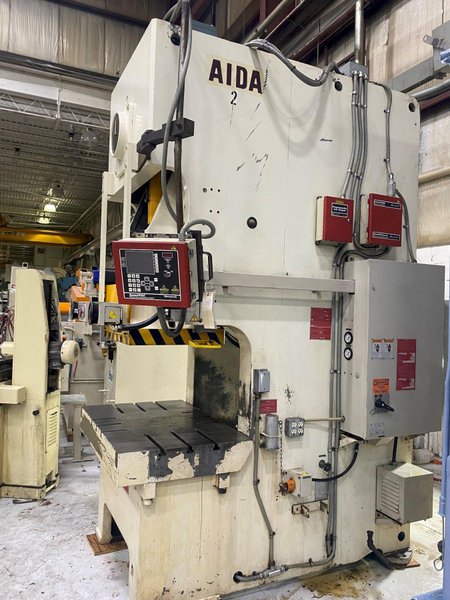

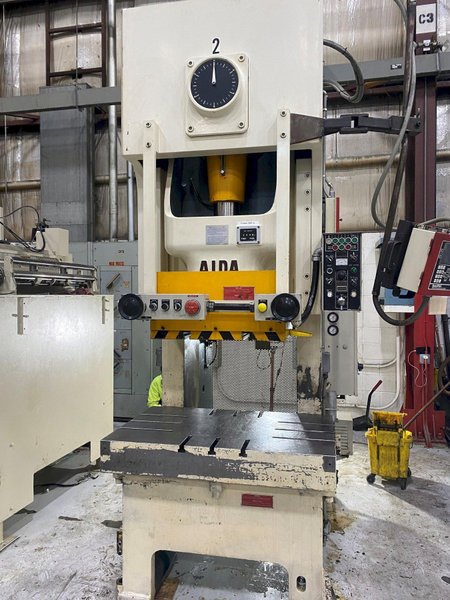

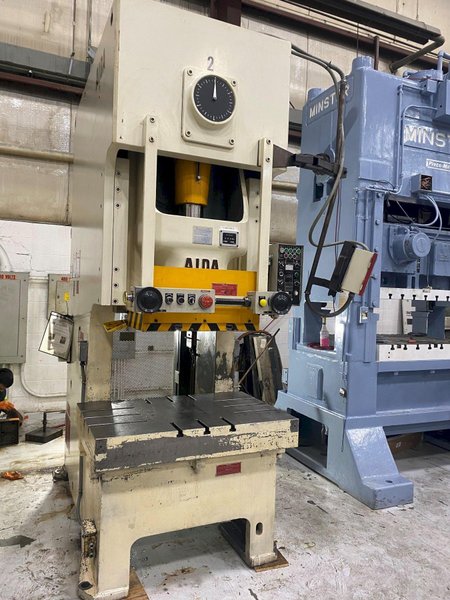

150 Ton AIDA NC1-150(2) Gap Press For Sale, Year 2000
Brand
Category
Model
NC1-150(2)
Stock #
2856
Year
2000
Condition
Used
Location
Not specified
| Tonnage | 150 |
| Stroke | 7.87 inches |
| Shut Height | 20 inches |
| Adjustment | 3.93 inches |
| Bed Size | 48" LR x 28.8" FB |
| Ram Area | 27.5" LR x 22.8" FB |
| SPM | 30 - 55 VSPM |
|

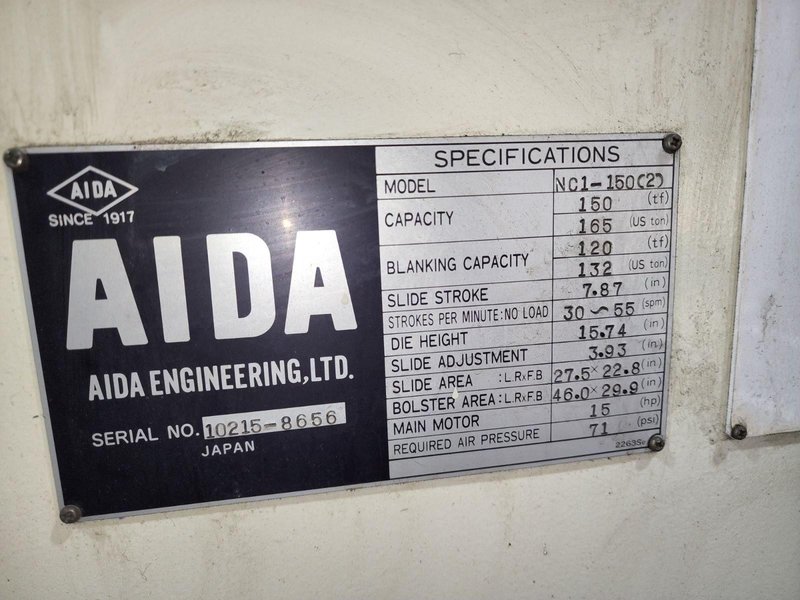

Standards Specifications Aida OBS Press Model NC1-150(2) 150 ton Metric Capacity 165 ton US Capacity 7.87" Stroke 20" Shut Height on Bed 15.74" Die Height On Bolster 3.93" Motorized Adjustment 48" LR x 28.8" FB Bed Area 27.5" LR x 22.8" FB Slide Area 30-55 VSPM Equipment and Features Aida Wet Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Hydraulic Overloads Wintriss Smart Pak Press Controls Wintriss AutoSetPac Wintriss Programmable Cam Out Put AC Variable Frequency Drive Quill mounted flywheel Taper fit of main gear to crankshaft Ball Socket Connection Configuration Floor Standing This 150 ton Aida NC1-150 (2) OBS Press can be seen under power in our Livonia Michigan Warehouse! 150 ton Aida Metal Stamping Press For Sale |
|
Watch https://youtu.be/K7H6YJVKJvs
