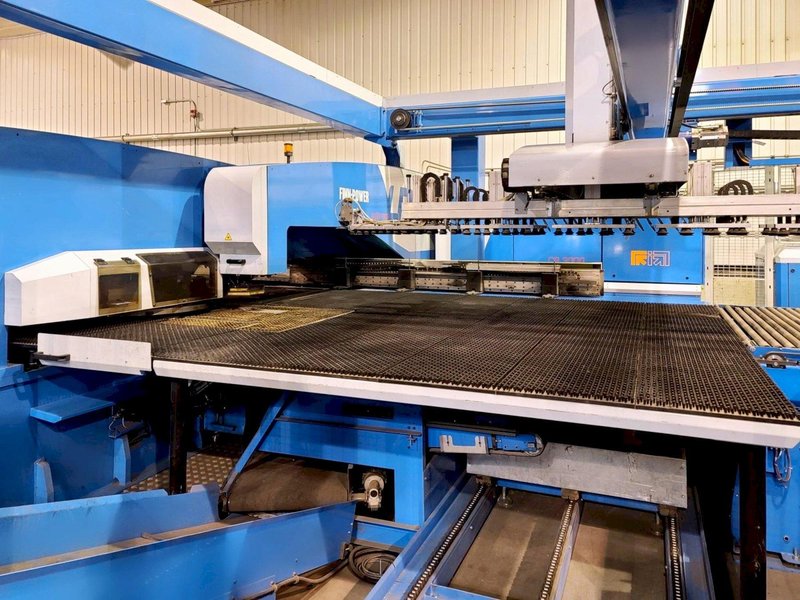

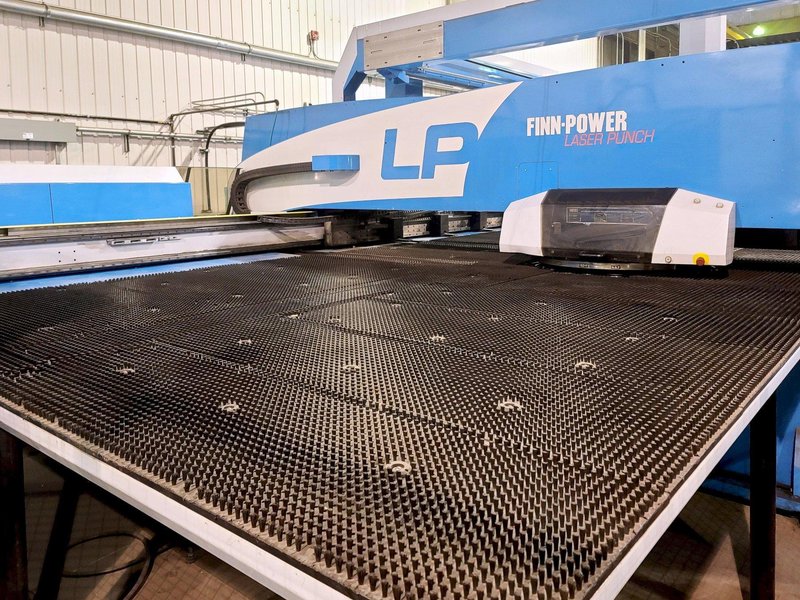

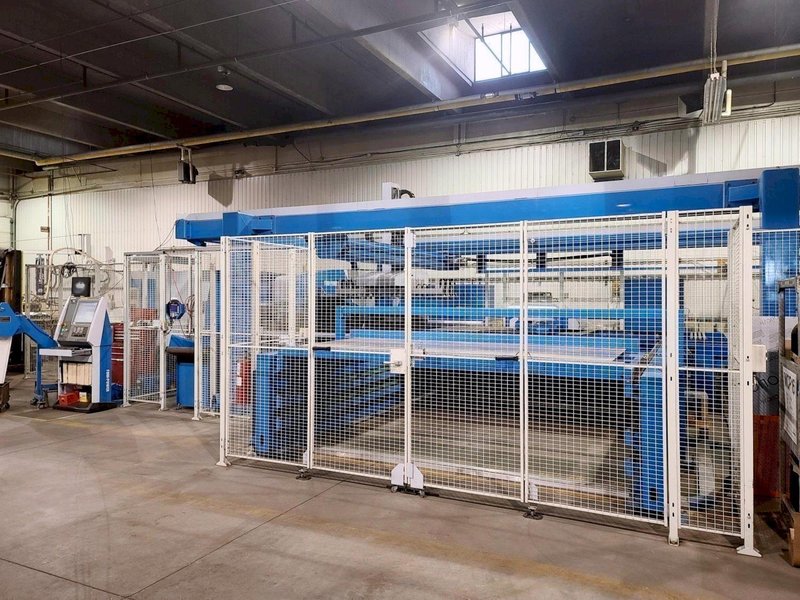

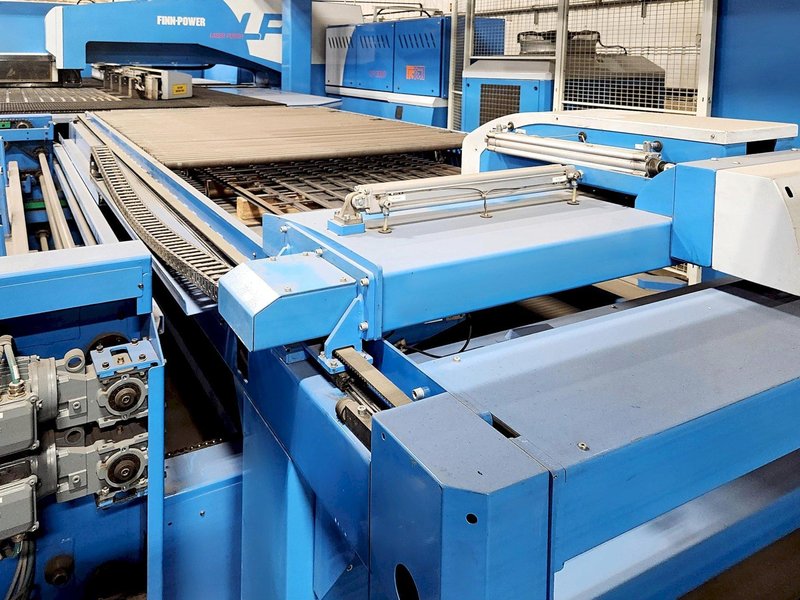

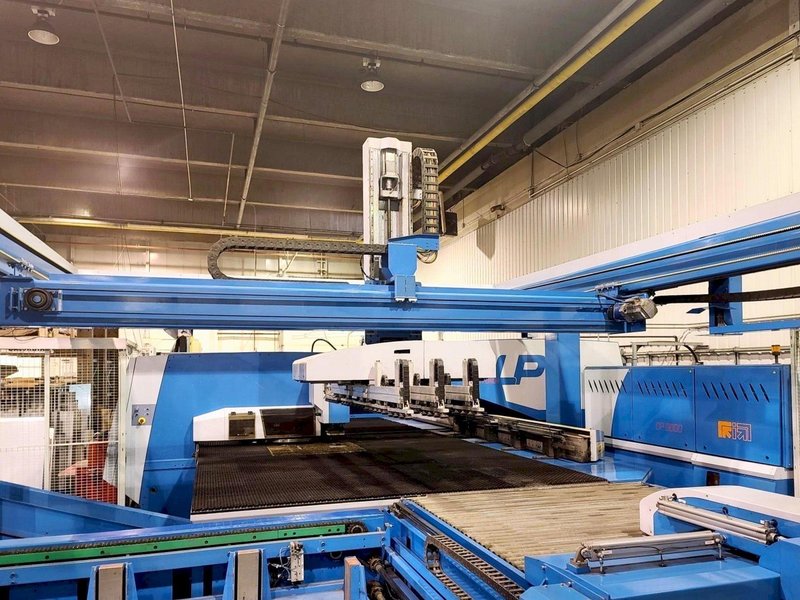

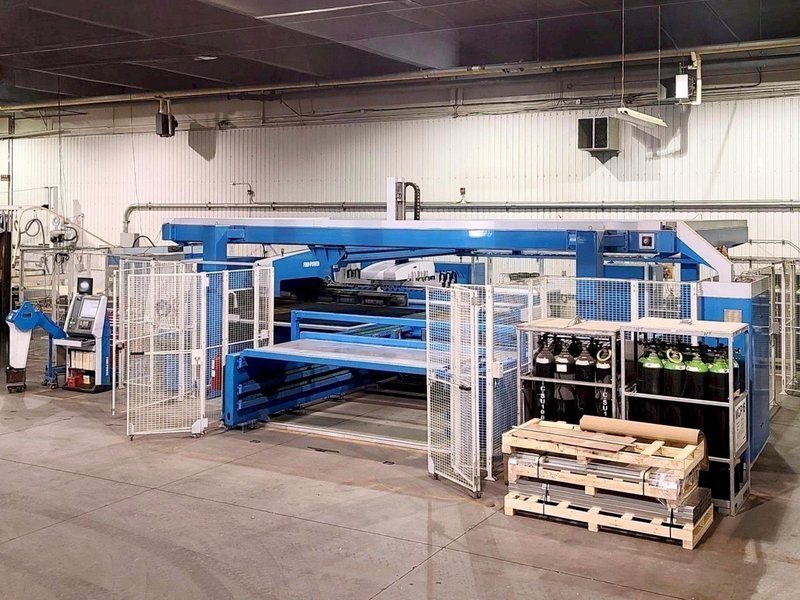

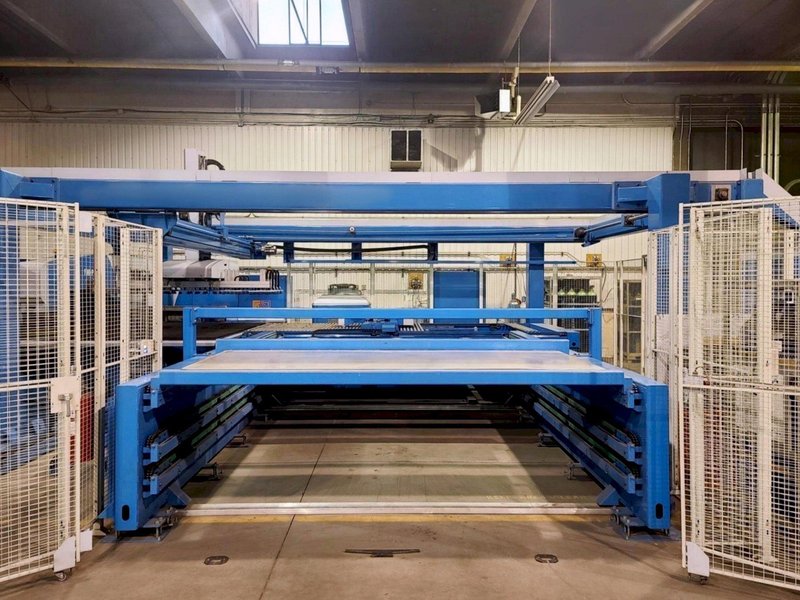

Finn-Power LP6 Punch Laser Combo w/FMS Cell
Brand
Category
Type
Model
LP6 Punch Laser Combo
Stock #
100468
Year
2010
Condition
Excellent
Location
Not specified

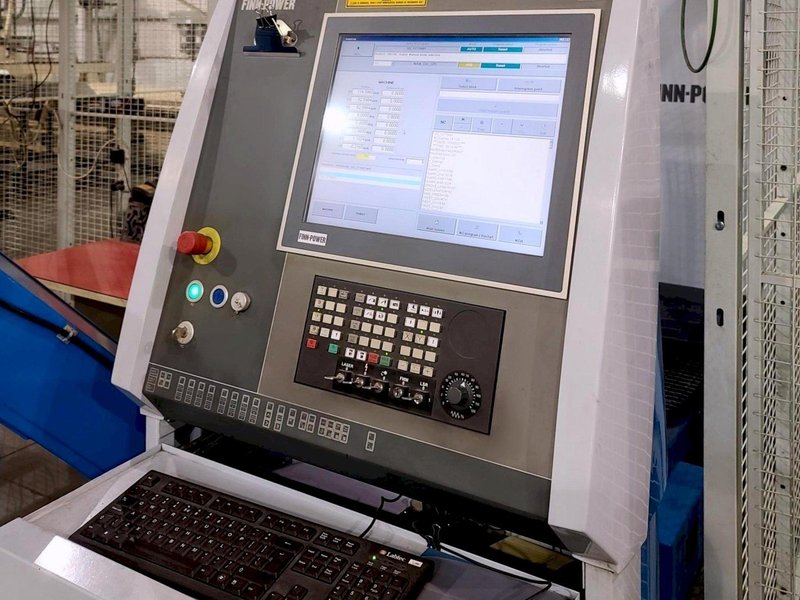

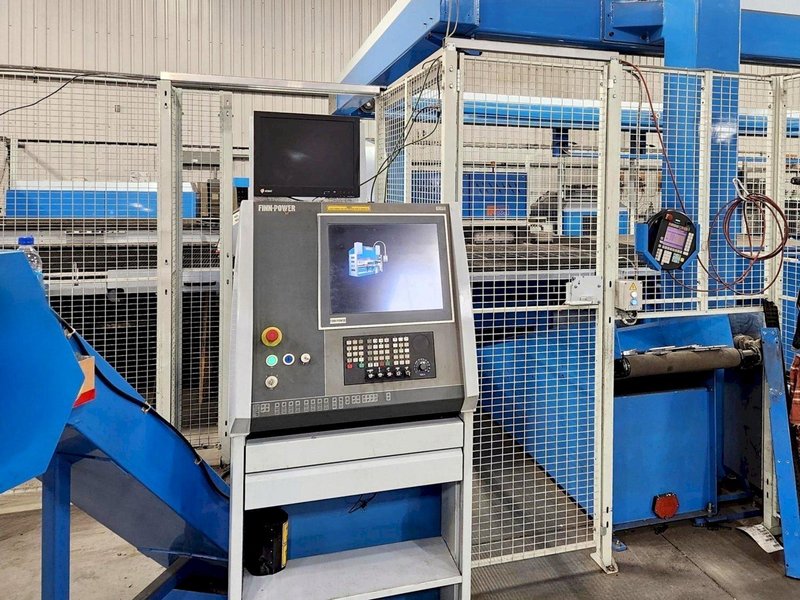

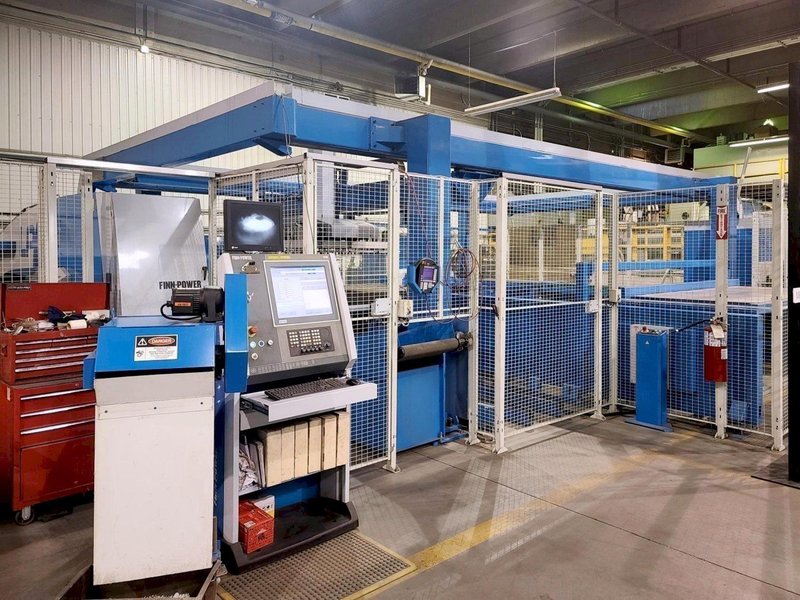

| Control | Siemens 840D CNC |

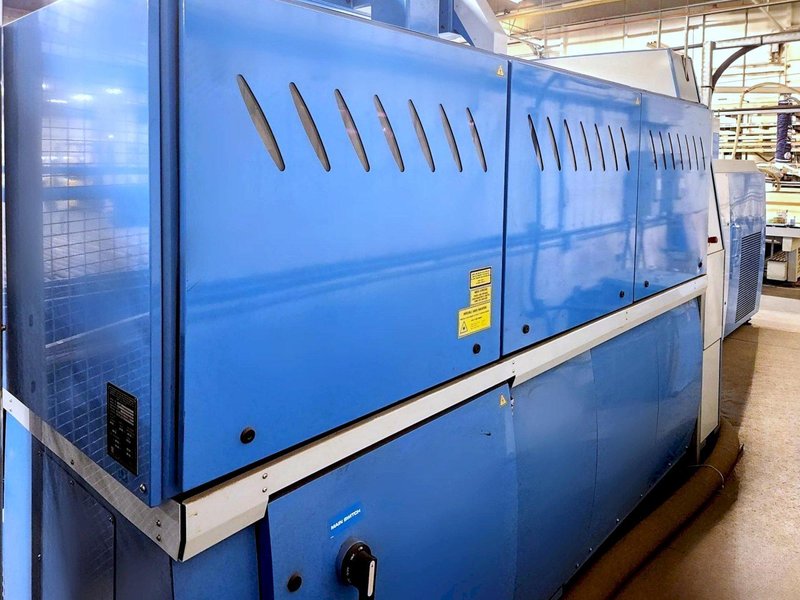

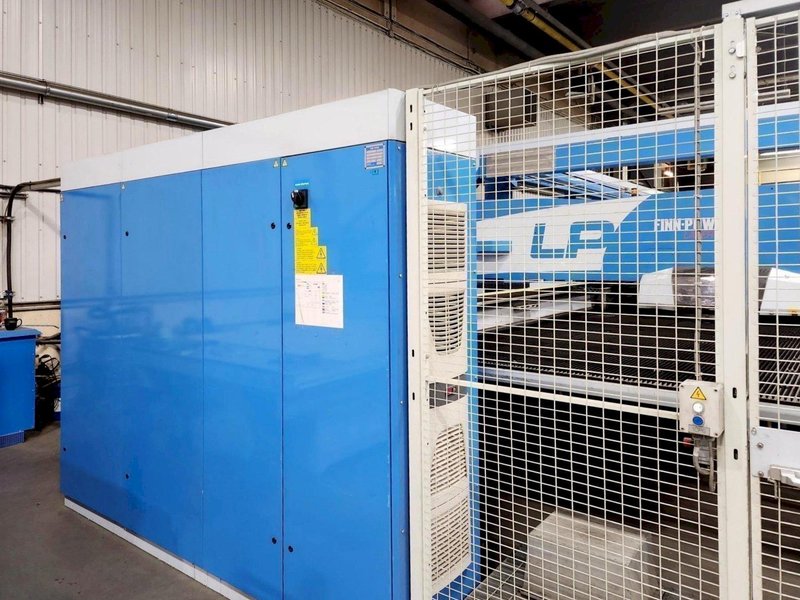

| Laser Power Source | Convergent (Prima) CP 3000 |
| Laser Power | 3kW (3,000 Watt) |
| Tonnage Capacity | 33 Tons |
| Y-Axis Travel | 61.42" |
| X-Axis Travel | 101.73" |
| Max. Sheet Size | 60" x 120" |
| Table Type | Brush Table Design |
| Max. Material Thickness (Punch/Laser) | .31" |
| Max. Material (Stainless/Alu. Laser) | .24" |
| Max. Punch Diameter | 3.5" |
| Max. Sheet Weight | 440 Lbs. |
| Hit Rate (Nibbling) | 900 |
| Hit Rate (1" Moves) | 400 |
| Max. Table Traverse Speed | 4252 IPM |
| Approx. Machine Weight | 25,740 Lbs. |
| Machine Footprint | Supplied Upon Request |
|

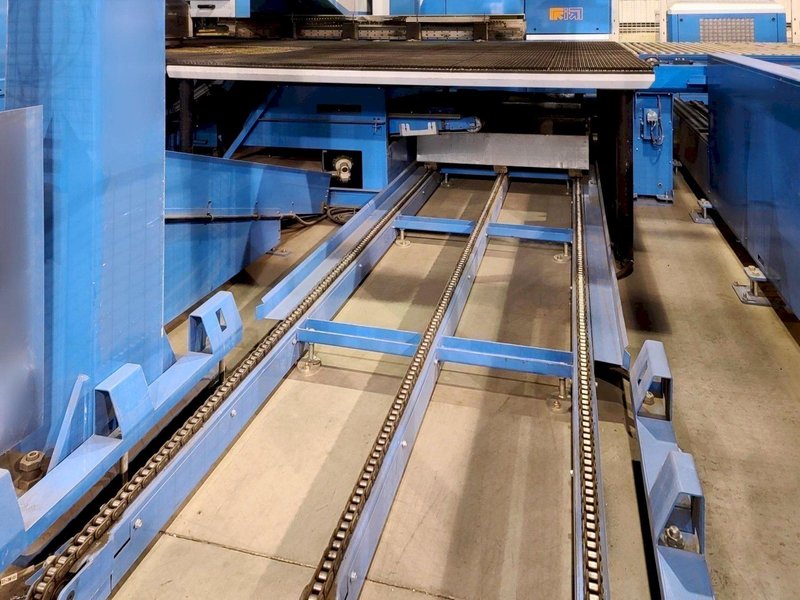

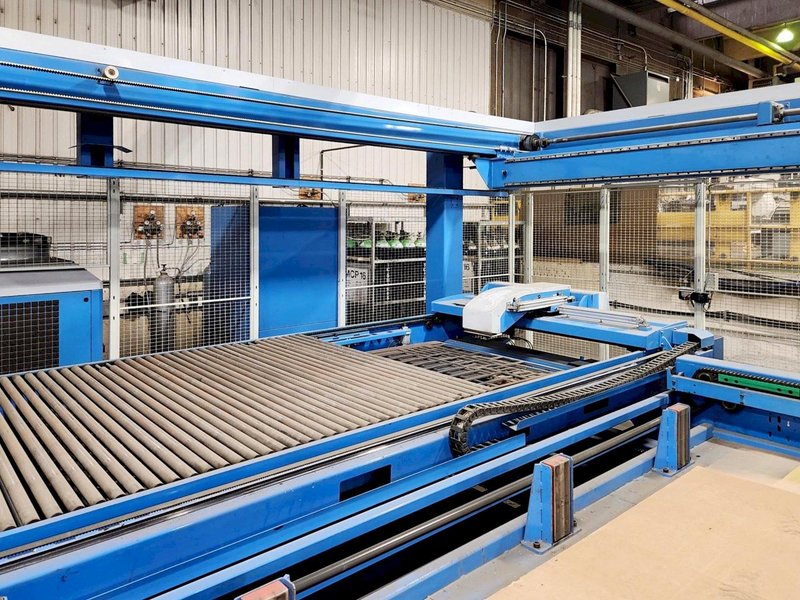

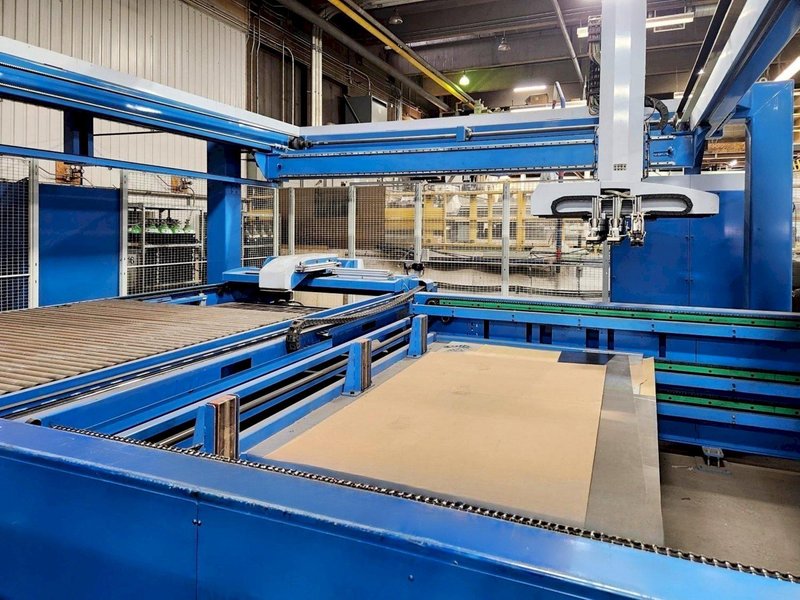

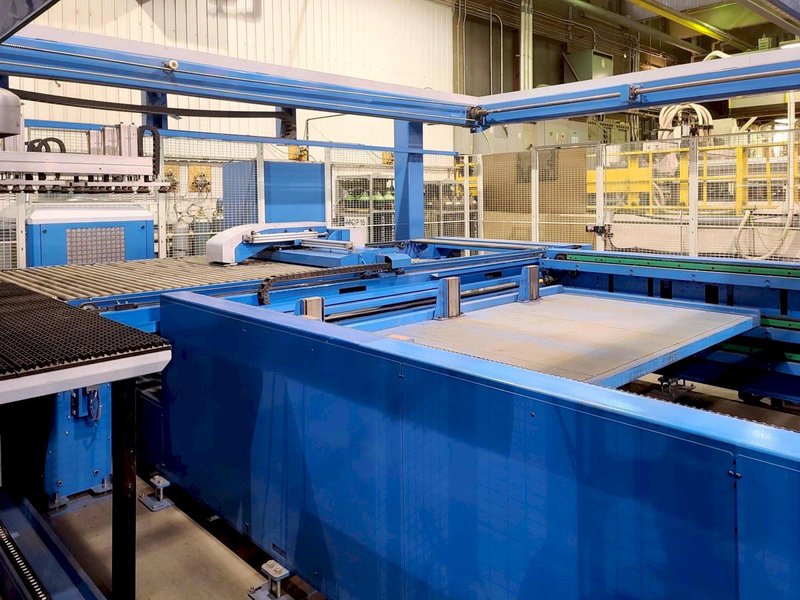

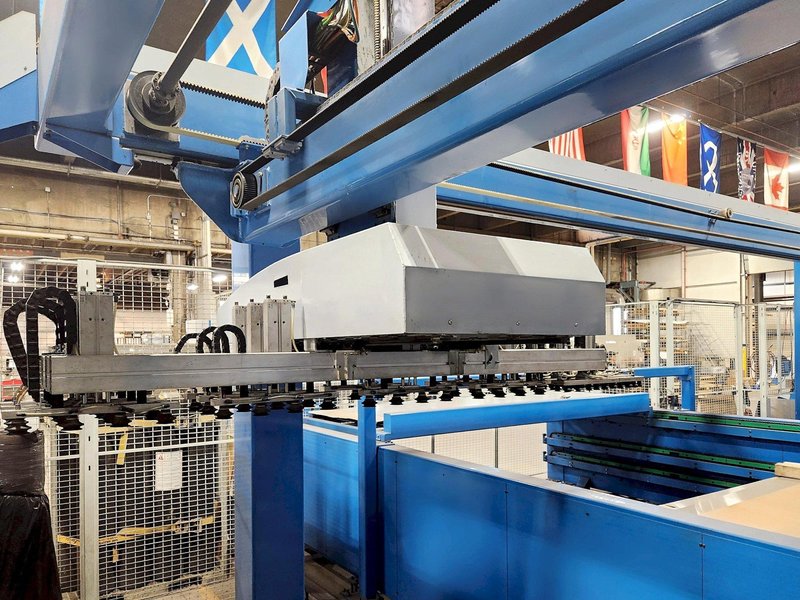

Equipped With: Siemens 840D CNC Control Convergent (Prima) CP 3000 Watt fast-axial-flow, DC-excited C02 Laser Programmable Hydraulic Punch Stroke Programmable Ram Speed (3) Work Clamps with Programmable 3rd Clamp 20 Station Thick Turret (2) Auto-Index Forming Stations (2) Multi-Tool Stations Brush Table Design LSR6 Loading and Stacking Robot SU9 Sorting Unit w/9 Sorting Addresses (2) Part Work Chutes W/Conveyors (11.81" x 15.74", 31.49" x 31.49") SC/1 Flat Scrap Conveyor SC/2 Lifting Scrap Conveyor |
|
