DNE LC3 6kW Fiber
Brand
Category
Type
Model
LC3 6kW Fiber
Stock #
100462
Year
2022
Condition
Like New
Location
Not specified
| Power | 6kW |
| Laser Type | Fiber |
| Sheet Size | 60" x 120" |
| Max. Pos. Speed X/Y | 3937 IPM |
| Max. Simultaneous Pos. Speed | 5511 IPM |
| Bilateral Repeatability Of Pos. One Axis R | ±0.002 in |
| Bilateral Repeatability Of Pos. One Axis M | ±0.004 in |
| Edge Detection Accuracy | ±0.019 in |
| Max Weight Of Workpiece | 1,984 Lbs. |
| Table Changeover Time | 24 sec. |
| Polarization | Unpolarized |
| Wavelength | 1 µm |
| Pulse Frequency | 1 - 2500HZ |
| Max. Sheet Thicknesses Steel | 0.750" |
| Max. Sheet Thicknesses Stainless | 0.750” |
| Max. Sheet Thicknesses Aluminum | 0.750” |
| Max. Sheet Thicknesses Brass | 0.375” |
| Max. Sheet Thicknesses Copper | 0.375” |
| Total Electrical Consumption Of System | 29kW |
| Shipping Weight | 28,200 Lbs. |
|

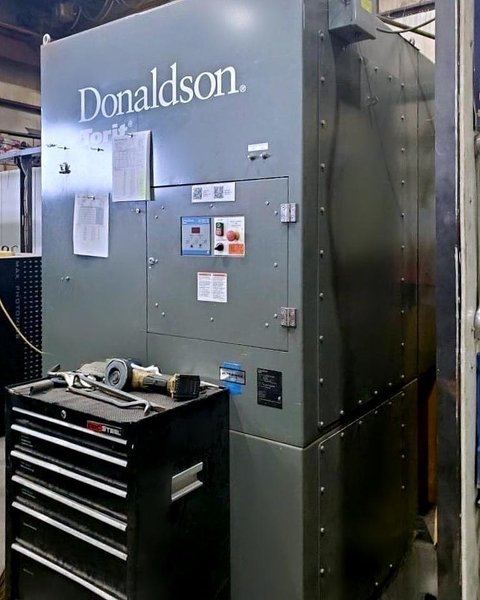

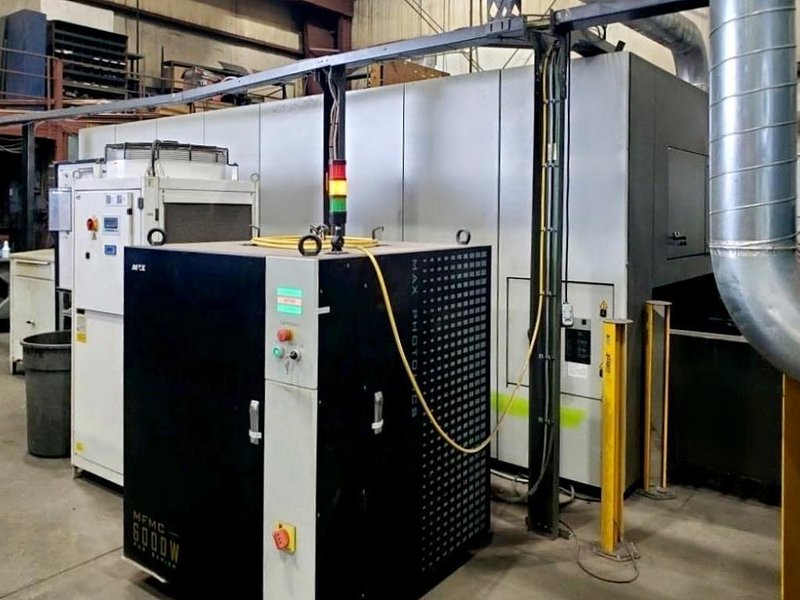

Equipped With: Windows Based Controller Max Photonics MFMC 6000W Pro Series Power Source Dual Shuttle Table Chiller Cooling System Donaldson Torit Fume Extraction System
|
|
