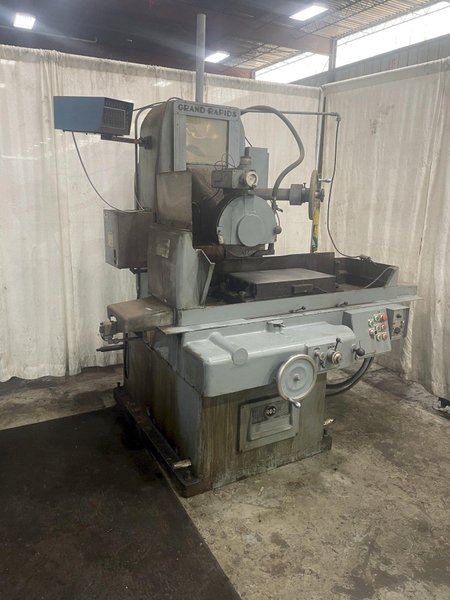

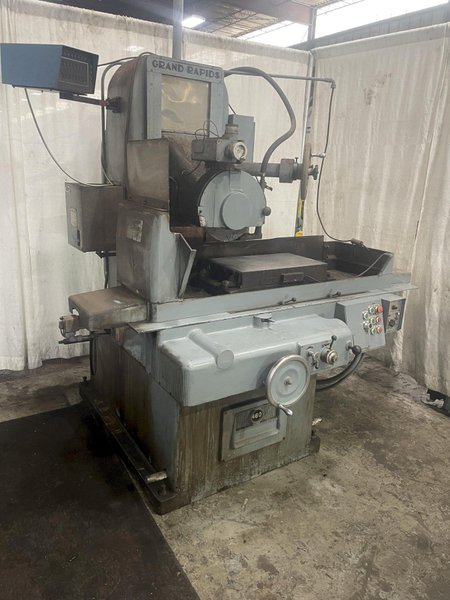

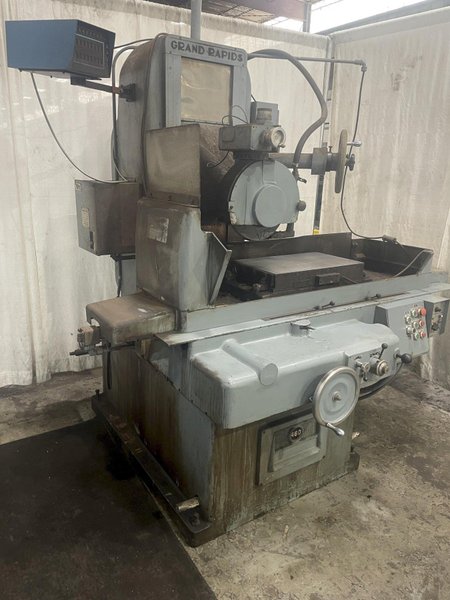

14" X 24" GRAND RAPIDS #460 HORIZONTAL SURFACE GRINDER: STOCK #77030

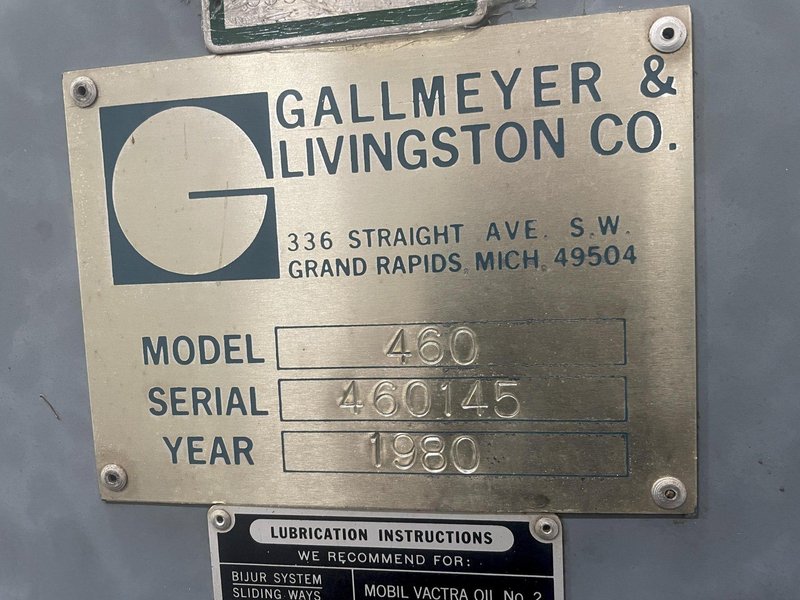

SERIAL .................................. 460145

MODEL ................................... 460

GRINDING CAPACITY ....................... 24" X 12"

MAXIMUM WORK HEIGHT ..................... 18" TO TABLE

HYDRAULIC LONGITUDINAL TABLE TRAVEL ..... 30"

HYDRAULIC CROSS TRAVEL .................. 15-3/4"

GRINDING WHEEL SIZE ..................... 14" X 1-1/2" X 5"

VERTICAL HEAD TRAVEL .................... 19"

TABLE SPEED (VARIABLE) .................. 3" TO 150 FPM

GRINDING WHEEL SPEED .................... 2100 RPM

ELECTRO-MAGNETIC CHUCK SIZE ............. 24" X 12" X 4" H

POWER ELEVATION ......................... YES

HYDRAULIC LONGITUDINAL & CROSS FEEDS .... YES

ELECTRO-MAGNETIC CHUCK W/CONTROLS ....... YES

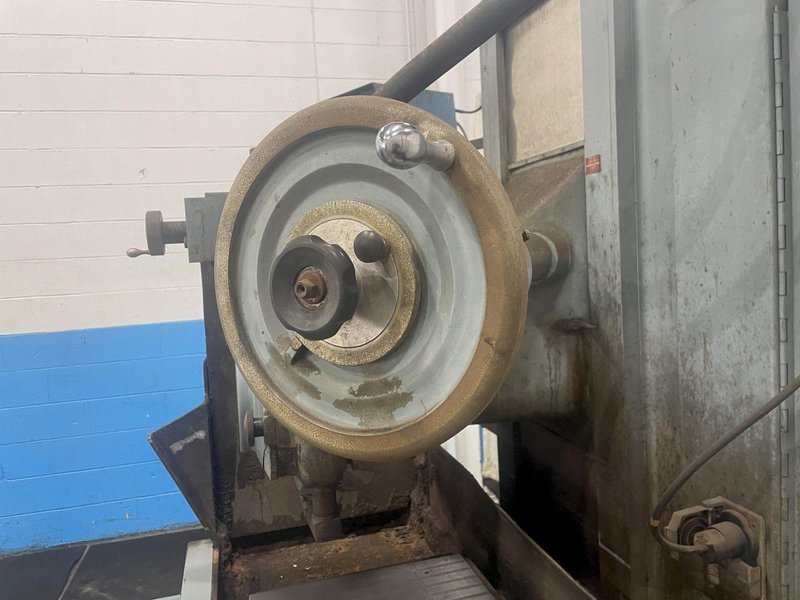

OVER THE WHEEL DRESSER .................. YES

COOLANT ................................. YES

HYDRAULIC UNIT .......................... 3 HORSEPOWER

SPINDLE MOTOR ........................... 7.5 HORSEPOWER
