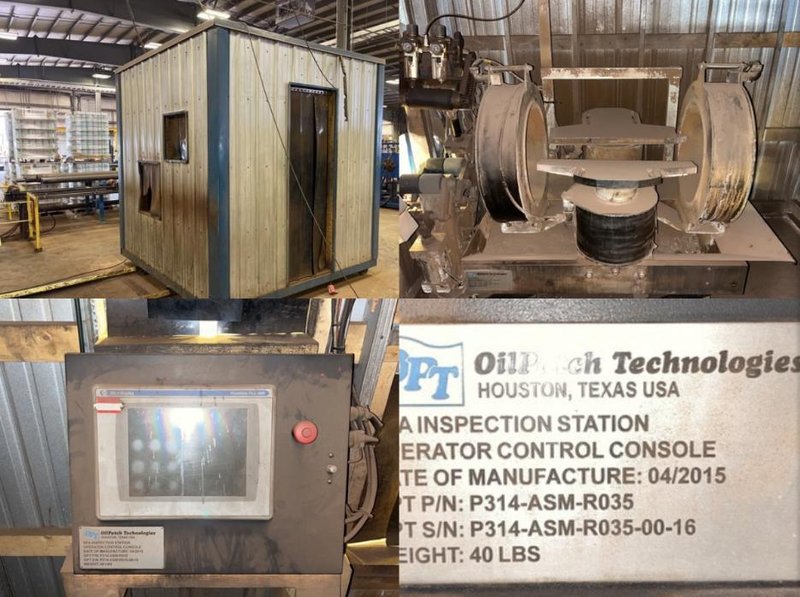

16" PIPE OIL-PATCH-TECHNOLOGIES (OPT) (NEW 2015) MODEL #TDS-150 MAGNETIC PARTICLE PIPE & TUBE INSPECTION MACHINE SYSTEM: STOCK #19389

Brand
Not specified
Category
Inspection & Measuring
Type
Inspection Equipment
Model
TDS-150
Stock #
19389
Year
Not specified
Condition
Good
Location
Ohio

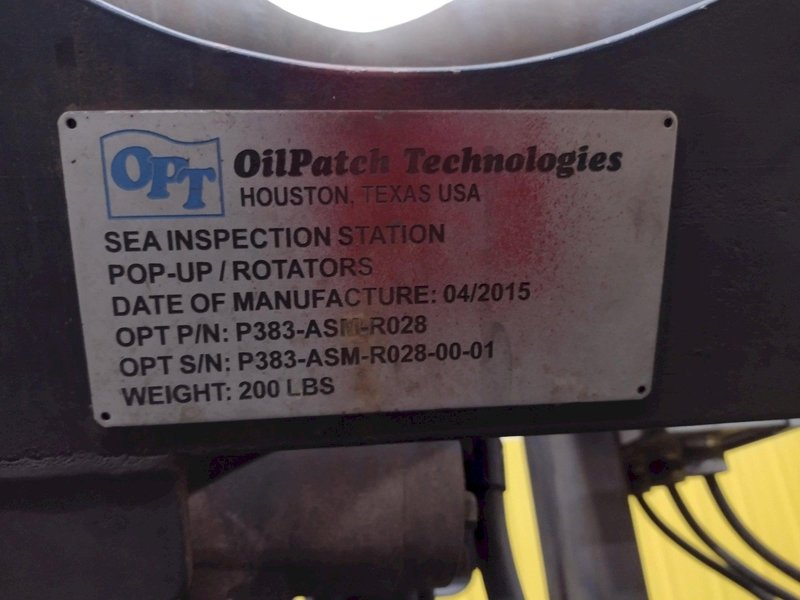

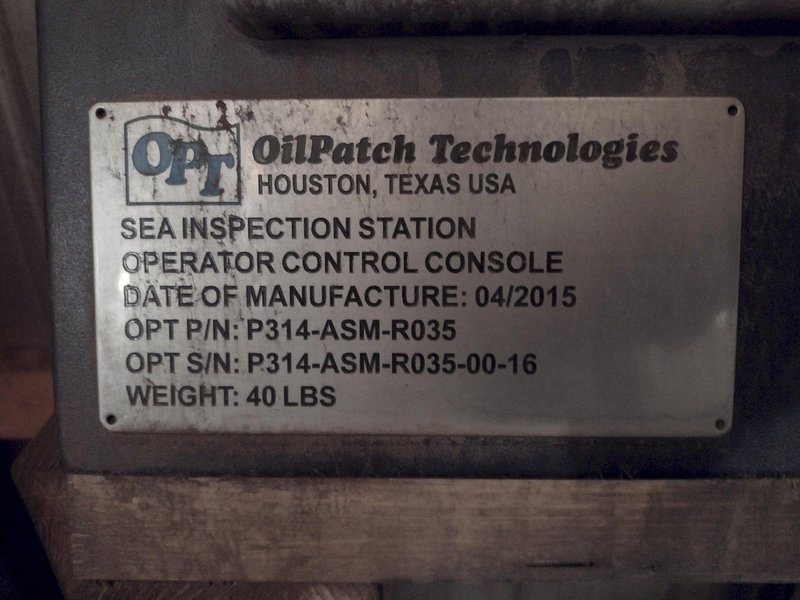

SERIAL ...................... P314-ASM-R035

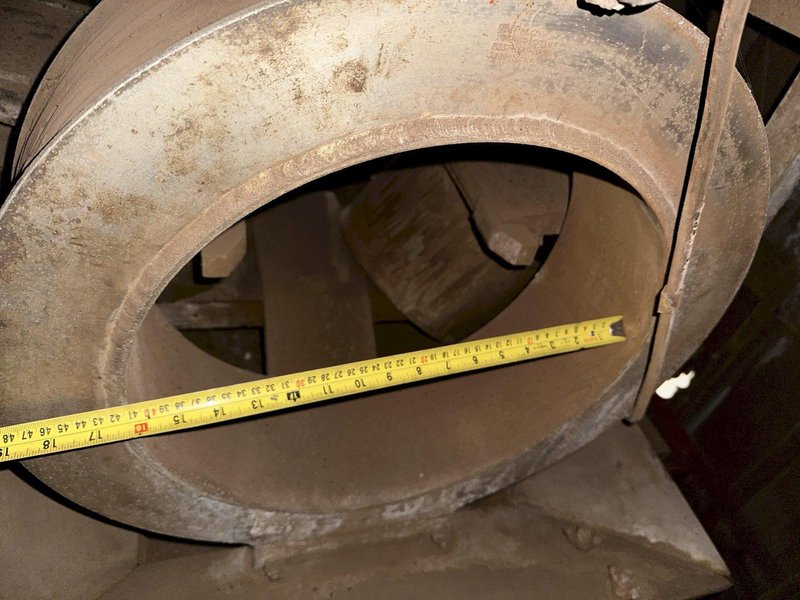

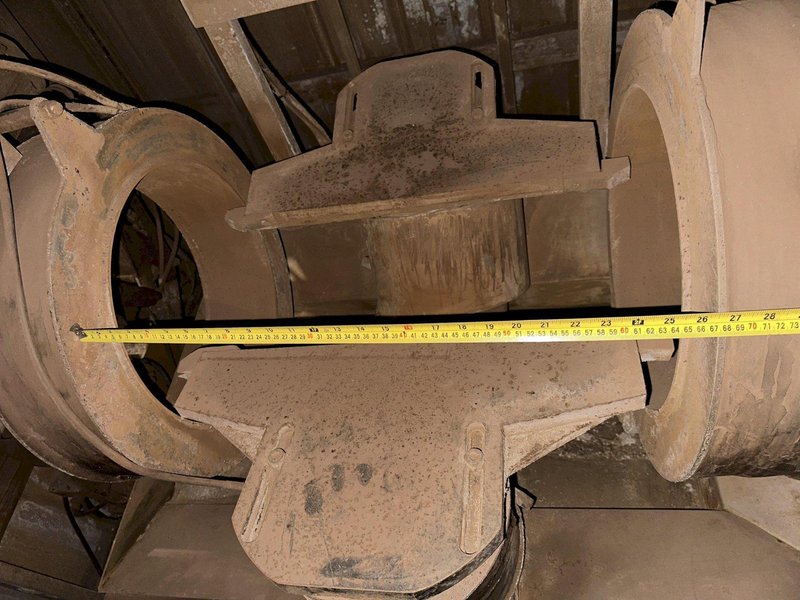

I.D. OF INSPECTION COILS .... 16"

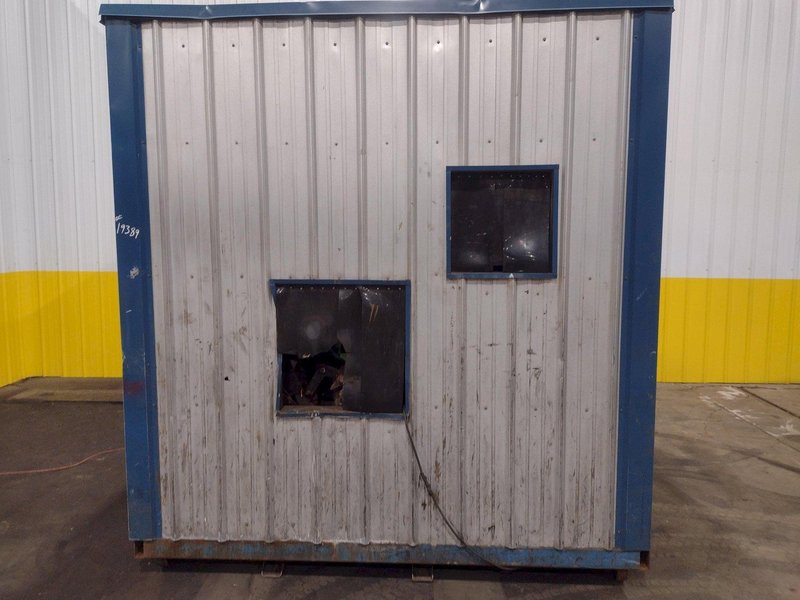

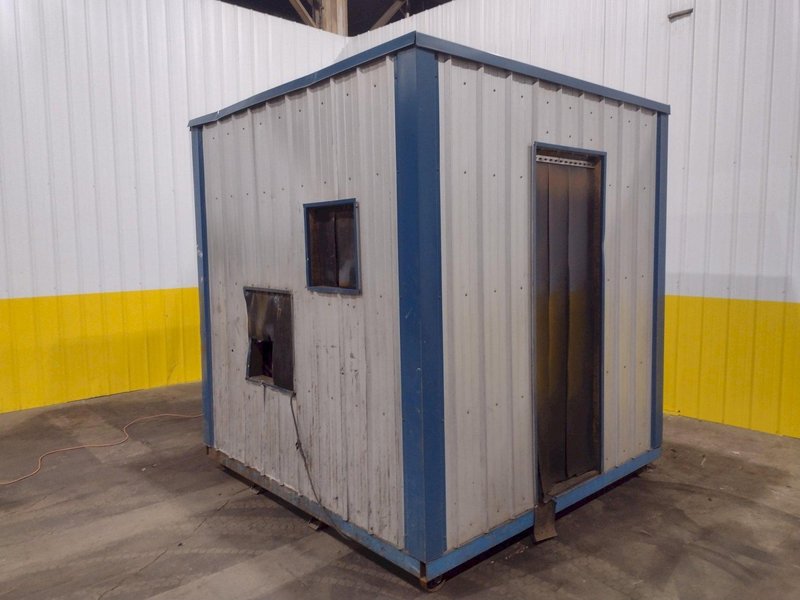

SKID MOUNTED ................ YES

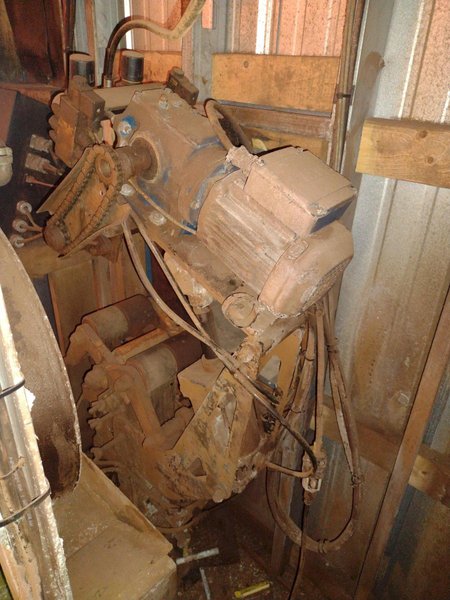

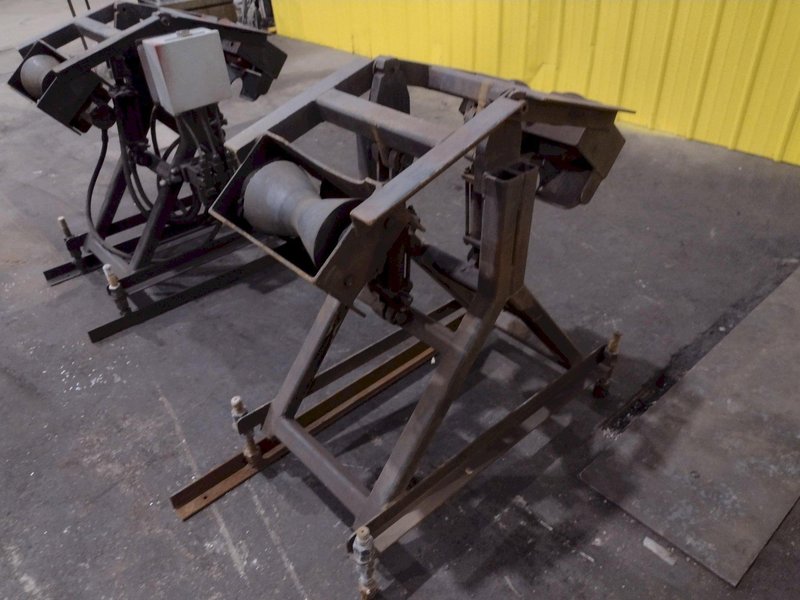

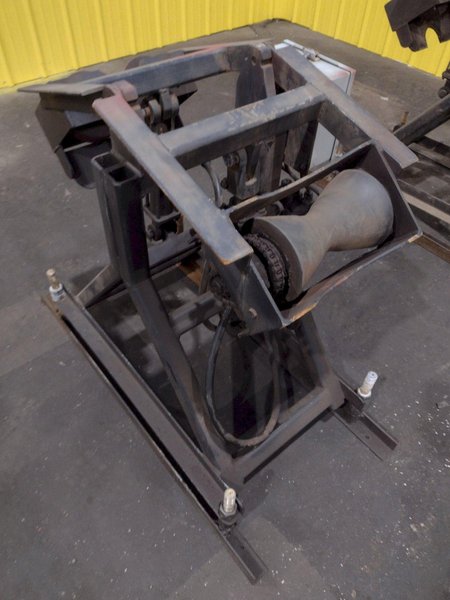

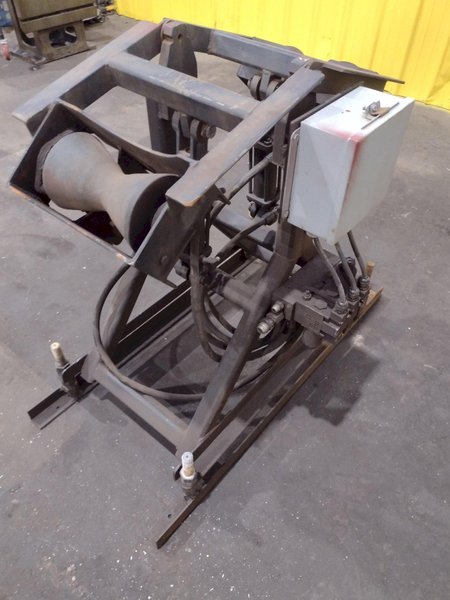

INCLUDES: POWERED PIPE ROTATER / TURNING ROLLS

OPT DESIGNS AND MANUFACTURES MPI SYSTEMS FOR SPECIAL END AREA PIPE INSPECTION. HIGH PRODUCTION RATES ARE ACHIEVABLE FOR PIPE MILL OUTPUT. FOUR BASIC COMPONENTS ARE CUSTOM DESIGNED TO MEET PIPE SIZES AND WEIGHTS UP TO 16” OD:
  • MECHANICS TO FEED THE SYSTEM (LIFT, ENDO, ROTATE) ARE MODULAR

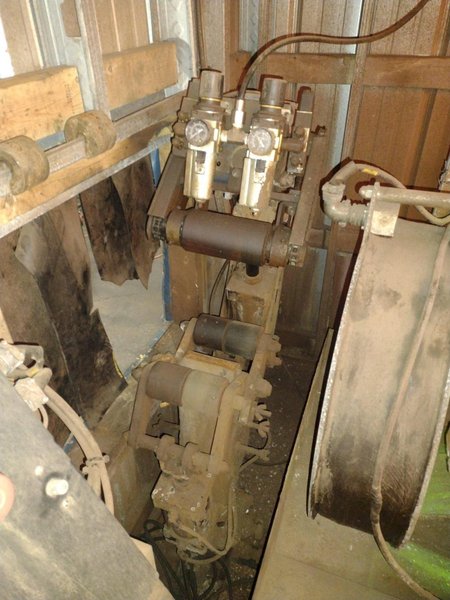

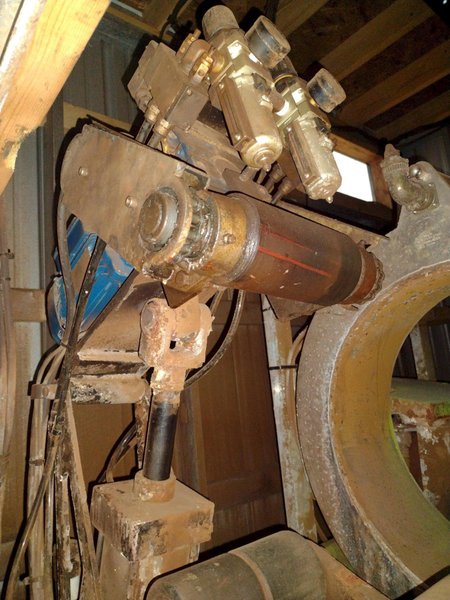

  • A PNEUMATIC CLAMP TO RESTRAIN AND ROTATE THE PIPE IS FLOOR MOUNTED
  • A FLOOR-MOUNTED FRAME PROVIDES HEIGHT ADJUSTMENT AND SUPPORT FOR THE MAG COILS

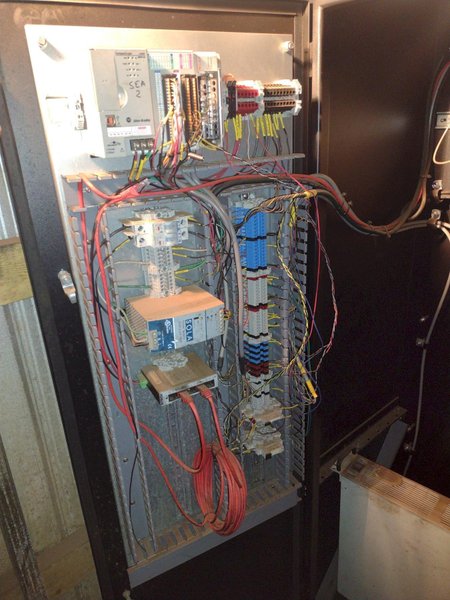

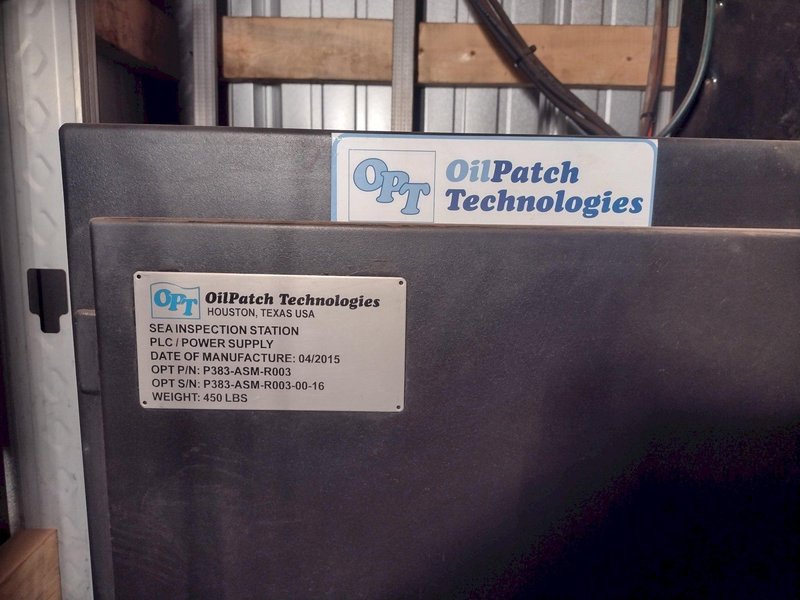

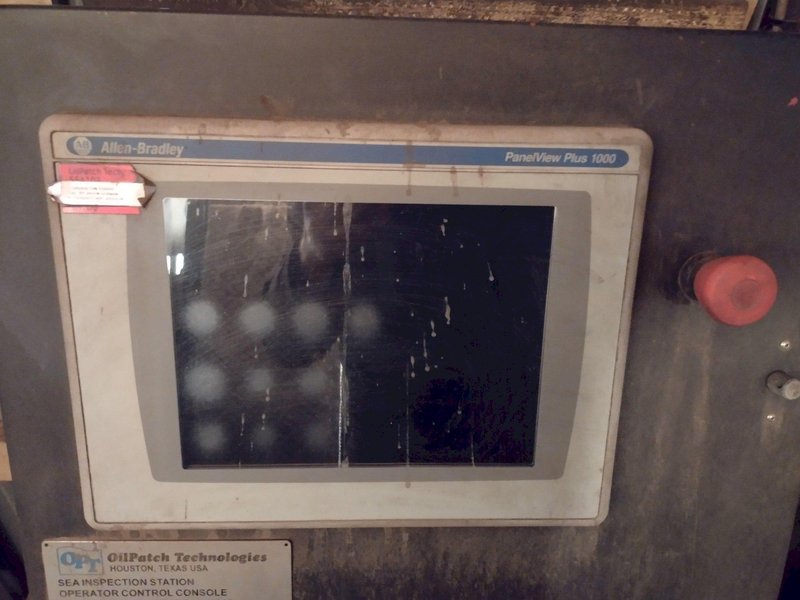

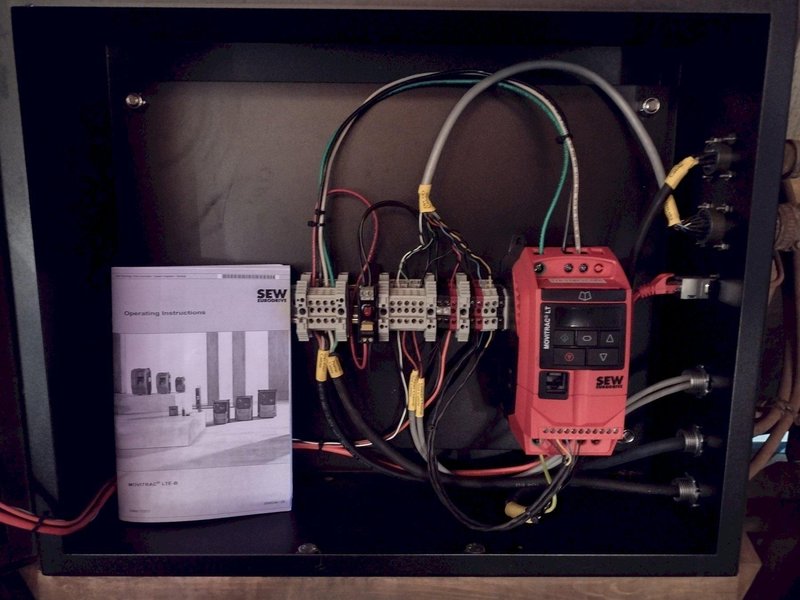

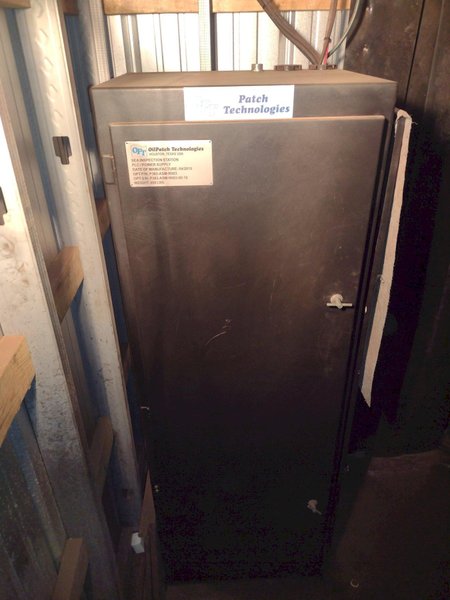

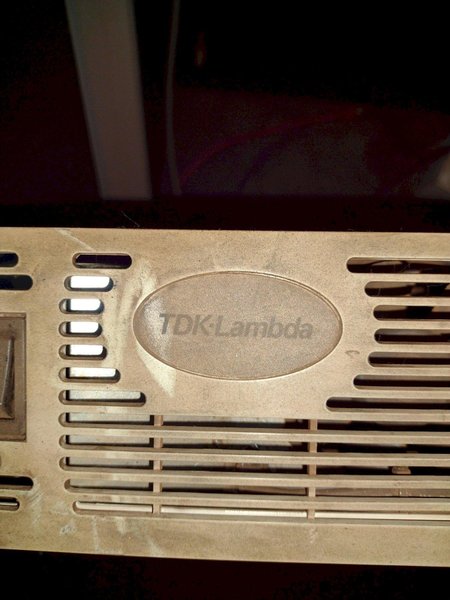

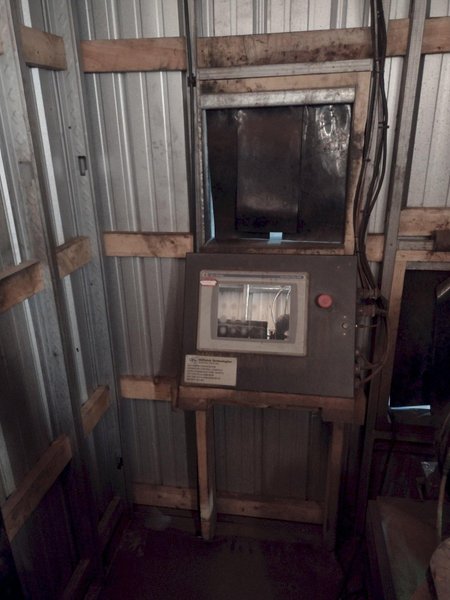

  • ELECTRICAL ENCLOSURES FOR COIL POWER SUPPLIES AND PLC CONTROLLER
SPECIAL END AREA (SEA) INSPECTION UNIT

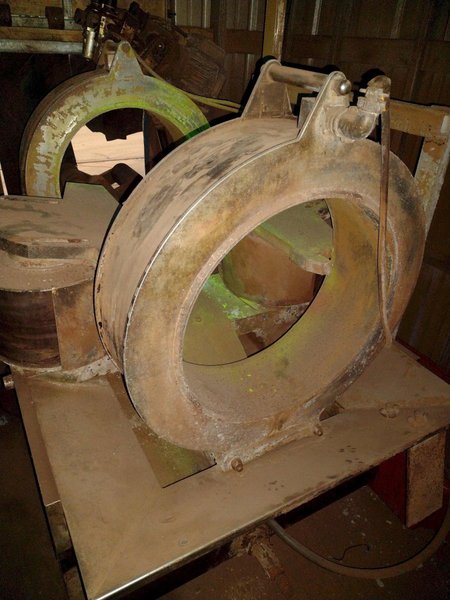

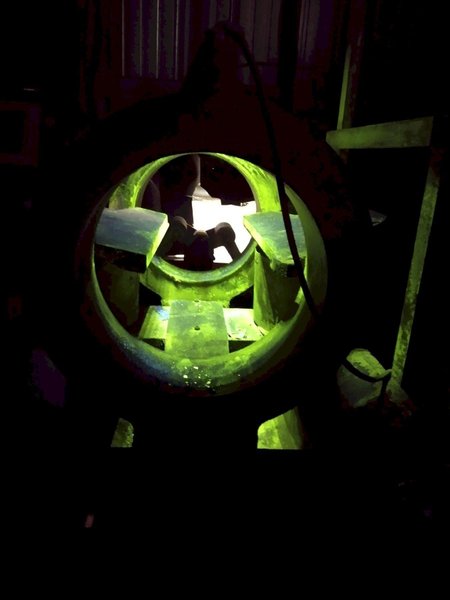

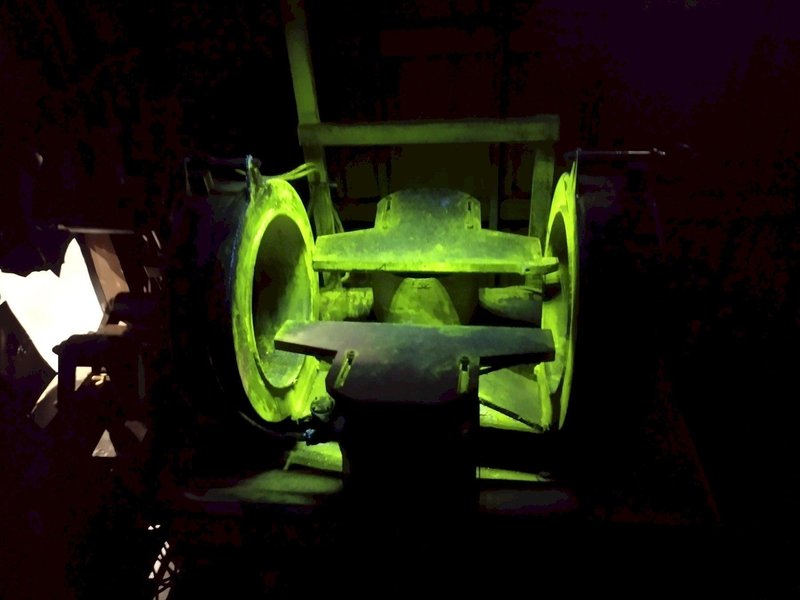

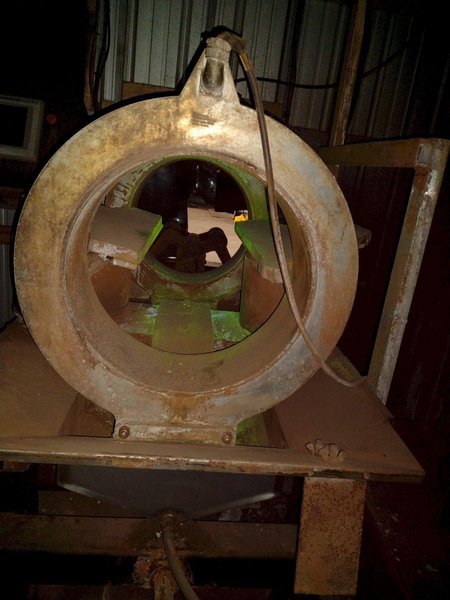

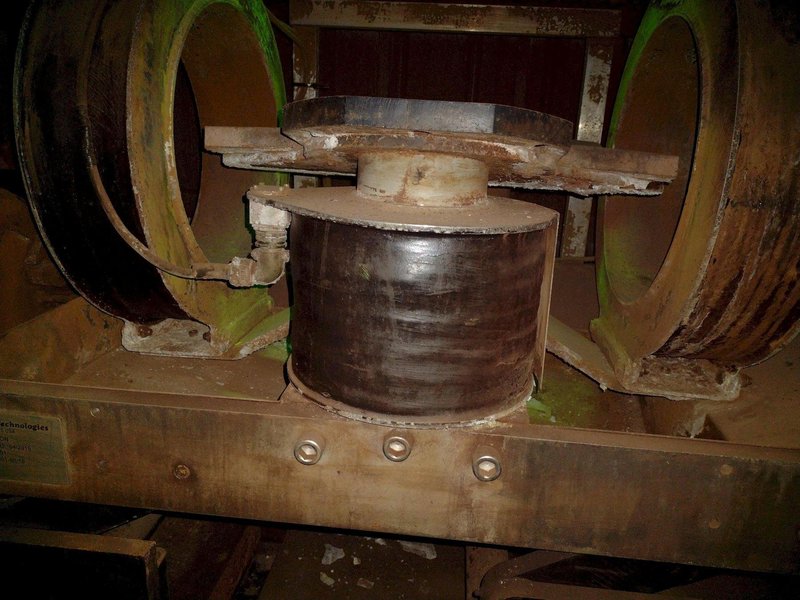

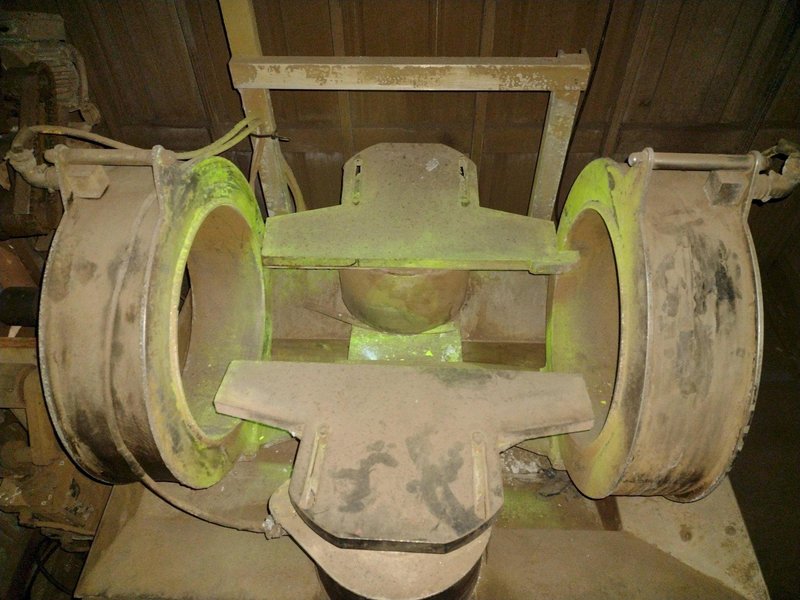

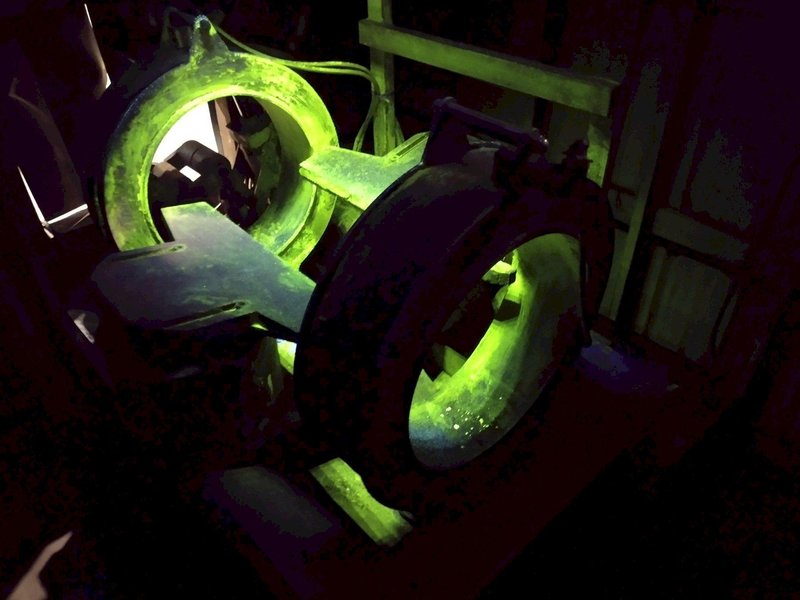

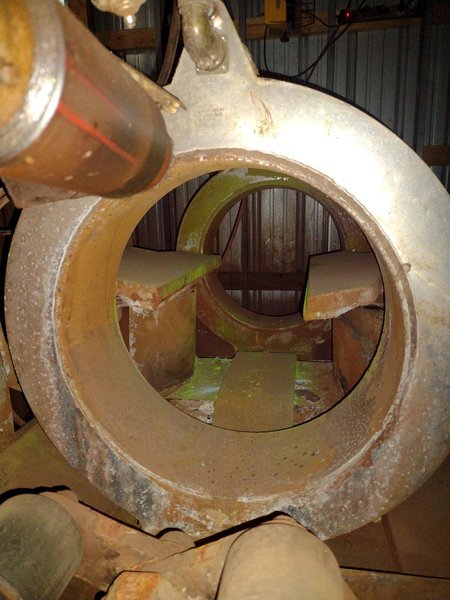

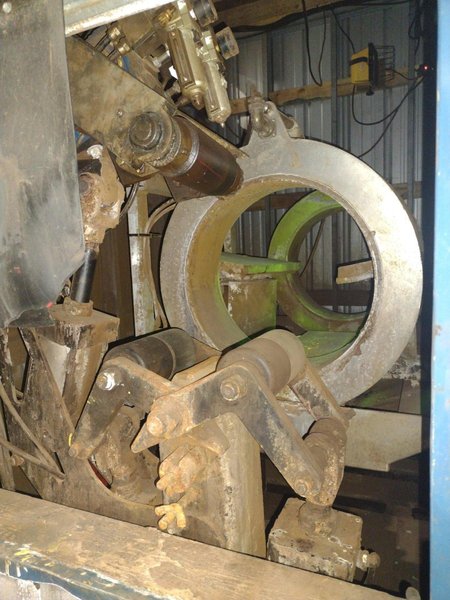

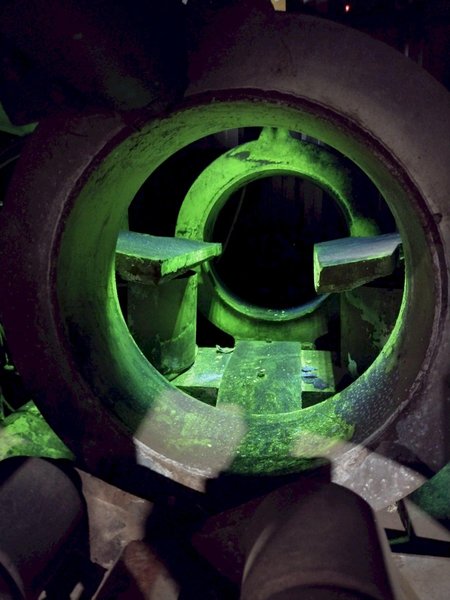

THE SEA INSPECTION UNIT IS BASED ON MAGNETIC PARTICLE INSPECTION (MPI) AND MAGNETIC FLUX LEAKAGE (MFL), BOTH ROBUST AND WELL ESTABLISHED INSPECTION TECHNOLOGIES WITH A PROVEN TRACK RECORD FOR ACCURACY AND RELIABILITY.  TWO MAG COILS COUPLED WITH AN ADJUSTABLE FLUX EXTENDER BAR ALLOWS FOR LONGITUDINAL INSPECTION OF TUBULAR GOODS; WHILE TWO I.D. MAG COILS ALLOW FOR TRANSVERSE INSPECTION.
