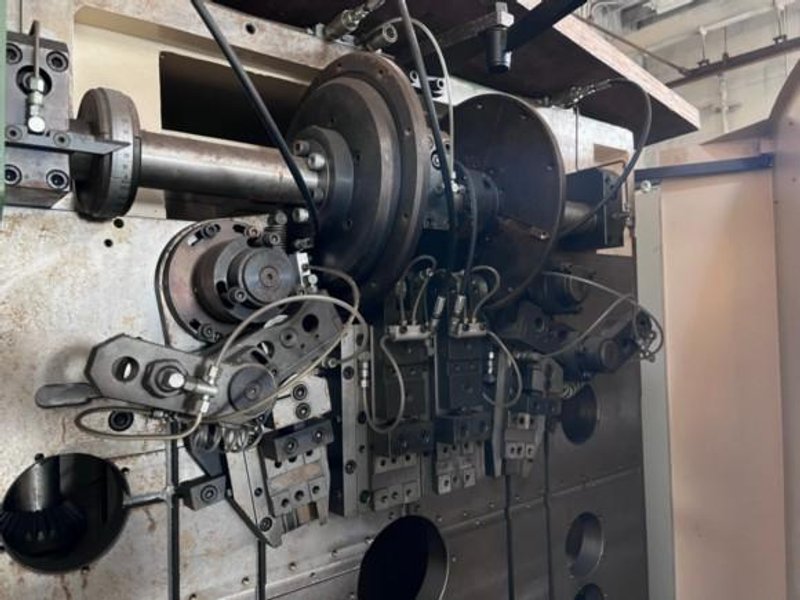

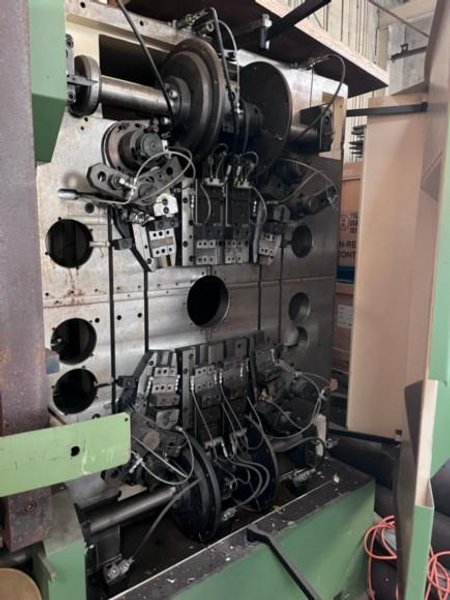

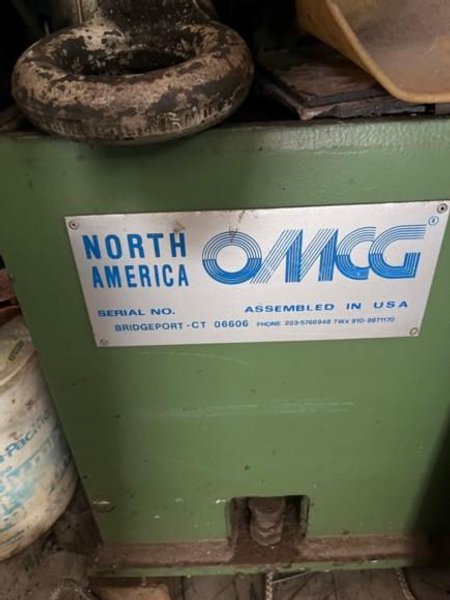

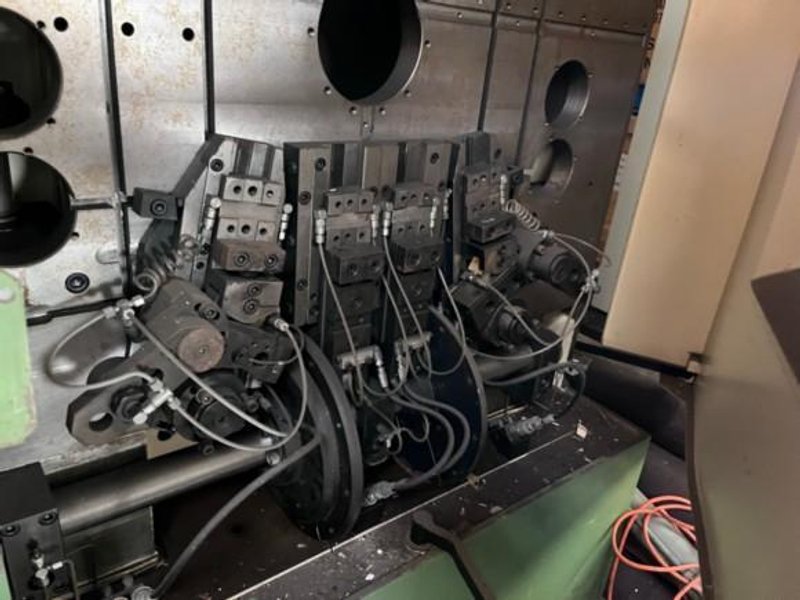

NEW OMCG MDL# TRG30 AUTOMATIC BLANKING AND FORMING MACHINE
Brand
Category
Model
TRG30
Stock #
116052
Year
Not specified
Condition
Used
Location
Not specified
|
***NEW, NEVER INSTALLED. IN STORAGE***
FEED LENGTH ................ 0 - 8 in
FEED PRECISION ............. 0.0004 in +/-
MATERIAL FEED .............. 135 OR 180 (IN DEGREES)
WORKING DEGREES ............ 225 OR 180 (IN DEGREES)
STRIP WIDTH ................ 2.0 STANDARD
WIRE DIA. .................. 0.236 in
TENSILE STRENGTH ........... ACCORDING TO BLANKING AND FORMING PRESSURES
PRESS CAPACITY ............. 33 tons
RAM:
FIXED STROKE ............... 0.787 in
STROKE ADJUSTMENT........... 0.314 in
TABLE-RAM DISTANCE ......... 5.00 in
FRONT BENDING SLIDES
OUTPUT ..................... 6.6 tons
STROKE ..................... 2.0 in
ANGULAR AND REAR BENDING SLIDES
OUTPUT ..................... 5.5 tons
STROKE ..................... 2.0 in
SPEED ...................... 30 - 300 pcs / min
MOTOR ...................... 8 10 HP
EQUIPPED WITH:
TOP SLIDES
BOTTOM SLIDE |
