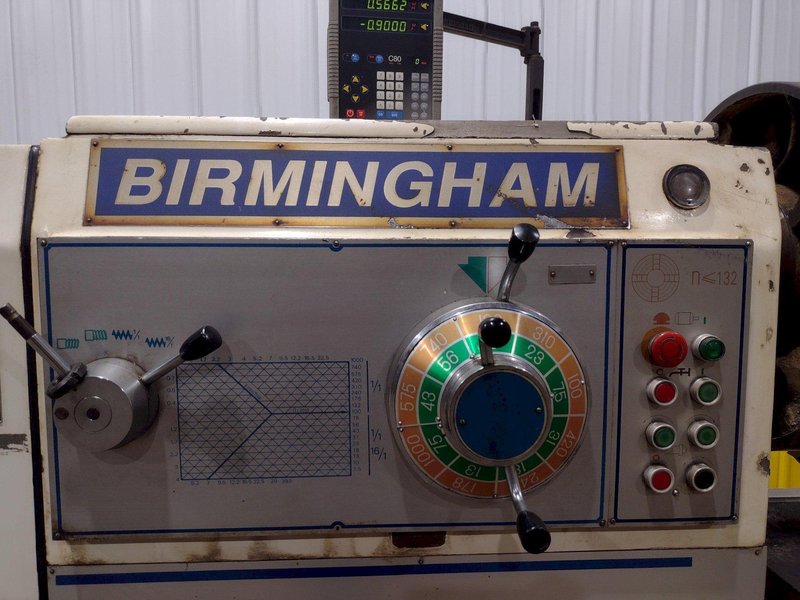

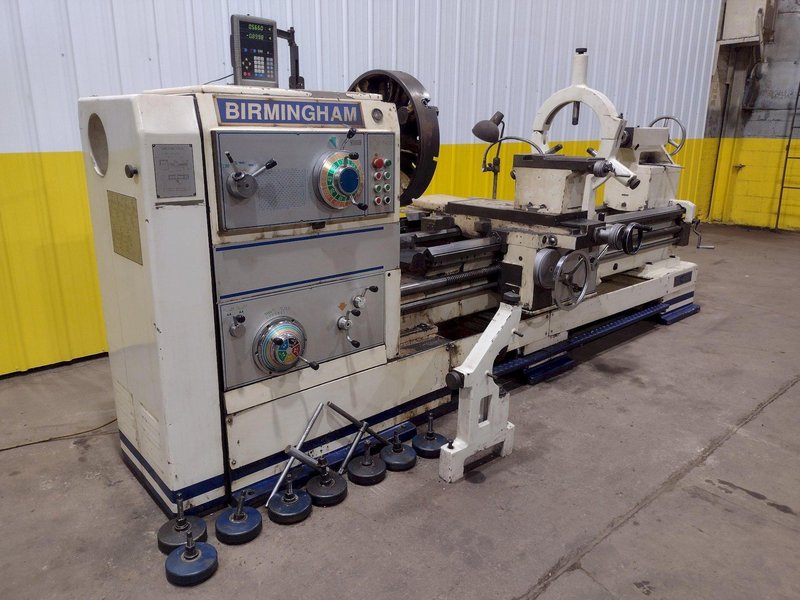

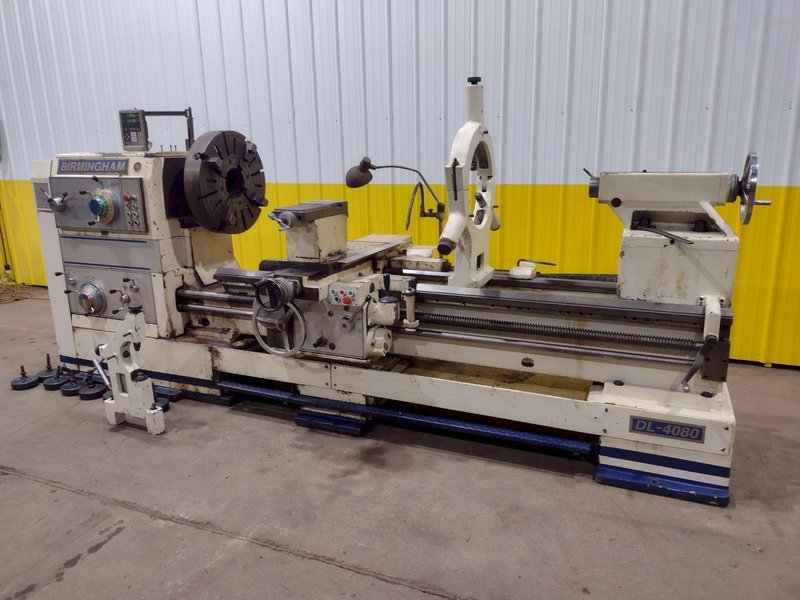

40" x 80" BIRMINGHAM MODEL #DL4080 ENGINE LATHE, 5-1/8" HOLLOW SPINDLE HOLE: STOCK #19321
Brand
Category
Type
Model
DL4080
Stock #
19321
Year
2002
Condition
Good
Location
Ohio
| Dimensions | 180" X 62" X 78" HIGH |
| Weight | 11000 pounds |
|

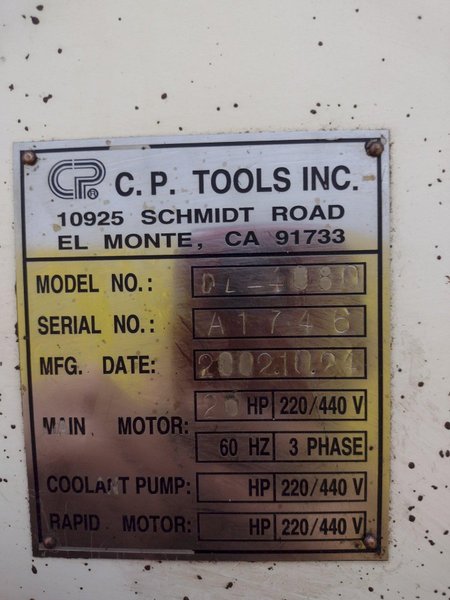

SERIAL .......................... A1746

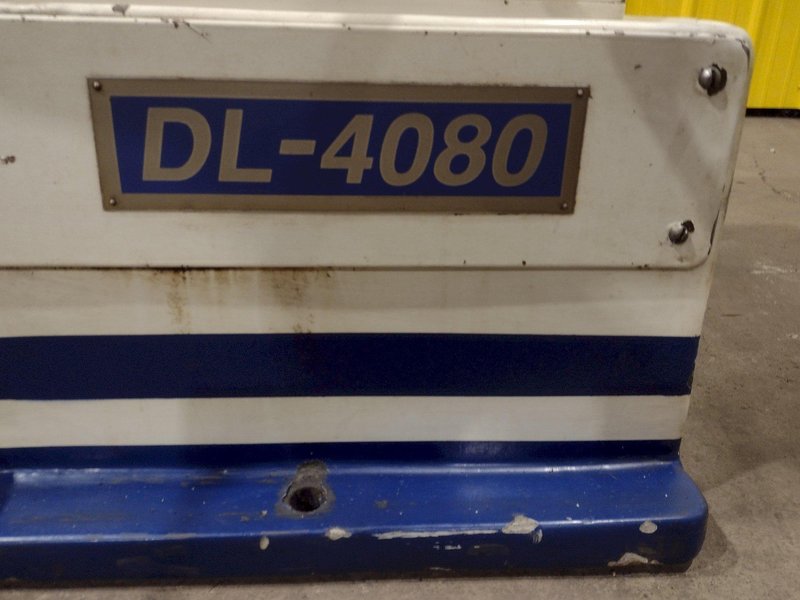

MODEL ........................... DL-4080
SWING ........................... 40"
SWING OVER CROSS ................ 28"
SWING IN GAP .................... 48"
LENGTH OF GAP ................... 16"
CENTERS ......................... 80"
SPINDLE HOLE .................... 5-1/8"
SPINDLE SPEEDS .................. (18) 7.5 TO 1,000 RPM
TAPER OF SPINDLE CENTER ......... MT NO 5
WIDTH OF BED .................... 21-21/32"
RAPID TRAVERSE .................. YES
SPINDLE NOSE .................... D-1-11 CAMLOCK

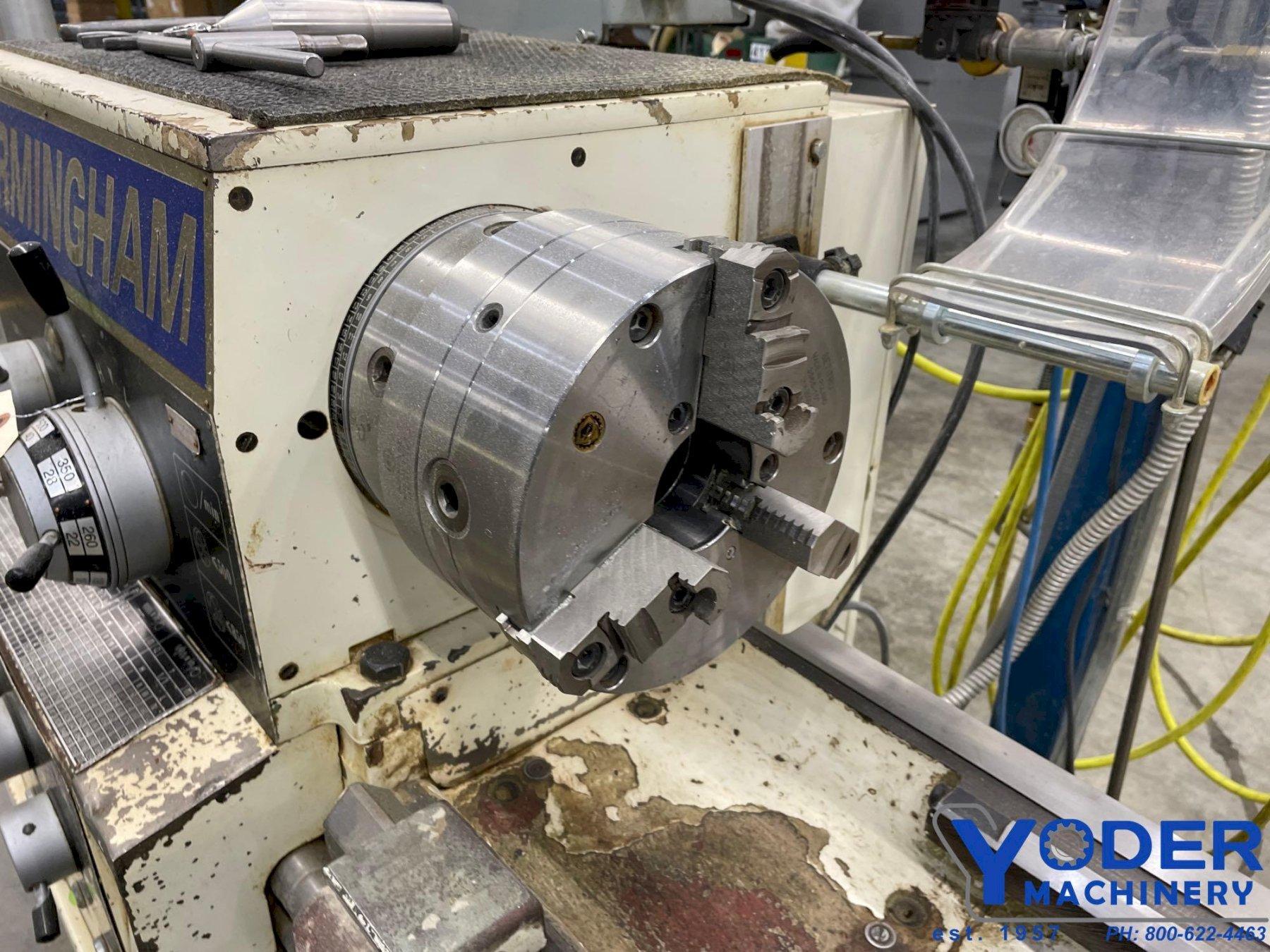

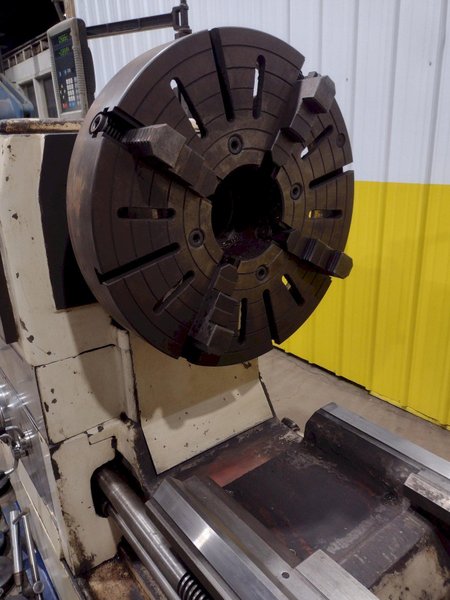

CHUCK ........................... 24.5"

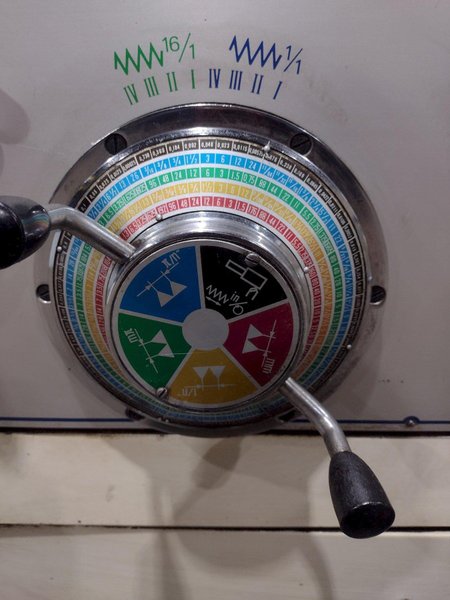

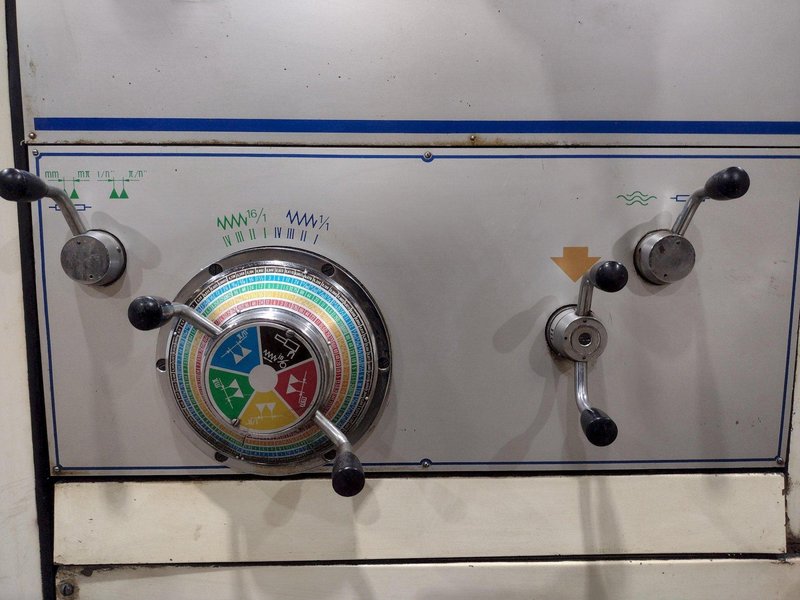

FEEDS, LONGITUDINAL ............. (64) .002 TO .96 IPR
FEEDS, CROSS ................... (64) .001 TO .48 IRP
THREADS (INCH) .................. (73) 32 1/16 TPI
THREADS (METRIC) ................ (57) 1 TO 256 MM
THREADS (MODULE) ................ (57) .5 TO 128 MM
THRADS (DIAMETERAL) ............. (57) 32-1/8 DP
CROSS SLIDE TRAVEL .............. 20-7/8"
TAILSTOCK QUILL ................. #5 MT
COOLANT MOTOR ................... 1/8 HP
RAPID MOTOR ..................... 1.5 HP
MOTOR ........................... 20 HP |
|
