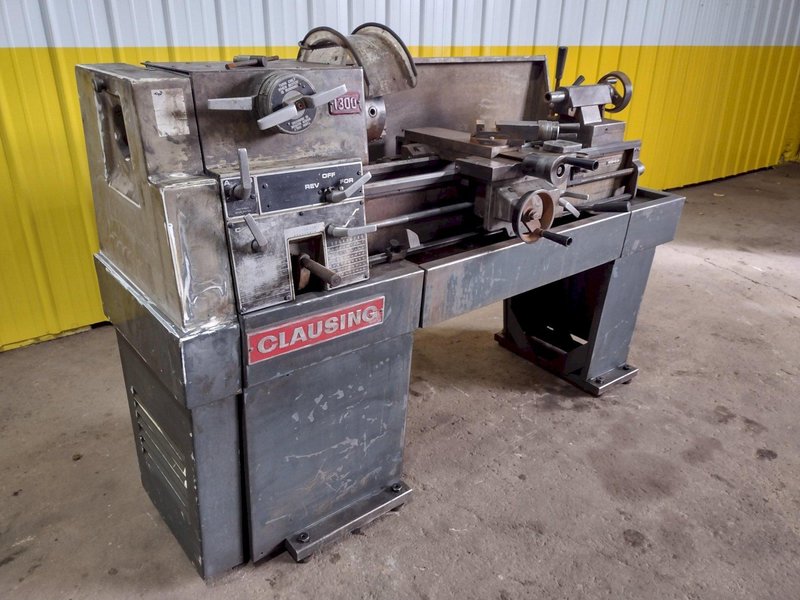

13" X 24" CLAUSING MODEL #1300 ENGINE LATHE, 1.75" HOLE: STOCK #19261
Brand
Category
Type
Model
Not specified
Stock #
19261
Year
Not specified
Condition
Good
Location
Ohio
|
SERIAL ..................... 131529
MODEL ...................... 1301
Swing ...................... 13″
Swing OverCross Slide ...... 7.6″
Distance Between Centers ... 24″
Spindle Bore ............... 1.375″
Spindle Speeds ............. 45 TO 2,000 RPM
Longitudinal Feeds ......... (54) 0.00067 TO 0.0374 IPR
Cross Feeds ................ (54) 0.00033 TO 0.0187 IPR
Threads .................... (54) 4 TO 224 TPI
Tailstock Spindle Taper .... #3 MT
Main Motor ................. 5 HP |
