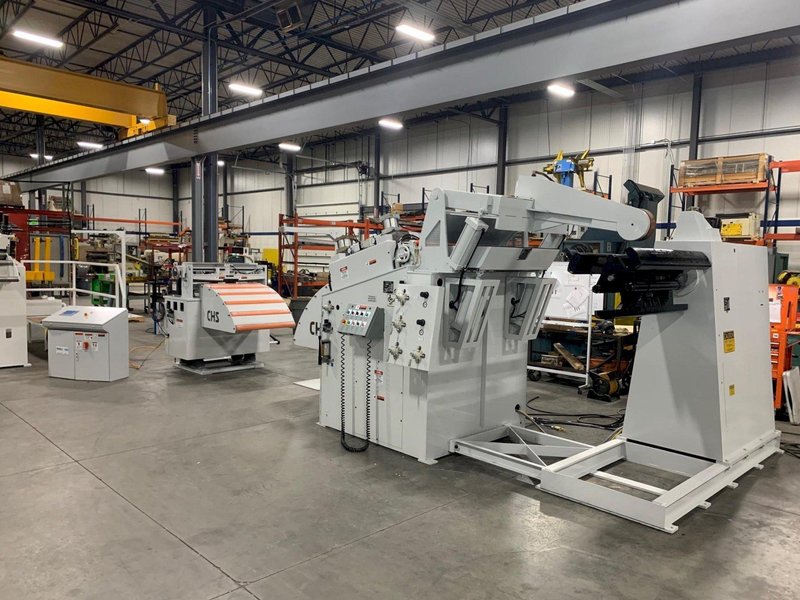

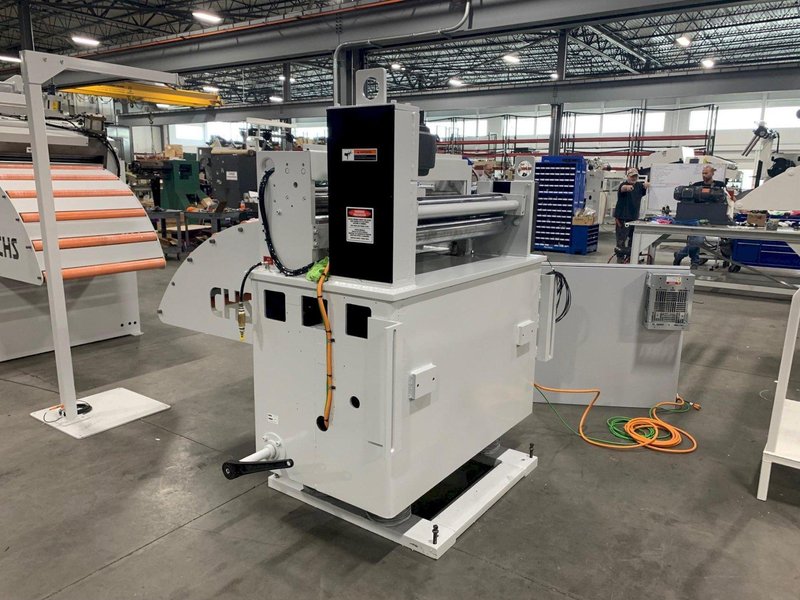

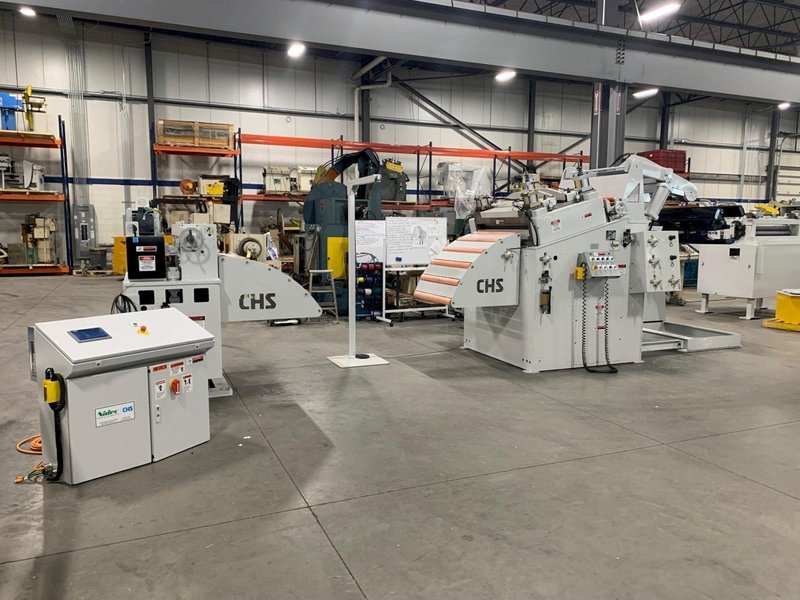

CWP / Perfecto Complete Coil Feed Line10,000 Lb x 36" Wide
Brand
Category
Type
Model
5R-42 / 42D11
Stock #
5453B-FL
Year
Not specified
Condition
Used
Location
Not specified
| Coil Weight Capacity: | 10000 pounds |
| Stock Width Capacity | 36 inches |
| Max Stock Thickness Capacity At Full Width | .090 inches |
| Minimum Expansion Range: | 17.5 inches |
| Maximum Expansion Range: | 22.5 inches |
| Coil O.D. Capacity: | 72 inches |
|
CWP Coil Reel and Powered Straightener Combination Specifications:

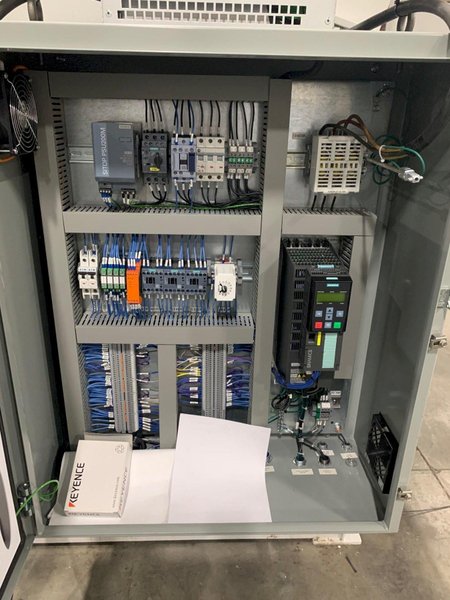

Coil weight capacity: 10,000 Lbs. Coil width capacity: 36" Stock thickness capacity: .090" x 36" Wide Stock thickness capacity: .125" x 24" Wide Expansion range: 17.5" - 22.5" Coil O.D. capacity: 72" CWP Coil Reel and Powered Straightener Combination Equipment and Features: CWP Coil Reel Uncoiler Model No.: 5R-42, Serial No.: 053696-SR Three leaf mandrel coil reel Hydraulic coil reel mandrel expansion Adjustable coil reel keeper arms Air drag brake mounted on main coil reel spindle Adjustable brake - pull of tension Threading drive Jog forward and reverse Self contained hydraulic pump unit CWP Powered Coil Straightener Model No.: 42D11, Serial No.: 053696-STR Entry and exit powered coil straightener pinch rolls x 4.20" diameter Air operated entry upper powered coil straightener pinch roll adjustment Air operated exit upper powered coil straightener pinch roll adjustment Eleven coil straightening rolls x 2.80" diameter Manual individual upper coil straightening roll adjustments Coil hold down arm, peeler de-bender station Motorized coil hold down arm end wheel Stock peeler table with extension Stock end debender Heavy duty hand crank edge guides NEW AC VFD Control System Exit cascade loop support rollers Variable speed powered coil straightener drive system New Laser Loop control New Exit Threading Table Model ETT-36 Bomb bay door design Perfecto Servo Roll Feed 36" Wide Four inch upper and lower feed rolls Piloting upper roll Cabinet base mounted All new AC Servo drive and controls IN STOCK READY TO SHIP Reconditioned, painted and 100% cycling Warranty: Ninety days parts and labor Terms: 40% Deposit, net prepaid |
|
