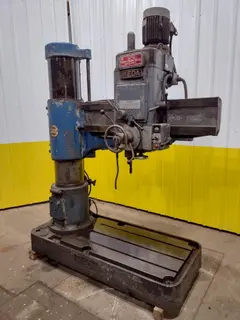

MODEL ...................................... RM-1175
SERIAL ..................................... 81094
YEAR MFG ................................... 1981
DISTANCE COLUMN TO SPINDLE CENTER, MAX ..... 48"
COLUMN DIAMETER ............................ 13 5/8"
SPINDLE TAPER .............................. NO.5 MORSE
SPINDLE STROKE ............................. 14 1/2"
POWER FEED SPINDLE DRIVE MOTOR RATING (MAIN MOTOR) ... 7.5 H.P. DISTANCE COLUMN TO SPINDLE CENTER, MIN ...... 10"
DISTANCE SPINDLE TO BASE, MAX ............... 54 1/2"
DISTANCE SPINDLE TO BASE, MIN ............... 12 1/2"
SPINDLE STROKE .............................. 14 1/2"
USEABLE SPACE OF T-SLOTTED BASE ............. 50" X 34"
HEIGHT OF T-SLOTTED BASE .................... 7 5/8"
BEARING DIAMETER ............................ 2 5/8"
QUILL DIAMETER .............................. 3 5/8"
SPINDLE SPEED RANGE (12) .................... 30 - 1500 RPM
SPINDLE FEED RANGE (9) ...................... 0.003 - 0.040 IPM
CAPACITIES:
DRILLING - STEEL ............................. 2 1/2"
CAST IRON .................................... 2 3/4"
TAPPING - STEEL .............................. 2"
CAST IRON .................................... 2 3/8"
BORING - STEEL ............................... 4"
CAST IRON .................................... 6" |
